Ergotron 33-323-200 DS100 Triple-Monitor Desk Stand

Ergotron 33-323-200 can mount 3 displays in a horizontal row with maximum screen size and width (including the frame) of 21" each.

Be the first to review this product
Product ID: 15210
Recommended Accessories
List Price: $550.00
Our Price: $319.00
You Save: $231.00
Shipping: $24.51 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Description

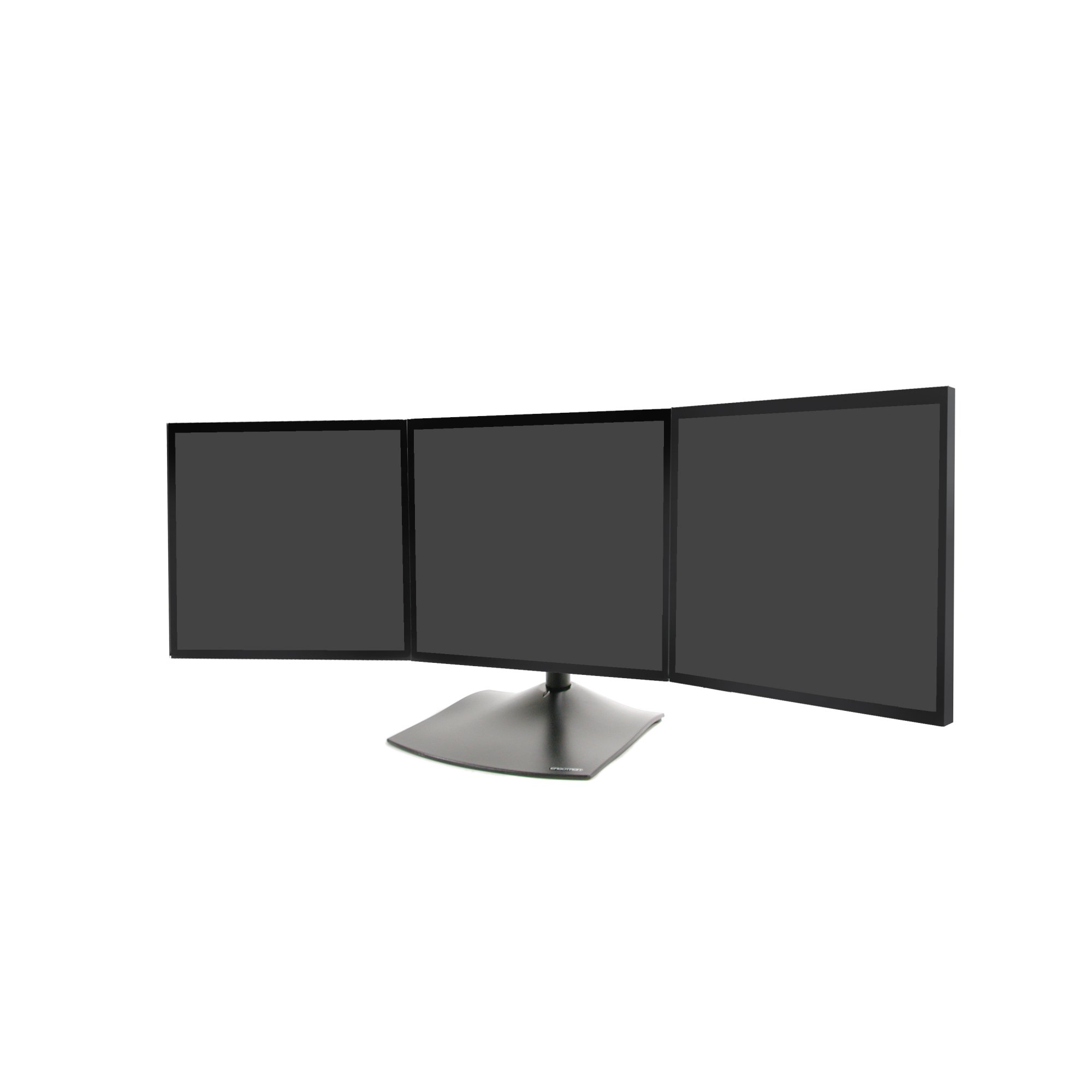

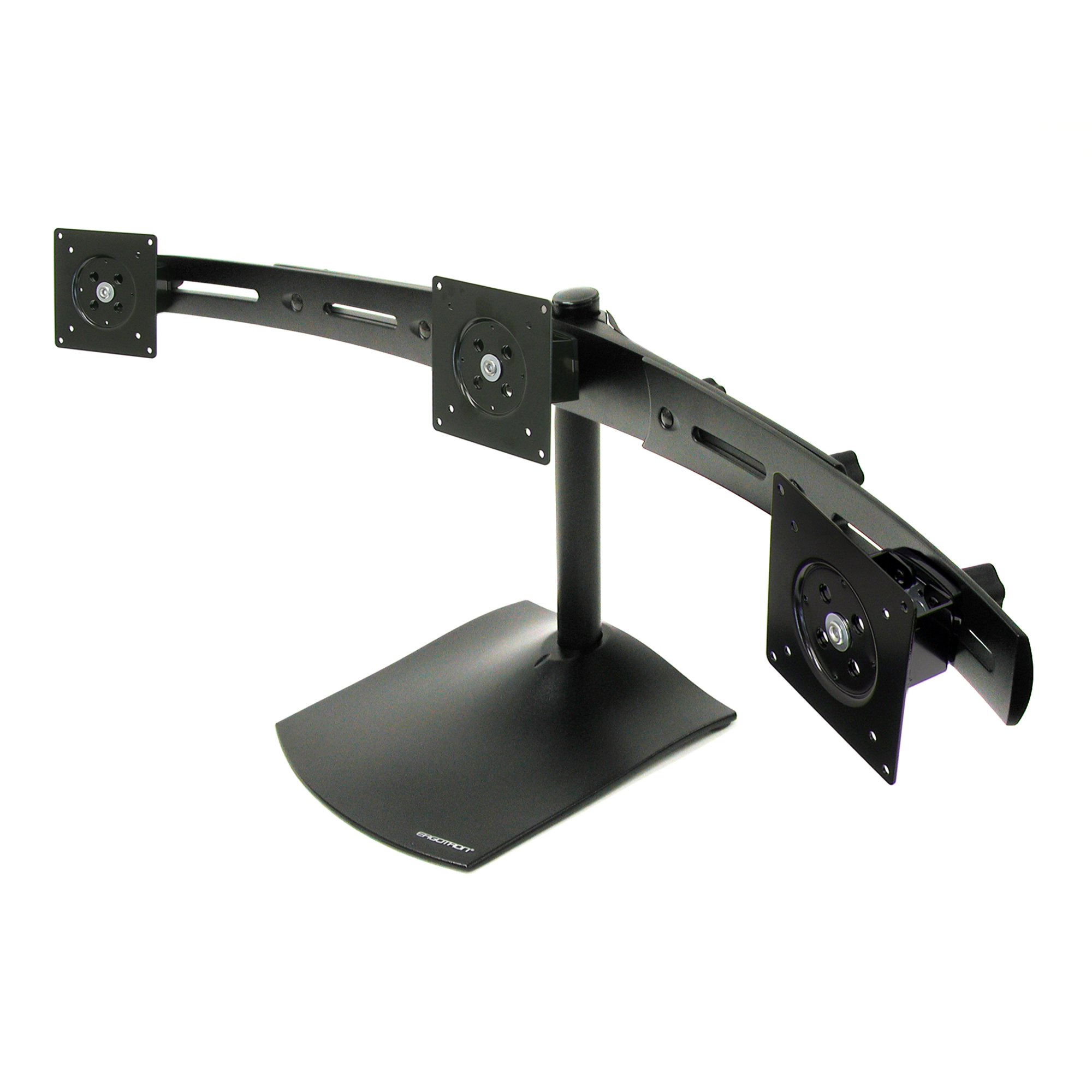

Ergotron 33-323-200 conserves desk space by suspending three flat panels on a single base. Easily view multiple screens at once to increase productivity. DS100’s modular design allows customization to fit your needs.



Technical Drawing

Technical Drawing for Ergotron DS100 Triple-Monitor Desk Stand



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 21" 31 lbs

14 kg

- - - 360° MIS-D



Product Information

Part Number:

33-323-200

Description

DS100 Triple-Monitor Desk Stand, Horizontal (black)

Includes

  • Base
  • 14" pole
  • Paraview bow
  • Two (2) sliding brackets
  • One (1) angled center bracket
  • One (1) flat center bracket

Display Width

Maximum outside width of display is 20" (51 cm)

Weight Capacity

31 lbs (14 kg) per monitor; 93 lbs (42 kg) total

Mounting Standards

VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Bow

Height adjustable bow

Install

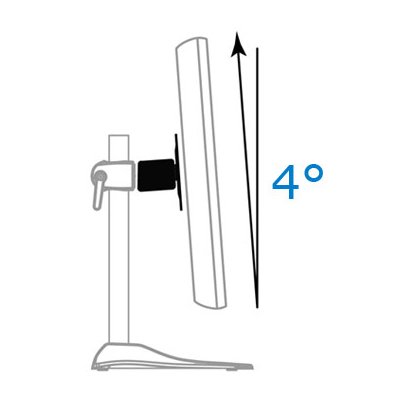

Install displays with 4°-angle off-set: position them upward, inward or downward for optimized viewing conditions

Shipping Dimensions

31" x 16" x 9" (787 x 406 x 229 mm)

Shipping Weight

20 lbs (9 kg)

Warranty

Five (5) years



Benefits

  • View multiple monitors simultaneously with patented Paraview Technology.

  • Position monitors for maximum productivity.

  • Cable management system organizes and routes cables.

  • Low-profile base saves desk space.

  • Accommodates various LCD sizes; slide displays into place so screen edges align.

  • Durable aluminum and steel construction creates an extremely stable platform.





Model 33-323-200
Manufacturer Ergotron
Part Number 33-323-200
UPC 698833008241
Color Black
Monitor Size Up to 21". Maximum outside width of display is 20" (51 cm).
Weight Capacity 31 lbs (14 kg) per monitor; 93 lbs (42 kg) total
Rotation 360 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Shipping Dimensions 31" x 16" x 9" (787 x 406 x 229 mm)
Shipping Weight 20 lbs (9 kg)
Warranty Five (5) years
Mounting Options Desk Stand
Monitor Arm Types 3 Monitors
