$277.00

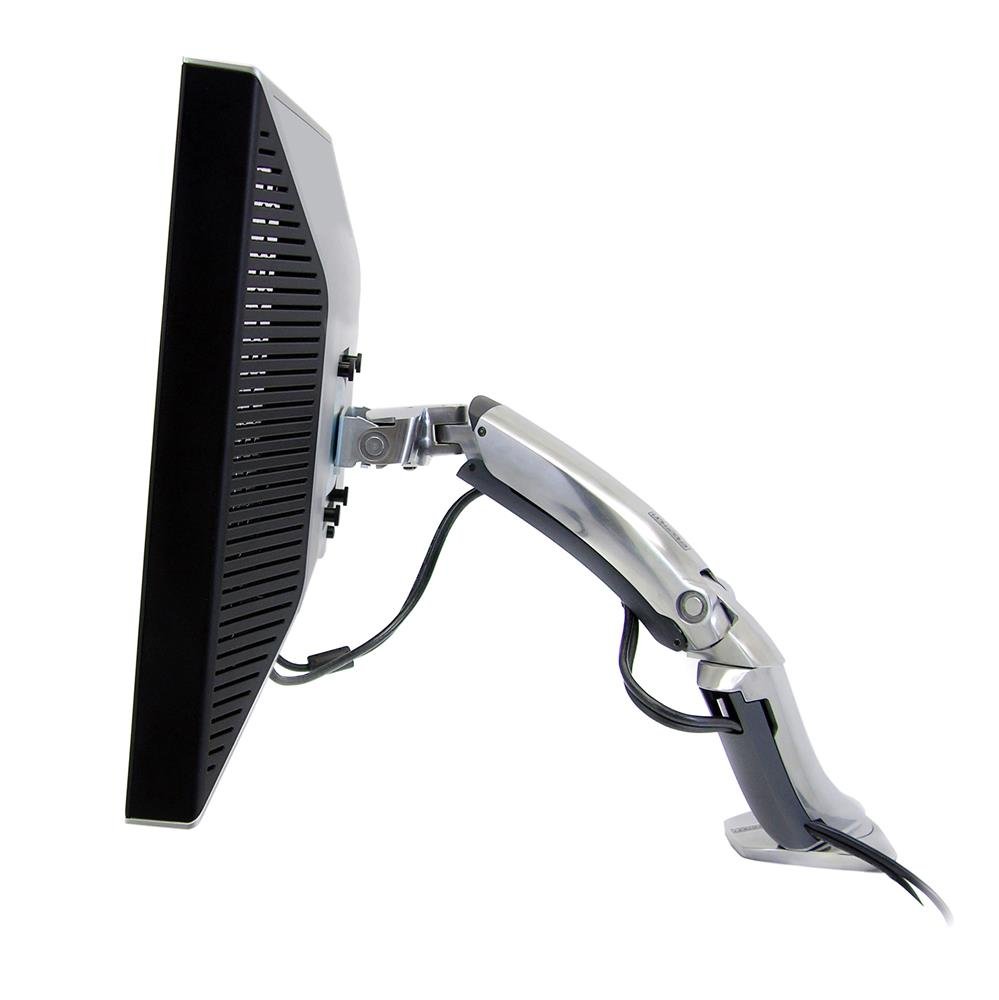

Ergotron 45-214-026 MX Desk Mount Monitor Arm

Product ID 15641
HIGHLIGHTS
Ergotron 45-214-026 MX Desk Mount Monitor Arm
Ergotron 45-214-026 in a recording studio
Technical Drawing I
Technical Drawing II
Ergotron 45-214-026 MX Desk Mount Monitor Arm
Ergotron 45-214-026 MX Desk Mount Monitor Arm
Ergotron 45-214-026 MX Desk Mount Monitor Arm
Ergotron 45-214-026 MX Desk Mount Monitor Arm
Ergotron 45-214-026 MX Desk Mount Monitor Arm
Ergotron 45-214-026 MX Desk Mount Monitor Arm
Clamp and Grommet mount of Ergotron 45-214-026
Ergotron 45-214-026 MX Desk Mount Monitor Arm
Ergotron 45-214-026 MX Desk Mount Monitor Arm
Ergotron 45-214-026 in a recording studio
Technical Drawing I
Technical Drawing II
Ergotron 45-214-026 MX Desk Mount Monitor Arm
Ergotron 45-214-026 MX Desk Mount Monitor Arm
Ergotron 45-214-026 MX Desk Mount Monitor Arm
Ergotron 45-214-026 MX Desk Mount Monitor Arm
Ergotron 45-214-026 MX Desk Mount Monitor Arm
Ergotron 45-214-026 MX Desk Mount Monitor Arm
Clamp and Grommet mount of Ergotron 45-214-026
Ergotron 45-214-026 MX Desk Mount Monitor Arm

Highlights

  • Desk mount Monitor Arm
  • 14-30 lbs weight capacity: Holds mid-size displays and monitors weighing up to 30 lbs
  • Up to 30" screen size: Carries displays up to 30" in size
  • 5" height adjustment: Provides 5" vertical adjustment to the monitor
  • 16.7" horizontal extension: Extends, retracts display pushing it out of the way when not in use
  • For more vertical adjustment, see Ergotron LX Desk Mount LCD Arm

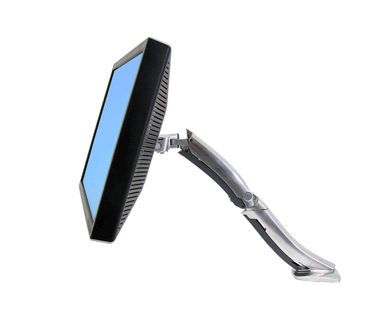

Animation of Ergotron MX Desk Mount Arm

Description

Ergotron 45-214-026, the MX LCD Arm, accommodates TVs as well as monitors weighing up to 30 lbs (13.6 kg) and up to 30" in screen size. Vertical adjustment of 5", horizontal extension and retraction of 16.7" and movement from portrait to landscape provide ergonomic flexibility to the user.

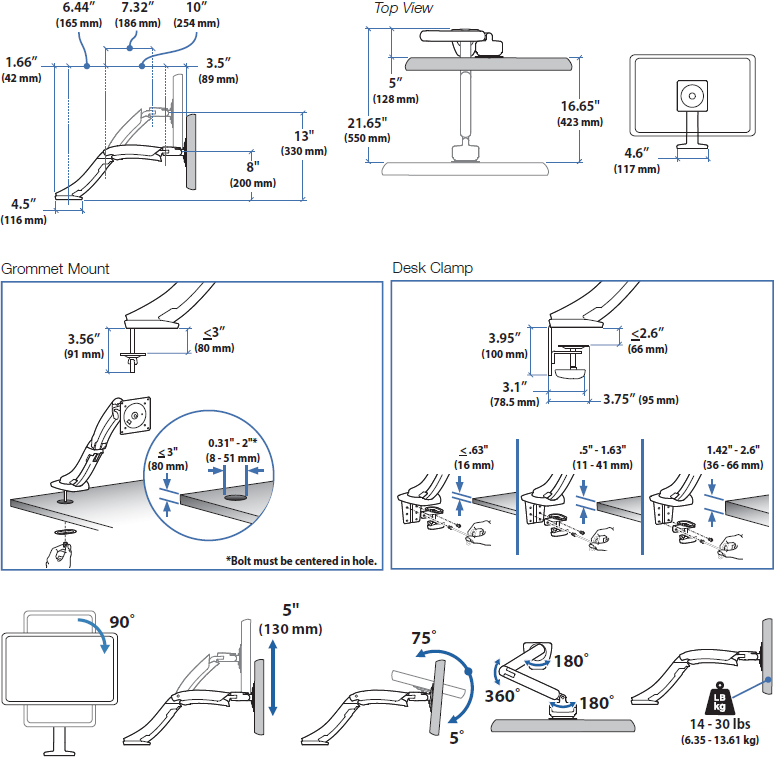

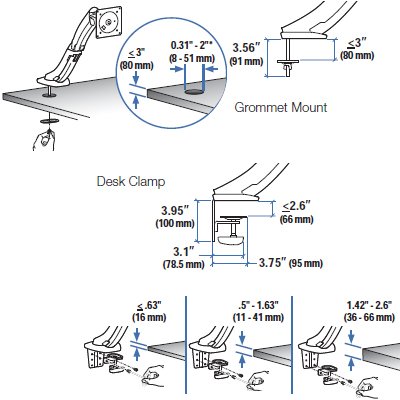

Technical Drawing

Technical drawing for Ergotron 45-214-026 MX Desk Mount Monitor Arm

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 30"

14 - 30 lbs

6.4 - 13.6 kg

5"

12.7 cm

80° 360° 90° MIS-D/E/F

Product Information

Part Number 45-214-026
Description MX Desk Mount LCD Monitor Arm (polished aluminum)
Includes
  • Desk clamp
  • Grommet mount
Mounting Options Desk clamp attaches to surface edge 2.6" (66 mm) thick; grommet mount attaches through surface holes .31" to 2.0" (8 to 51 mm) wide and up to 3" (80 mm) thick
Weight Capacity 14 to 30 lbs (6.4 to 13.6 kg). Monitor depth greater than 4" (102 mm) may diminish capacity. Contact Ergotron for more information
Pan Pans at base 180°; rotates at extension 360°; pans at monitor 180°
Tilt Monitor tilts 75° up and 5° down
Extend/Retracts LCD up to 16.7" (424 mm)
Note Motion range may be limited when using larger displays and/or by the position of the VESA hole pattern on the back of the display
Portrait/Landscape Rotation Includes position lock.
Portrait Mode Is incompatible with 30" displays
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm). For displays that use a 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
Cable Management Internal cable management
Shipping Dimensions 25.6" x 7.3" x 6.3" (650 x 185 x 160 mm)
Shipping Weight 9 lbs (4.2 kg); actual product weight: 7.7 lbs (3.5 kg)
Warranty Ten (10) years

Benefits

  • Accommodates mid-size displays and all-in-one computers weighing up to 30 lbs (13.6 kg).
  • Position your display for maximum ergonomic comfort to relieve eye, neck and back strain.
  • Free up your table or desktop to increase your workspace.
  • Upgrade LCD monitors and TVs with improved ergonomic adjustment.
  • Pre-assembled arm offers monitor/TV theft deterrence.
  • Rotate screen for portrait viewing of photos and pages - eliminate scrolling.
  • Cable management feature conceals and routes cables under the arm, out of the way.
  • Extends/retracts LCD up to 16.7" (424 mm); push your display out of the way when not in use.
  • Patented CF motion technology provides premium ease-of-use display adjustment.
  • Easy-to-use, simple installation and effortless operation.
Model 45-214-026
Manufacturer Ergotron
Part Number 45-214-026
UPC 698833009378
Color Polished aluminum
Extend/Retract Range Extends/retracts LCD up to 16.7
Monitor Size Up to 30
Weight Capacity 14-30 lbs (6.4-13.6 kg). Monitor depth greater than 4
Lift (12.7 cm) 5 in
Tilt Up 75 degree and down 5 degree
Pan 360 degree
Rotation 90 degree
Mounting Options Desk
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm).
Shipping Dimensions 25.6
Shipping Weight 9 lbs (4.2 kg)
Warranty Ten (10) years
Monitor Arm Types 1 Monitor
Number of Monitors 1 Monitor
Weight 7.7 lbs (3.5 kg)
Number of Monitors 2 Monitors
Price $200 - $299

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 1
(5 out of 1)
Ergotron 45-214-026 MX Desk Mount Monitor Arm

by John C, Maryland, Feb 01, 2016

Speaking as an engineer and an Industrial Designer this is a very good design, great attention to details like cord hiding. Instructions adequate and obvious. Not so obvious is the wide range of movement this arm is capable of, just need to try.
