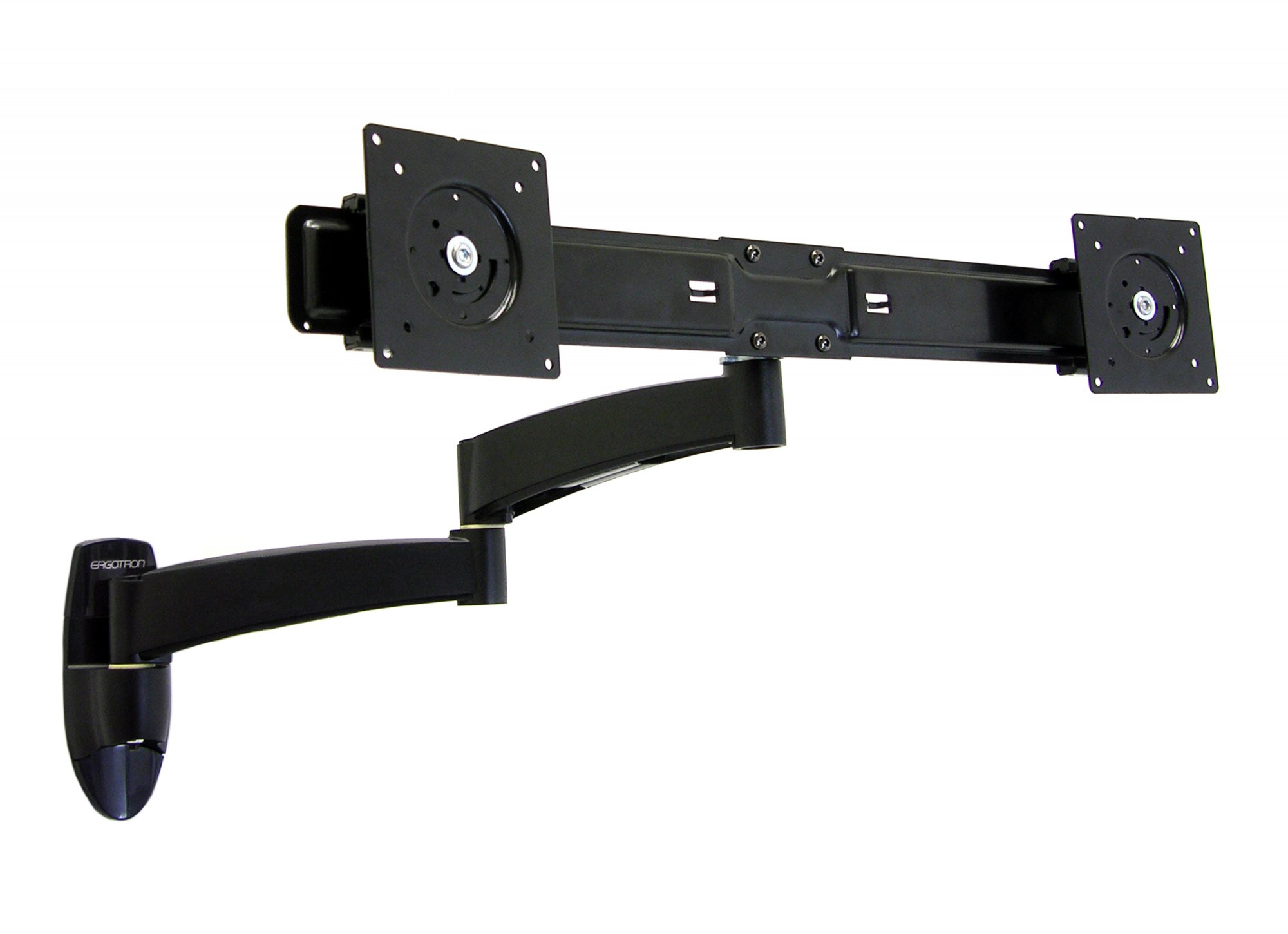

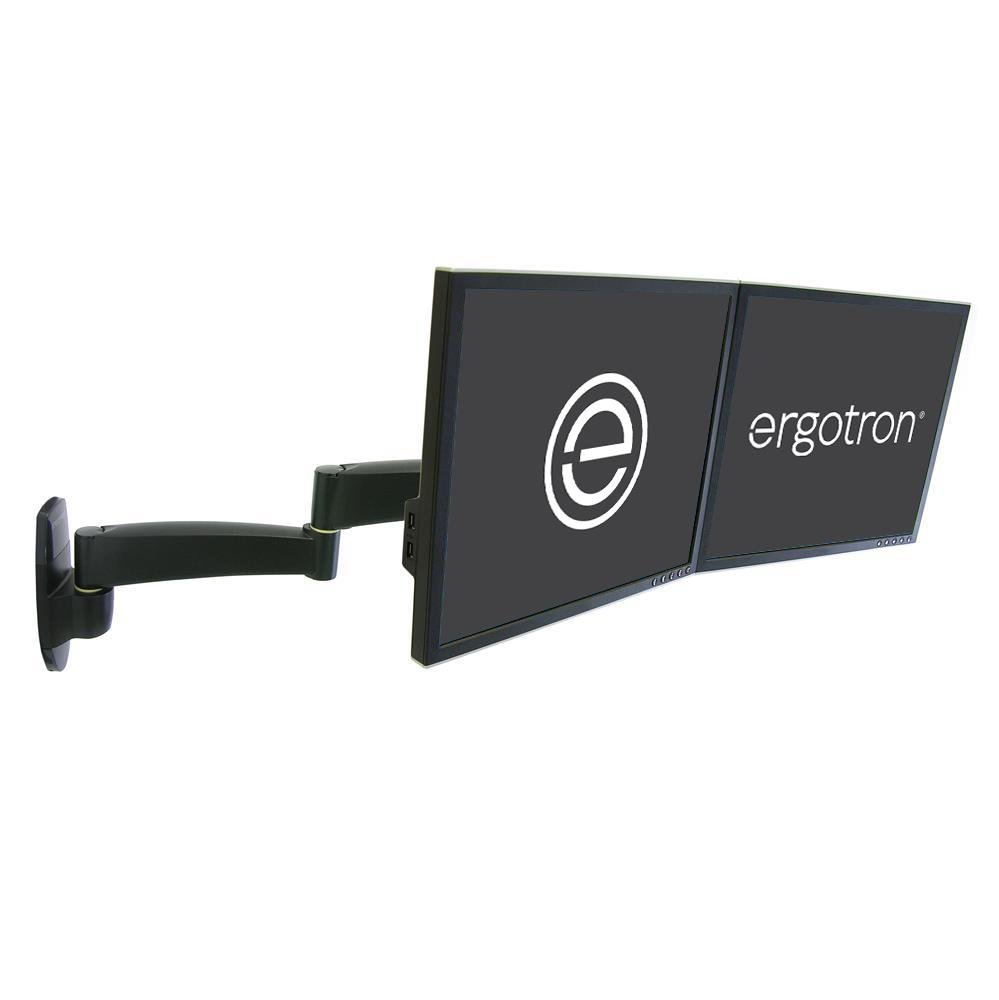

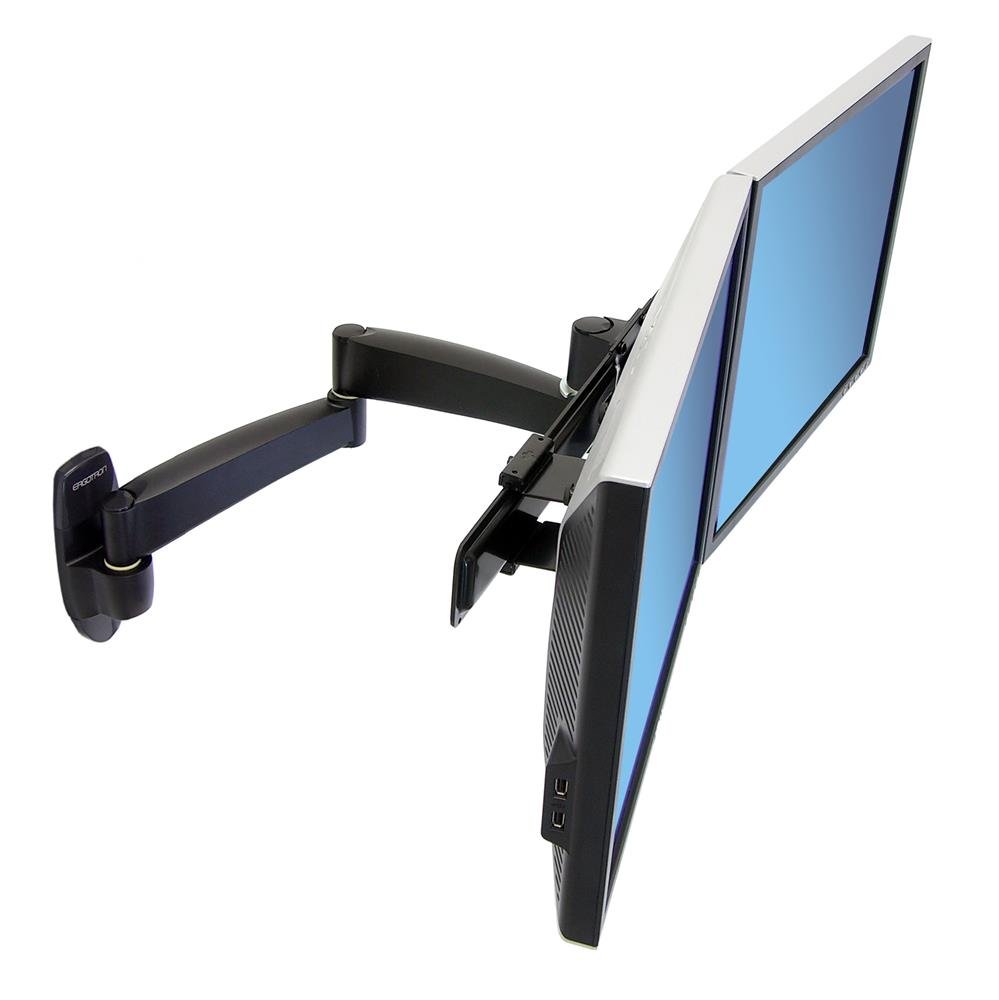

Ergotron 45-231-200 - 200 Series Dual Monitor Arm

Be the first to review this product
Product ID: 15799
Recommended Accessories
List Price: $600.00
Our Price: $349.00
You Save: $251.00
Shipping: $13.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Description

The interlocking design of the 200 Series provides telescoping adjustment. Easily extend or retract your monitors through a 23" (58 cm) range of motion.

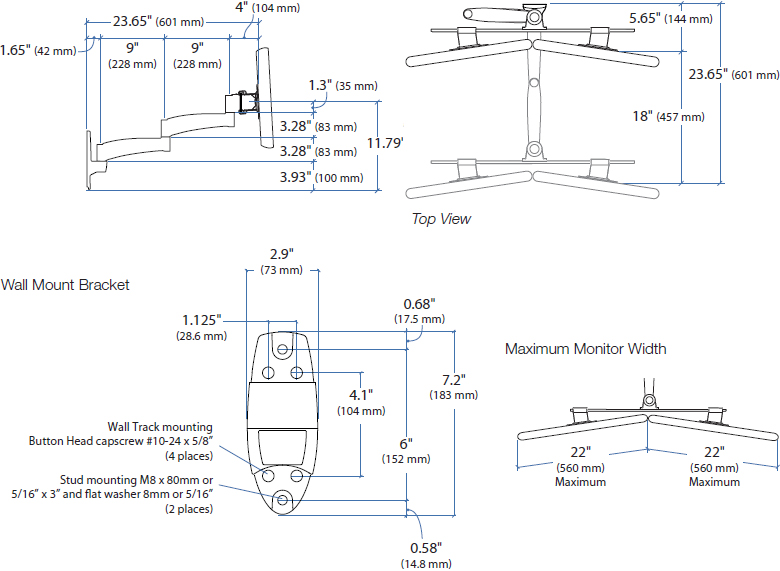

Technical Drawing

Technical Drawing for Ergotron 200 Series Dual Monitor Arm



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 22"

Up to 13 lbs

5.9 kg

- - 360° 360° MIS-D



Product Information

Part Numbers

45-231-200

Description

200 Series Dual Monitor Wall Mount Arm (black)

Includes

  • Wall mount bracket
  • 2 extensions
  • Crossbar and 2 sliding LCD mounts
  • VESA mounting screws

Maximum outside width of Display

Is 21.25" (54 cm) when displays are 2" (5 cm) thick. This is typically the horizontal dimension of a 22"-diagonal screen-size monitor. Actual allowable width of displays will vary slightly depending on display thickness

Weight Capacity

13 lbs (5.9 kg) per mount, 26 lbs (11.8 kg) total. Note: Monitors must be equal in weight or ±1 pound (.45 kg)

Monitor Depth

Greater than 3" (7.5 cm) may diminish capacity

Install

Display mounts on the bow at +2.5° or -2.5° angle to optimize viewing conditions

Monitors

Are installed with 8° inward off-set angle, creating a 16° viewing parabola for better sight lines

Mounting Standards

VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)

Exterior

Durable, easy-to-clean powder-coated painted steel exterior

Mounting Options

Mounts to sturdy vertical surfaces. Where applicable, attach to wood stud

Shipping Dimensions

5.25"H x 13.75"W x 24.25"D (133 x 349 x 616 mm)

Shipping Weight

11.8 lbs (5.3 kg)

Warranty

Five (5) years



Benefits

  • Position two LCDs at the point of need, then push them back out of the way when not in use

  • Touch-screen stability

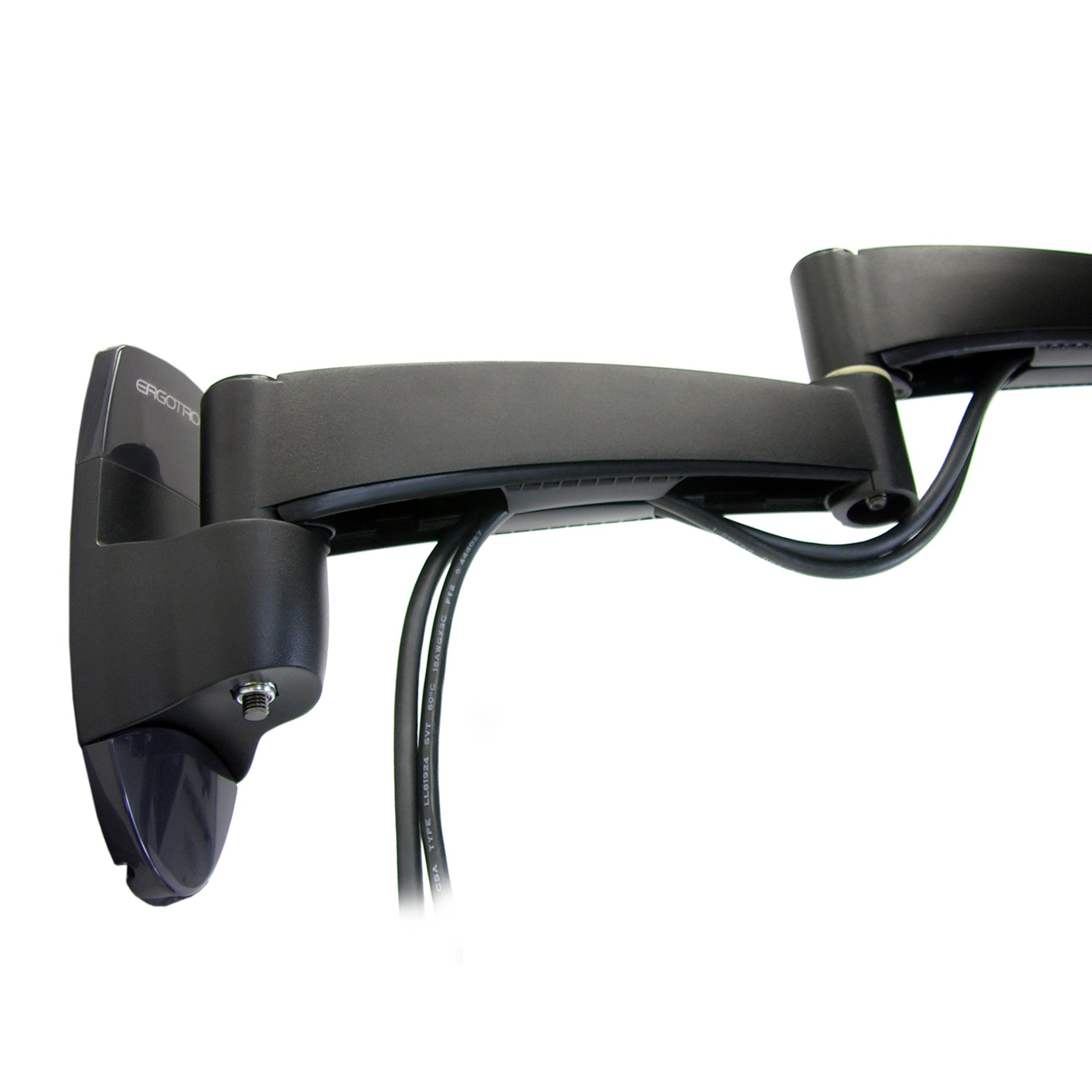

  • Cable management system routes and conceals cables under the arm

  • Accommodates various display sizes; slide screens into place to align edges

  • Rugged steel construction

  • Extends out 23" (58 cm) or folds back to 5.7" (14.5 cm) from wall in storage position

  • Rotate screens to view in either landscape or portrait mode





Model 45-231-200
Manufacturer Ergotron
Part Number 45-231-200
UPC 698833010589
Color Black
Monitor Size Maximum outside width of display is 21.25" (54 cm) when displays are 2" (5 cm) thick. This is typically the horizontal dimension of a 22"-diagonal screen-size monitor. Actual allowable width of displays will vary slightly depending on display thickness
Weight Capacity Up to 13 lbs (5.9 kg) per mount, 26 lbs (11.8 kg) total. Note: Monitors must be equal in weight or ±1 pound (.45 kg). Monitor depth greater than 3" (7.5 cm) may diminish capacity.
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Extend/Retract Range Extends out 23" (58 cm) or folds back to 5.7" (14.5 cm) from wall in storage position
Mounting Options Wall
Shipping Dimensions 5.25"H x 13.75"W x 24.25"D (133 x 349 x 616 mm)
Shipping Weight 11.8 lbs (5.3 kg)
Warranty Five (5) years
Monitor Arm Types 2 Monitors
