Ergotron 33-338-085 Neo-Flex All-In-One Lift and Pivot Stand with CPU Secure Clamp

Be the first to review this product
Product ID: 15986
Highlights
  • All-in-one stand with secure clamp for CPU
  • Easily transported from one area to the other
  • Lift and pivot mechanism for the monitor
  • Height adjustment: 5"
  • Total stand capacity including the monitor, CPU, keyboard and mouse: 37 lbs
  • Weight capacity range for the monitor: 6 - 16 lbs
Recommended Accessories
List Price: $215.00
Our Price: $112.99
You Save: $102.01
Shipping: $12.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Animation of Ergotron Neo-Flex All-In-One Secure Clamp Stand

Description

Add ergonomic adjustability and portability while saving space with this unique all-in-one stand. Ergotron 33-338-085 includes a Secure Clamp (SC), adjustable CPU holder. The perfect accessory for space-constrained areas, it enables you to mount both a CPU and display while providing effortless height adjustment of the monitor.

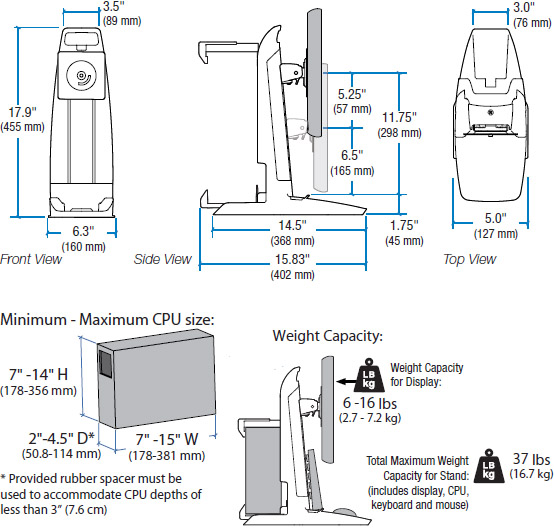

Technical Drawing

Technical drawing for Ergotron 33-338-085 Neo-Flex All-In-One Lift and Pivot Stand with Secure Clamp



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24" 6-16 lbs

2.7-7.2 kg

5"

12.7 cm

30° 360° 360° MIS-D



Product Information

Part Number

33-338-085

Description

Neo-Flex All-In-One SC Lift Stand with Secure Clamp CPU Holder (black)

Includes

  • Stand

  • CPU Secure Clamp

  • VESA monitor mounting kit

  • Cable ties

Not Included

  • CPU

  • Keyboard

  • Monitor

Weight Capacity

6–16 lbs (2.7–7.2 kg) for display; total stand capacity = 37 lbs (16.7 kg) for combined weight of display, CPU, keyboard and mouse

Motion

Motion may be restricted when using 22"–24" monitors in portrait mode

Mounting Standards

VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Height Adjustment

Five-inch (13 cm) height adjustment ergonomically accommodates average range of users

Meets

Tip test requirements of UL Specification 1678

Removal

Removal of lock screw allows portrait to landscape rotation

Compatible

With most 15"–24" displays, and most small or ultra small form factor CPUs

CPU Dimensions

Maximum CPU size = 14"H x 4.5"D (35.6 x 11.4 cm); minimum CPU size = 7"H x 1.3"D (17.8 x 3.3 cm). Provided rubber spacer must be used to accommodate CPU depths of less than 3" (7.6 cm). The CPU should be centered on the stand

Mounting Option

Two M4 threaded screw inserts are located at the bottom of the base to allow for attachment of the stand to worksurface. Screws not supplied. Hole-spacing from center to center = 4.5" (11.4 cm)

Product Weight

6.6 lbs (3 kg)

Shipping Dimensions

24" x 20" x 8" (61 x 51 x 20 cm)

Shipping Weight

10 lbs (4.5 kg)

Warranty

Three (3) years



Benefits

  • Transport a workstation anywhere easily and quickly

  • Deploy multiple complete computer systems with ease; pick up systems using the integrated handle and lock them up at night

  • Mix and match CPU box and monitor from different vendors; update the display or CPU without disturbing full system

  • Includes a Secure Clamp (SC), adjustable CPU holder; deters theft and keeps CPU firmly in place

  • Position your display for maximum ergonomic comfort to relieve eye, neck and back strain

  • Compact design and small footprint keeps workspace manageable - great for computer labs

  • Easy to use - simple installation and effortless operation

  • Patented Constant Force lift-and-pivot motion technology





Frequently Asked Questions

Question: Can Dell OPTIPLEX 7010 small form format work with this stand? Answer: Yes, the Dell Optiplex 7010 small form factor will work with this stand.
Model 33-338-085
Manufacturer Ergotron
Part Number 33-338-085
UPC 698833010954
Color Black
Monitor Size Up to 24"
Weight Capacity 6–16 lbs (2.7–7.2 kg) for display; total stand capacity = 37 lbs (16.7 kg) for combined weight of display, CPU, keyboard and mouse.
Lift (12.7 cm) 5 in
Tilt 30 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
CPU Dimension Maximum CPU size = 14"H x 4.5"D (35.6 x 11.4 cm); minimum CPU size = 7"H x 1.3"D (17.8 x 3.3 cm). Provided rubber spacer must be used to accommodate CPU depths of less than 3" (7.6 cm). The CPU should be centered on the stand
Shipping Dimensions 24" x 20" x 8" (61 x 51 x 20 cm)
Shipping Weight 10 lbs (4.5 kg)
Warranty Three (3) years
Mounting Options Desk Stand
Weight 6.6 lbs (3 kg)
