Ergotron 45-253-026 LX Wall Mount Monitor, Keyboard

Be the first to review this product
Product ID: 16191
  • A compact Wall Mount Monitor, Keyboard Holder on Single Wall Track
  • Ideal for space-constrained areas such as hospitals
  • Monitor: Carries monitor up to 32" screen size and 7-20 lbs weight
  • CPU : Holds CPU 1-3/8" to 3-3/4" in size and up to 50" in weight
  • Both LCD and Keyboard arm fold back to 3.5 - 5.3" from the wall
  • Monitor extends 25"; Keyboard extends up to 35"
  • Warranty: 10 years
Recommended Accessories
List Price: $1,365.00
Our Price: $667.17
You Save: $697.83
Shipping: $0.00 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Animation of Ergotron LX Wall Mount System

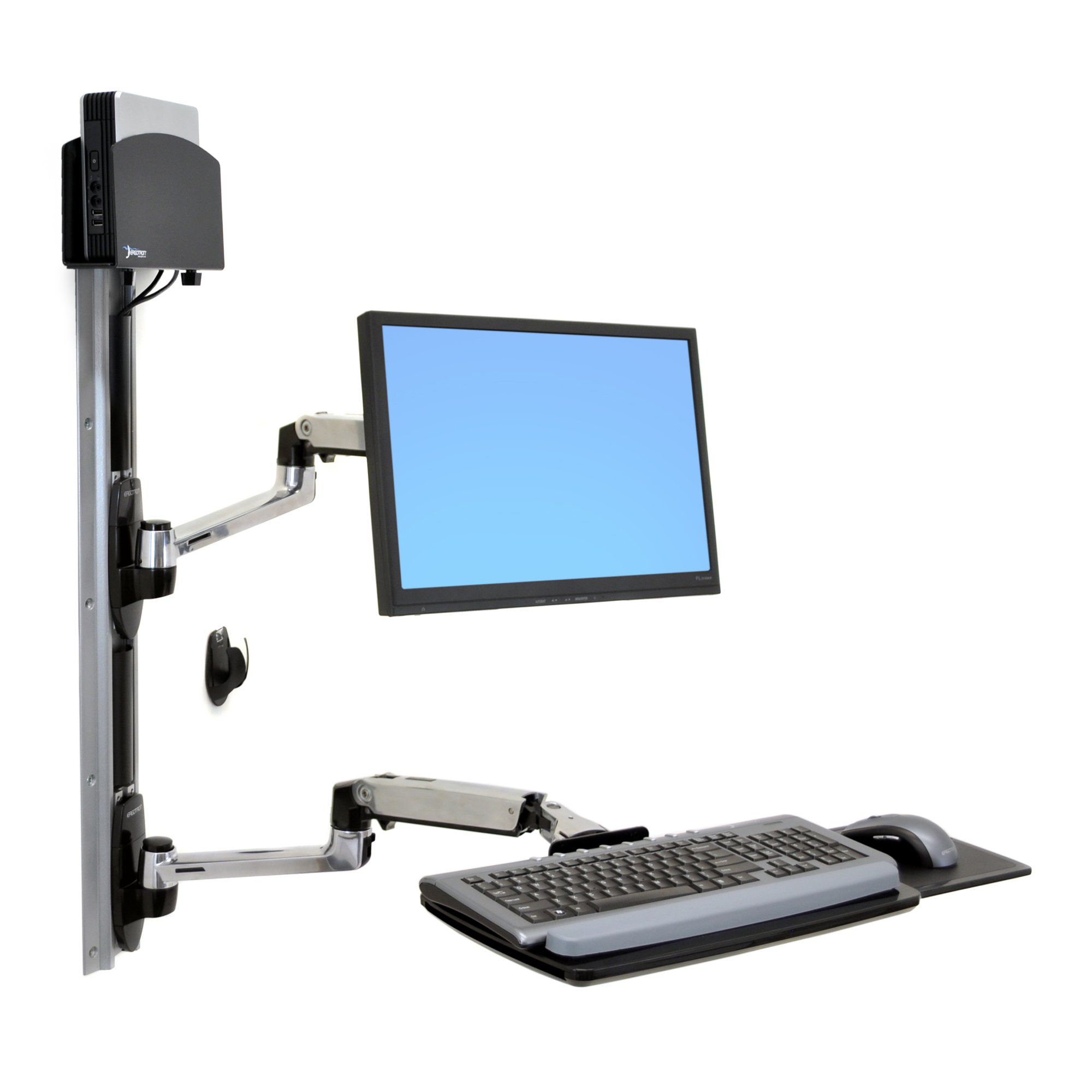

Ergotron 45-253-026 is a compact wall mount monitor and keyboard holder on a single wall track. It comes with Small Black CPU Holder and is made of durable polished aluminum construction. It is a complete solution that accommodates an LCD, keyboard and CPU while providing vertical and side-to-side motion. It is perfect for space-constrained areas: simply fold the keyboard and LCD tight against the wall when not in use.

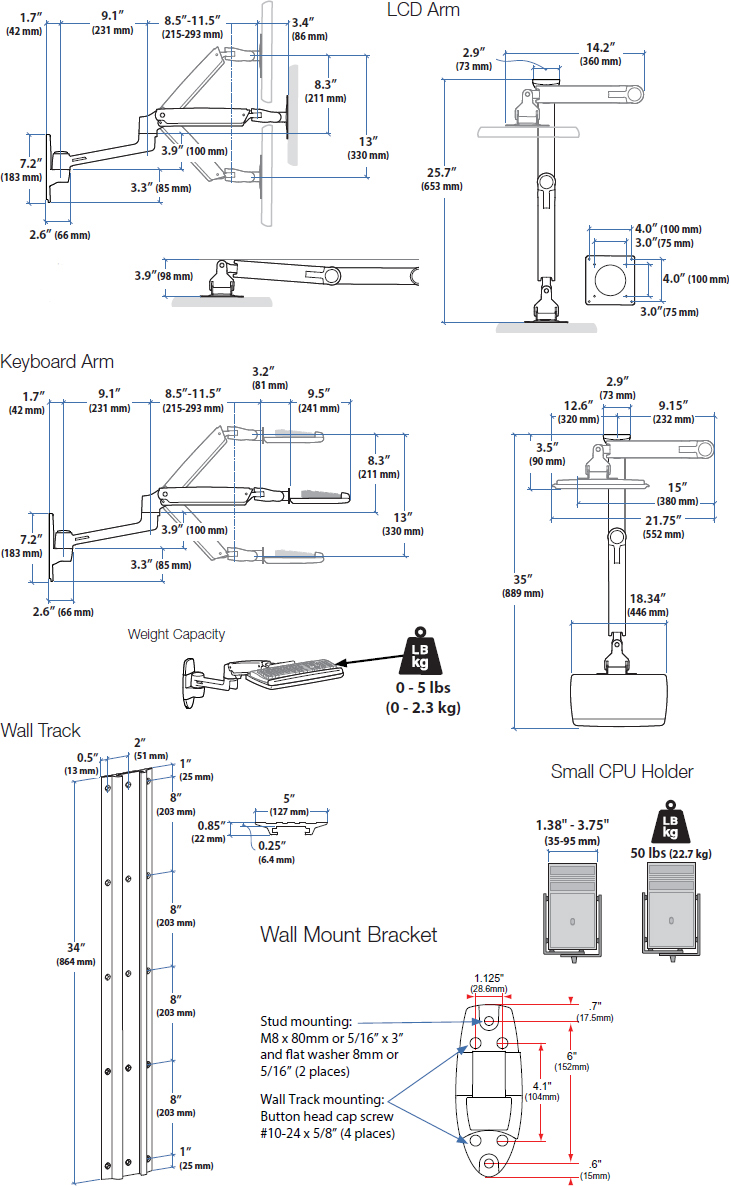

Technical Drawing

Technical drawing for Ergotron 45-253-026 LX Wall Mount Monitor, Keyboard


Technical Specifications















Up to 32"

5–25 lbs
2.3–11.3 kg

33 cm

75° 360° 360° MIS-D


Product Information

Part Number



LX Wall Mount System with Small CPU Holder (polished aluminum arms, black cpu holder)


  • 10" and 34" Wall Tracks with (2) black track covers
  • LX Wall Mount LCD Arm
  • LX Keyboard Arm
  • Wrist rest
  • Mouse pad
  • Mouse holder
  • Small CPU Holder
  • Two (2) 10" Cable Channels
  • Mounting kits for hollow-wall and wall-stud installation

Quality Tested

10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment

Improved LX Arm Features & Benefits

  • Polished aluminum construction offers greater durability and enhanced aesthetics
  • Snap-fit cap secures interface of arms to extensions for greater stability

Weight Capacity

Display = 5–25 lbs (2.3–11.3 kg); keyboard = 5 lbs (2.2 kg); CPU = 50 lbs (22 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)

Mounting Standards

VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

CPU Size Range

1-3/8" to 3-3/4" (35 to 95 mm) wide


An alternate system configuration is available with a larger, silver-color CPU holder


Includes theft deterrent anchor holes for cable locks

Product Weight

29.6 lbs (13.4 kg)

Shipping Dimensions

37" x 22 " x 7.5" (94 x 56 x 19 cm)

Shipping Weight

40 lbs (18 kg)


Ten (10) years



  • Articulating arms feature full tilt/pan capability and 13" (33 cm) height adjustment, providing premium ergonomic adjustment

  • Extends LCD up to 25" (64 cm); keyboard tray extends up to 35" (89 cm); push your display and keyboard out of the way when not in use

  • Ideal for space-constrained rooms - keyboard folds to within 3.5" (9 cm) of wall in storage position. LCD arm folds back to a depth of 5.3" (13 cm)

  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

  • Creates a complete and compact workstation

  • Effortlessly and independently position the LCD and keyboard to the most comfortable viewing and typing position, all while maintaining eye contact with your patient

  • Convenient bi-focal viewing: Screen lowers and positions for optimized viewing by users with bi-focal glasses

  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

  • Patented Constant Force lift-and-pivot motion technology



Model 45-253-026
Manufacturer Ergotron
Part Number 45-253-026
UPC 698833014747
Color Polished aluminum arms, black CPU Holder
Monitor Size Up to 32"
Lift (33 cm) 13 in
Tilt 75 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
CPU Dimension 1-3/8" to 3-3/4" (35 to 95 mm) wide
Shipping Dimensions 37" x 22 " x 7.5" (94 x 56 x 19 cm)
Shipping Weight 40 lbs (18 kg)
Warranty Ten (10) years
Mounting Options Wall
Monitor Arm Types Monitor/Keyboard
Weight Capacity 5–25 lbs (2.3–11.3 kg)
Weight 29.6 lbs (13.4 kg)
