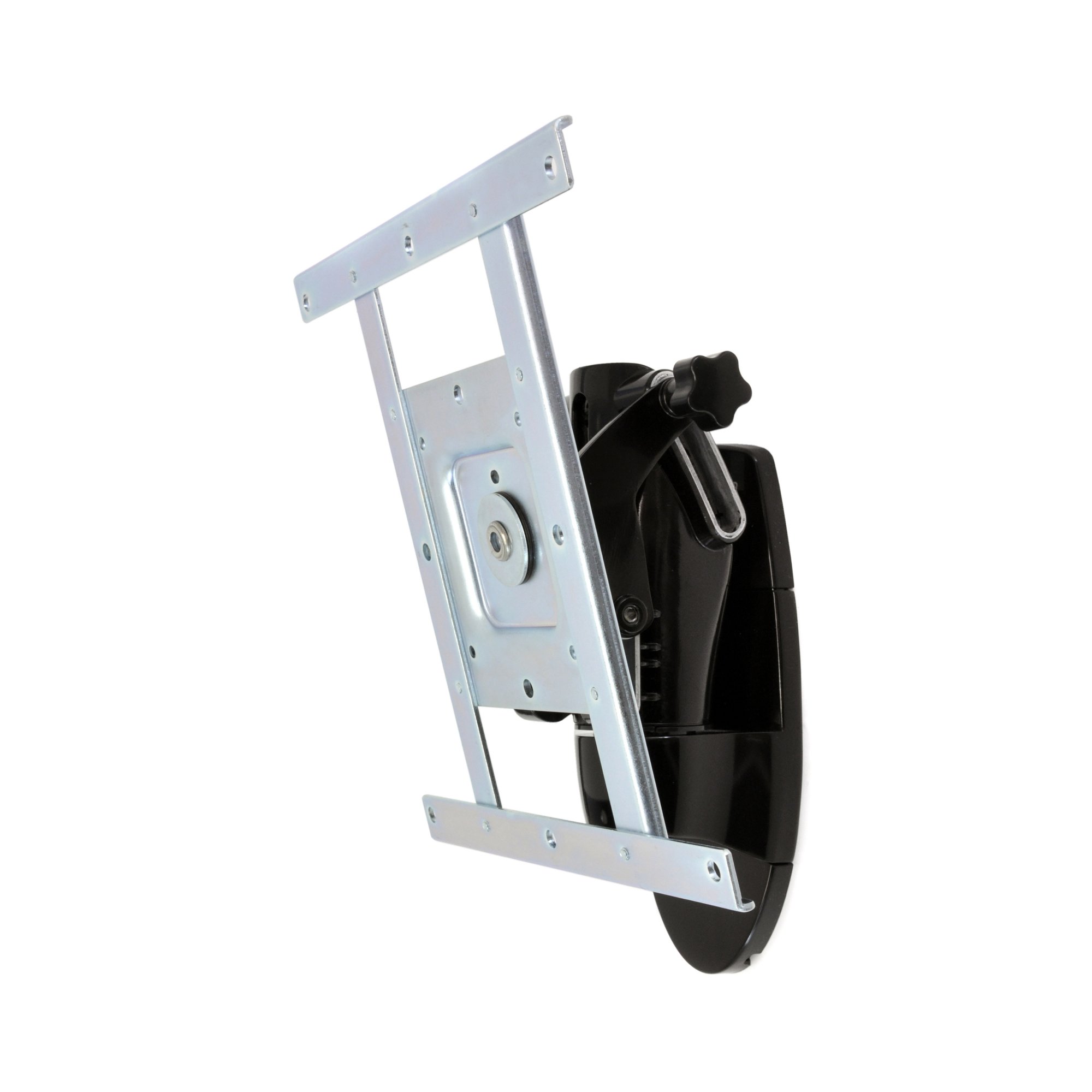

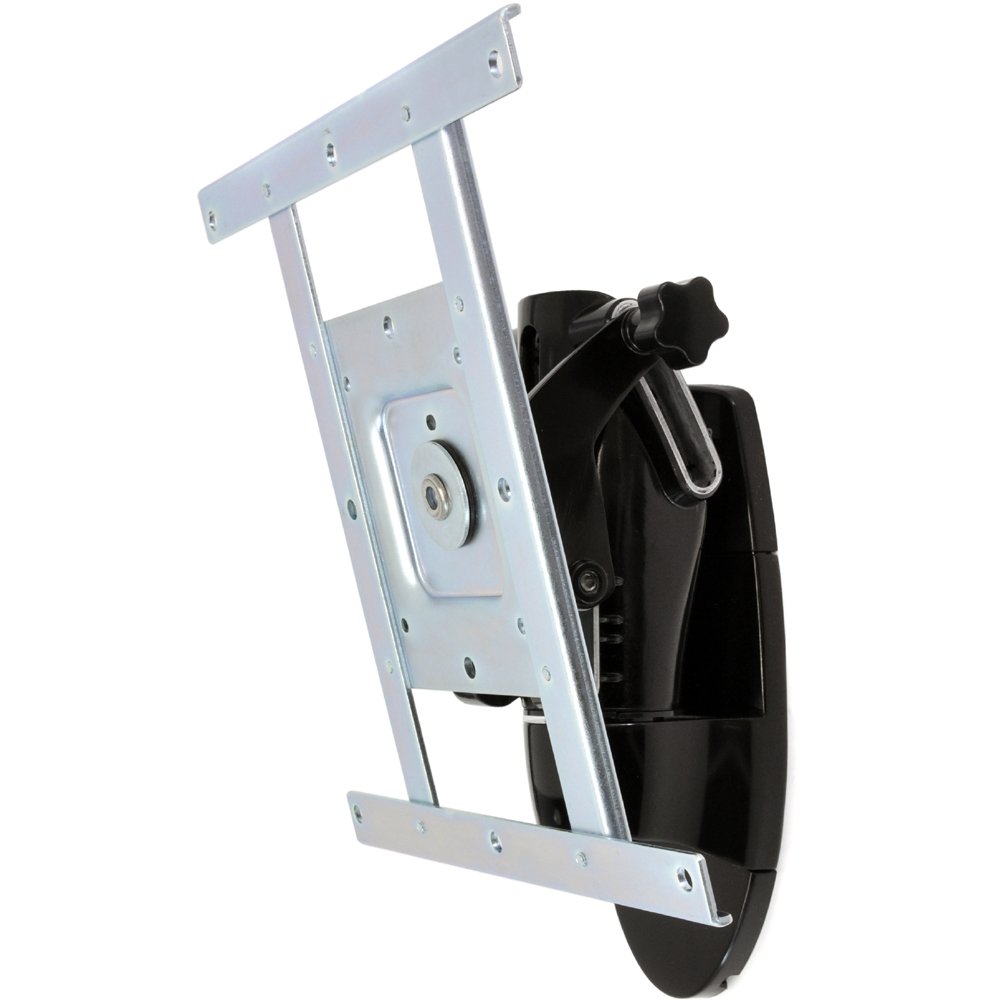

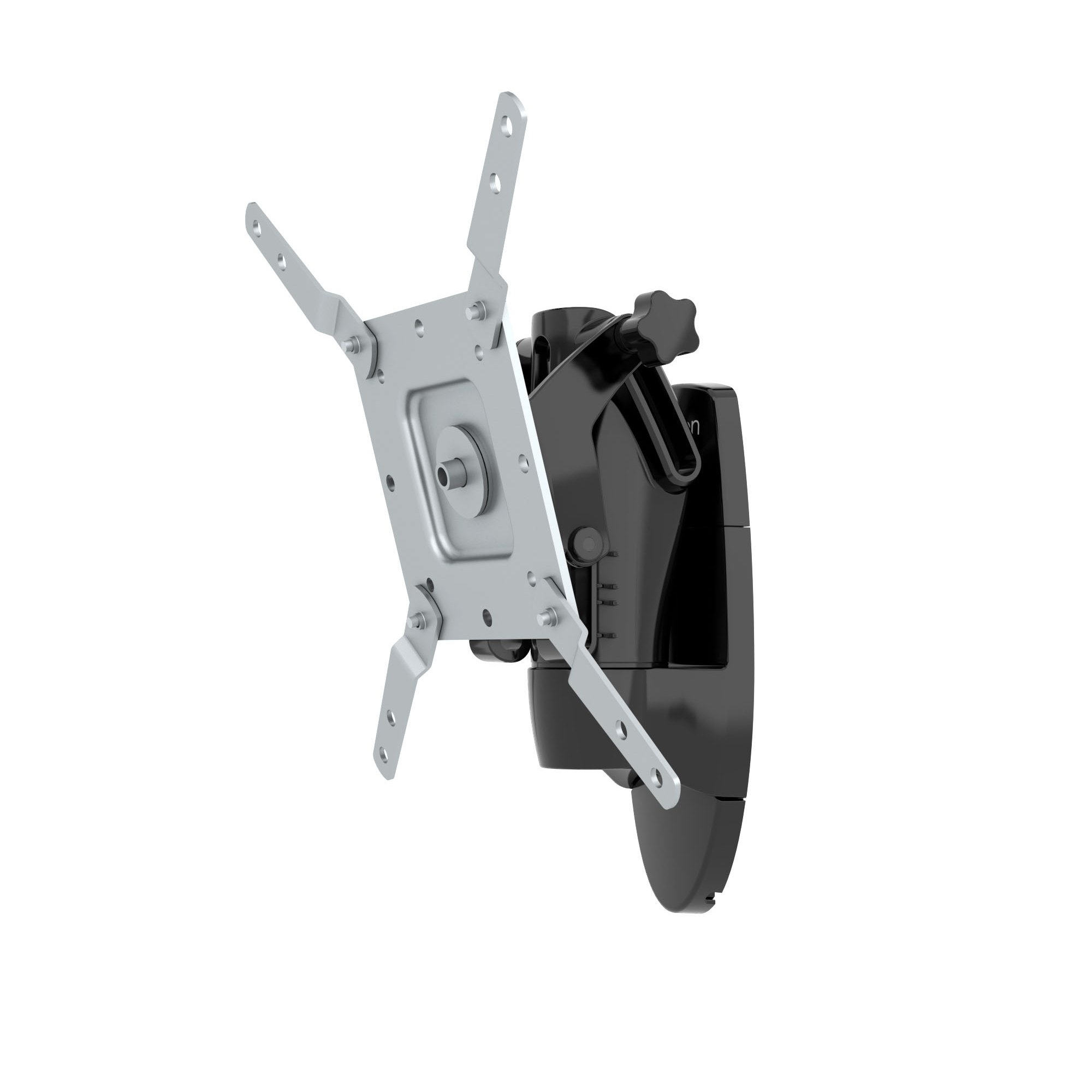

Ergotron 45-269-009 LX HD Wall Mount Pivot

LCD Size: Up to 42". Weight Capacity: Up to 50 lbs (22.7 kg)

Be the first to review this product
Product ID: 16576
Recommended Accessories
List Price: $135.00
Our Price: $65.76
You Save: $69.24
Shipping: $9.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

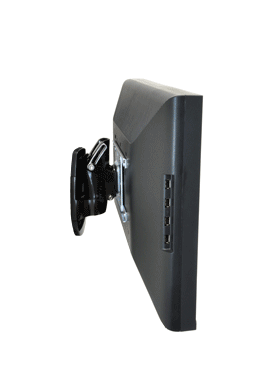

Animation of Ergotron 45-269-009 LX HD Wall Mount Pivot

Description

The perfect TV wall mount: Ergotron 45-269-009 monitor mount offers a flexible alternative to rigid wall mounts for displays weighing up to 50 lbs (23 kg). Embedded CF™ technology enables effortless screen adjustment for optimal viewing comfort.



Technical Drawing

Technical drawing for Ergotron 45-269-009 LX HD Wall Mount Pivot



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 42"

Up to 50 lbs

22.7 kg

- 20° 40° 360° P/L MIS-D/E/F



Product Information

Part Number

45-269-009

Description

LX HD Wall Mount Monitor Pivot (black)

Mounting Options

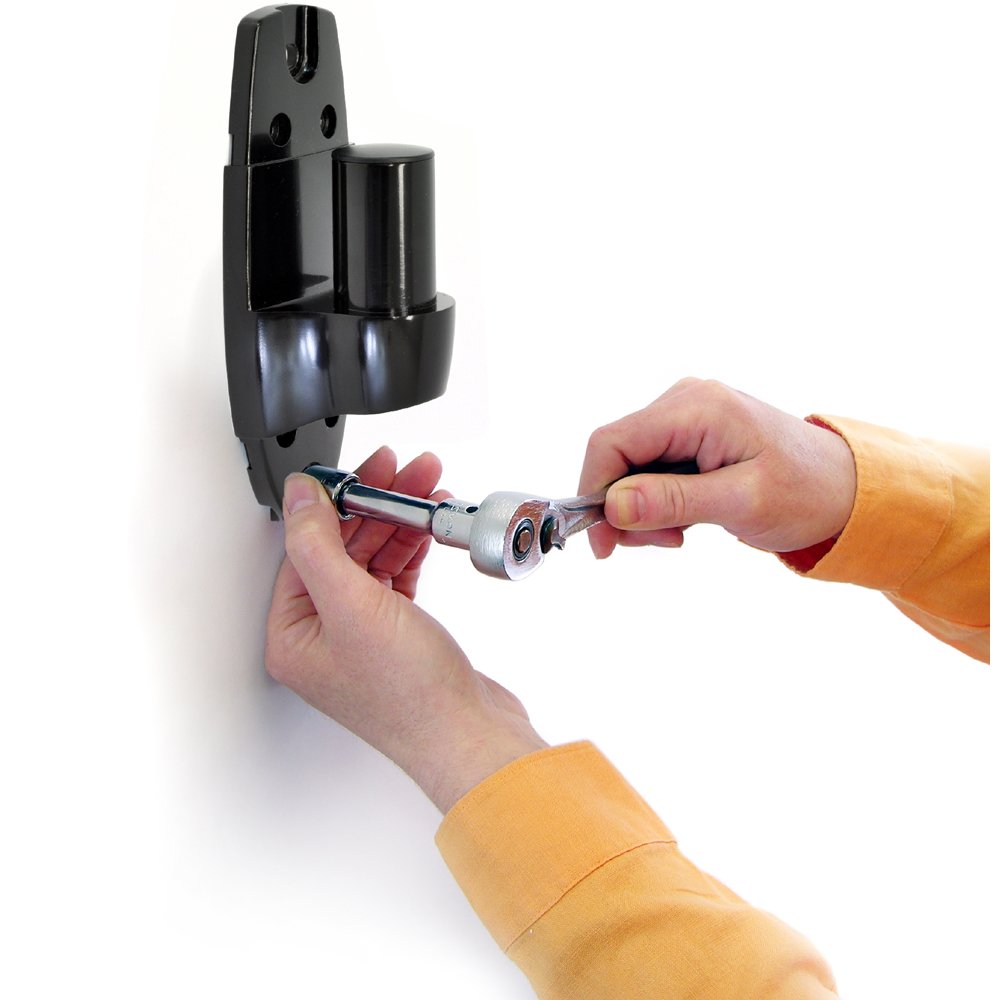

Attaches directly to sturdy vertical surfaces. Includes hardware for mounting to wood stud or concrete wall.

Includes

Knob on pivot to lock position of tilt.

Display Depth

Greater than 4" (10 cm) may diminish capacity

UL Compliant

Has been tested to four times its maximum weight capacity as per UL Standard 1678 (do NOT exceed 50 lbs in actual use)

Screen Size

Is approximate only. Use Display Weight and VESA hole pattern to determine compatibility, i.e., stated screen size may be exceeded as long as display weight does not exceed weight capacity

Mounting Standards

VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY).

For displays that use a 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately

Shipping Dimensions

9" x 9" x 3.9" (22.9 x 22.9 x 9.9 cm)

Shipping Weight

4.55 lbs (2.1 kg)

Warranty

Five (5) years



Benefits

  • Most affordable solution for medium displays.

  • Rock-solid construction secures your display investment.

  • Effortless adjustment for premium viewing.

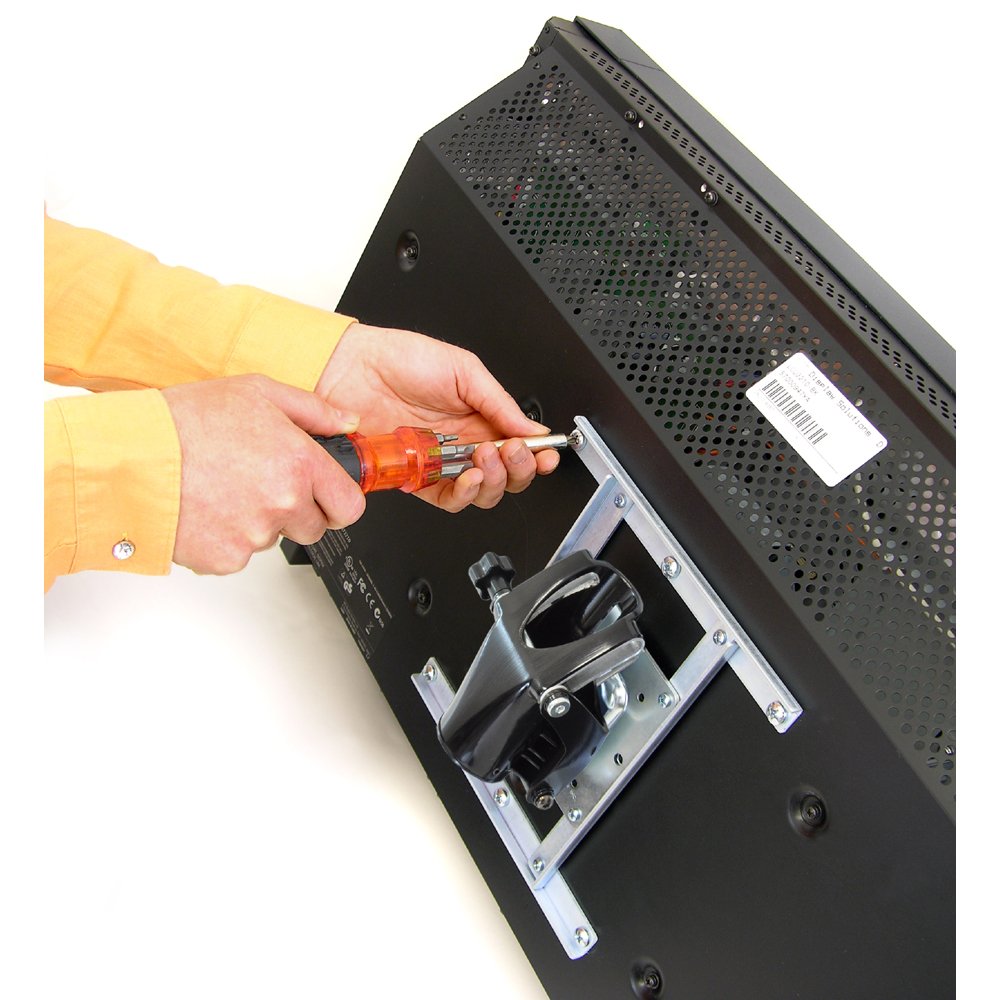

  • Easy three-step installation.

  • Pleasing aesthetics make it perfect for the home or office.

  • Integrated tilt lock-down feature.





Model 45-269-009
Manufacturer Ergotron
Part Number 45-269-009
UPC 698833018028
Color Black
Monitor Size Up to 42"
Weight Capacity Up to 50 lbs (22.7 kg)
Tilt 20 degree
Pan 40 degree
Rotation 360 degree
Mounting Pattern VESA MIS-D, 75/100 (hole pattern = 100x100 mm & 75x75 mm), MIS-E (hole pattern = 200x100 mm), MIS-F (hole pattern = 200x200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-474) can be ordered separately for MIS-F interface with hole pattern = 400x200 mm
Display Depth Greater than 4" (10 cm) may diminish capacity
Shipping Dimensions 9" x 9" x 3.9" (22.9 x 22.9 x 9.9 cm)
Shipping Weight 4.55 lbs (2.1 kg)
Warranty Five (5) years
Mounting Options Wall
Monitor Arm Types 1 Monitor
