Ergotron 45-261-026 StyleView Sit-Stand Combo Extender in Polished Aluminum

Be the first to review this product
Product ID: 16733
Highlights
  • An extender for StyleView Sit-Stand Combo Arms
  • Adds 17" of extra reach to the arm
  • Color: polished aluminum, for color White, click here
List Price: $255.00
Our Price: $149.00
You Save: $106.00
Shipping: $15.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Description

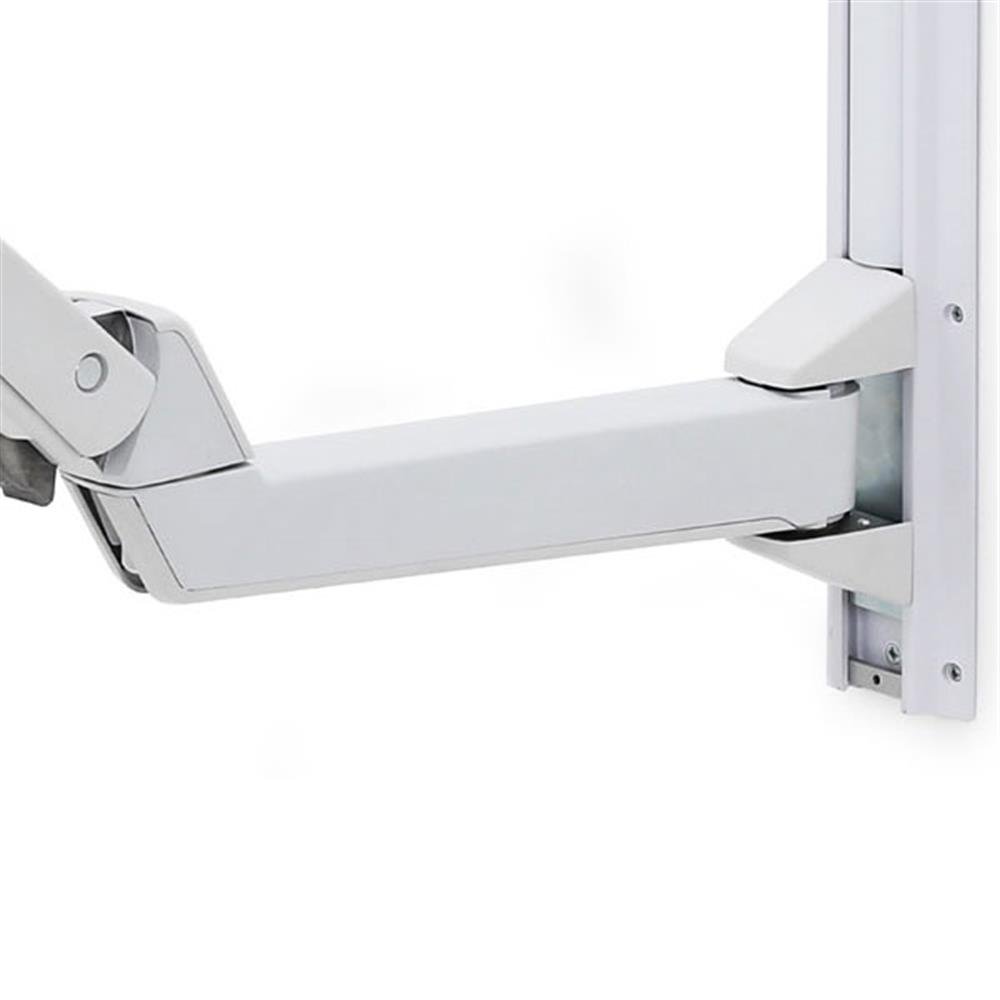

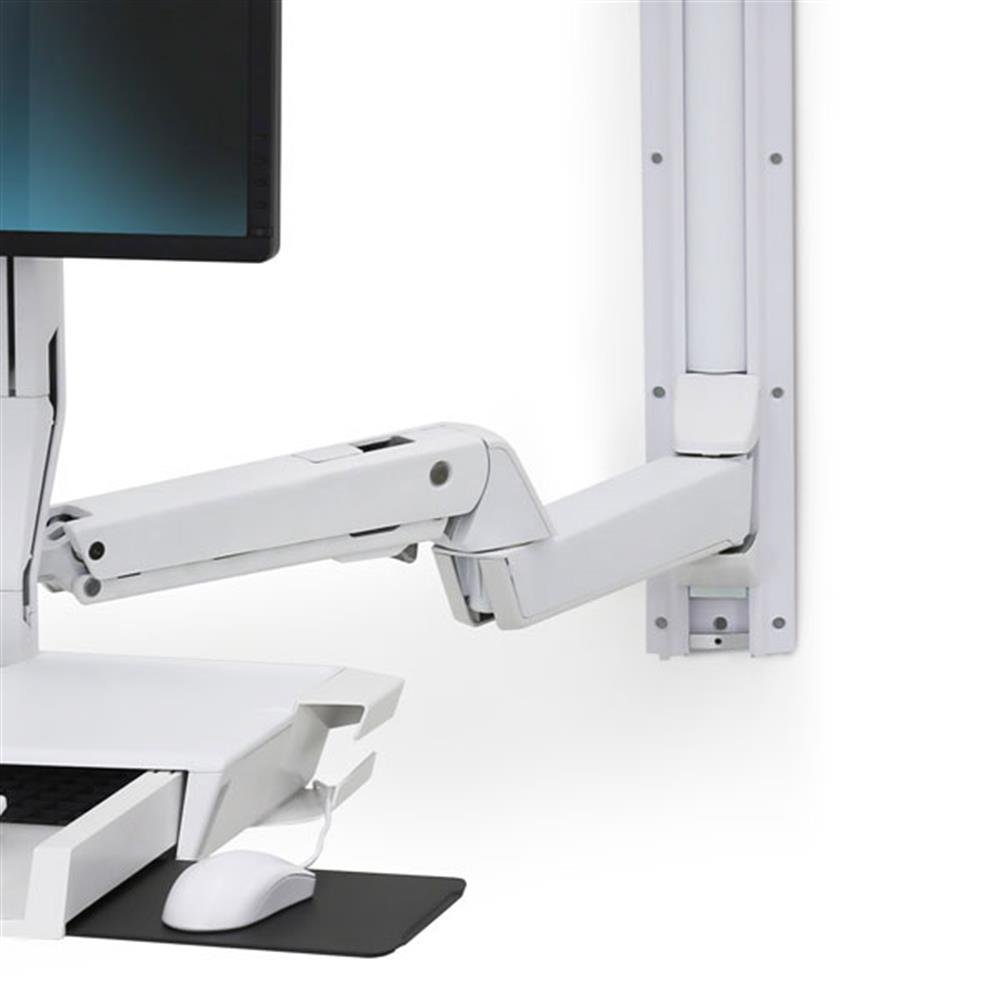

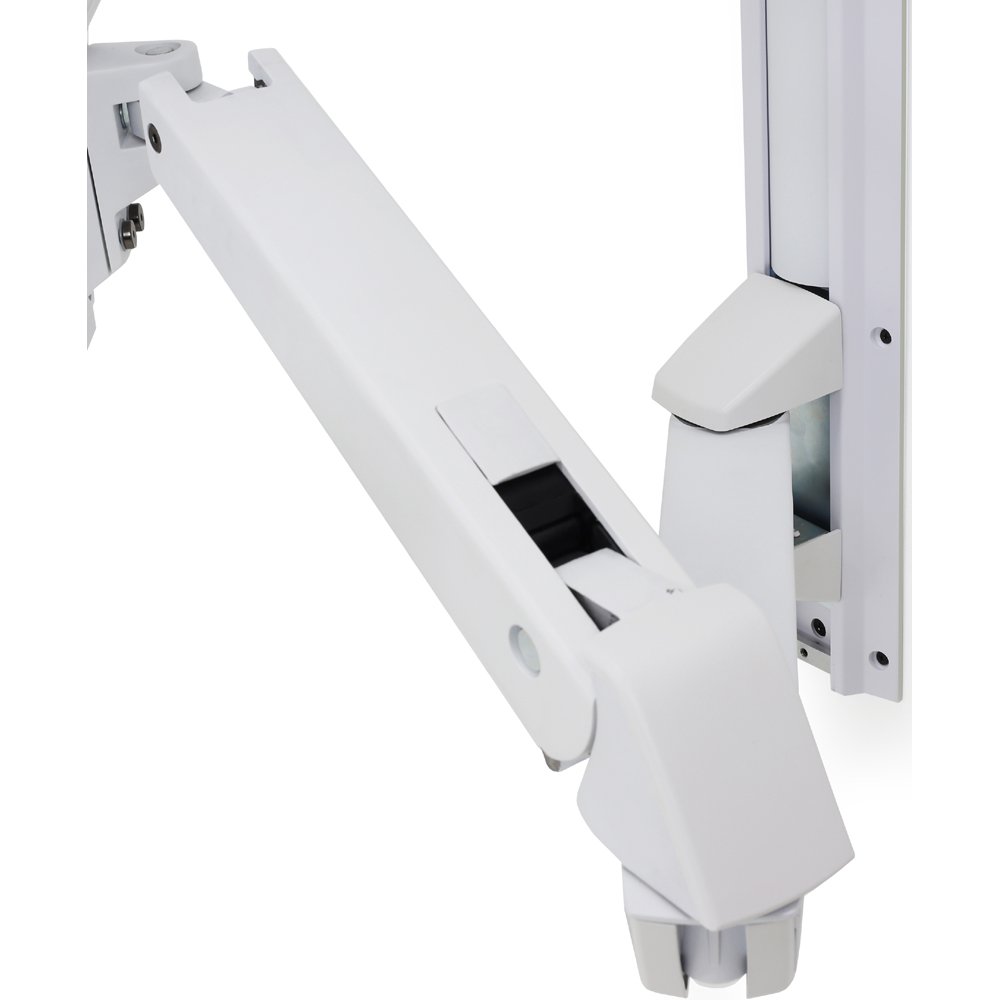

Add as an accessory to certain Styleview Sit-Stand Combo Arms to add an extra 17" of reach from the wall. This extender is only compatible with the following StyleView arms: 45-260-026, 45-266-026, 45-270-026, 45-271-026, 45-272-026, 45-273-026.

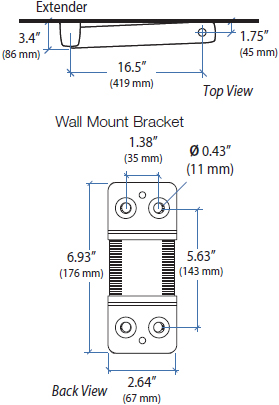

Technical Drawing

Technical drawing for Ergotron StyleView Sit-Stand Combo Extender



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

- - - - 180° - -



Product Information

Part Number

45-261-026 - Polished Aluminum

45-261-216 - White

Description

SV Sit-Stand Combo Extender

Includes

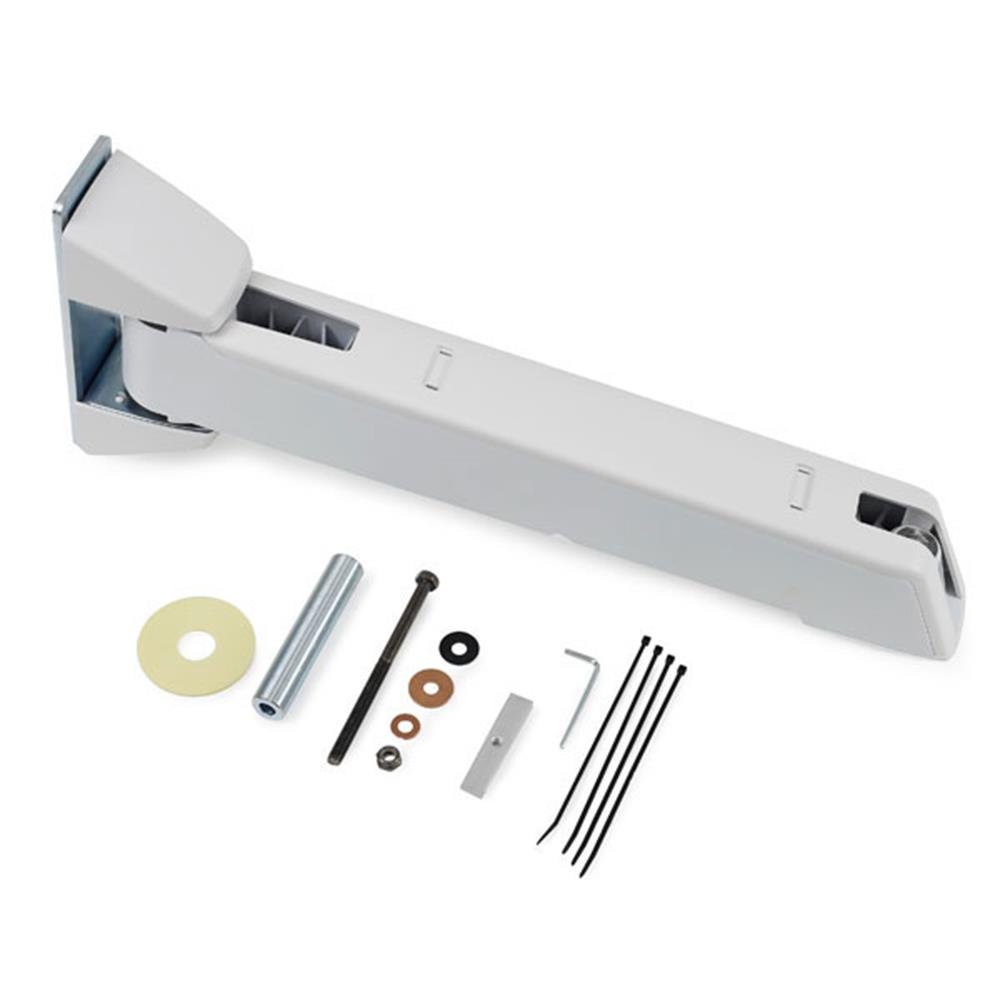

  • Extender
  • Pivot covers
  • Wall Track mounting brackets

Replaces

Vertical Mount Base when installed

Compatible

  • Only compatible with 45-260-026, 45-266-026, 45-270-026, 45-271-026, 45-272-026, 45-273-026 Sit-Stand Combo Arms.
  • An HD Extender can be attached to Command Post using two (2) brackets 60-154-100.

Cable Management Channel

Snap-fits under arm.

Exterior

Durable, easy-to-clean exterior composed of aluminum, high-grade plastic

Extension

Adds additional 17" (43 cm) extension from the wall

Product Weight

8.9 lbs (4 kg)

Shipping Dimensions

23.8" x 10.2" x 5.4" (604 x 260 x 138mm)

Shipping Weight

10 lbs (4.5 kg)

Warranty

Five (5) years



Benefits

  • Adds a third pivot-point for more adjustment flexibility.
  • Clean and integrated cable management conceals cables.
  • Easy-to-clean design provides infection control.
Model 45-261-026
Manufacturer Ergotron
Part Number 45-261-026
UPC 698833016277
Color Polished aluminum, White
Pan 180 degree
Compatible Only with 45-260-026, 45-266-026, 45-270-026, 45-271-026, 45-272-026, 45-273-026 Sit-Stand Combo Arms. An HD Extender can be attached to Command Post using two (2) brackets 60-154-100
Extension Adds additional 17" (43 cm) extension from the wall
Shipping Dimensions 23.8" x 10.2" x 5.4" (604 x 260 x 138mm)
Shipping Weight 10 lbs (4.5 kg)
Warranty Five (5) years
Weight 8.9 lbs (4 kg)
