$434.00

Ergotron 45-353-026 LX Sit-Stand Wall Mount Arm

Product ID 17438
HIGHLIGHTS

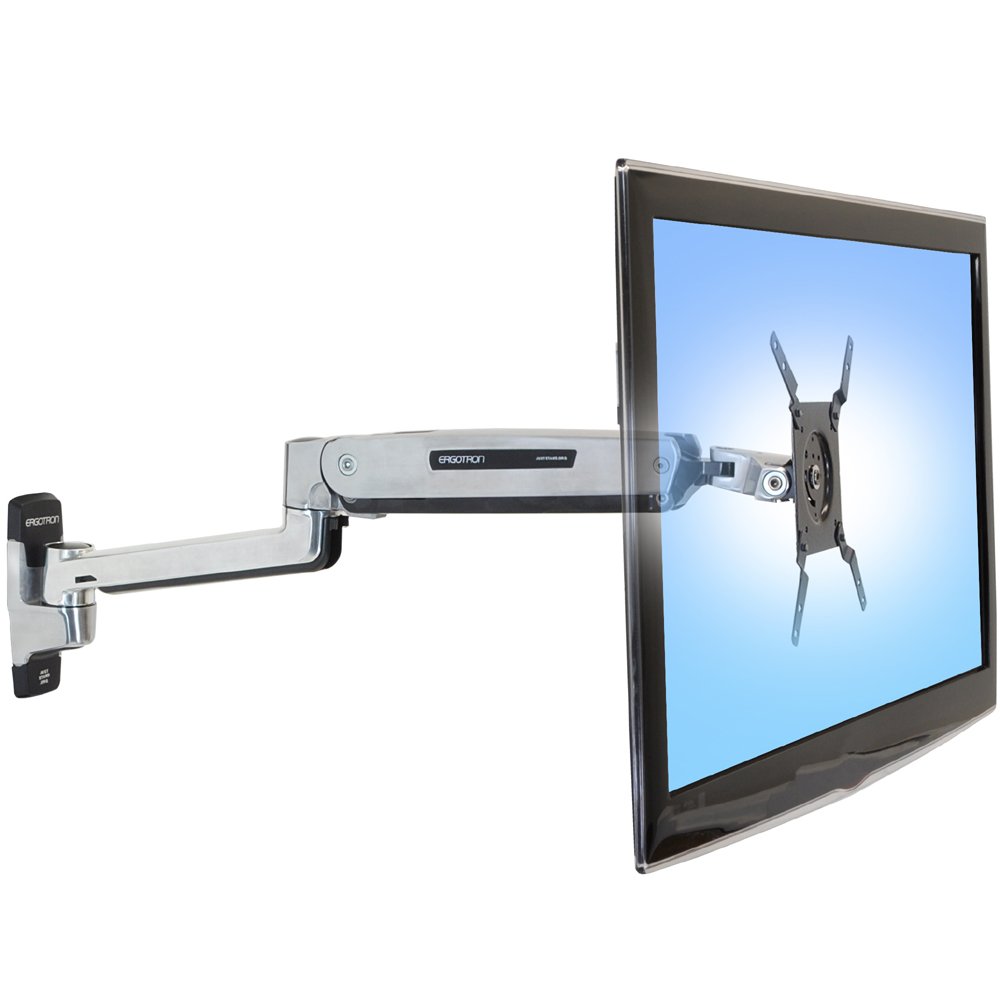

Ergotron 45-353-026 LX Sit-Stand Wall Mount Arm

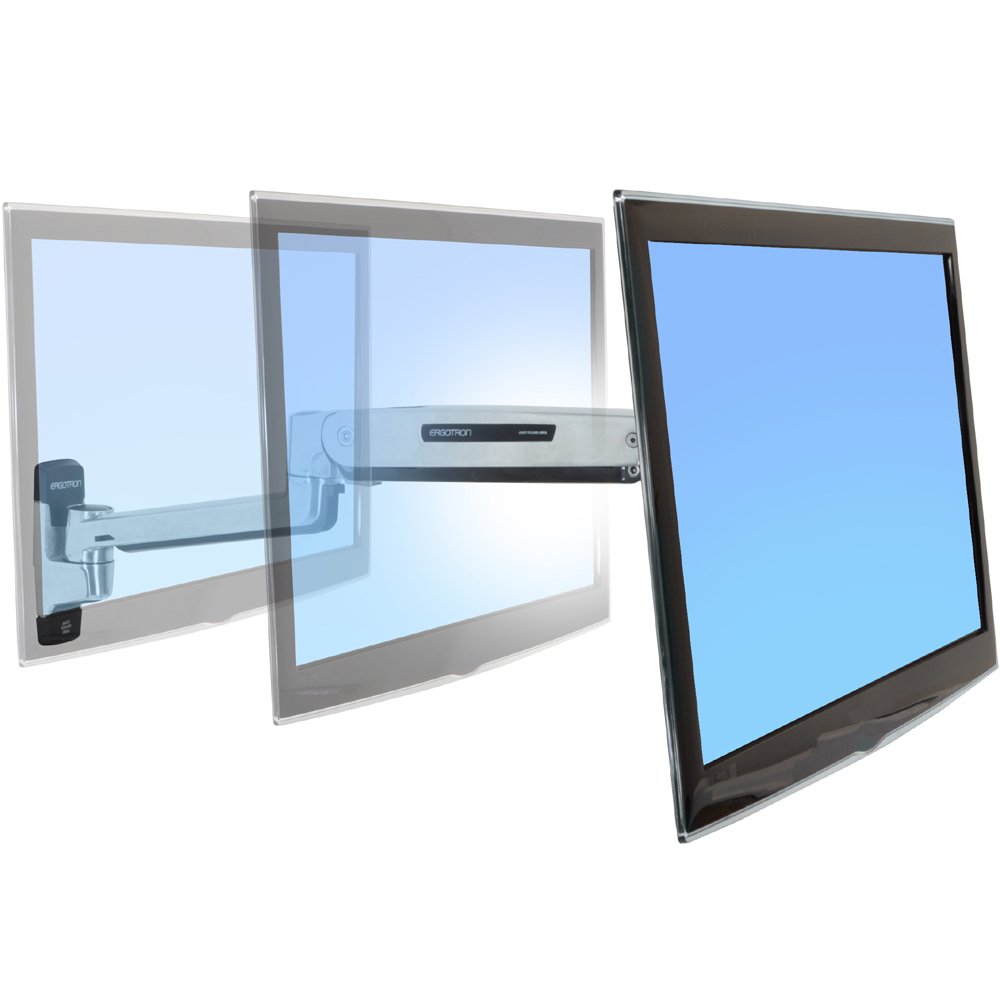

Ergotron 45-353-026 extends monitor up to 33"
Ergotron 45-353-026 Monitor Arm extends down

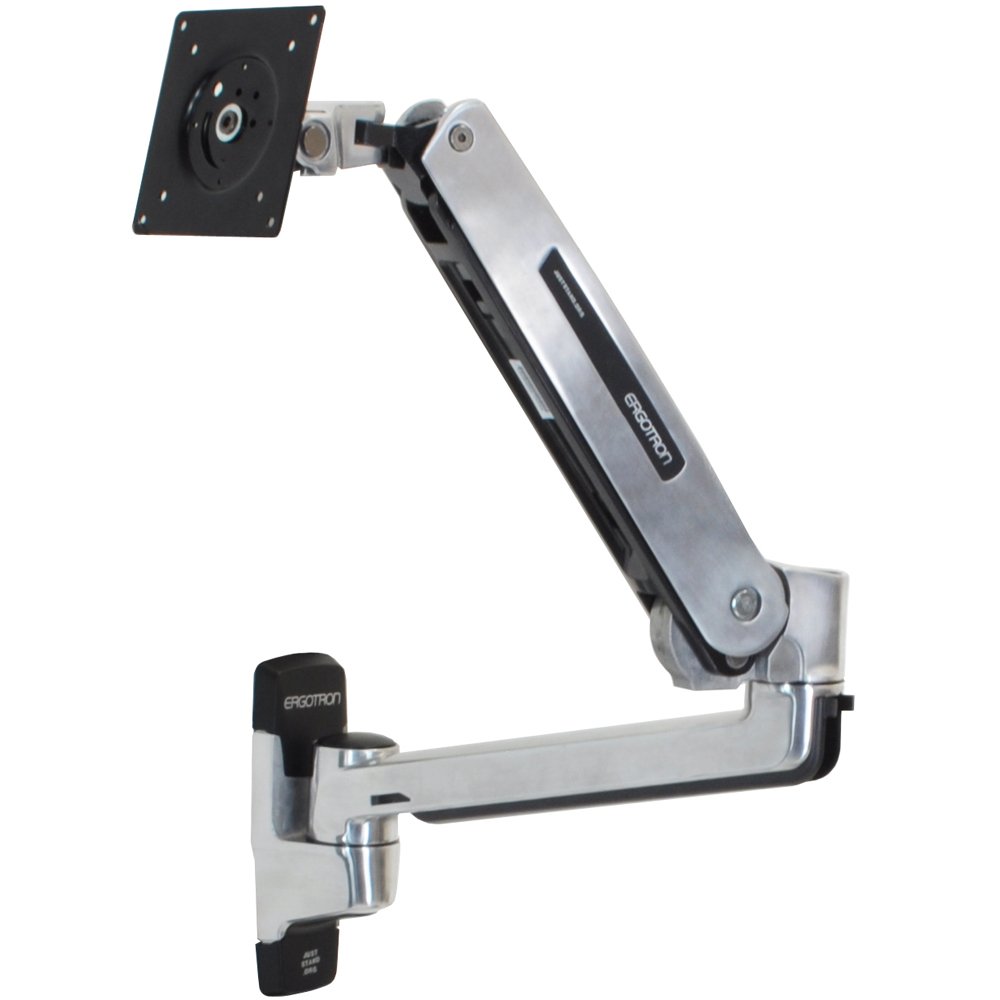

Raise Ergotron 45-353-026 Monitor Arm
LX Sit-Stand Wall Mount 45-353-026 with a Notebook Tray (sold separately)
VESA plate of Ergotron 45-353-026 Monitor Arm

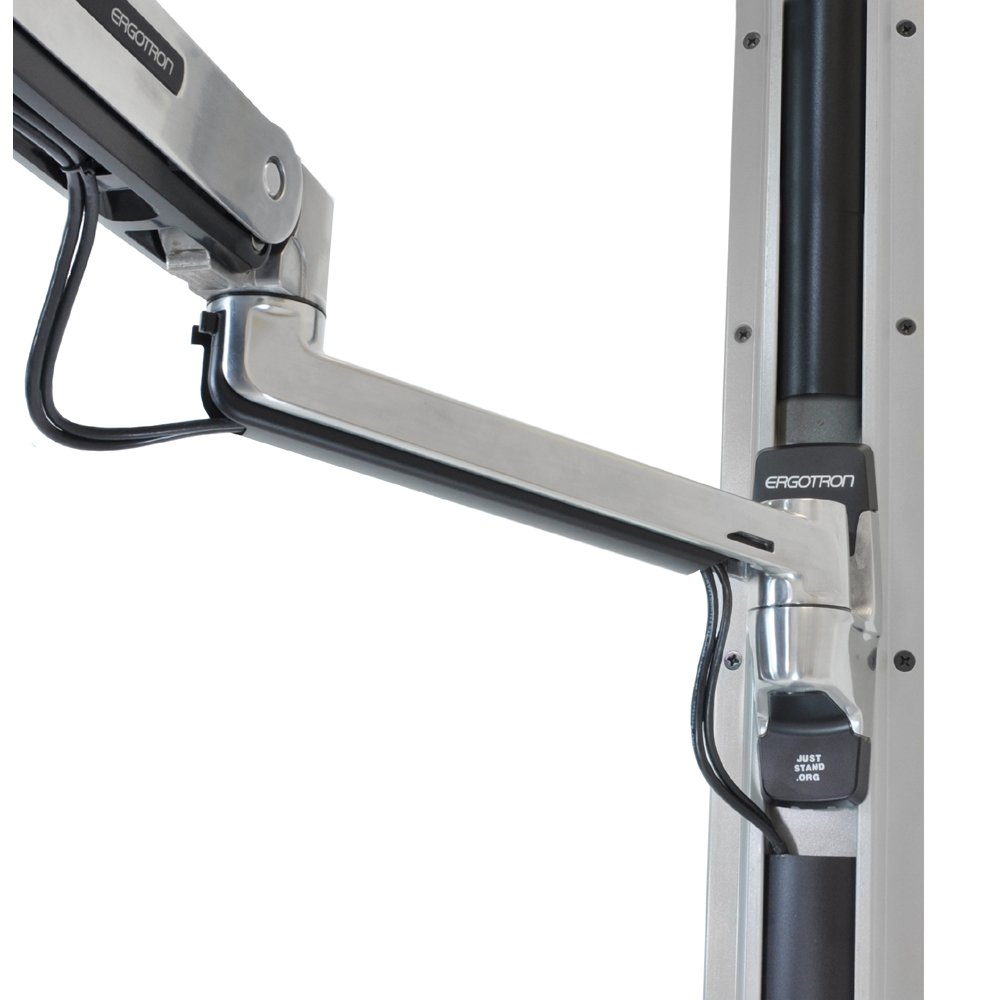

Ergotron 45-353-026 Monitor Arm on a Wall Track (sold separately)

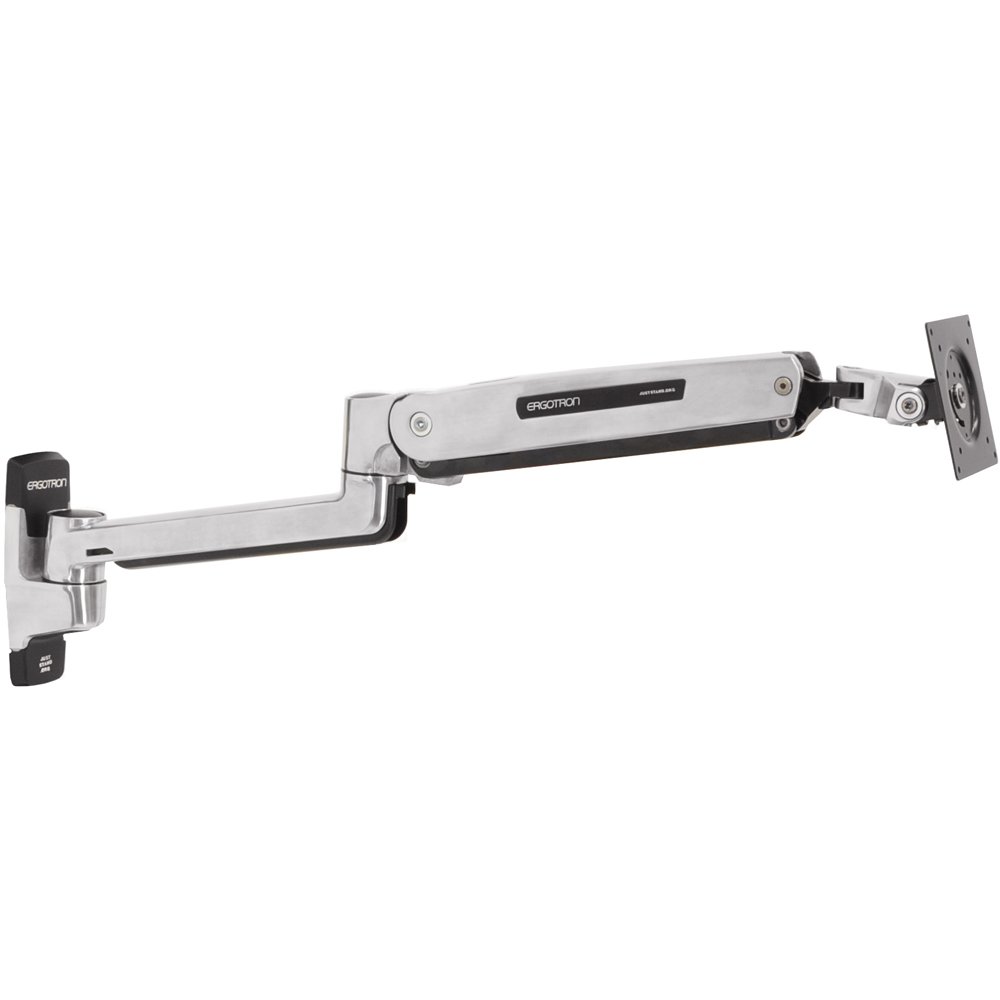

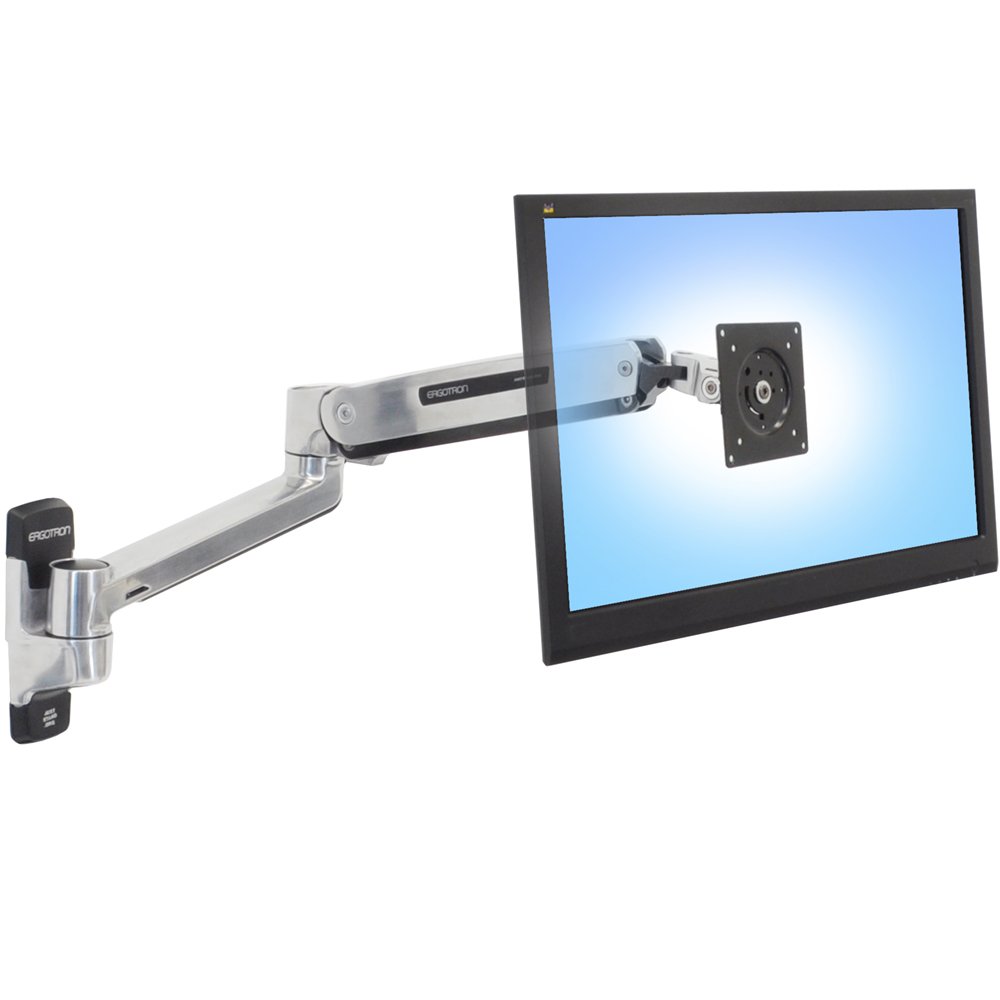

Ergotron 45-353-026 Monitor Arm
Ergotron 45-353-026 Monitor Arm
VESA plate of Ergotron 45-353-026 Monitor Arm
Ergotron 45-353-026 LX Sit-Stand Wall Mount Arm
Ergotron 45-353-026 extends monitor up to 33"
Ergotron 45-353-026 Monitor Arm extends down
Raise Ergotron 45-353-026 Monitor Arm
LX Sit-Stand Wall Mount 45-353-026 with a Notebook Tray (sold separately)
VESA plate of Ergotron 45-353-026 Monitor Arm
Ergotron 45-353-026 Monitor Arm on a Wall Track (sold separately)
Ergotron 45-353-026 Monitor Arm
Ergotron 45-353-026 Monitor Arm
VESA plate of Ergotron 45-353-026 Monitor Arm

Highlights

  • Wall mount LX monitor arm
  • 20" height adjustability: Allows the user to sit or stand while working
  • 42" screen size: Holds monitor up to 42" in screen size
  • 7-25 lbs weight: Monitor should be in 7-25 lbs weight range
  • 33" horizontal extension:  Extends the monitor and pushes it out of way when not in use
  • 62" side-to-side adjustment: Makes this arm suitable for digital signage
  • Retractability: Folds to within 4.5" of wall when not in use
  • Please see, if you want to mount a heavier display

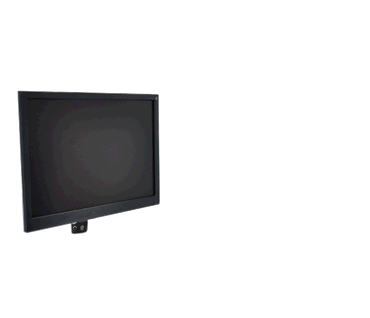

Animation of Ergotron 45-353-026 LX Sit-Stand Wall Mount LCD Arm

Description

The Ergotron 45-353-026 versatile arm can be used in many different ways - install a small monitor for use within a sit-stand workstation or add a large display up to 25 lbs for digital signage. With a 33" extension, 20" vertical adjustment and 62" side-to-side motion, this arm allows a wide range of mobility to the monitor.

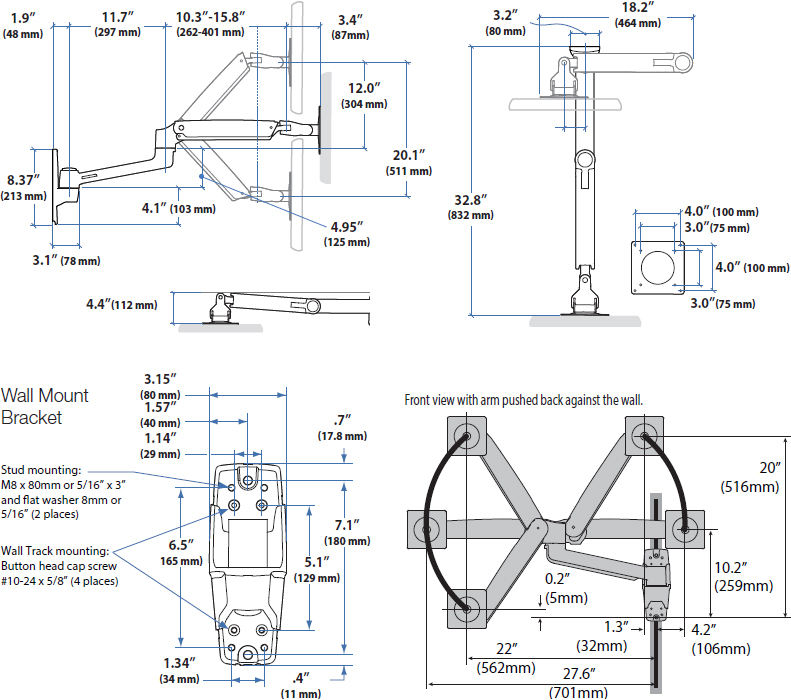

Technical Drawing

Technical drawing for Ergotron 45-353-026 LX Sit-Stand Wall Mount Arm

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 42"

7 - 25 lbs

3.2 - 11.3 kg

20"

50.8 cm

75° 360° 360° MIS-D/E/F

Product Information

Part Number 45-353-026
Description LX Sit-Stand Wall Mount LCD Arm (polished aluminum)
Includes
  • LX sit-stand arm
  • Extension
  • Wall-mount base
  • VESA brackets
Notebook Tray Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray accessory (50-193-200)
Quality Tested 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Weight Capacity 7 to 25 lbs (3.2 to 11.3 kg). Monitor depth may affect weight capacity
Tilt Monitor tilts 70° up and 5° down
Rotation Stop Rotation Stop on wall-mount base limits turn of extension-base connection to 180°, preventing extension from contacting wall
Locking Connection Locking connections between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
Mounting Standards VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Mounting Options Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket (97-091, order separately)
Base Includes theft-deterrent anchor holes for cable locks
NOTE Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
Product Weight 11 lbs (5 kg)
Shipping Dimensions 22.1" x 10.9" x 7.3" (56 x 28 x 19 cm)
Shipping Weight 12.6 lbs (5.7 kg)
Warranty Ten (10) years

Benefits

  • This LX Arm has a 20-inch (51 cm) height adjustment allowing you to alternate between sitting and standing positions.
  • The arm extends the LCD up to 33" (84 cm) pushing your display out of the way when not in use
  • This wall mounting LX Arm is ideal for space-constrained areas as it folds to within 4.5" (12 cm) of the wall in storage position
  • By adjusting the display to the user`s comfort, this LX Arm provides ergonomic relief
  • Increase viewing comfort - help reduce eye, back and neck strain
  • Upgrade LCD monitors and TVs with improved ergonomic adjustment
  • Patented CF motion technology provides premium ease-of-use adjustment
  • Cable management feature routes cables under the arm, out of the way
  • Secure installation - locking connections between arm, extension and base
  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

Frequently Asked Questions

q Will this arm hold TV that is 42" in screen size and weighs about 28 lbs? The model of my TV is LG 42ls5700.
a

No, your TV is not compatible with this arm as the weight of your TV is more than the weight that this arm can hold (25 lbs). We recommend the Interactive Arm, which extends 24" and can be fully retracted to 5.5" when not in use.

q What does the wall track option do?
a

The purpose of the wall track is to strengthen the installation of the arm by distributing the weight over a larger surface and also provide more vertical adjustability as the arm moves along the track when installed.

q Assuming I'll be mounting this to a stud behind drywall, do I need any accessories?
a

The Ergotron 45-353-026 LX Sit-Stand Wall Mount Arm comes with everything you need to mount it to a wall.Options are provided if you want or need to make any modifications. This Wall Mount Arm includes: • LX sit-stand arm • Extension • Wall-mount base • VESA brackets

q
a

Model 45-353-026
Manufacturer Ergotron
Part Number 45-353-026
UPC 698833028492
Color Polished aluminum
Monitor Size Up to 42"
Weight Capacity 7 to 25 lbs (3.2 to 11.3 kg). Monitor depth may affect weight capacity
Tilt Up 70 degree and down 5 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA MIS-D, 75/100 (100 x 100 mm & 75 x 75 mm), MIS-E (200 x 100 mm), MIS-F (200 x 200 mm ONLY). Optional VESA Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Adjustments 20" (50.8 cm) of vertical adjustment and 62" (157 cm) of side-to-side adjustment
Extension Extends LCD up to 33" (84 cm)
Weight 11 lbs (5 kg)
Shipping Dimensions 22.1" x 10.9" x 7.3" (56 x 28 x 19 cm)
Shipping Weight 12.6 lbs (5.7 kg)
Warranty Ten (10) years
Mounting Options Wall
Monitor Arm Types 1 Monitor

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 5
(5 out of 5)
Perfect

by Leslye N, Burnsville, North Carolina, Oct 10, 2019

I use a Viewsonic 32 inch HDMI 4K monitor and this arm holds it perfectly. I have low vision 20/400, and needed the screen close so I can read the text. I'm using a MacPro 2013, the arm extends my monitor 28 inches from the wall and holds its position. The product is solid, well constructed and I would highly recommend it.

Dental office vibe but it works perfectly

by ERIC S, Massachusetts, May 03, 2018

I mounted two 19" monitors on this arm using the adapter kit, and the arm holds them in position without any drift. It is great having a separate arm for the keyboard so the vibration from typing does not make the screens wiggle. I'm a fan.

Great design and service

by ES, Washington, Sep 11, 2016

I have used a LX Sit-Stand Arm for three-years with a 27" monitor. I purchased another LX Sit-Stand arm for a second 27" monitor on my desk because I had been so pleased with Ergotron's design and build quality of the first unit. The arm is easy to install and adjust. Being able to move both monitors up, down, left, right, and change orientation independent of each other is fantastic. Ordering from Ergodirect was smooth and the item arrived quickly.

Excellent solution for a cabinet TV

by JP, Oregon, May 27, 2016

We bought this to hold a TV in our kitchen cabinet over our refrigerator. It works perfectly to hold a 32" screen and compared to other cabinet TV mounts, is smooth to move in and out, stable, and an elegant solution.

Great arm for hard to work area

by Bill K, Minneapolis, May 06, 2015

This arm works great for our 40 inch tv to let it be moved into an area when we're watching tv and moved out when we're entertaining friends.
