Ergotron 24-313-026 WorkFit-A, Single LD Sit-Stand Workstation

Be the first to review this product
Product ID: 17651
Highlights
  • Sit-stand workstation: Lets you sit or stand while working
  • 20" height adjustment: Maximum possible vertical adjustment of the monitor is 20"
  • 24" screen sizeHolds a single monitor up to 24" in screen size
  • 5-15 lbs weight: Supports a monitor in the 5-15 lbs weight range
  • 27"x9.75" keyboard tray: Accommodates most keyboards and mice
  • Installation:  At the back of the desk, leaving space in the front
  • Please see, if you need a workstation with worksurface
  • Sit-Stand video
Recommended Accessories
Our Price: $373.99
Shipping: $24.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Description

Ergotron 24-313-026 is most appropriate for corner workstations. It attaches to the rear of the desk, clearing space in front for non-computer work.  The 42" arm extension allows for the monitor to be pushed to the side when not in use.

Ideal for corner workstations or confined areas, WorkFit-A attaches to the rear or side of most surfaces while keeping the keyboard upon the desktop when sitting. Featuring an unprecedented range of motion for a standing desk solution, you can swing your system left, right, up or down.

The height-adjustable arm moves the keyboard and monitor in one simple motion, allowing you to easily sit down or stand up as you work. Fold the keyboard up and push the arm out of the way when you need your desk surface. With its extra vertical reach, this model is well suited for taller users.

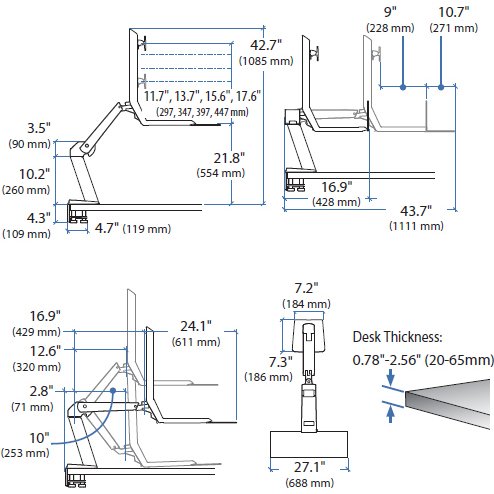

Technical Drawing

Technical Drawing for Ergotron 24-313-026 WorkFit-A Single LD Monitor Sit-Stand Workstation



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24" Up to 20 lbs

9.1 kg

20"

51 cm

30° 180° 360° MIS-D



Product Information

Part Number

24-313-026

Description

WorkFit-A, Single LD LCD Monitor Sit-Stand Workstation (polished aluminum/black)

Includes

  • Arm
  • LCD pivot
  • Keyboard tray
  • Desk clamp
  • Complete hardware kit

Weight Capacity

Maximum total load on height-adjustment assembly ≤ 20 lbs (9.1 kg). LCD weight range = 5–15 lbs (2.3–6.8 kg), keyboard tray accessories ≤ 2 lbs (.9 kg).

For proper operation the total maximum weight when added together should not exceed 20 lbs (9.1 kg). The minimum total weight should not be less than 6 lbs (2.7 kg)

Desk Clamp

Attaches to surface edge 0.78" to 2.6" (2 to 6.5 cm) thick

Note
  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment
  • Extra-long cables may be required to span between standing and sitting heights

Arm

Extends up to 42" (107 cm) from back of desk and pushes back to within 18.25" (46 cm) when fully retracted

Keyboard Tray Dimensions

27" x 9.75" (68 x 24.8 cm)

Keyboard Tray

Can be installed in 3 different positions: centered, offset right or offset left

Cable Management

Routes and hides cords

Mounting Standards

VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)

Notebook Tray

Can be configured to hold a laptop in place of monitor: order accessory Notebook Tray (50-193-200)

Washington State Analysis

A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention.

New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18%

Certified

This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)

Shipping Dimensions

37" x 21" x 11.5" (94 x 53 x 29 cm)

Shipping Weight

44.5 lbs (20.2 kg)

Warranty

Five (5) years



Benefits



For Computer Users

  • On-demand sit-stand workstation - improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. Standing a little more each day burns extra calories, tones muscles, improves posture, increases blood flow and ramps up metabolism

  • Safe, easy to use - simple installation and effortless operation

  • Easily and simultaneously lift keyboard and screen to proper height for unsurpassed ergonomic comfort

  • Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor

  • Fold keyboard up and swing arm and monitor out of the way when you need your desk surface



For IT and Facilities Staff

  • Flexible, open-architecture design is scalable for future computer equipment

  • Modify existing office spaces or cubes by simply clamping a WorkFit on an existing worksurface, without the cost of expensive professional installers

  • Safe and neat routing of cables

  • For HR/Risk Management and Company Cost Savings



Manage the cost of healthcare premiums by promoting wellness in the daily work routine

  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs

  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases

  • Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees

  • Studies in office ergonomics show productivity increases of 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture





Frequently Asked Questions

Question: I am 6' 4". What are specs for this workstation in the "Tall" option? Answer: For taller users, an accessory is available called the Tall User Kit in Option 15 of this product. The maximum height of this workstation would be 45.4" from the desk surface to the middle of the monitor and this Tall User Kit further raises the monitor by 4" or 6".
Model 24-313-026
Manufacturer Ergotron
Part Number 24-313-026
UPC 698833025644
Color Polished aluminum/black
Weight Capacity Up to 20 lbs (9.1 kg)
Lift (51 cm) 20 in
Tilt 30 degree
Pan 180 degree
Rotation 360 degree
Desktop Thickness Range Desk Clamp attaches to surface edge 0.78" to 2.6" (2 to 6.5 cm) thick
Keyboard Tray Dimensions 27" x 9.75" (68 x 24.8 cm)
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Shipping Dimensions 37" x 21" x 11.5" (94 x 53 x 29 cm)
Shipping Weight 44.5 lbs (20.2 kg)
Warranty Five (5) years
Extend/Retract Range Arm extends up to 42" (107 cm) from back of desk and pushes back to within 18.25" (46 cm) when fully retracted
Screen Size Up to 24 in
Monitor Weight 5–15 lbs (2.3–6.8 kg)
Suspended Keyboard No
Worksurface No
Worksurface Dimensions --
Monitor Arm Types Sit-Stand Workstation
Monitor Arm Types 1 Monitor
Monitor Arm Types Laptop/Notebook
