Standing Desks

Ergotron 24-314-026 WorkFit-A, Single HD Monitor with Worksurface

Be the first to review this product
Product ID: 17654
Highlights
  • Sit-stand workstation: Lets you sit or stand while working
  • 25" height adjustment: Maximum possible vertical adjustment of the monitor is 25"
  • 42" of extension: Arm extends up to 42" from back of the desk
  • 30" screen size: Holds a single monitor up to 30" in screen size
  • 10-20 lbs weight: Holds a single monitor in the 10-20 lbs weight range
  • 27"x9.75" keyboard tray:  Accomodates most keyboards and mice
  • 22.63"x9.75" worksurface
  • Installation:  At the back of the desk, leaving space in the front
  • Please see, if you have a lighter, smaller monitor
  • Sit-Stand video
Recommended Accessories
List Price: $527.95
Our Price: $479.95
You Save: $48.00
Shipping: $24.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Animation for Ergotron 24-314-026 WorkFit-A, Single HD Monitor with Worksurface

Description

The WorkFit-A 24-314-026 is equipped to hold a single HD monitor up to 30". Not only does it provide sit-stand capability to the user but it also provides a polished aluminum tray as an extra worksurface for writing materials, paper, a tablet and a phone. Alternating between sitting and standing at work is proving to be extremely important in preventing medical conditions like cardiovascular disease, high blood pressure and diabetes as well as musculoskeletal problems like back, neck, shoulder and hand pain. Interrupting sitting periods with frequent standing is crucial even if you have a healthy lifestyle and exercise regularly.

This product is environmentally green. With the patented constant force technology, it does not require electricity. The keyboard tray and monitor can be moved sideways to clear desk space for other tasks, like writing. By ordering a conversion kit, a laptop can be fitted to this workstation along with a monitor, turning it into a dual monitor workstation.

Ideal for corner workstations or confined areas, WorkFit-A attaches to the rear or side of most surfaces while keeping the keyboard upon the desktop when sitting. Featuring an unprecedented range of motion for a standing desk solution, you can swing your system left, right, up or down.

The height-adjustable arm moves the keyboard and monitor in one simple motion, allowing you to easily sit down or stand up as you work. Fold the keyboard up and push the arm out of the way when you need your desk surface. With its extra vertical reach, this model is well suited for taller users.

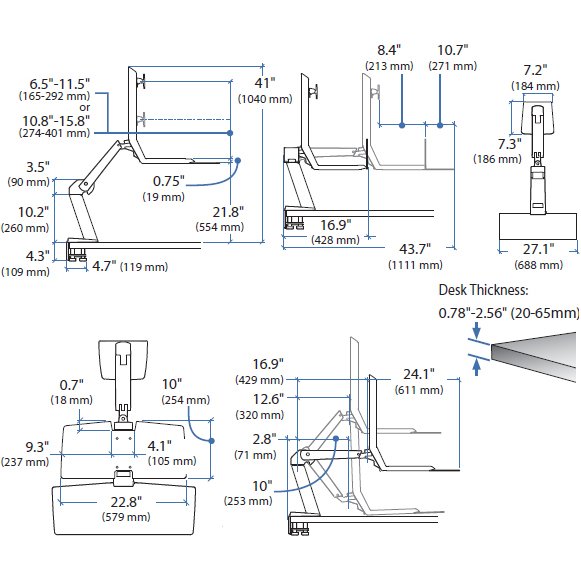

Technical Drawing

Technical drawing for Ergotron 24-314-026 WorkFit-A, Single HD Monitor with Worksurface



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 27" Up to 25 lbs

11.3 kg

25"

64 cm

30° 180° 360° MIS-D



Product Information

Part Number

24-314-026

Description

WorkFit-A, Single HD LCD Monitor Sit-Stand Workstation, with Worksurface (polished aluminum/black)

Includes

  • Arm
  • LCD pivot
  • Worksurface
  • Keyboard tray
  • Desk clamp
  • Complete hardware kit

Maximum Screen Size

To maintain a comfortable focal distance, a maximum screen size of 27" is recommended in most cases.

However, larger screens up to 30" may be used depending on user preference, provided the monitor fits weight and VESA interface requirements

Weight Capacity

Maximum total load on height-adjustment assembly ≤ 25 lbs (11.3 kg). LCD weight range = 10–20 lbs (4.5–9.1 kg), work surface (external weight) ≤ 5 lbs (2.3 kg), keyboard tray accessories ≤ 2 lbs (.9 kg).

For proper operation the total maximum weight when added together should not exceed 25 lbs (11.3 kg). The minimum total weight should not be less than 11 lbs (5 kg)

Lift Range

LCD and keyboard adjust 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently

Desk Clamp

Attaches to surface edge 0.78" to 2.6" (2 to 6.5 cm) thick

Note

  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment
  • Extra-long cables may be required to span between standing and sitting heights

Arm

Extends up to 42" (107 cm) from back of desk and pushes back to within 18.25" (46 cm) when fully retracted

Worksurface Dimensions

22.63" x 9.75" (57.5 x 24.8 cm)

Keyboard Tray Dimensions

27" x 9.75" (68 x 24.8 cm)

Keyboard Tray Installed

Can be installed in 3 different positions: centered, offset right or offset left

Cable Management

Routes and hides cords

Mounting Standards

VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm).

For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately

Conversion Kit

Can be configured to hold a laptop alongside a monitor: order Conversion Kit (97-605)

Washington State Analysis

A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention. New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18%

Certified

This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)

Shipping Dimensions

37" x 21" x 11.5" (94 x 53 x 29 cm)

Shipping Weight

48.5 lbs (22 kg)

Warranty

Five (5) years



Benefits



For Computer Users

  • On-demand sit-stand workstation - improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. Standing a little more each day burns extra calories, tones muscles, improves posture, increases blood flow and ramps up metabolism

  • Safe, easy-to-use - simple installation and effortless operation

  • Easily and simultaneously lift keyboard and screen to proper height for unsurpassed ergonomic comfort

  • Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor

  • Fold keyboard up and swing arm and monitor out of the way when you need your desk surface

  • Included worksurface provides ample space and quick access to a tablet computer, phone, cup of java or task-related items



For IT and Facilities Staff

  • Flexible, open-architecture design is scalable for future computer equipment

  • Modify existing office spaces or cubes by simply clamping a WorkFit on an existing worksurface, without the cost of expensive professional installers

  • Safe and neat routing of cables

  • For HR/Risk Management and Company Cost Savings



Manage the cost of healthcare premiums by promoting wellness in the daily work routine

  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs

  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases

  • Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees

  • Studies in office ergonomics show productivity increases of 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture





Model 24-314-026
Manufacturer Ergotron
Part Number 24-314-026
UPC 698833025651
Color Polished aluminum/black
Monitor Size Up to 27"
Weight Capacity Up to 25 lbs (11.3 kg)
Lift (64 cm) 25 in
Tilt 30 degree
Pan 180 degree
Rotation 360 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
Desktop Thickness Range Desk Clamp attaches to surface edge 0.78" to 2.6" (2 to 6.5 cm) thick
Extend/Retract Range Arm extends up to 42" (107 cm) from back of desk and pushes back to within 18.25" (46 cm) when fully retracted
Worksurface Dimensions 22.63" x 9.75" (57.5 x 24.8 cm)
Keyboard Tray Dimensions 27" x 9.75" (68 x 24.8 cm)
Shipping Dimensions 37" x 21" x 11.5" (94 x 53 x 29 cm)
Shipping Weight 48.5 lbs (22 kg)
Warranty Five (5) years
Mounting Options Desk
Monitor Arm Types 1 Monitor
Monitor Arm Types Sit-Stand Workstation
Monitor Arm Types 2 Monitors
Monitor Arm Types LCD & Laptop
