Ergotron 24-391-026 WorkFit-A with Suspended Keyboard, Single HD

Product ID 17742
HIGHLIGHTS

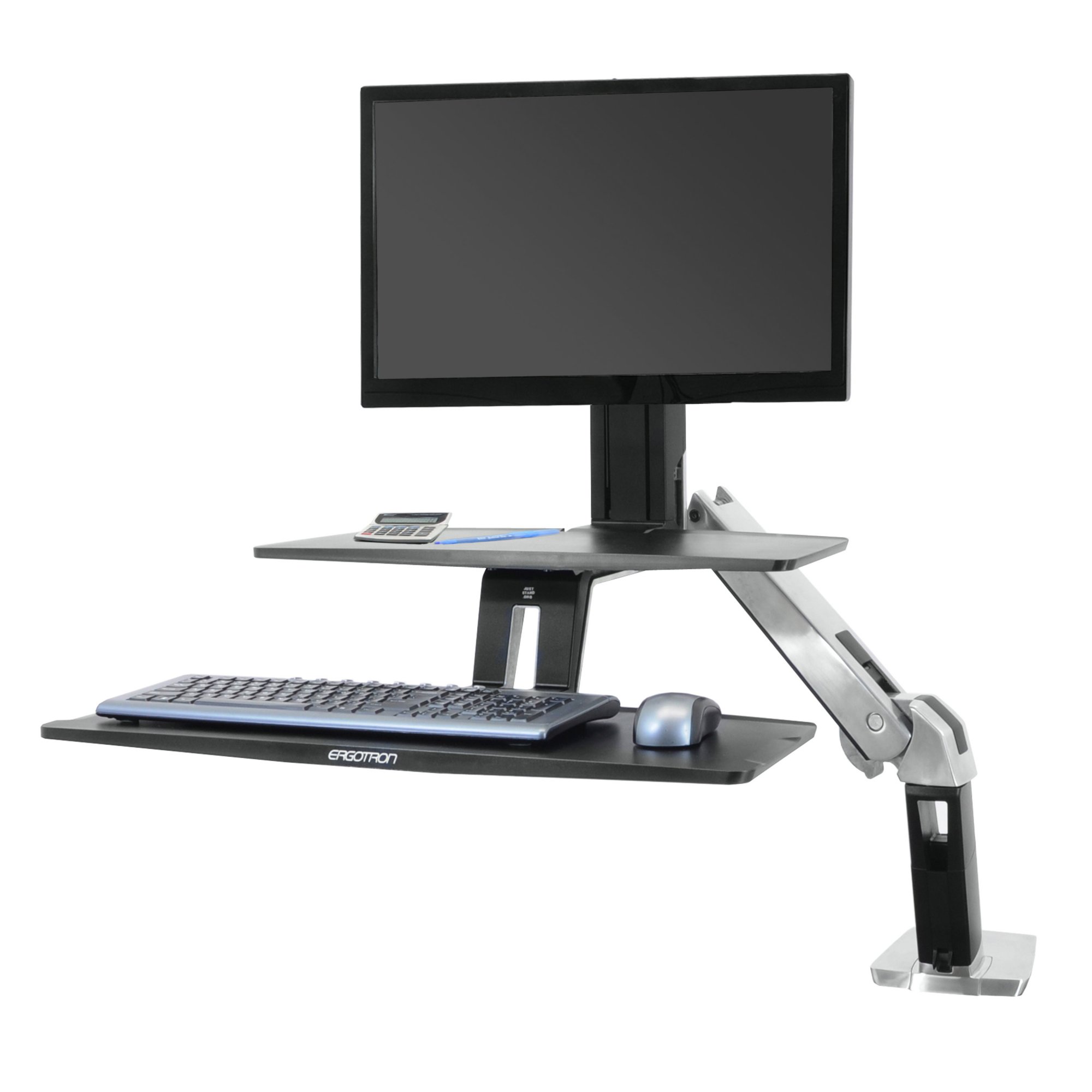

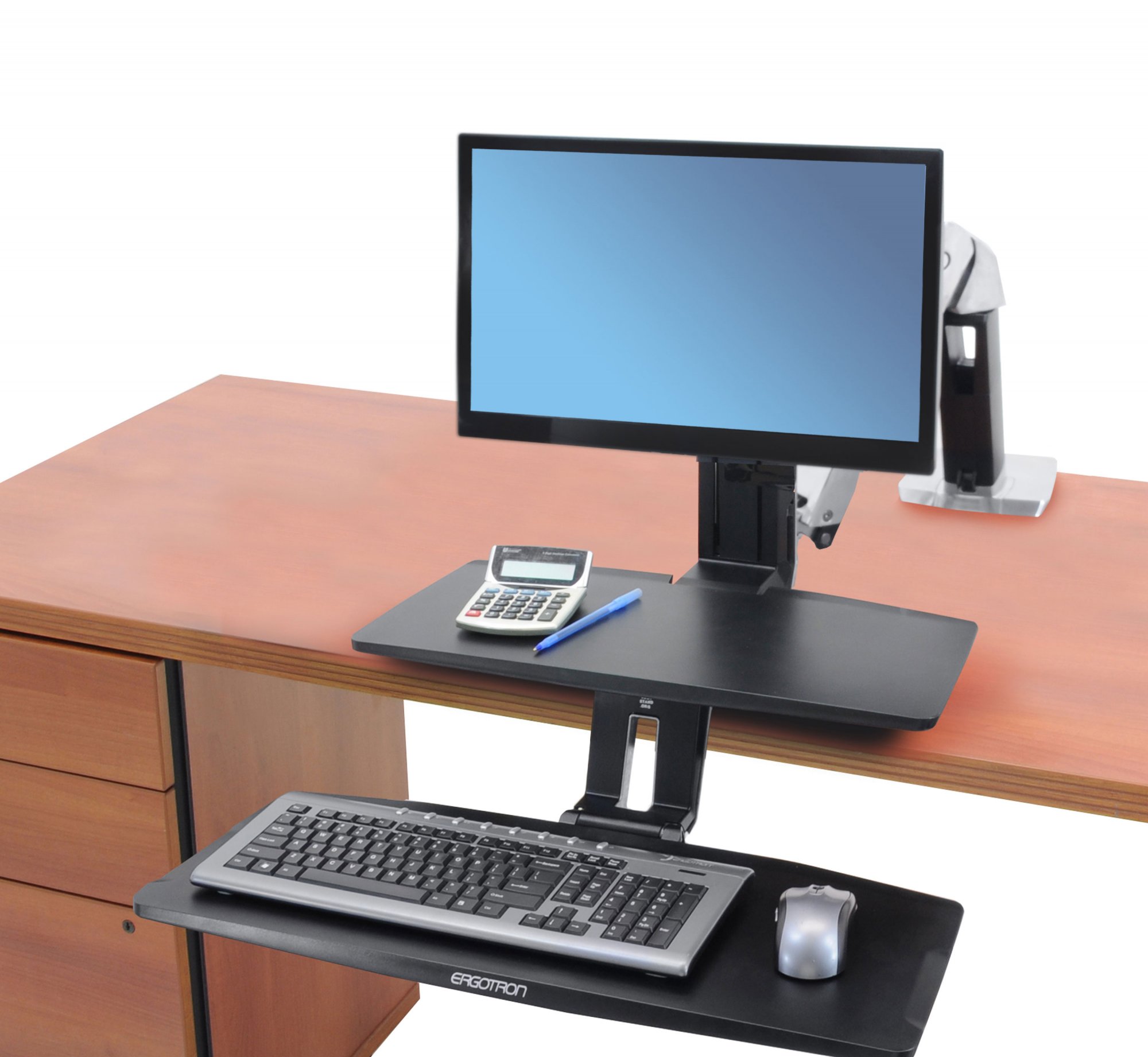

Ergotron 24-391-026 WorkFit-A with Suspended Keyboard, Single HD

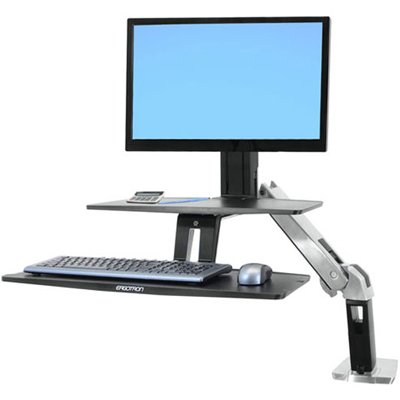

Ergotron 24-391-026 WorkFit-A with Suspended Keyboard, Single HD

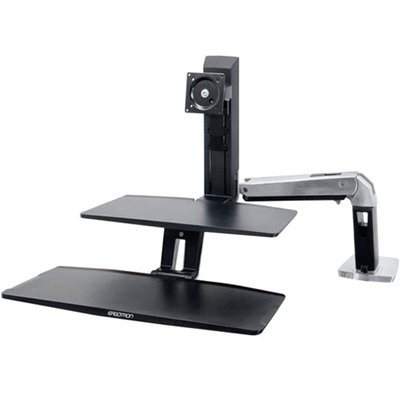

Ergotron 24-391-026 WorkFit-A with Suspended Keyboard, Single HD

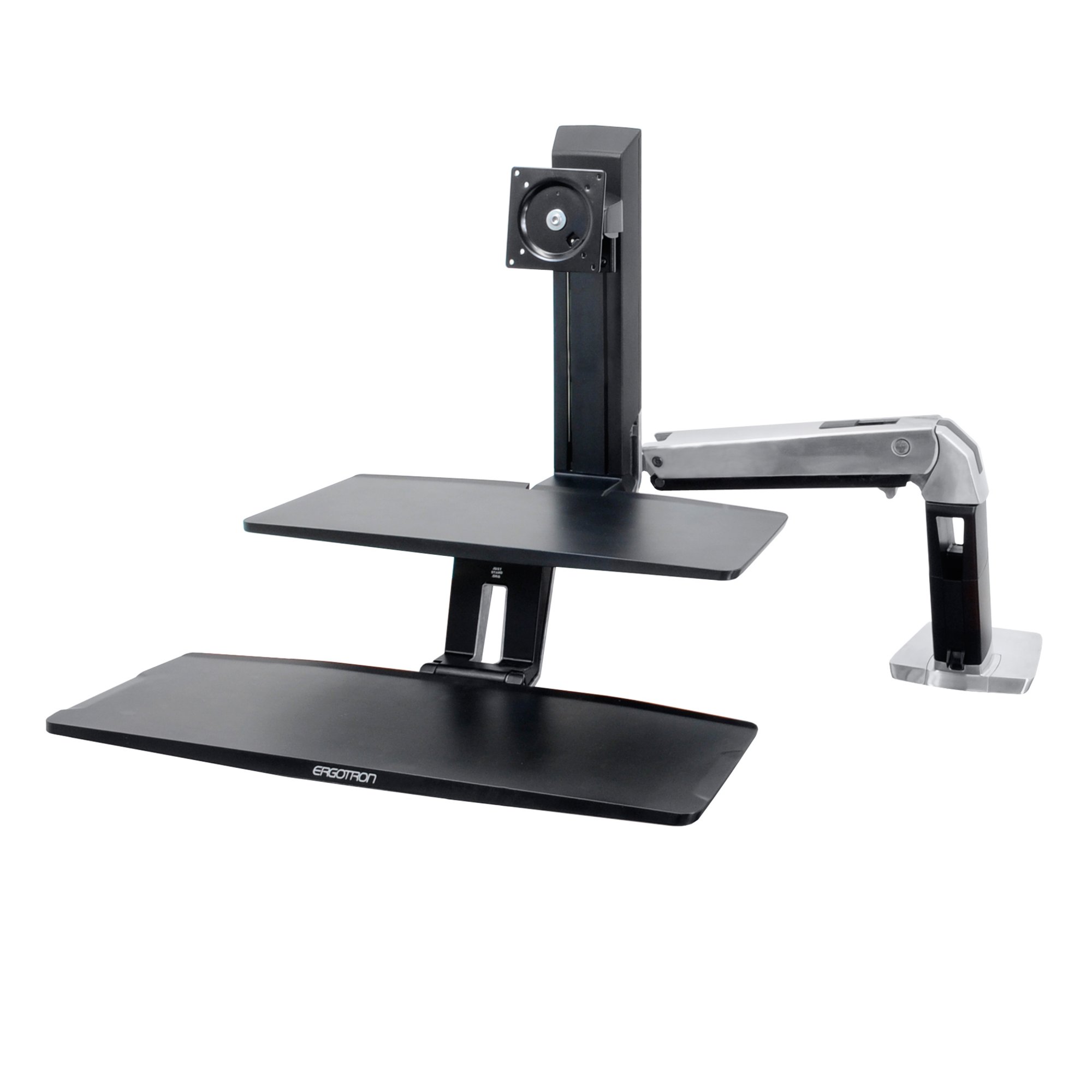

Ergotron 24-391-026 WorkFit-A with Suspended Keyboard, Single HD

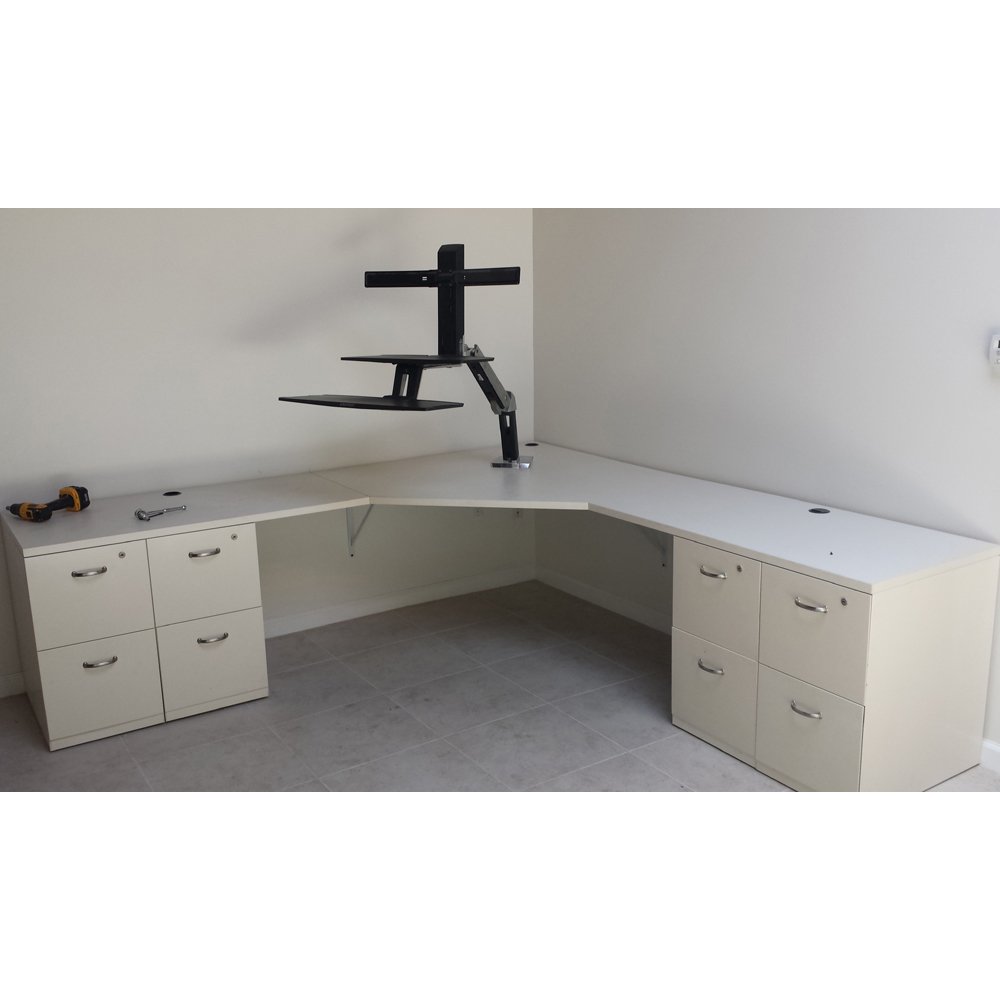

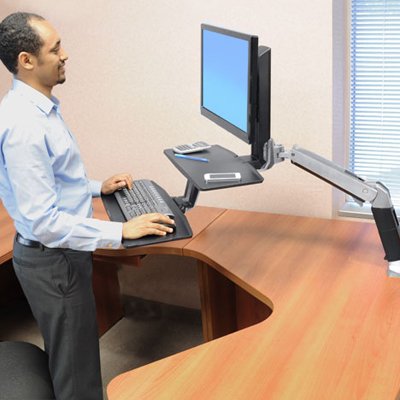

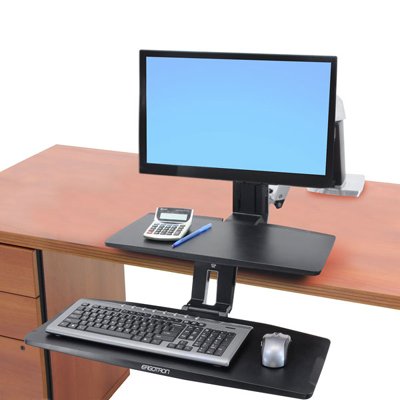

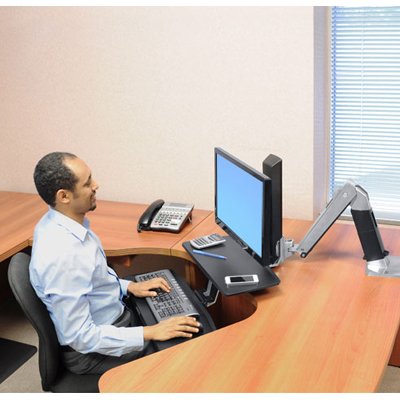

Ergotron 24-391-026 WorkFit-A Standing Workstation Installed

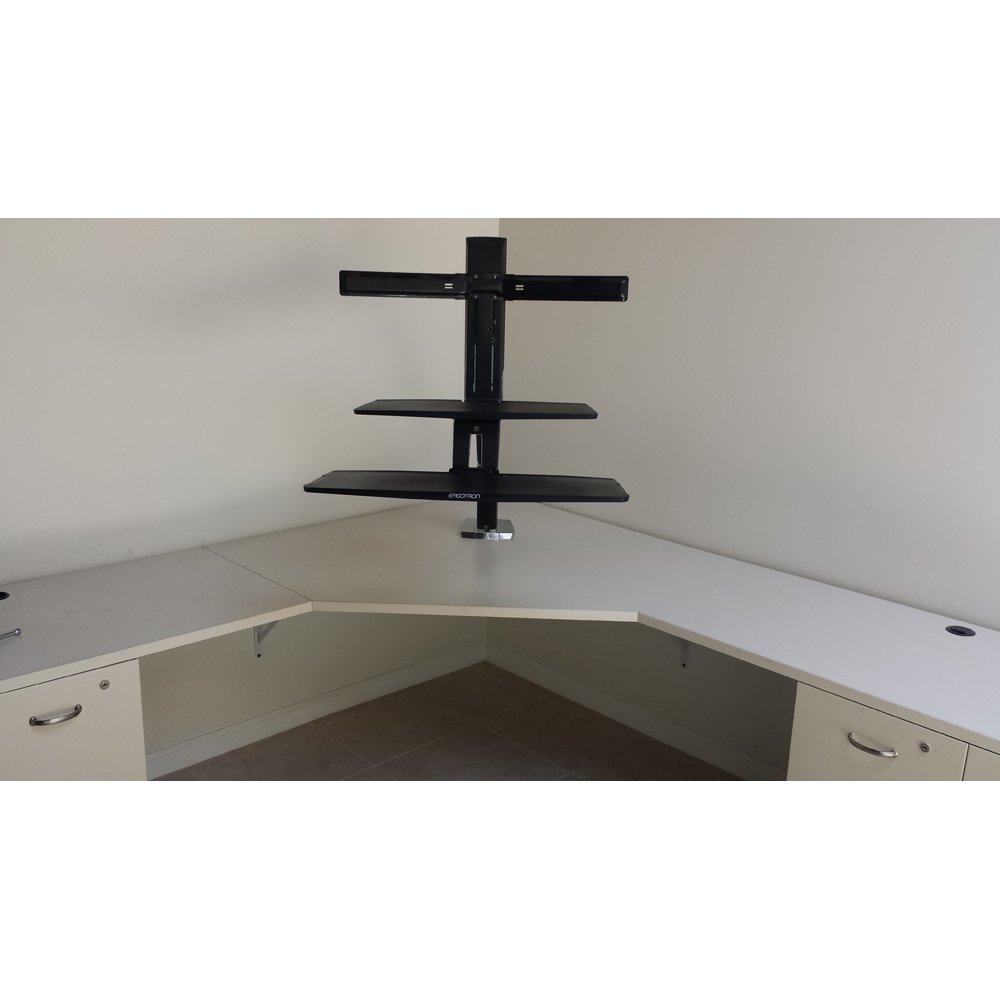

Ergotron 24-391-026 WorkFit-A Standing Workstation Installed

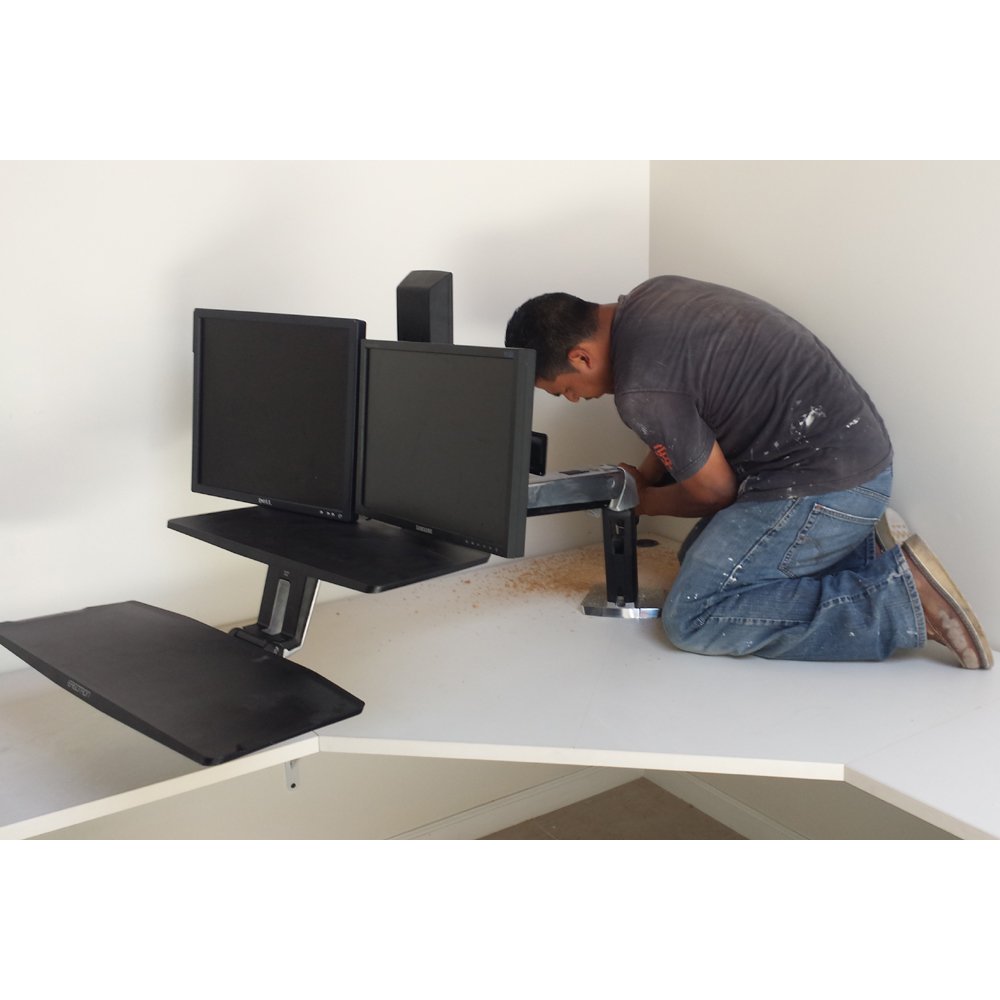

Easy Installtion of Ergotron 24-391-026 WorkFit-A Standing Workstation

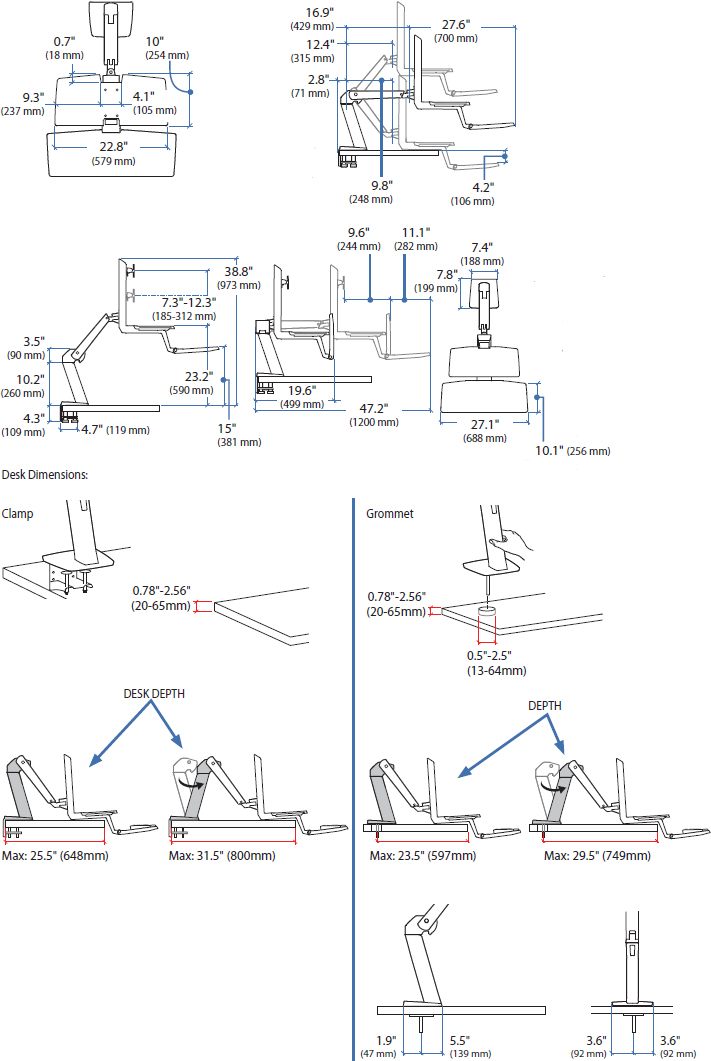

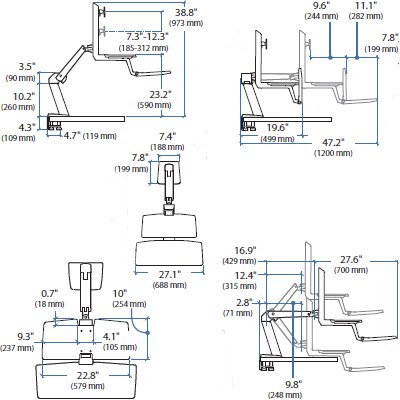

Technical Drawing I of Ergotron 24-391-026 WorkFit-A

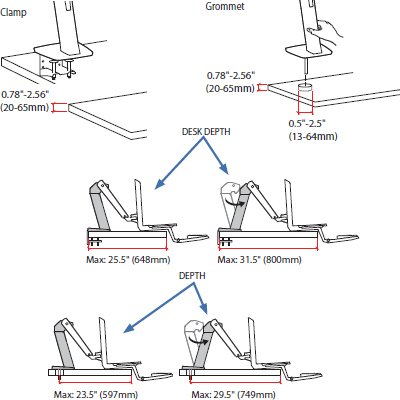

Technical Drawing II
Ergotron 24-391-026 WorkFit-A with Suspended Keyboard, Single HD
Ergotron 24-391-026 WorkFit-A with Suspended Keyboard, Single HD
Ergotron 24-391-026 WorkFit-A with Suspended Keyboard, Single HD
Ergotron 24-391-026 WorkFit-A with Suspended Keyboard, Single HD

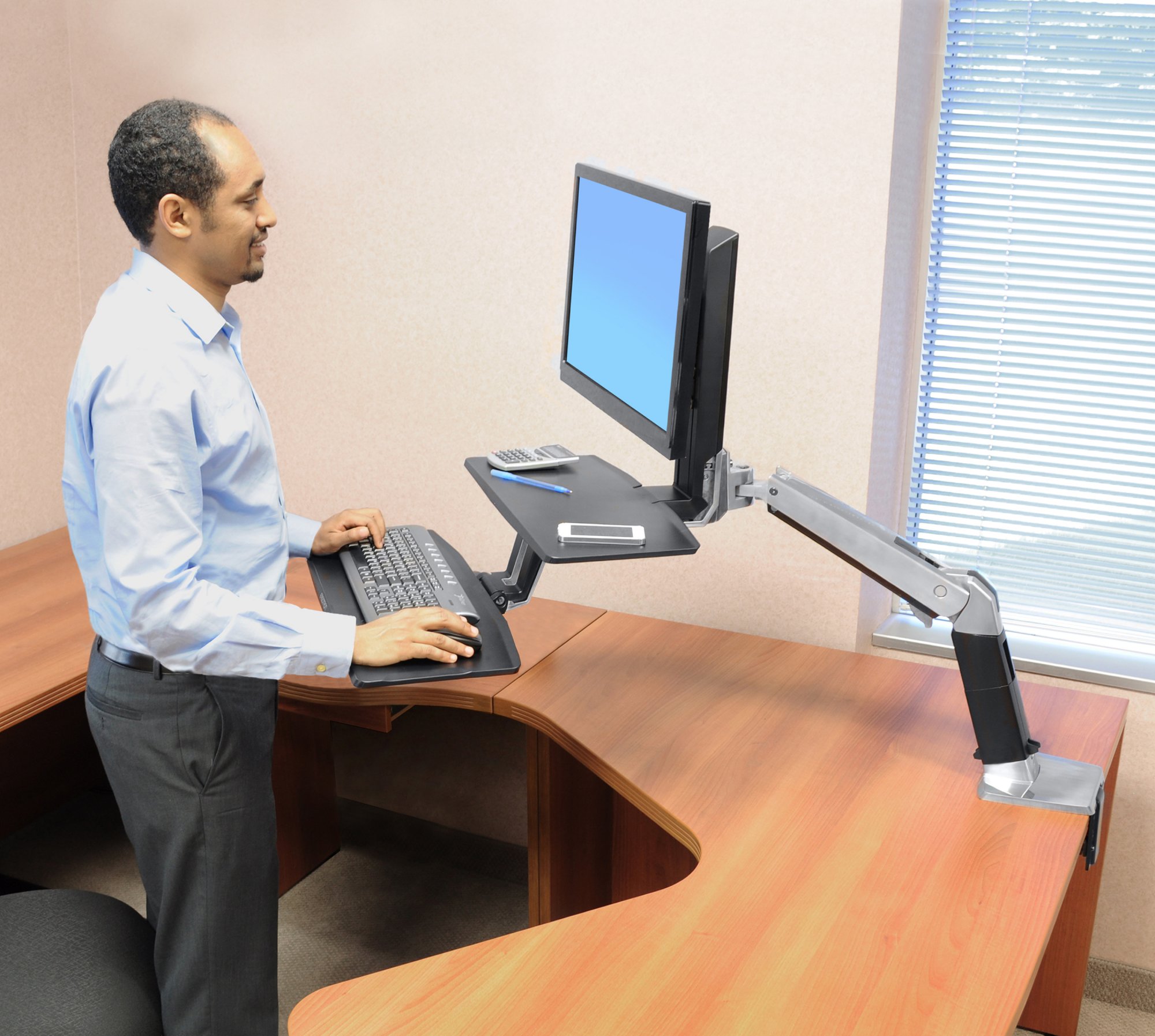

Ergotron 24-391-026 WorkFit-A Standing Workstation Installed
Ergotron 24-391-026 WorkFit-A Standing Workstation Installed
Easy Installtion of Ergotron 24-391-026 WorkFit-A Standing Workstation
Technical Drawing I of Ergotron 24-391-026 WorkFit-A
Technical Drawing II

Highlights

  • Sit-stand workstation: Converts your desk so that it lets you sit or stand while working
  • 25" vertical adjustability: Maximum possible height adjustability of the monitor
  • 10-20 lbs monitor weight: Carries single heavy duty (HD) monitor
  • 30" screen size: Holds a monitor up to 30" in screen size
  • 4" suspensionKeyboard tray drops down up to 4" below desktop
  • 10"x22" worksurface
  • Installs at back of the desk: Keeps desktop space clear
  • For a lighter monitor, see Ergotron WorkFit-A, Single LD
  • Sit-Stand video

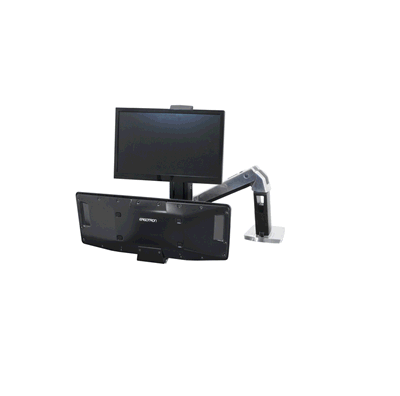

Animation of Ergotron 24-391-026 WorkFit-A with Suspended Keyboard, Single HD

Description

The WorkFit-A 24-391-026 allows you to sit and stand while working. Frequent alternating between sitting and standing is being increasingly recommended to prevent aches and pains of the back, shoulder, neck, wrists and musculoskeletal disorders like tendinitis and carpal tunnel syndrome. Regular changing of position while working is also said to help prevent health problems like obesity, high blood pressure, diabetes and cardiovascular diseases.

This WorkFit-A workstation not only permits height adjustment of the single monitor from 20-25 inches but it also lets the keyboard tray drop down 4" below the desktop surface. Both these features keep the neck, shoulders and the hands in neutral position providing ergonomic relief. Besides, this workstation installs at the back of the desk opening up desktop space in the front for writing or other work. You can also fold your keyboard up and swing the arm out of the way when you need your desk surface.

Featuring an unprecedented range of motion for a standing desk solution, WorkFit-A let’s you swing your computer system left, right, up or down to wherever you need it. Premium ergonomic benefits include keyboard placement below desktop height when sitting and independent monitor positioning.

The height-adjustable arm moves the keyboard and monitor in one simple motion, allowing you to easily sit down or stand up as you work. Fold the keyboard up and push the arm out of the way when you need your desk surface. Includes several installation options to best fit your space.

Technical Drawing

Technical Drawing for Ergotron 33-344-200 WorkFit-S, Single HD Sit-Stand Workstation

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 34"

10 - 25 lbs

4.5 - 11.3 kg

25"

63.5 cm

30° 180° 360° MIS-D

Product Information

Part Number 24-391-026
Description WorkFit-A with Suspended Keyboard, Sit-Stand Workstation, HD Heavy Duty for larger monitors (polished aluminum, black)
Includes
  • Arm

  • Desk clamp

  • Grommet mount

  • Monitor riser

  • Monitor pivot

  • Keyboard tray support bracket

  • Worksurface

  • Keyboard tray

  • Assembly fasteners

  • Velco

  • Cable wrap

  • Adjustment tools

Note Extra-long cables may be required to span between standing and sitting heights
Maximum Screen Size To maintain a comfortable focal distance, a maximum screen size of 27" is recommended in most cases. However, larger screens up to 30" may be used depending on user preference, provided the monitor fits weight and VESA interface requirements
Weight Capacity Maximum total load on height-adjustment assembly ≤ 25 lbs (11.3 kg). LCD weight = 10–20 lbs (4.5–9.1 kg), worksurface ≤ 5 lbs (2.3 kg), keyboard tray ≤ 2 lbs (.9 kg). For proper operation the total maximum weight when added together should not exceed 25 lbs (11.3 kg). The minimum total weight should not be less than 11 lbs (5 kg)
Lift Range LCD and keyboard adjust 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63.5 cm)
Keyboard Tray
  • When in seated position, keyboard tray can drop down ≤ 4" (10 cm) below level of desktop surface, placing the keyboard at the optimum ergonomic height

  • Keyboard tray can be installed in 3 different positions: centered, offset right or offset left

  • Keyboard tray designed with slight tilt to ensure wrists remain in a neutral position during data entry and help prevent repetitive stress-injuries; tray can be flipped up 90º when not in use

Mounting Surface Requirements When installed using Desk Clamp option, can be configured to work with desk surfaces up to 31.5" (80 cm) deep. When installed using Grommet Mount option, center of through-hole should be no more than 29.5" (75 cm) from front edge of desk surface. These requirements ensure that the suspended keyboard tray can extend past the desktop’s front edge
Cable Management Integrated cable management hides wires
Worksurface Dimensions Approximately 0.25" H x 22" W x 10"D (6.4 x 560 x 255 mm)
Desk Clamp Attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (7–65 mm) wide and up to 2.5" (65 mm) thick
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
Conversion Kit Can be configured to hold a laptop alongside a monitor: order Conversion Kit (97-605)
Washington State Analysis
  • A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention.

  • New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18%

Certified This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
Shipping Dimensions 36" x 21.25" x 10.75" (941 x 540 x 273 mm)
Shipping Weight 45 lbs (20.5 kg)
Warranty Five (5) years

Benefits

For Computer Users

  • Keyboard can be positioned below desk surface for optimum ergonomic comfort

  • Safe, easy to use - simple installation and effortless operation

  • Easily and simultaneously lift keyboard and LCD screen to proper height for unsurpassed ergonomic comfort

  • Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor

  • Fold keyboard up and swing arm and monitor out of the way when you need your desk surface

  • Included worksurface provides ample space and quick access to a tablet computer, phone or task-related items


For IT and Facilities Staff

  • Flexible, open-architecture design is scalable for future computer equipment

  • Modify existing office spaces or cubes by simply clamping a WorkFit on an existing worksurface, without the cost of expensive professional installers

  • Safe and neat routing of cables


For HR/Risk Management and Company Cost Savings

  • Manage the cost of healthcare premiums by promoting wellness in the daily work routine

  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs

  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases

  • WorkFit helps alleviate back and neck pain, the most costly conditions affecting employees according to the 2007 OE Medicine Journal

  • Studies in office ergonomics show productivity increases of 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture

Model 24-391-026
Manufacturer Ergotron
Part Number 24-391-026
UPC 698833040043
Color Polished aluminum, black
Monitor Size Up to 34"
Weight Capacity 10 - 25 lbs (4.5 - 11.3 kg)
Lift (63.5 cm) 25 in
Tilt 30 degree
Pan 180 degree
Rotation 360 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
Worksurface Dimensions Approximately 0.25" H x 22" W x 10"D (6.4 x 560 x 255 mm)
Shipping Dimensions 36" x 21.25" x 10.75" (941 x 540 x 273 mm)
Shipping Weight 45 lbs (20.5 kg)
Warranty Five (5) years
Desk Type Desk Mount
Mounting Options Desk
Monitor Arm Types 1 Monitor
Monitor Arm Types LCD & Laptop
Monitor Arm Types 2 Monitors
Price $500 - $599

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 1
  • 5 stars 0
(4 out of 1)
Love my new Ergotron sit-to-stand station!

by Veronica, Minnesota, Jun 23, 2015

I love the flexibility and versatility from sitting to standing with this Ergotron 24-391-026 WorkFit-A with Suspended Keyboard, Single HD! It moves up and down, side to side and all around! I would highly recommend it! It is slightly bouncy when you type hard, but is much better when you adjust the tension firmer.

Warranty

All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and limitations as set forth below.

Exceptions

  • Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014

  • Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)

  • Ten-year warranty on LearnFit Sit-Stand Desks

  • Three-year warranty on all Neo-Flex Ergotron Products

  • Two-year warranty on WorkFit-Z Mini

  • Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted

  • The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder

  • One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)

  • Two-year warranty on Power Modules by Ergotron

  • Sealed Lead-Acid (SLA) Power Systems, SLA Batteries

  • Two-year warranty on all SLA power system components by Ergotron

  • Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)

  • Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law

  • Lithium Iron (LiFe) Power Systems, LiFe Batteries

  • LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)

  • Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)

  • Service Programs - 30-day warranty

  • Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies

  • Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer

  • StyleView Electric Lift motor: Three (3) years on motor and switch

Further Exclusions and Limitations

SLA Batteries

  • In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void

  • Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void

  • Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law

  • The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
  1. StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations

  2. SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history

  3. SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history


LiFe Batteries

  • LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)

  • The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.

These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.

Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.


Exclusive Remedy

Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.

Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.


For products that are not covered under warranty, Ergotron offers you the following options:
  1. You may upgrade to a newer, functionally equivalent product at a normal MSR list price

  2. Ergotron will return the product to you

  3. You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law

Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.


Warranty Disclaimer

Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.

Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.


Warranty Transferability

This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
