$712.00

Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual

Product ID 17743
HIGHLIGHTS
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Technical Drawing I of Ergotron 24-392-026
Technical Drawing II of Ergotron 24-392-026
Technical Drawing III of Ergotron 24-392-026
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Technical Drawing I of Ergotron 24-392-026
Technical Drawing II of Ergotron 24-392-026
Technical Drawing III of Ergotron 24-392-026
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual
Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual

Highlights

  • Sit-stand workstation: Converts your desk so that it lets you sit or stand while working
  • 24" screen size: Supports 2 monitors with 24" screen size
  • 25" vertical adjustability: Maximum possible height adjustability of monitors
  • 25 lbs weight capacity of the workstation: Includes monitors, keyboard/mouse tray and work surface; Each monitor should be between 4.5-10 lbs weight
  • 4" suspension: Keyboard tray goes 4" below desktop
  • 10"x22" worksurface
  • Mounting: WorkFit-A mounts at the back of the desk with C-Clamp or Grommet mount
  • For a single monitor workstation, see Ergotron WorkFit-A with Suspended Keyboard, Single LD
  • Sit-Stand video

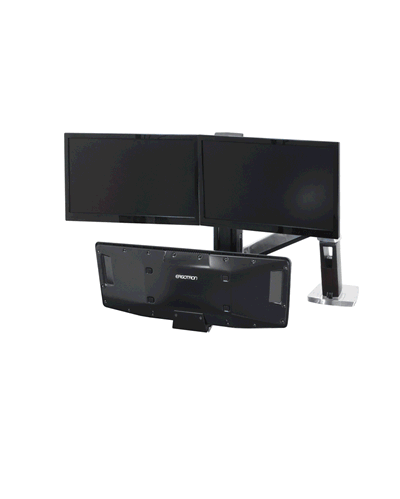

Animation for Ergotron 24-392-026 WorkFit-A Dual Monitor Stand Up Desk Workstation

Description

WorkFit-A 24-392-026 dual workstation allows you to alternate between sitting and standing at work. This alternating is the most effective way to help maintain a healthy posture and prevent multiple medical conditions such as cardiovascular diseases, high blood pressure, diabetes. It also helps in preventing musculoskeletal disorders such as carpal tunnel syndrome and tendinitis.

The highlight of WorkFit-A workstations is that they get installed at the back of the desk keeping valuable desktop space in the front clear and usable. Not only does this workstation have dual monitors, which is reported to increase productivity by more than 25%, but it also has a suspended keyboard tray, which drops down up to 4" below the desktop surface for neutral positioning of the hands and shoulders providing ergonomic comfort. This dual monitors workstation makes it easy to compare pages side by side and is invaluable for data analysts, graphic designers and programmers to name a few. The 24-392-026 Workfit-A also allows the keyboard to fold up and move the arm out of the way when not in use so that the desk space can be utilized for non-computer work.

Featuring an unprecedented range of motion for a standing desk solution, WorkFit-A let’s you swing your computer system left, right, up or down to wherever you need it. Premium ergonomic benefits include keyboard placement below desktop height when sitting and independent monitor positioning.

The height-adjustable arm moves the keyboard and monitor in one simple motion, allowing you to easily sit down or stand up as you work. Fold the keyboard up and push the arm out of the way when you need your desk surface. Includes several installation options to best fit your space.

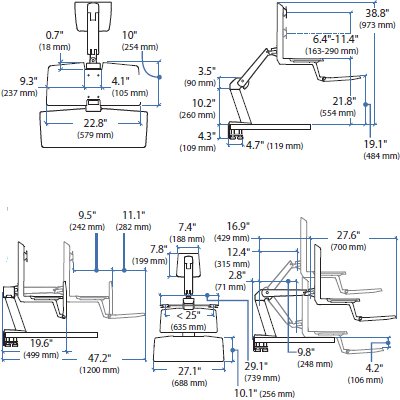

Technical Drawing

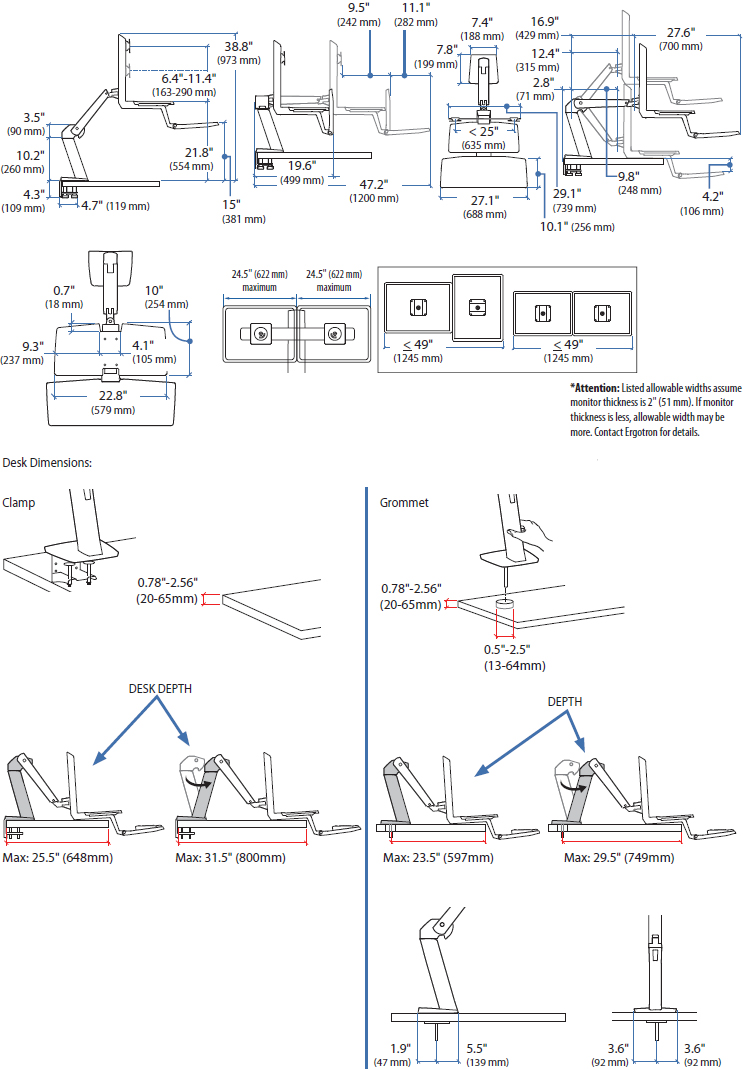

Technical Drawing for Ergotron 24-392-026 WorkFit-A Dual Monitor Stand Up Desk Workstation

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 25 lbs

11.3 kg

25"

63.5 cm

- 180° 360° MIS-D

Product Information

Part Number 24-392-026
Description WorkFit-A with Suspended Keyboard, Sit-Stand Workstation, Dual monitors (polished aluminum, black)
Includes
  • Arm
  • Desk clamp
  • Grommet mount
  • Monitor riser
  • Crossbar bow
  • Monitor pivots (2)
  • Keyboard tray support bracket
  • Worksurface
  • Keyboard tray
  • Assembly fasteners
  • Velco
  • Cable wrap
  • Adjustment tools
Note Extra-long cables may be required to span between standing and sitting heights
Weight Capacity

Maximum total load on height-adjustment assembly ≤ 25 lbs (11.3 kg). LCD weight = 4.5–10 lbs (2.0–4.5 kg) each, worksurface ≤ 5 lbs (2.3 kg), keyboard tray ≤ 2 lbs (.9 kg).

For proper operation the total maximum weight when added together should not exceed 25 lbs (11.3 kg)

Lift Range LCD and keyboard adjust 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63.5 cm)
Keyboard Tray
  • When in seated position, keyboard tray can drop down ≤ 4" (10 cm) below level of desktop surface, placing the keyboard at the optimum ergonomic height
  • Keyboard tray can be installed in 3 different positions: centered, offset right or offset left
  • Keyboard tray designed with slight tilt to ensure wrists remain in a neutral position during data entry and help prevent repetitive stress-injuries; tray can be flipped up 90º when not in use

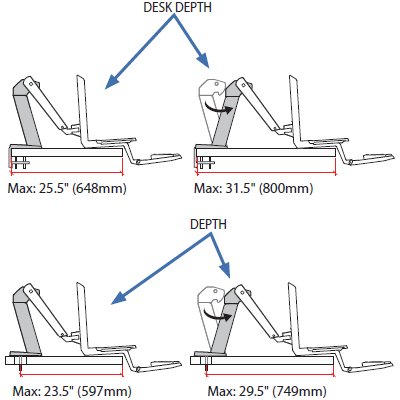

Mounting Surface Requirements When installed using Desk Clamp option, can be configured to work with desk surfaces up to 31.5" (80 cm) deep. When installed using Grommet Mount option, center of through-hole should be no more than 29.5" (75 cm) from front edge of desk surface. These requirements ensure that the suspended keyboard tray can extend past the desktop’s front edge
Cable Management Integrated cable management hides wires
Worksurface Dimensions Approximately 0.25" H x 22" W x 10"D (6.4 x 560 x 255 mm)

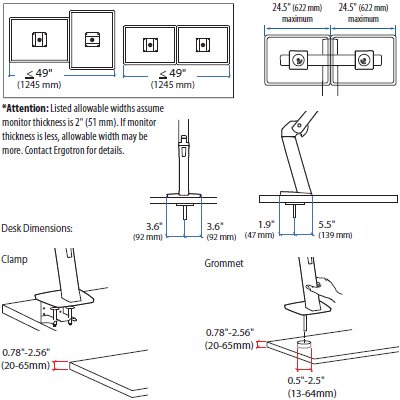

Desk Clamp Attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (7–65 mm) wide and up to 2.5" (65 mm) thick
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)

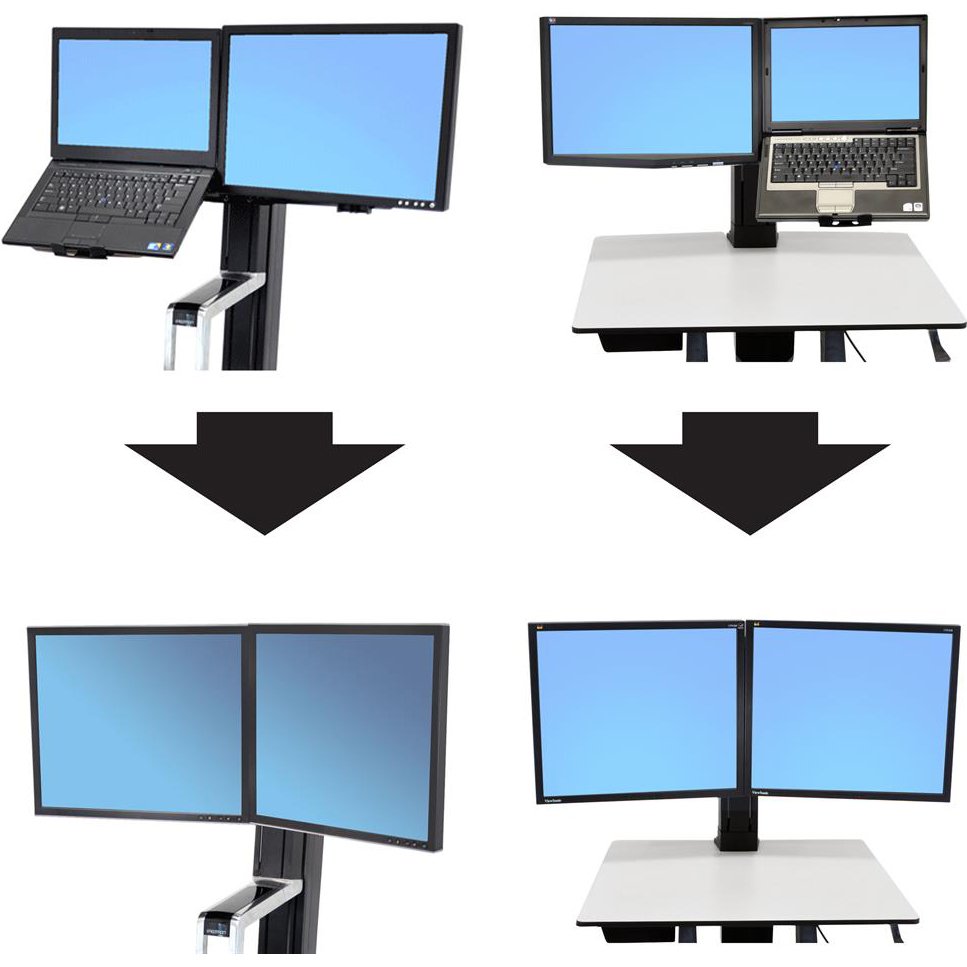

Conversion Kit Can be configured to hold a laptop alongside a monitor: order Conversion Kit (97-617)
Washington State Analysis

A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention.

New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18%

Certified This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
Shipping Dimensions 36" x 21.25" x 10.75" (941 x 540 x 273 mm)
Shipping Weight 48.5 lbs (22 kg)
Warranty Five (5) years

Advantages

For Computer Users

  • Keyboard can be positioned below desk surface for optimum ergonomic comfort
  • Safe, easy to use - simple installation and effortless operation
  • Easily and simultaneously lift keyboard and LCD screen to proper height for unsurpassed ergonomic comfort
  • Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor
  • Fold keyboard up and swing arm and monitor out of the way when you need your desk surface
  • Included worksurface provides ample space and quick access to a tablet computer, phone or task-related items

For IT and Facilities Staff

  • Flexible, open-architecture design is scalable for future computer equipment
  • Modify existing office spaces or cubes by simply clamping a WorkFit on an existing worksurface, without the cost of expensive professional installers
  • Safe and neat routing of cables

For HR/Risk Management and Company Cost Savings

  • Manage the cost of healthcare premiums by promoting wellness in the daily work routine
  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs
  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases
  • WorkFit helps alleviate back and neck pain, the most costly conditions affecting employees according to the 2007 OE Medicine Journal
  • Studies in office ergonomics show productivity increases of 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture

Frequently Asked Questions

q Do both monitors have to be the same size and shape to work with this system?
a

No, as long as both the monitors follow the weight and size restrictions (each monitor should weigh 4.5-10 lbs and be less then or equal to 24" in screen size), they both can be different size, make and model. However it is preferable to have both the monitors same size and model for the following reasons - 1) Better aesthetics - You workstation will look better with uniform size and model of both the monitors 2) Better functionality - Monitors of same size, make and model will have the same resolution, which makes it easier for the cursor to move smoothly between the two screens. Absence of same resolution can sometimes make the cursor stick towards the lower end of the monitors.

q Will this workstation be compatible with a set-up where one of the monitors is a laptop?
a

Yes. If you want one of the monitors to be a laptop on this WorkFit-A, you need to buy a LCD/Laptop Conversion Kit (Option 4).

q I am 5'8" and wonder if I should order this unit with the Tall Height option. Due to vision problems, I need to be able to look directly in the middle of my 24" horizontal monitors.
a

If you are 5'8" the tall user kit is not necessary. This kit is more for people 6'3" and taller.

Model 24-392-026
Manufacturer Ergotron
Part Number 24-392-026
UPC 698833040050
Color Polished aluminum, black
Monitor Size Up to 24"
Weight Capacity Up to 25 lbs (11.3 kg)
Lift (63.5 cm) 25 in
Pan 180 degree
Rotation 360 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Worksurface Dimensions Approximately 0.25" H x 22" W x 10"D (6.4 x 560 x 255 mm)
Shipping Dimensions 36" x 21.25" x 10.75" (941 x 540 x 273 mm)
Shipping Weight 48.5 lbs (22 kg)
Warranty Five (5) years
Mounting Options Desk
Mounting Surfaces Desk
Monitor Arm Types 2 Monitors
Monitor Arm Types LCD & Laptop
Price $500 - $599

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 1
  • 5 stars 4
(4.8 out of 5)
Good unit with a few mods

by Joel I, Union City, California, Aug 23, 2018

For the most part I am quite happy with this unit. After install and manual-listed tweaks it is working quite well. A few mods that I found I needed to do were:
I found my base (that mounts to the desk) would move around a little bit when swiveling the rig up and completely out of "the way". Part of the problem (I feel) is that a wingnut comes with the bolt for tightening the unit to the desk. (I don't think it's really possible to tightening a finger-held nut enough to keep it in place). I went to my local hardware store and bought a silicone backed lock-nut and tightened it all down with a wrench. I also placed a non-slip made between the base and my table top (with a cutout for the bolt of course). Maybe my desk is extra slippery...or... a lock nut should come with the unit in the first place. At any rate, other than that it installed easily enough and works quite well. (the manual lists the size of every bolt/screw EXCEPT that one...so... they should add the info to the manual on next printing i'd say). Only, thing I've learned though is that even though this unit can 'swing out of the way' - it is of such size that I don't really regain full use of the desk space in front of me with it sung around as far as possible (which was my desire) ... so, that was one less than ideal outcomes - but 4/5 stars on the whole. Finally, 5/5 stars for Ergodirect customer support. Great, knowledgeable and patient pre and post sales help with follow through each and every time. Buy from here... it's worth the benefit of good CS.

Ergotron 24-392-026 WorkFit-A with Suspended Keyboard, Dual Monitor

by Leilani M, Puerto Rico, Jul 20, 2018

Excellent product. Easy checkout on website. Shipping was high since it was being shipped to Puerto Rico. I have a corporate account but they won't quote before processesing, so I couldn't see which would be a better price for shipping. Other than that, great product.

Great product

by Scott M, Wichita, Kansas, Dec 05, 2017

The product works great, does what its advertised to do.

Review

by Christine S, Maryland, Jan 19, 2017

We were very pleased with the order and with the service, thank you!

Great product!

by 1can2, Houston, TX, Apr 28, 2016

I moved into an office at my past job that already had this Ergotron 24-392-026 Monitor Keyboard Mouse tray installed on the desk. Boy did I like and am now missing it. I have never worked standing up but now I cannot be without this option. I now have an elevating desk at home but will be starting a new job soon. I will definitely try to get my new manager to buy me one of this elevating stands. I really like to stand and sit throughout the work day to help with cutting down on coffee and to allow my leg blood circulation a "break".
