$1,520.00

Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White

Product ID 18529
HIGHLIGHTS
Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White

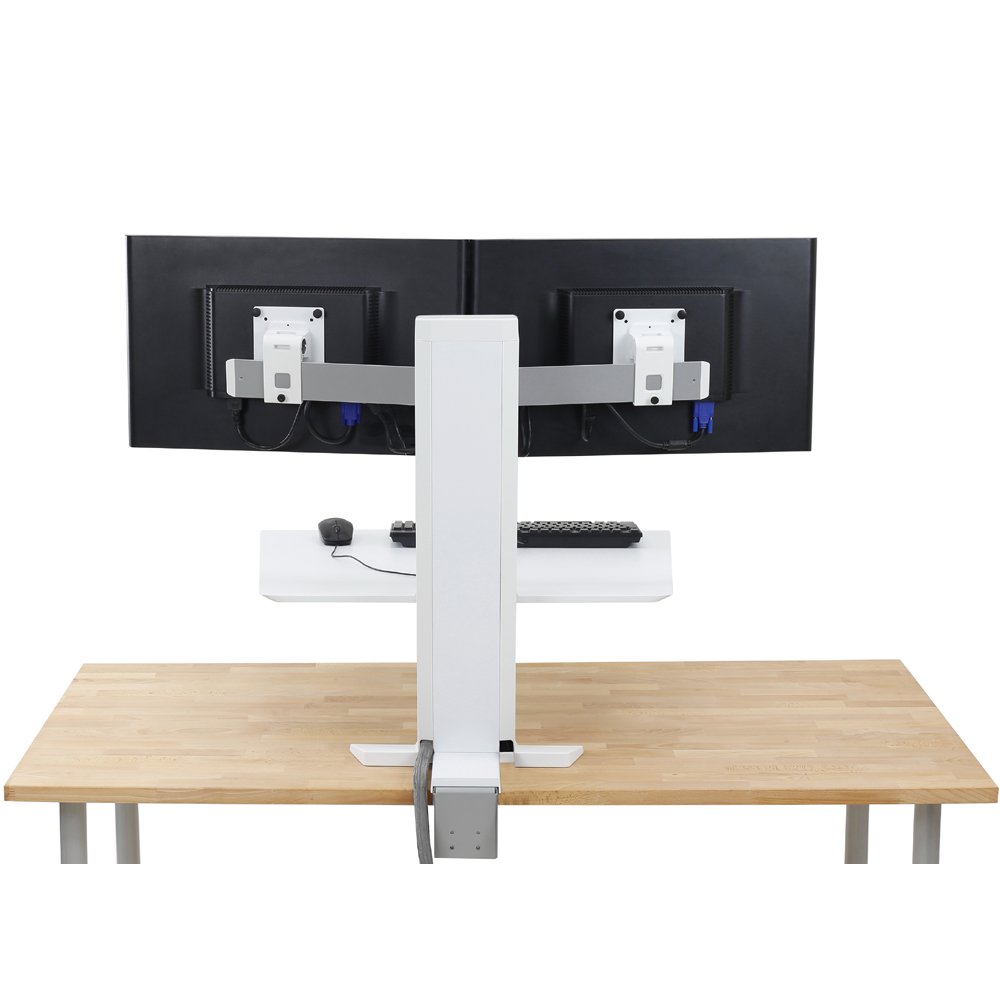

Rear position
Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White
Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White
Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White
Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White

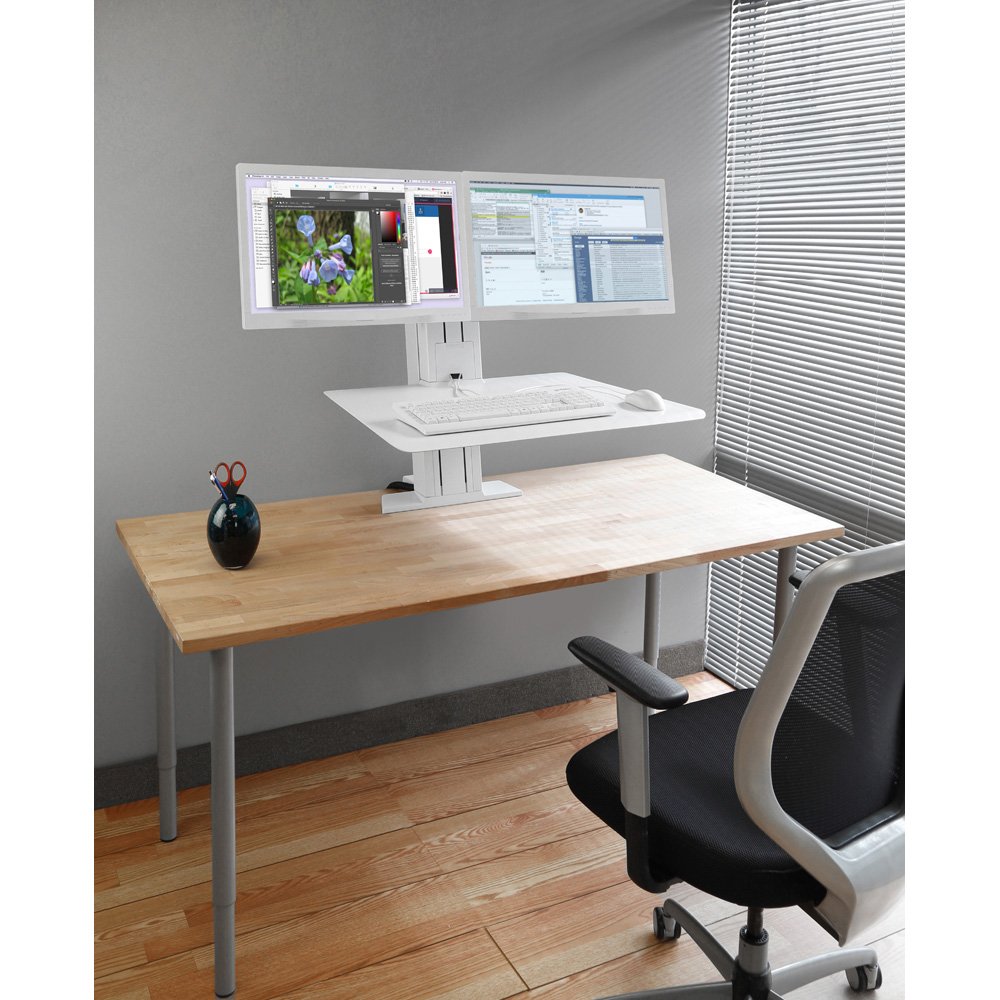

Inused image
Low position

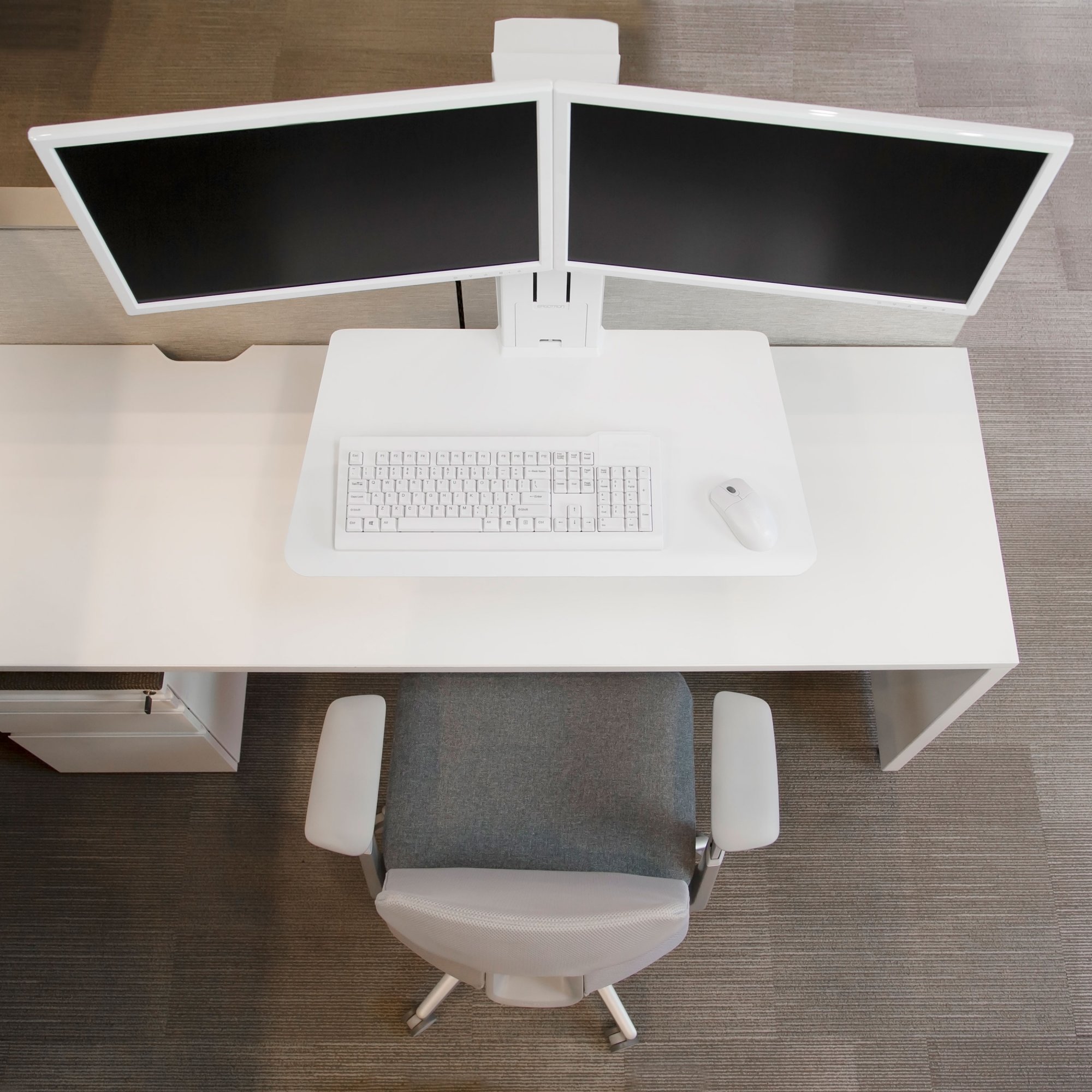

Top desk position
High position
Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White
Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White
Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White
Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White

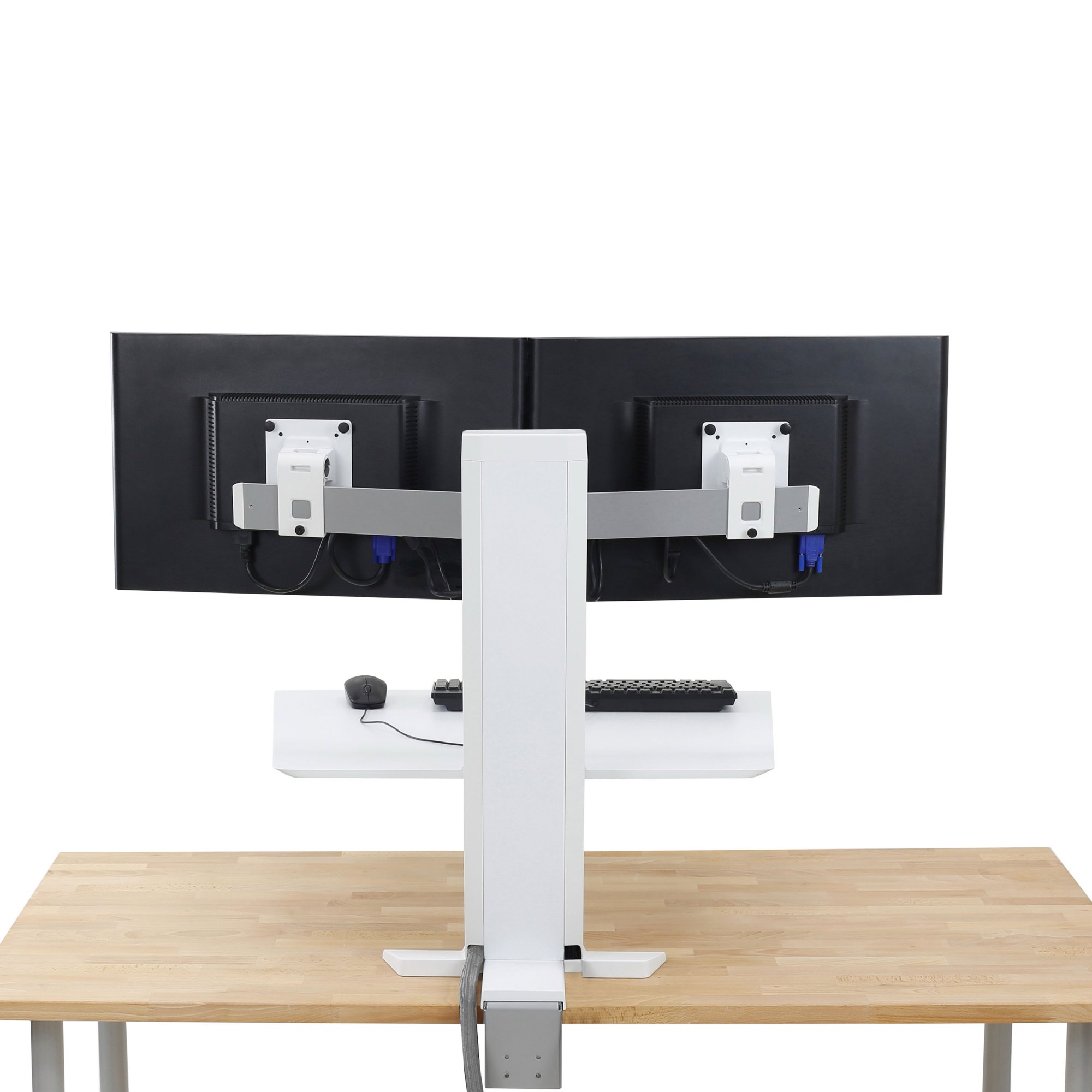

Rear position
Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White
Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White
Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White
Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White
Inused image
Low position
Top desk position
High position
Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White
Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White
Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White

Highlights

  • Sit-Stand desktop workstation in white: Converts your regular desk to a stand up desk
  • Desk size: Ideal for 30" - 36" deep desks
  • Maximum monitor height adjustment: 23"
  • 24" screen size: Holds 2 monitors side by side (maximum outside width of display 24.5" if monitor thickness is 2")
  • Monitor weight: Each monitor could weigh minimum of 3 and maximum of 11 lbs.
  • Total weight capacity: 25 lbs
  • Work-surface dimensions: 29.5" x 21.8"
  • View Short Surface WorkFit SR in white
  • Please see, if you want this workstation in black

Description

Ergotron 33-407-062 WorkFit-SR positions a complete workstation within the footprint of your desktop without protruding into your space. It clamps to the rear of most surfaces, converting any tabletop into a healthy sit-stand desk.

This is a premium furniture retrofit solution, featuring refined aesthetics and superior material construction. When in the seated position, the thin worksurface always stays close to your desktop. The all-aluminum composition is extremely sturdy, allowing for easy, handle-free height adjustment.

Technical Drawing

Technical Drawing for Ergotron 33-407-062 WorkFit-SR Rear Mount Dual Sit-Stand Workstation - White

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 25 lbs

11.3 kg

23"

58.4 cm

30° - 360° MIS-D

Product Information

Part Number 33-407-062
Description WorkFit-SR, Dual Monitor Sit-Stand Desktop Workstation, Deep Surface, furniture retrofit (white)
Includes
  • Height-adjustment column

  • Desk clamp

  • Crossbar

  • Two (2) LCD pivots

  • Worksurface/keyboard

  • One (1) USB extension cable

  • Two (2) cable wraps

Optimized For desks that are 30"–36" deep (76–91 cm): on desks shorter than 30", worksurface will extend beyond desktop edge; on desks deeper than 36", worksurface will not extend to desktop edge
Worksurface Dimensions 29.5" x 21.8" (75 x 55.4 cm)
Weight Capacity Maximum total load on height-adjustment assembly = 25 lbs (11.4 kg). LCD weight = 3–11 lbs (1.3–5 kg) each; worksurface ≤ 5 lbs (2.3 kg)
LCD and Keyboard Adjust 18" (46 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 23" (58 cm)
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Note
  • Extra-long cables are required to span between standing and sitting heights

  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment

Product Weight 41.5 lbs (18.9 kg)
Shipping Dimensions 24.75" x 14.25" x 40.75" (62.9 x 36.2 x 103.5 cm)
Shipping Weight 59 lbs (26.8 kg)
Warranty Five (5) years

Benefits

  • This model is optimized to accommodate two displays up to 24" in size

  • Premium aesthetics and sturdy construction: all-aluminum worksurface, bow and pivots

  • Worksurface/keyboard tray stays on top of the desktop, never intruding into your space

  • The ergonomic design offers 18" (45.7 cm) of in-tandem height adjustment for monitors and keyboard, with an extra 5" (13 cm) of independent lift for monitors. Screens tilt to your preferred angle and the deep worksurface lets you place the keyboard where you want it, controlling focal distance

  • Configuration flexibility makes WorkFit-SR well suited to taller users: worksurface can lift higher than other WorkFit models; monitor pivots can be installed at tall-user heights

  • Spacious worksurface accommodates any keyboard and mousing device with plenty of room for other desktop items

  • Internal cable management hides cord clutter; includes pre-installed USB cable for easy connectivity

  • Five-year warranty: tested and guaranteed! Proven lift technology is reliable through thousands of adjustment cycles

Model 33-407-062
Manufacturer Ergotron
Part Number 33-407-062
UPC 698833052275
Color White
Monitor Size Up to 24"
Weight Capacity Up to 25 lbs (11.3 kg)
Lift (58.4 cm) 23 in
Tilt 30 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Worksurface Dimensions 29.5" x 21.8" (75 x 55.4 cm)
Weight 41.5 lbs (18.9 kg)
Shipping Dimensions 24.75" x 14.25" x 40.75" (62.9 x 36.2 x 103.5 cm)
Shipping Weight 59 lbs (26.8 kg)
Warranty Five (5) years
Price $600 - $699
