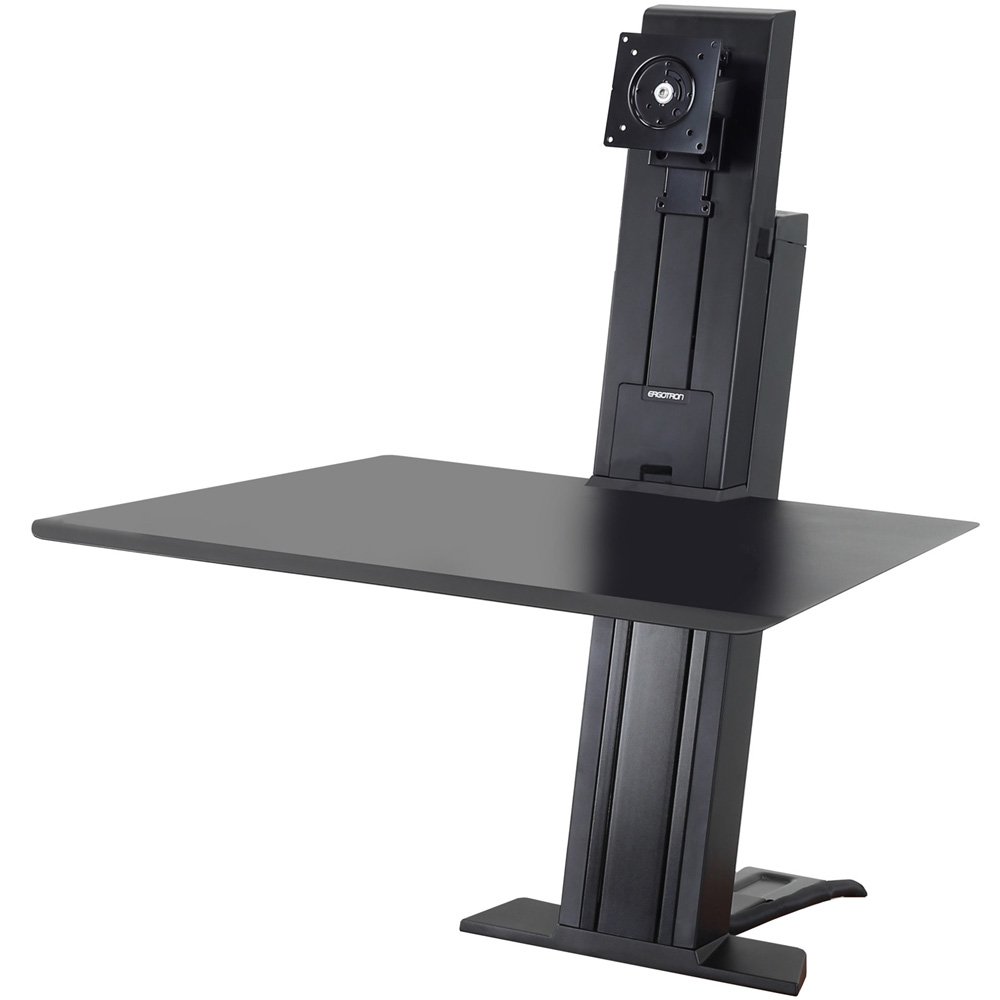

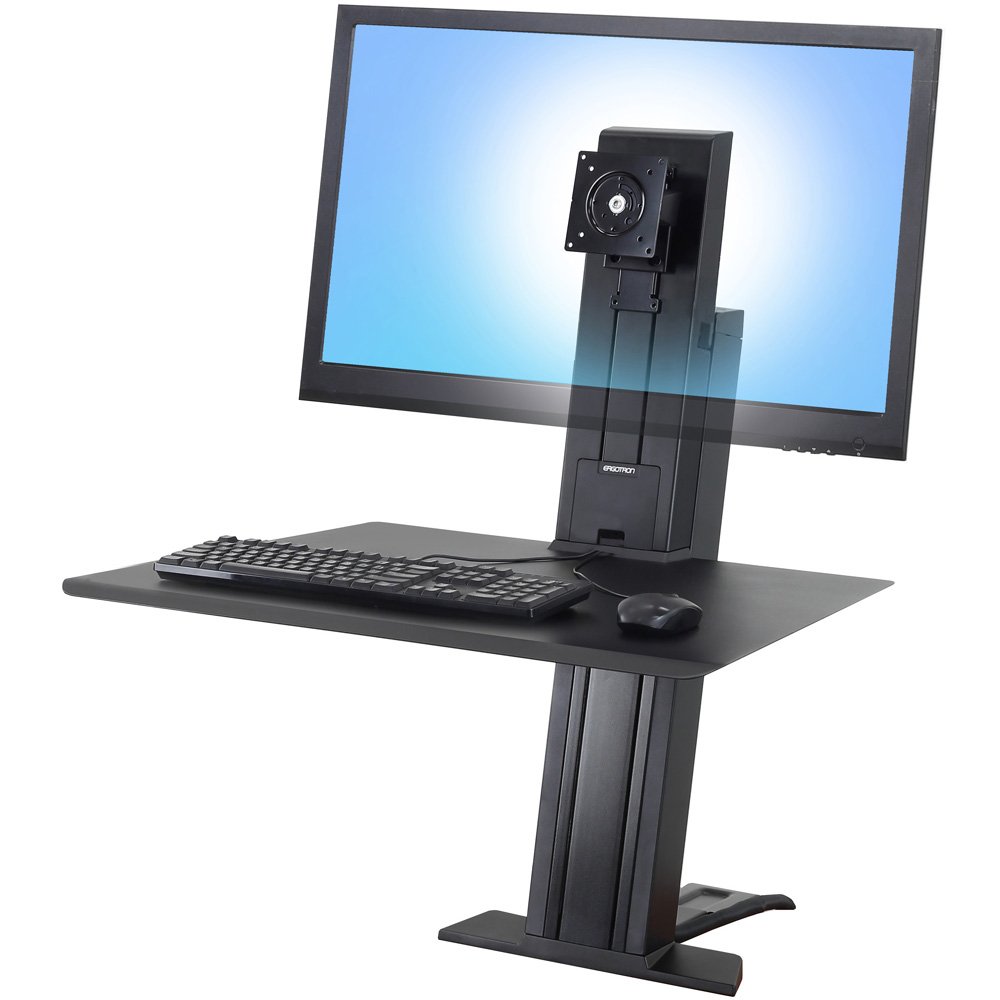

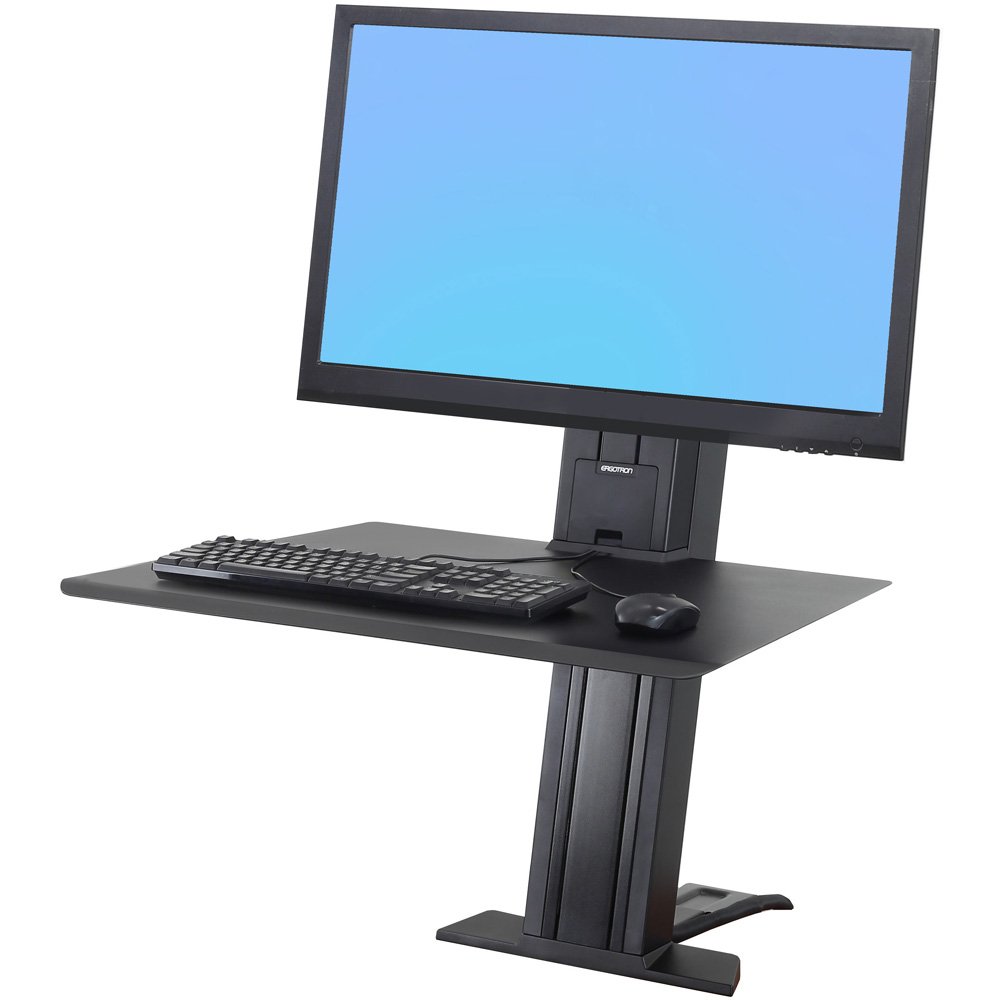

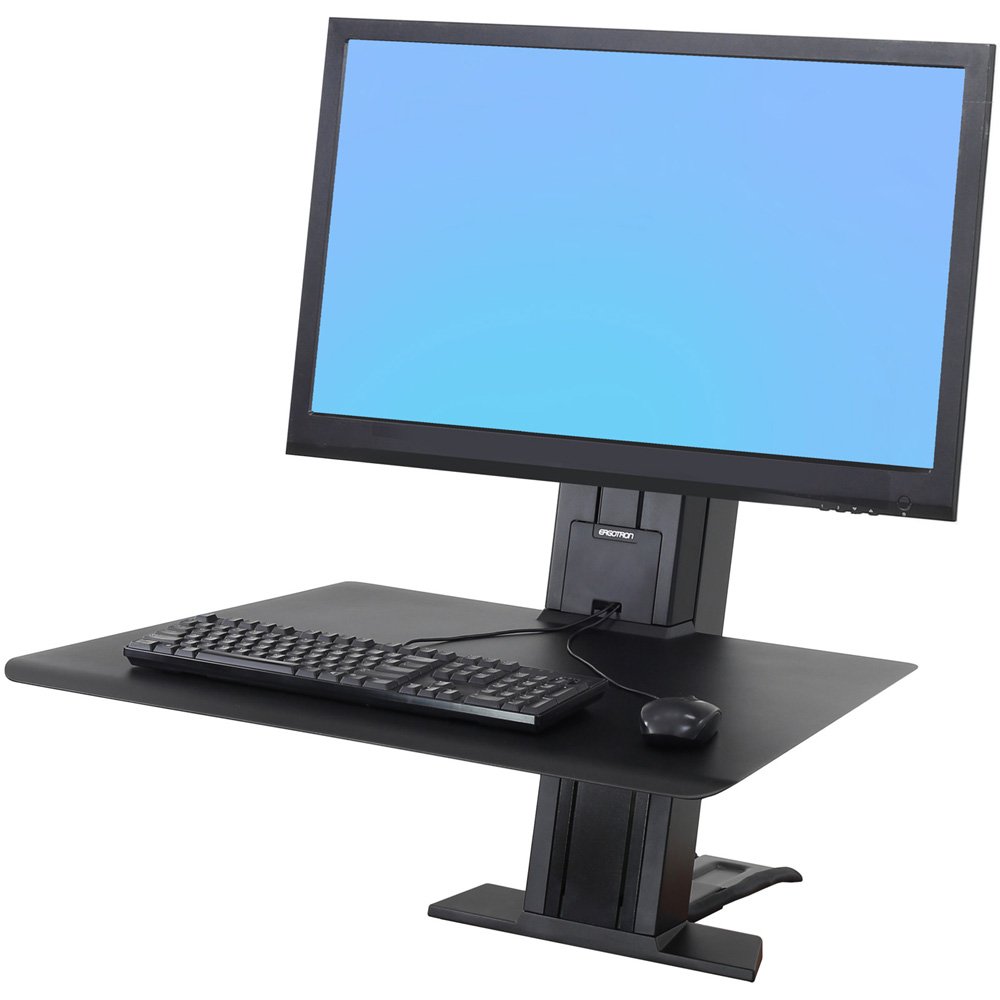

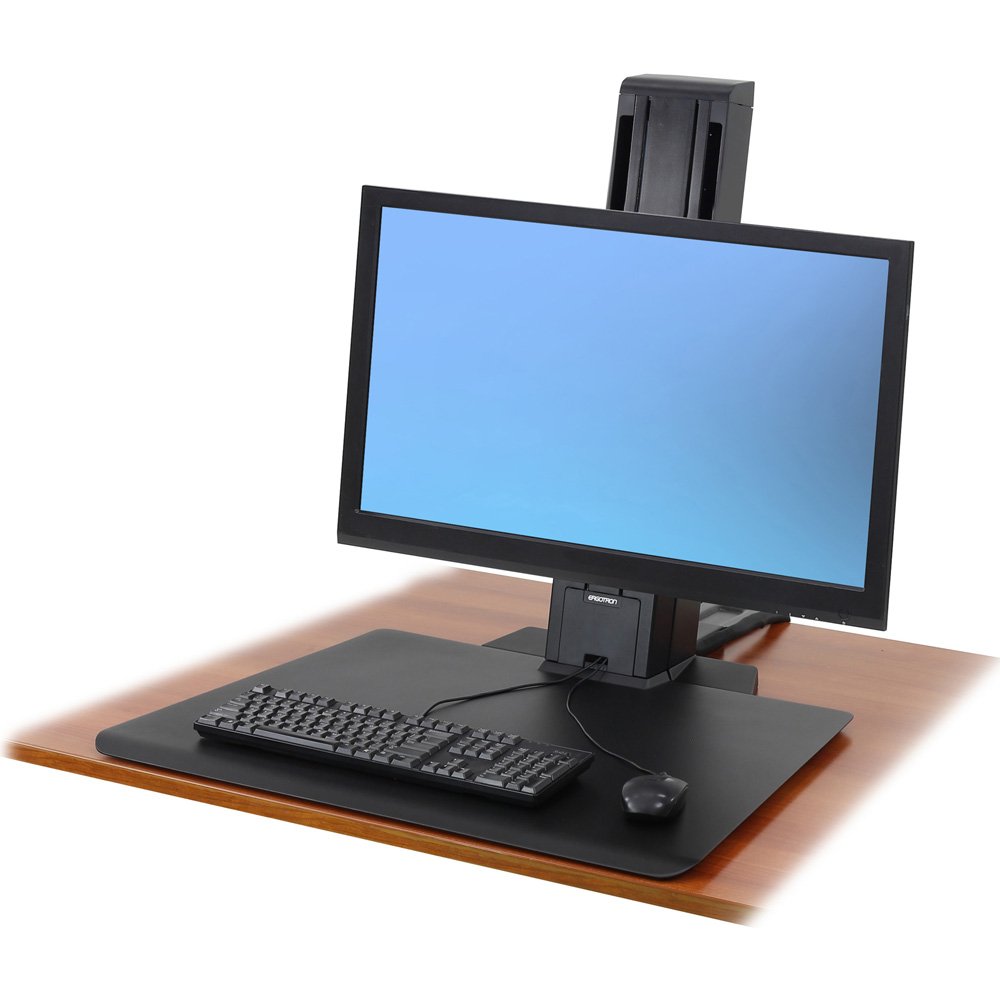

Ergotron 33-416-085 WorkFit-SR Rear Mount Sit Stand Heavy Monitor Workstation - Black

Be the first to review this product
Product ID: 18532
Highlights
  • Single Sit-Stand desktop workstation for heavy monitors in Black: Converts your traditional desk to a standing desk
  • Desk size: Ideal for 30" - 36" deep desks
  • Maximum monitor height adjustment: 23"
  • Maximum screen size: 30"
  • Monitor weight: Minimum of 10 and maximum of 22 lbs.
  • Total weight capacity: 25 lbs
  • Work-surface dimensions: 29.5" x 21.8"
  • Please see, if you want this workstation in white
Recommended Accessories
List Price: $1,150.00
Our Price: $685.55
You Save: $464.45
Shipping: $29.99 *
* applies to Contiguous United States
Add to Cart

Description

Ergotron 33-416-085 WorkFit-SR positions a complete workstation within the footprint of your desktop without protruding into your space. It clamps to the rear of most surfaces, converting any tabletop into a healthy sit-stand desk.

This is a premium furniture retrofit solution, featuring refined aesthetics and superior material construction. When in the seated position, the thin worksurface always stays close to your desktop. The all-aluminum composition is extremely sturdy, allowing for easy, handle-free height adjustment.



Technical Drawing

Technical drawing for Ergotron 33-416-085 WorkFit-SR Rear Mount Heavy Monitor Workstation (Black)



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 30"

Up to 25 lbs

11.4 kg

23"

58 cm

30°

-

360°

MIS-D



Product Information

Part Number

33-416-085

Description

WorkFit-SR, Heavy Monitor Sit-Stand Desktop Workstation, Deep Surface, furniture retrofit (black)

Includes

  • Height-adjustment column
  • Desk clamp
  • LCD pivot
  • Worksurface/keyboard
  • One (1) USB extension cable
  • One (1) cable wrap

Optimized

For desks that are 30"–36" deep (76–91 cm): on desks shorter than 30", worksurface will extend beyond desktop edge; on desks deeper than 36", worksurface will not extend to desktop edge

Worksurface Dimensions

29.5" x 21.8" (75 x 55.4 cm)

Weight Capacity

Maximum total load on height-adjustment assembly = 25 lbs (11.4 kg). LCD weight = 10–22 lbs (4.5–10 kg); worksurface ≤ 5 lbs (2.3 kg)

LCD and Keyboard

Adjust 18" (46 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 23" (58 cm)

Mounting Standards

  • VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm).
  • For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately

Note

  • Extra-long cables are required to span between standing and sitting heights

  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment

Product Weight

39 lbs (17.7 kg)

Shipping Dimensions

24.75" x 14.25" x 40.75" (62.9 x 36.2 x 103.5 cm)

Shipping Weight

56.5 lbs (25.7 kg)

Warranty

Five (5) years



Benefits

  • This model is optimized to accommodate a single, heavier display

  • Premium aesthetics and sturdy construction: all-aluminum worksurface, bow and pivots

  • Worksurface/keyboard tray stays on top of the desktop, never intruding into your space

  • The ergonomic design offers 18" (45.7 cm) of in-tandem height adjustment for monitors and keyboard, with an extra 5" (13 cm) of independent lift for monitors. Screens tilt to your preferred angle and the deep worksurface lets you place the keyboard where you want it, controlling focal distance

  • Configuration flexibility makes WorkFit-SR well suited to taller users: worksurface can lift higher than other WorkFit models; monitor pivots can be installed at tall-user heights

  • Spacious worksurface accommodates any keyboard and mousing device with plenty of room for other desktop items

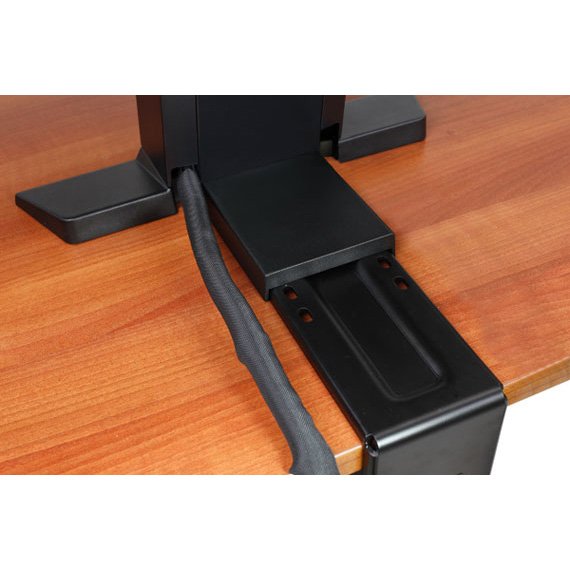

  • Internal cable management hides cord clutter; includes pre-installed USB cable for easy connectivity

  • Five-year warranty: tested and guaranteed! Proven lift technology is reliable through thousands of adjustment cycles



Model 33-416-085
Manufacturer Ergotron
Part Number 33-416-085
UPC 698833054811
Color Black
Monitor Size Up to 30"
Weight Capacity Up to 25 lbs (11.4 kg)
Lift (58 cm) 23 in
Tilt 30 degree
Rotation 360 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
Worksurface Dimensions 29.5" x 21.8" (75 x 55.4 cm)
Weight 39 lbs (17.7 kg)
Shipping Dimensions 24.75" x 14.25" x 40.75" (62.9 x 36.2 x 103.5 cm)
Shipping Weight 56.5 lbs (25.7 kg)
Warranty Five (5) years
