Ergotron 33-419-062 WorkFit-SR Rear Mount Dual Short Surface Workstation - White

This SR Model has a shorter work surface, and as the result the keyboard will be placed 6" closer to the monitor screen in comparison to the SR standard model.

5 out of 5 (based on 1 review)
Product ID: 18535
Highlights
  • Dual Standing desktop workstation with shorter surface in white: Converts your traditional desk to a sit-stand desk
  • Desk size: Ideal for 24" - 30" deep desks
  • Maximum monitor height adjustment: 23"
  • Maximum screen size: 24"
  • Monitor weight: Minimum of 5 and maximum of 13 lbs.
  • Total weight capacity: 29 lbs
  • Work-surface dimensions: 29.5" x 15.8""
  • View standard WorkFit SR in white
  • Please see, if you want this workstation in black
Recommended Accessories
List Price: $1,195.00
Our Price: $695.99
You Save: $499.01
Shipping: $29.99 *
* applies to Contiguous United States
Add to Cart

Description

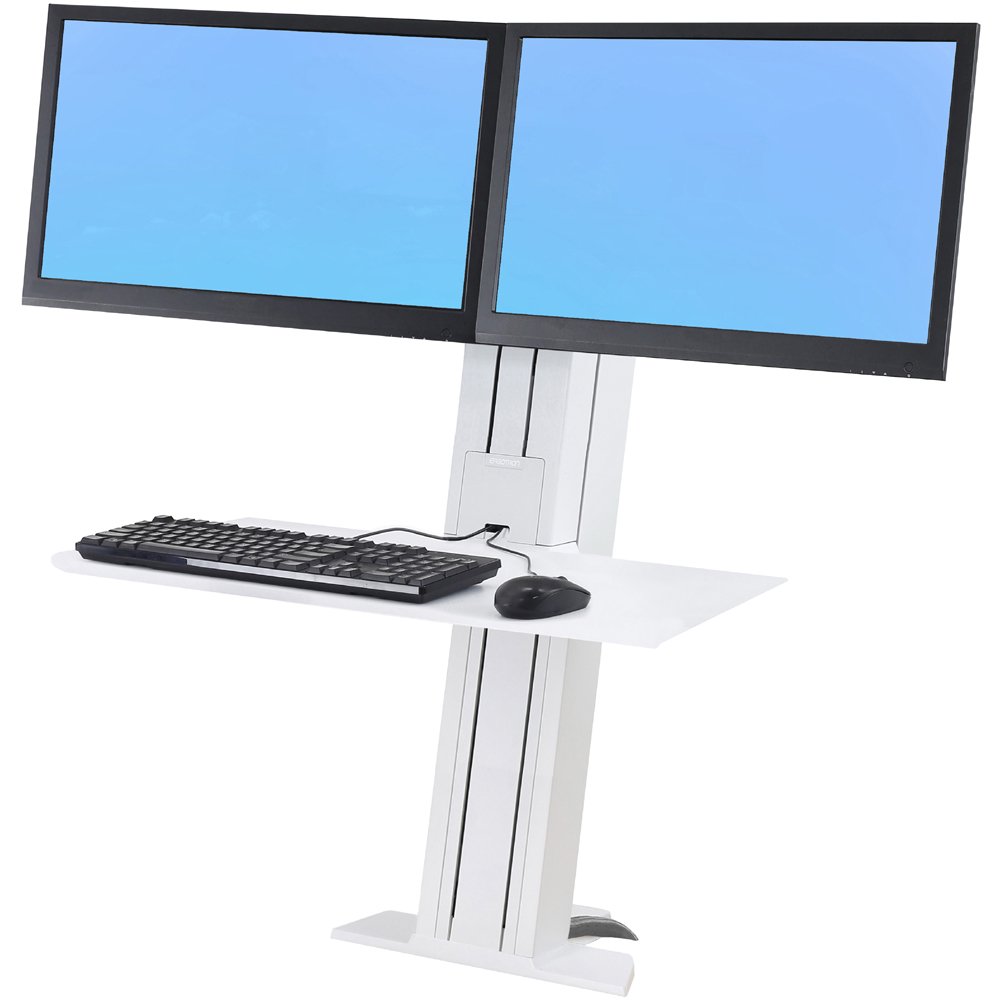

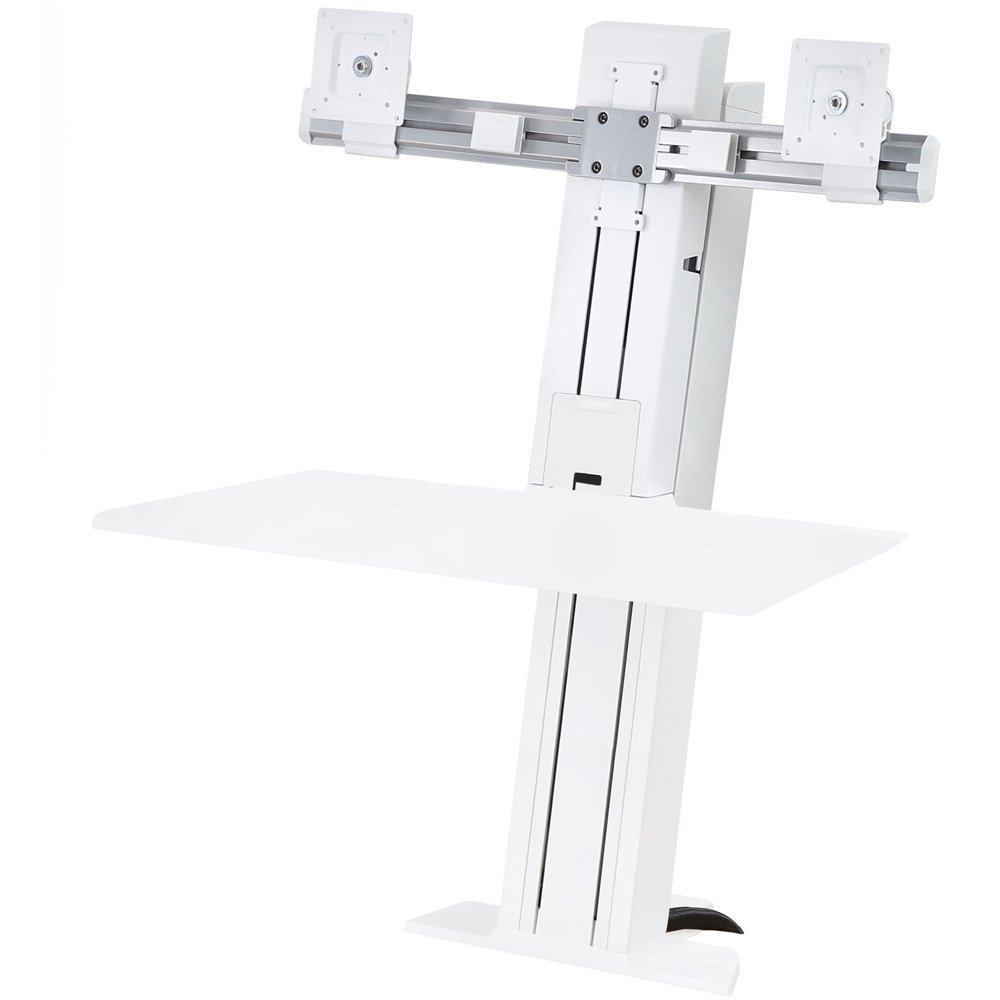

Ergotron 33-419-062 WorkFit-SR positions a complete workstation within the footprint of your desktop without protruding into your space. It clamps to the rear of most surfaces, converting any tabletop into a healthy sit-stand desk.

This is a premium furniture retrofit solution, featuring refined aesthetics and superior material construction. When in the seated position, the thin worksurface always stays close to your desktop. The all-aluminum composition is extremely sturdy, allowing for easy, handle-free height adjustment.



Technical Drawing

Technical drawing for Ergotron 33-419-062 WorkFit-SR Rear Mount Dual Short Surface Workstation - White



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24"

Up to 29 lbs

13.2 kg

23"

58 cm

35°

-

360°

MIS-D



Product Information

Part Number

33-419-062

Description

WorkFit-SR, Dual Monitor Sit-Stand Desktop Workstation, Short Surface, furniture retrofit (white)

Includes

  • Height-adjustment column

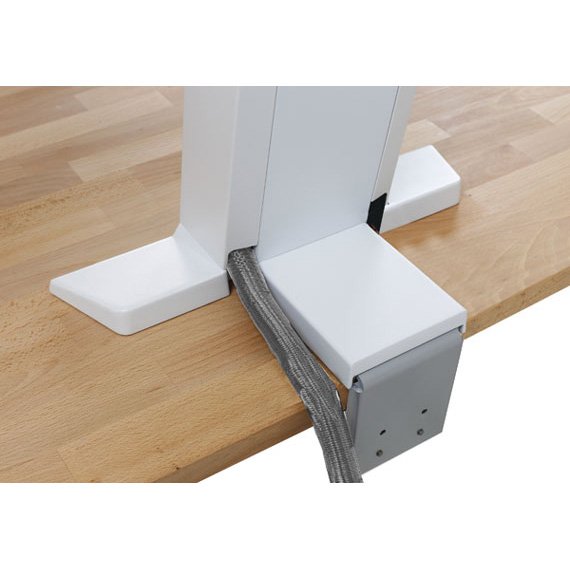

  • Desk clamp
  • Crossbar
  • Two (2) LCD pivots
  • Worksurface/keyboard
  • One (1) USB extension cable
  • Two (2) cable wraps

Short Surface Models

Place the keyboard 6" (15 cm) closer to the monitor screen compared with standard WorkFit-SR models. This may not provide adequate focal separation for some users

Optimized

For desks that are 24"–30" deep (61–76 cm): on desks shorter than 24", worksurface will extend beyond desktop edge; on desks deeper than 30", worksurface will not extend to desktop edge

Worksurface Dimensions

29.5" x 15.8" (75 x 40 cm)

Weight Capacity

Maximum total load on height-adjustment assembly = 29 lbs (13.2 kg). LCD weight = 5–13 lbs (2.3–5.9 kg) each; worksurface ≤ 5 lbs (2.3 kg)

LCD and Keyboard

Adjust 18" (46 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 23" (58 cm)

Mounting Standards

VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Note

  • Extra-long cables are required to span between standing and sitting heights

  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment

Product Weight

38 lbs (17.3 kg)

Shipping Dimensions

24.75" x 14.25" x 40.75" (62.9 x 36.2 x 103.5 cm)

Shipping Weight

55.5 lbs (25.2 kg)

Warranty

Five (5) years



Benefits

  • This model is optimized to accommodate two displays up to 24" in size

  • Premium aesthetics and sturdy construction: all-aluminum worksurface, bow and pivots

  • Worksurface/keyboard tray stays on top of the desktop, never intruding into your space

  • A "Short Surface" allows this WorkFit-SR to be installed in space-constrained work areas where the desktop is only 24"–30" deep (61–76 cm)‡

  • Configuration flexibility makes WorkFit-SR well suited to taller users: worksurface can lift higher than other WorkFit models; monitor pivots can be installed at tall-user heights

  • Spacious worksurface accommodates any keyboard and mousing device with plenty of room for other desktop items

  • Internal cable management hides cord clutter; includes pre-installed USB cable for easy connectivity

  • Five-year warranty: tested and guaranteed! Proven lift technology is reliable through thousands of adjustment cycles



Model 33-419-062
Manufacturer Ergotron
Part Number 33-419-062
UPC 698833054682
Color White
Monitor Size Up to 24"
Weight Capacity Up to 29 lbs (13.2 kg)
Lift (58 cm) 23 in
Tilt 35 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Worksurface Dimensions 29.5" x 15.8" (75 x 40 cm)
Weight 38 lbs (17.3 kg)
Shipping Dimensions 24.75" x 14.25" x 40.75" (62.9 x 36.2 x 103.5 cm)
Shipping Weight 55.5 lbs (25.2 kg)
Warranty Five (5) years
Fantastic stability, build quality and ease of installation, Aug 22, 2016
by Roger C., Mentor
Installed this and am loving this setup. I would recommend the normal depth surface though, even if you have a narrow desk, as the front overhang isn't going to be that bad and the actual work surface will be plentiful and is great to use. The shorter depth is probably too short for people who don't want to swivel their heads too much, or is probably ok for a more casual use station - really - get the normal depth unit.

This unit is a premium construction - solid, yet lightweight and extremely tidy with the included cable management.

Even with the SR-SS model, I have enough room for a large ergonomic keyboard, a trackball, my cellphone charger and a caddy for pens and notebook. Multiple compliments and questions from those who have never seen a good looking, functional sit/stand converter that is extremely stable also. This converter is also repositionable without taking off all the monitors - just disconnect the cables, loosen the c-clamp and slide it along your desk to the right spot. Or, have a friend help, and remove the c-clamp altogether, and move it to another location, reattach clamp and connect cables again.

It's a beautiful unit.
1 of 1 voted this review as helpful Was this review helpful to you?
