General Information
|
|
|
|
|
|

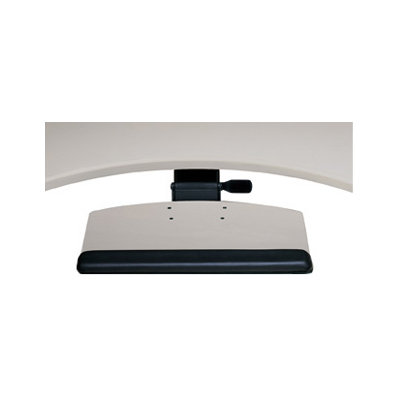

Humanscale 800 Radiused Keyboard Tray Platform System
|
|
|
|
|
|
|
|
Description of 800 Keyboard Platform:
|
|
We offer a full line of durable keyboard and mouse platform options created to meet the needs of a wide variety of individuals, workstations and office environments.
Each of our platform options is designed to ensure that users type and mouse within their Neutral Reach Zone, thereby encouraging safe, sustainable working postures.
By combining one of these platform options with one of our award-winning mechanisms, you will create the most non-intrusive, intuitively adjustable keyboard support available.
800 Keyboard Platform is made of phenolic, an ultra-strong, remarkably thin (1/4 inch) composite that is non-toxic, durable and easy to clean.
800 platform is designed to visually compliment the curved edge of a radiused corner. Available in a variety of radiuses and with any of our mouse options.

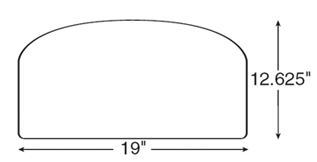

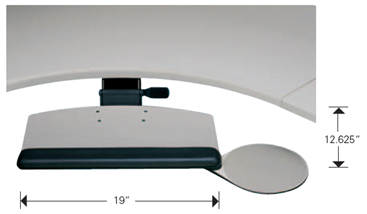

Dimensions 20 3/16" w x 12 5/8" d
|
|
THE NEUTRAL REACH ZONE
The Neutral Reach Zone is the area that can be conveniently reached with a sweep of the forearm while the upper arm hangs in a natural position at the side. (Sanders & McCormick, 1993) Unlike older generation keyboard/mouse solutions, our platforms are designed to ensure that nearly all users are able to work consistently within their Neutral Reach Zone, and thus maintain a low-risk, sustainable posture.
|
|
|
|
|
|
|
|
|
|
|
Option 1: Choose your Arm Type : Mechanism
|
|
2G Mechanism
|
4GAD Mechanism
|
|
|
|
5G Mechanism
|
5GSM Mechanism
|
|
|
|
6G Mechanism
|
KM Mechanism
|
|
|
|
DS Mechanism
|
5GAD Mechanism
|
|
|
|
|
|
|
Option 2: Optional Lateral Slider
|
|
LS: The Lateral Slider allows the platform to be adjusted left or right a total of 8" for optimal keyboard positioning.
|
|
|
|
|
|
Option 3: Choose your Track:
|
|
Refers to the under-desk mounted track that the mechanism slides along. Measure the amount of flat space you have on the under-side (from front to back of your desk) to determine which track length best suits you. The longer the track you are able to fit, the farther underneath the desk you will be able to slide the platform. The track measures 5 1/2" in width and is available in seven lengths:
|
|
11" Track
|
for real small desks at least 11" deep "from front to back"
|
|
14" Track
|
for real small desks at least 14" deep "from front to back"
|
|
16" Track
|
for real small desks at least 16" deep "from front to back"
|
|
18" Track
|
for smaller desks at least 18" deep "measure from front to back"
|
|
21 3/4" Track (Standard)
|
for use with 22" deep desks "measure from front to back"
|
|
25" Track
|
for deeper desks with up to 25" depth "from front to back"
|
|
27" Track
|
for real deep desks with up to 27" depth "from front to back"
|
|
|
|
|
|
|
Option 4: Choose your Mouse Platform:
|
|
Clip Mouse: The only mousing platform that lets users adjust their mousing position in all three dimensions for maximum comfort. With height, depth, lateral and tilt adjustability, it can be positioned where it is needed for truly custom support. It can also be easily moved from one side of the keyboard to the other for left- or right-handed use.
|
|
|
|
8.5"
|
Clip Mouse (for right or left hand)
|
90
|
|
8.5"
|
Clip Mouse (dual for both hands)
|
90D
|
|
8.5"
|
High Clip (for right or left hand)
|
90H
|
|
8.5"
|
High Clip (for both hands)
|
90HD
|
|
10"
|
Clip Mouse (for right or left hand)
|
91
|
|
10"
|
Clip Mouse (dual for both hands)
|
91D
|
|
10"
|
High Clip (for right or left hand)
|
91H
|
|
10"
|
High Clip (for right or left hand)
|
91HD
|
|
|
|
|
Clip Mouse "side view"
|
|
|
|
Clip Mouse "positions"
|
|
|
|
Clip Mouse - 90D Platforms "for both hands"
|
|
Height: Clip Mouse platforms model 90 and 91 can be in one of the two positions. Position one is parallel and to the side of the keyboard. Second position is approximately 1.5" above and over numeric keypad / keyboard.
Clip mouse adds minimum of 4" to maximum of 10" to either side of the keyboard platform. Clip mouse is not recommended for In small and tight areas areas such as small cubicles.
|
|
|
|
Swivel Mouse: Attached to our standard keyboard platform, which is designed to support nearly all standard keyboards, the swivel mouse provides a wide range of adjustability within the Neutral Reach Zone. 8 or 10-inch platforms are available in left, right and dual positions.
|
|
|
|
8"
|
Swivel Right
|
11R
|
|
8"
|
Swivel Left
|
11L
|
|
8"
|
Swivel Dual
|
11D
|
|
10"
|
Swivel Right
|
12R
|
|
10"
|
Swivel Left
|
12L
|
|
10"
|
Swivel Dual
|
12D
|
|
|
|
|
Swivel Mouse - 11D Platforms "for both hands"
|
|
|
|
M2 Mouse: A unique platform solution that provides maximum keyboard accessibility without minimizing the size of the mousing surface. Recommended solution when the numeric keypad is infrequently used.
|
|
|
|
M2 Right
|
81R
|
|
M2 Left
|
81L
|
|
M2 Dual
|
81D
|
|
|
|
|
M2 Mouse - 81D Platforms "for both hands"
|
|
|
|
|
|
|
|
|
Option 5: Choose your Palm Support:
|
|
Available with either a foam or gel core, our synthetic leather palm supports are comfortable, durable and easy to clean. Our standard palm supports are available in black. However, as with our platforms, other colors can be made available on request.
|
|
|
|
|
|
|
|
|
Option 6: Choose your Corner Sleeves:
|
|
|
|
|
|
DE100 - 29.5" x 12.188"
Fits desks 1" to 1.5" thick
|
|
|
|
|
|
|
DE200/250 - 16" diameter
DE 200 fits desks 1" to 1.5" thick
DE 250 fits desks 1.5" to 2.5" thick
|
|
|
|
 |
DE400/450 - 38.5" x 13.75"
DE 400 fits desks 1" to 1.5" thick
DE 450 fits desks 1.5" to 2.5" thick |
|
|
|
|
|
|
|
|
Option 7: Choose your Mouse Pad:
|
|
MPGEL8
11R, 11L and 11D Compatible
8 inch Mouse Pad with Gel Palm
|
MPGEL10
12R, 12L and 12D Compatible
10 inch Mouse Pad with Gel Palm
|
GPSMP
Mouse Pad with Gel Palm
|
|
|
|
|
CMPGEL
10 inch Clip Mouse pad with Gel |
CMPGEL8
8.5 inch Clip Mouse pad with Gel |
HSMP12TIPS
8 inch and 9 inch 12-Tips Ergo Mouse Pad
|
|
|
|
|
|
