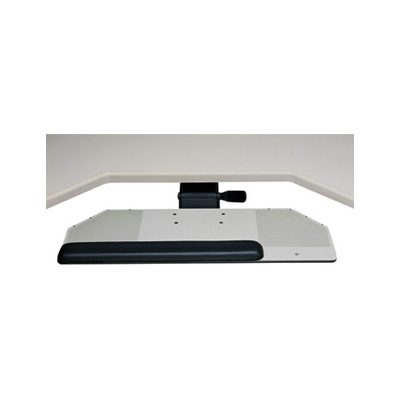

Humanscale 400 Diagonal Big Board Keyboard Tray System
"Build your own system, base starts as keyboard tray only”. Dimensions: 27 1/2" w x 11 1/2" d.
click image to enlarge
|
Humanscale 400 Diagonal Big Board Keyboard Tray Platform System "Build-Your-Own"
|
|
General Information
|
|
|
|
|
|
Humanscale 400 Diagonal Big Board Keyboard Tray Platform System
|
|
|
|
|
|
|
|
Description of 400 Keyboard Platform:
|
|
We offer a full line of durable keyboard and mouse platform options created to meet the needs of a wide variety of individuals, workstations and office environments.
Each of our platform options is designed to ensure that users type and mouse within their Neutral Reach Zone, thereby encouraging safe, sustainable working postures.
By combining one of these platform options with one of our award-winning mechanisms, you will create the most non-intrusive, intuitively adjustable keyboard support available.
All of our keyboard and mouse platforms are made of phenolic, an ultra-strong, remarkably thin (1/4”) composite that’s non-toxic, durable and easy to clean.

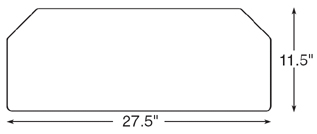

Diagonal Big Board 400: Fits the angled edges of a diagonal corner and is large enough to accommodate both keyboard and mouse. Allows you to mouse on either the left or right side of the keyboard. Dimensions: 27 1/2" w x 11 1/2" d
|
|
THE NEUTRAL REACH ZONE
The Neutral Reach Zone is the area that can be conveniently reached with a sweep of the forearm while the upper arm hangs in a natural position at the side. (Sanders & McCormick, 1993) Unlike older generation keyboard/mouse solutions, our platforms are designed to ensure that nearly all users are able to work consistently within their Neutral Reach Zone, and thus maintain a low-risk, sustainable posture.
|
|
|
|
|
|
|
|
|
Option 1: Choose your Arm Type : Mechanism
|
|
2G Mechanism
|

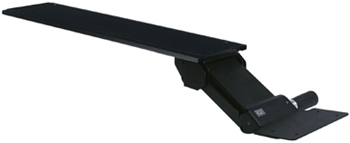

4GAD Mechanism
|
|
|
|
5G Mechanism
|
5GSM Mechanism
|
|
|
|
6G Mechanism
|
KM Mechanism
|
|
|
|

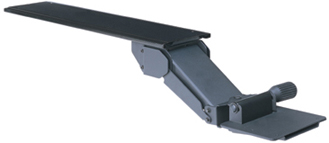

DS Mechanism
|
5GAD Mechanism
|
|
|
|
|
Option 2: Optional Lateral Slider
|
|
LS: The Lateral Slider allows the platform to be adjusted left or right a total of 8" for optimal keyboard positioning.
|
|
|
|
Option 3: Choose your Track:
|
|
Refers to the under-desk mounted track that the mechanism slides along. Measure the amount of flat space you have on the under-side (from front to back of your desk) to determine which track length best suits you. The longer the track you are able to fit, the farther underneath the desk you will be able to slide the platform. The track measures 5 1/2" in width and is available in seven lengths:
|
|
11" Track
|
for real small desks at least 11" deep "from front to back"
|
|
14" Track
|
for real small desks at least 14" deep "from front to back"
|
|
16" Track
|
for real small desks at least 16" deep "from front to back"
|
|
18" Track
|
for smaller desks at least 18" deep "measure from front to back"
|
|
21 3/4" Track (Standard)
|
for use with 22" deep desks "measure from front to back"
|
|
25" Track
|
for deeper desks with up to 25" depth "from front to back"
|
|
27" Track
|
for real deep desks with up to 27" depth "from front to back"
|
|
|
|
|
Option 4: Choose your Palm Support:
|
|
Available with either a foam or gel core, our synthetic leather palm supports are comfortable, durable and easy to clean. Our standard palm supports are available in black. However, as with our platforms, other colors can be made available on request.
|
|
|
|
|
|
|
Option 5: Choose your Corner Sleeves:
|
|
|
|
|
|
DE100 - 29.5" x 12.188"
Fits desks 1" to 1.5" thick
|
|
|
|
|
|
|
DE200/250 - 16" diameter
DE 200 fits desks 1" to 1.5" thick
DE 250 fits desks 1.5" to 2.5" thick
|
|
|
|
 |
DE400/450 - 38.5" x 13.75"
DE 400 fits desks 1" to 1.5" thick
DE 450 fits desks 1.5" to 2.5" thick |
|
|
|
|
|
|
