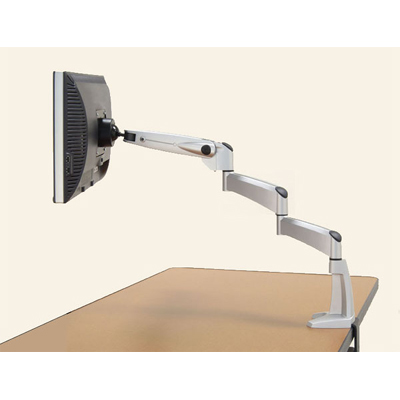

Workrite SA1500-DB Swing Arm Extended Flat Panel Monitor Arm
|

|
|
Workrite SA1500 SwingArm:
Articulating flat panel display arm provides the ultimate flexibility in flat panel monitor positioning.
The right monitor supports can help you swing into action. Optimizing the viewing angle, focal length and monitor height with a few simple twists and turns, WorkRite’s SwingArm articulates to virtually any position.
|
|
|

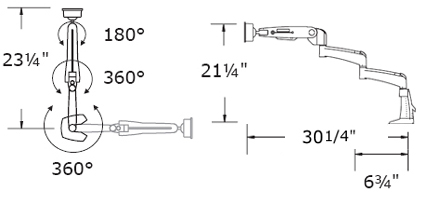

Dimensional Diagram for SA1500-DB Extended SwingArm
|
Horizontal and Vertical Reach
|
Monitor Tilt and Rotation
|

|

|
SwingArm - Dual
|

|
|
Get a clear line of sight from any angle
|
The right monitor supports can help you swing into action. Optimizing the viewing angle, focal length and monitor height with a few simple twists and turns, WorkRite’s SwingArm articulates to virtually any position.
|

more of your workspace
|

Ball joint provides multiple axis adjustment
|

Integral pneumatic cylinder backed by 10 year warrant
|

SwingArm-Dual clamp handle
provides 7" vertical range
|
|
|
|
Features of Workrite SA1500-DB Extended SwingArm:
|
-
Create a Healthier, Safer, More Comfortable Work Environment - SwingArm allows users to easily adjust monitor height, focal distance and tilt angle. Stores easily to the rear of the work surface.
-
Widest Range of Adjustments for Excellent Flexibility - SwingArm's height range is best-in-class at 21.5". Also leads in reach adjustability and supports monitors up to 25 lbs. Ball swivel allows users to easily set viewing angle and monitor rotation.
-
Works with Most Flat Panel Monitors - If your monitor is equipped with an industry-standard VESA 75mm or 100mm mount, the SwingArm quickly attaches. You'll see and feel the benefits of the SwingArm's durable, stylish design.
-
Mounts to a Variety of Surfaces - Included with your standard SwingArm are clamp and grommet style mounts, for use when mounting to a worksurface up to 2.125" thick. An optional wall mount and slat wall mount allow easy integration with vertical mounting surfaces, including the new Sierra Tool Bar and Sierra Privacy Panel. NEW - mounts are now available for many manufacturers' panel systems, order SA1000-WM and mount (ie SAPAN-03) separately
-
Integral cable management system
-
Silver or Graphite
-
High-quality pneumatic strut counter-balance
-
10-year limited warranty
|
|
|
Specifications of SA1500DB:
|
2 Piece Clamp Range |
0.75 - 2 1/8 |
Grommet Clamp Range |
0.75 - 2 1/8 |
Tilt Range |
145° |
Monitor Rotation |
360° |
First & Second Pivot Rotation |
360° |
Monitor Pivot Rotation |
180° |
Weight Capacity |
Up to 25 lbs |
Height Range |
21¼" |
Reach |
30¼" |
Stored Depth |
4 |
|
|
|
Comparison Chart:
|
With a 360° rotation, monitor can be changed quickly from landscape to portrait orientation. For customized control, including touch screen use, tension is adjustable at all pivot points. All SwingArm products support monitors up to 25 lbs. For security, monitors attach with 4 screws.
|
Specifications
|
SwingArm
|
SwingArm-Extended
|
SwingArm-Dual
|
Reach
|
23¼"
|
30¼"
|
23¼" (two arms)
|
Tilt Range
|
145° tilt range (+/- 72.5°)
|
145° tilt range (+/- 72.5°)
|
145° tilt range (+/- 72.5°)
|
Height Range
|
21¼"
|
21¼"
|
21¼" + 7⅛" on pole
|
Pivot at Base
|
360°
|
360°
|
360°
|
Pivot at Monitor Mount
|
180°
|
180°
|
180°
|
Stored Depth
|
4"
|
4"
|
4"
|
75mm/100mm VESA Mount
|
X
|
X
|
X
|
Accessories
|
Wall Mount Bracket,
Slatwall Adapter
|
none
|
C-Clamp,
Grommet Base Kit
|
|
|
|
|
