Shopping CartErgotron 33-296-195 LX Triple or Widescreen Dual Display Lift Stand
Note: The minimum and maximum weight requirements for this product: Weight of displays in total must be at least 24 lbs (10.9 kg) and no more than 48 lbs (22 kg).
Description
Ergotron 33-296-195 expands your computer desktop across three smaller displays or two larger displays. Simultaneously lift and tilt displays for maximum ergonomic comfort. Note the minimum and maximum weight requirements for this product: Weight of displays in total must be at least 24 lbs (10.9 kg) and no more than 48 lbs (22 kg).

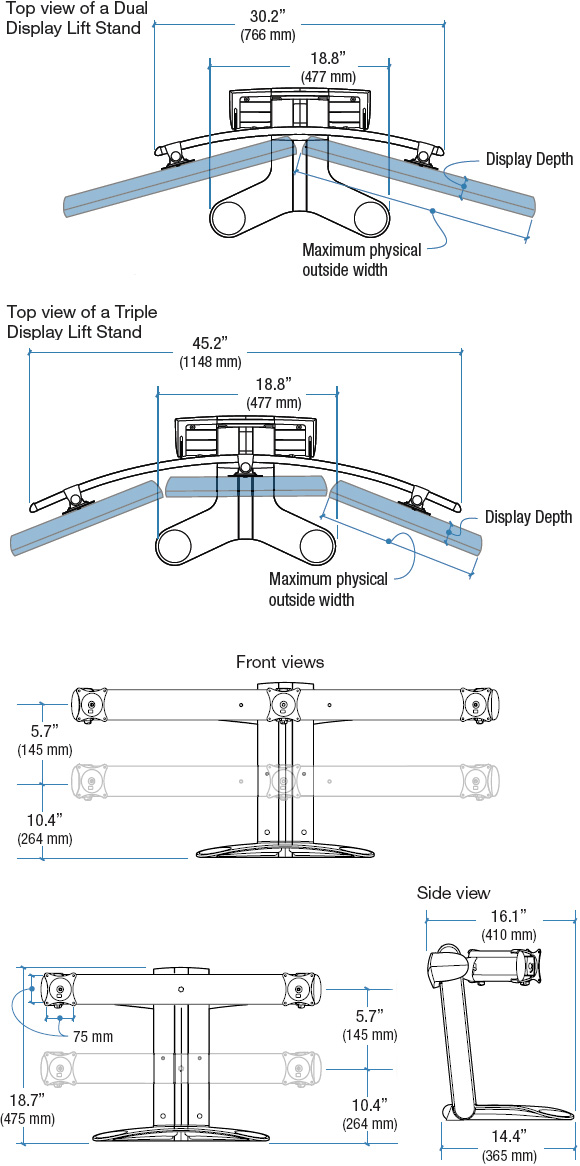

Technical Drawing
Note: Maximum physical outside width 26.00" (660.4 mm) - No Spacer. Maximum physical outside width 29.75" (755.7 mm) - Add Spacer
| Dual Mount Displays | Triple Mount Displays | ||
| Maximum Width | Depth | Maximum Width | Depth |
| 25.00" (635.0 mm) | 2" (50.8 mm) | 20.25" (514.3 mm) | 2" (50.8 mm) |
| 24.00" (628.7 mm) | 3" (76.2 mm) | 19.75" (501.7 mm) | 3" (76.2 mm) |
| 24.38" (619.3 mm) | 4" (101.6 mm) | 19.25" (489.0 mm) | 4" (101.6 mm) |
| 23.75" (603.3 mm) | 5" (127.0 mm) | 19.00" (482.6 mm) | 5" (127.0 mm) |
Technical Specifications
|
|
|
|
|
|
|
|
|
LCD Size |
Capacity |
Lift |
Tilt |
Pan |
Rotation |
VESA |
|
Up to 30" (2) or Up to 21" (3)* |
24-48 lbs 10.9-22 kg |
5" 13 cm |
20° | - | 90° P/L | MIS-D |
*Works with displays with diagonal screen-size up to 30" when mounting two larger (2) displays, or holds three (3) smaller displays up to 21". If mounting two (2) displays that are 24" or less, use the LX Dual Display Lift Stand (33-299-195).
Product Information
|
Part Number: |
33-296-195 |
|
Description: |
LX Triple or Widescreen Dual Display Lift Stand (black) |
|
Adjustment: |
Portrait/landscape adjustment may be inhibited with displays with screen-size of 24" or larger. |
| Weight Capacity: | 24–48 lbs (10.9–22 kg) combined display weight |
|
Mounting Standards: |
VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm). For displays that use an MIS-E 200 x 100, MIS-F 200 x 200, or MIS-F 400 x 200 mm hole pattern, the VESA Bracket Adaptor Kit (97-474) can be ordered separately. |
|
NOTE: |
33% fewer errors reported when using multi-screen configurations; 24% of workers feel more comfortable when using multiple monitors. Source: NEC Display Solutions, University of Utah, ATI Technologies 2003 study, “Productivity and Multi-Screen Displays”. |
|
Shipping Dimensions: |
45" x 19" x 7" (114 x 48 x 18 cm) |
|
Shipping Weight: |
43 lbs (19.4 kg) |
|
Warranty: |
Five (5) years |
Benefits
- Monitors lift and tilt in tandem to maintain position integrity.
- Affordable productivity gains.
- Patented CF motion technology provides premium adjustment.
- Easy to use - simple installation and effortless operation.
- Five-inch height adjustment.
- Integrated cable management.
Literature (Please open the following documents for more technical information)
- pdf
| Model | 33-296-195 |
| Manufacturer | Ergotron |
| Part Number | 33-296-195 |
| UPC | 006988330047 |
| Color | Black |
| Monitor Size | Works with displays with diagonal screen-size up to 30" when mounting 2 larger displays or holds 3 smaller displays up to 21". If mounting 2 displays that are 24" or less, use LX Dual Display Lift Stand (33-299-195) |
| Lift | (13 cm) 5 in |
| Tilt | 20 degree |
| Rotation | (P/L) 90 degree |
| Mounting Pattern | VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm). For displays that use an MIS-E 200 x 100, MIS-F 200 x 200, or MIS-F 400 x 200 mm hole pattern, the VESA Bracket Adaptor Kit (97-474) can be ordered separately. |
| Weight Capacity | 24–48 lbs (10.9–22 kg) combined display weight. |
| Shipping Dimensions | 45" x 19" x 7" (114 x 48 x 18 cm) |
| Shipping Weight | 43 lbs (19.4 kg) |
| Warranty | Five (5) years |
