Ergotron 45-194-194 Neo-Flex HD Wall Mount Swing Arm 45194194

Be the first to review this product
Product ID: 14361
Recommended Accessories
Our Price: $82.87
Shipping: $9.75 * - UPS Ground
Usually ships in 2 to 3 business days
* applies to Contiguous United States





Accessories  for Ergotron 45-194-194 Neo Flex HD Wall Mount Swing Arm

Ergotron 80-102-064 Universal CPU Holder

Universal CPU Holder

80-105-064

Small CPU Holder

80-063-200

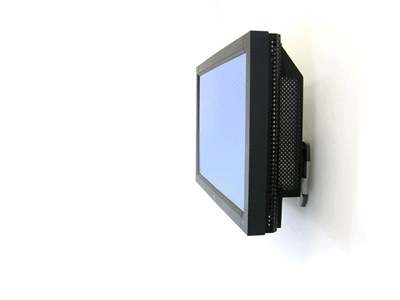

Ergotron 45-194-194 Neo Flex HD Wall Mount Swing Arm Animated Image

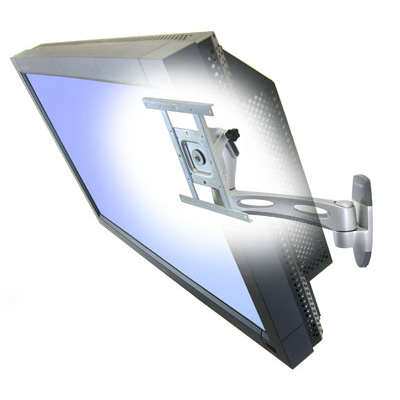

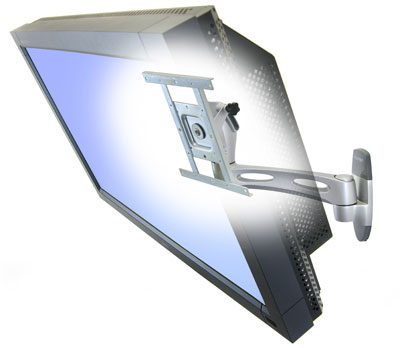

Ergotron 45-194-194 Neo Flex HD Wall Mount Swing Arm



General Information






Ergotron 45-194-194 Neo Flex HD Wall Mount Swing Arm



Ergotron 45-194-194 Neo Flex HD Wall Mount Swing Arm



Ergotron 45-194-194 Neo-Flex HD Wall Mount Swing Arm



This arm offers a flexible alternative to rigid wall mounts for displays weighing up to 50 lbs (23 kg). Embedded CF technology enables effortless screen adjustment for optimal viewing comfort.





Dimensional Diagram for Ergotron Neo-Flex HD Wall Mount

Dimensional Diagram for Ergotron Neo-Flex HD Wall Mount





Technical Specifications:

     LCD Size

 Wt. Capacity      Lift Tilt Pan Rotation VESA

19"-32"

48-81 cm

up to 50 lbs

22.7 kg

-

20° 180° 360° P/L MIS-D/E/F




Product Information:

Part Number: 45-194-194 (retail #: 45-199-194)
Description: Neo-Flex HD Wall Mount Swing Arm (silver)
Mounting Options: Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket 97-091 (order separately).
Weight Capacity: 50 lbs (22.7 kg)
Display depth: Greater than 4" (10 cm) may diminish capacity; if accessory LX Extension (45-189-194) is installed, weight capacity is reduced to 36 lbs (16.3 kg)
UL Compliant: Neo-Flex HD has been tested to four times its maximum weight capacity as per UL Standard 1678 (do NOT exceed 50 lbs in actual use)
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm ONLY)
Shipping Dimensions: 12.5" x 7.75" x 4.5" (31.8 x 19.7 x 11.4 cm)
Shipping Weight: 33 lbs (15 kg)
Warranty: Three (3) years




Benefits:

Arm extends display out from the wall up to 13" (33 cm) for better sight lines.

Rock-solid construction secures your display investment.

Effortless adjustment for premium viewing.

Easy three-step installation.

Pleasing aesthetics make it perfect for the home or office.

Integrated tilt lock-down feature.





Images:

Ergotron 45-194-194 Neo Flex HD Wall Mount Swing Arm Inuse Image

Ergotron 45-194-194 Neo Flex HD Wall Mount Swing Arm



Ergotron 45-194-194 Neo Flex HD Wall Mount Swing Arm Installation Image

Ergotron 45-194-194 Neo Flex HD Wall Mount Swing Arm Installation Image

Ergotron 45-194-194 Neo Flex HD Wall Mount Swing Arm





Literature (Please open the following documents for more technical information)

Description

File Type

File Size

Dimensional Illustration

- pdf

311 KB

Product Sheet

- pdf

321 KB

Installation Manual

- pdf

6873 KB





Ergotron Logo

Hyperlink of all Ergotron products





Model 45-194-194
Manufacturer Ergotron
Part Number 45-194-194
UPC 698833006230
