We are sorry but item below has been discontinued. Above are some similar products we can offer instead.

Ergotron 45-186-194 LX Wall Mount Keyboard Arm DISCONTINUED replaced by 45-246-026

Be the first to review this product
Product ID: 14369
Our Price: $251.80
Shipping: $9.95 * - UPS Ground
Usually ships in 2 to 3 business days
* applies to Contiguous United States


Accessories for Ergotron 45-186-194 LX Wall Mount Keyboard Arm Silver


Ergotron 99-033-099 Mouse Holder (light grey)

Mouse Holder

(Light Gray)

99-033-064

Ergotron 45-189-194 LX Extension silver

LX Extension silver

45-189-194

Ergotron 97-101-003 Wall Plate

Wall Plate

97-101-003

Ergotron 31-016-182 : 10

10" Wall Track

31-016-182

Ergotron 97-091 Track Mount Bracket Kit for Arms, Pivots and Universal CPU Holder

Track Mount Bracket

97-091




LX LCD Arm Black

45-180-195


LX LCD Arm Sliver

45-180-194

Ergotron 80-102-064 Universal CPU Holder

Universal CPU Holder

80-102-064


Small CPU Holder

80-063-200


Medium CPU Holder

80-058-200


Command Post

20-076-100

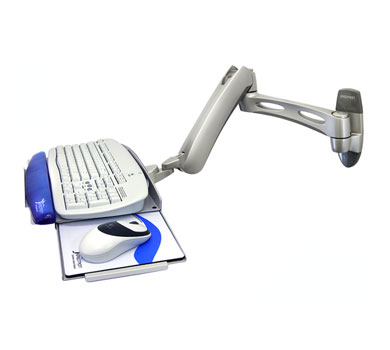

Ergotron 45-186-194 LX Wall Mount Keyboard Arm Silver Animated image









Ergotron 45-186-194 LX Wall Mount Keyboard Arm Silver





General Information









Buy from an Authorized Dealer

Please check Ergotron's "Where to Buy" section and look for a list of Authorized Dealers

sorted alphabetically





Ergotron 45-186-194 LX Wall Mount Keyboard Arm SilverErgotron 45-186-194 LX Wall Mount Keyboard Arm Silver







Ergotron  45-186-194 LX Wall Mount Keyboard Arm (Silver):

The LX Keyboard Arm mounts keyboards to any wall while providing vertical and side-to-side motion. Effortlessly position a keyboard to the most comfortable typing position, seated or standing.

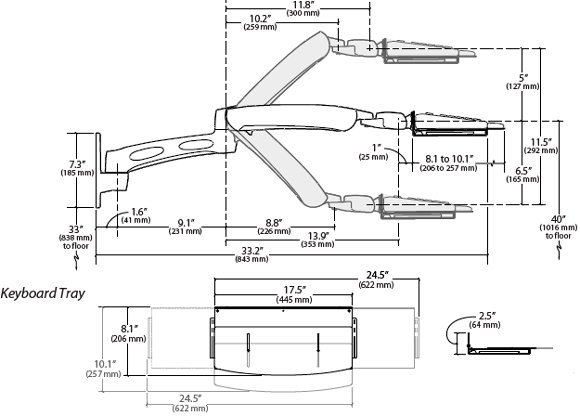

Dimensional Diagram for Ergotron LX Wall Mount Keyboard Arm

Dimensional Diagram for Ergotron LX Wall Mount Keyboard Arm


Technical Specifications:


icon_weight.jpg icon_height.jpg icon_tilt.jpg icon_pan.jpg icon_pl.jpg icon_vesa.jpg

     LCD Size

 Wt. Capacity      Lift Tilt Pan Rotation VESA

-

5 lbs

2.2 kg

11.5"

29 cm

84° 180° - -


Product Information:

Part Number: Ergotron 45-186-194
Description: LX Wall Mount Keyboard Arm (silver)
Includes: Gel Wrist Rest, Mouse Pouch and Mouse Pad
Mounting Options:

Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket 97-091 (order separately).

Fasteners for direct attachment to wood/metal studs or concrete surface are not included—customer supplied

Shipping Dimensions: 18.6" x 8.4" x 8" (472 x 213 x 203 mm)
Shipping Weight: 18.75 lbs (7.5 kg)
Warranty: Five (5) years


Benefits:

Effortlessly position your keyboard for ergonomic comfort.
25.6" (65 cm) extend/retract motion; 11.5" (29 cm) height adjustment.
Tray tilts back at negative 5° angle for ergonomic and healthy data entry.
Creates a complete workstation when paired with the LX LCD Arm.
Easy to use—simple installation and effortless operation.
Mouse tray slides out to left or right, depending on user preference.
Ideal for space-constrained spaces—folds to within 4.6" of wall in storage position.
Integrated cable management.


Images:

Ergotron 45-186-194 LX Wall Mount Keyboard Arm Silver inuse image

Ergotron 45-186-194 LX Wall Mount Keyboard Arm Silver




Literature (Please open the following documents for more technical information)

Description

File Type

File Size

Dimensional Illustration

reader-14.jpg - pdf

455 KB

Product Sheet

reader-14.jpg - pdf

955 KB

Installation Manual

reader-14.jpg - pdf

7156 KB
