We are sorry but item below has been discontinued. Above are some similar products we can offer instead.

Ergotron 28-108-200 Wall Mount 200 Series Arm, Black, One Extender

Be the first to review this product
Product ID: 14379
Our Price: $179.62
Shipping: $10.67 * - UPS Ground
Usually ships in 2 to 3 business days
* applies to Contiguous United States

General Information





Buy from an Authorized Dealer

Please check Ergotron's "Where to Buy" section and look for a list of Authorized Dealers

sorted alphabetically





Ergotron 28-108-200 Wall Mount 200 Series ArmErgotron 28-108-200 Wall Mount 200 Series Arm

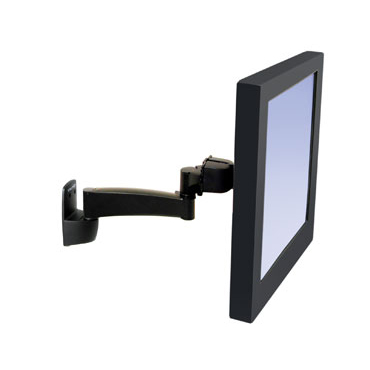

Ergotron 28-108-200 Wall Mount 200 Series Arm

This unit provides a sturdy platform for your LCD while allowing swing, tilt and pan motion. System depth is minimal when pushed back against the wall, perfect for space-constrained areas.





Technical Specifications:


icon_weight.jpg icon_height.jpg icon_tilt.jpg icon_pan.jpg icon_pl.jpg icon_vesa.jpg

     LCD Size

 Wt. Capacity      Lift Tilt Pan Rotation VESA

up to 24"

up to 25 lbs

up to 11.3 kg

-

180° 180° 360° P/L MIS -D


Product Information:

Part Number: Ergotron 28-108-200
Description: 200 Series Wall Mount LCD Arm, single extension (black)
Weight Capacity: 25 lbs (11.3 kg)
Mounting Options: Mounts to sturdy vertical surfaces. Where applicable, attach to wood stud. To increase support, a separately-ordered Wall Plate or Wall Track accessory is recommended
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm (3.937" x  3.937") and 75  x  75 mm  (2.952" x 2.952"))
Shipping Weight: 7 lbs (3.2 kg)
Warranty: Five (5) years


Benefits:

Sturdy steel construction.
Cable management system routes and conceals cables under the arm.
Patented friction system provides smooth long-life adjustment while maintaining touch-screen stability.


Images:

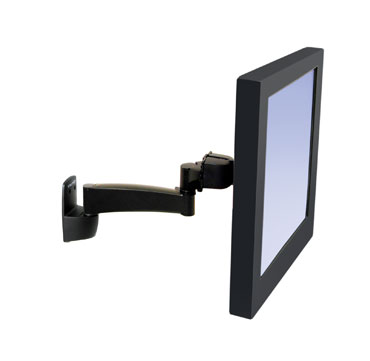

Ergotron 28-108-200 Wall Mount 200 Series Arm

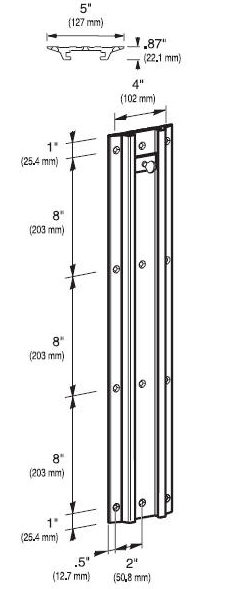

Wall Track

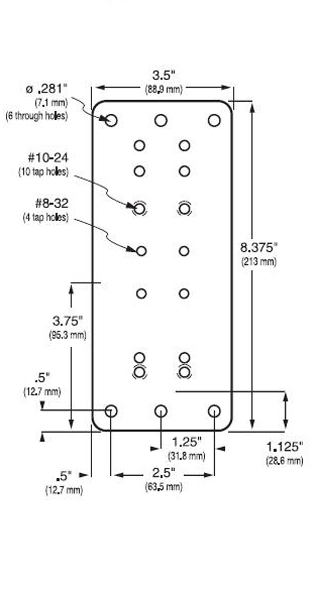

Wall Plate


Literature (Please open the following documents for more technical information)

Description

File Type

Dimensional Illustration

reader-14.jpg - pdf

Installation Manual

reader-14.jpg - pdf

Installation Manual

reader-14.jpg - pdf
