Peerless SF670 Universal Flat Wall Mount 42-71" LCD Screen SF670-S LED Large Mount
click image to enlarge
|
|
|
|
|
Peerless SF670 Universal Flat Wall Mounts for 42 to 71 inch Screens
|
|
General Information
|
|
|
|
|
|
Buy from an Authorized Dealer
|
|
|
|
|

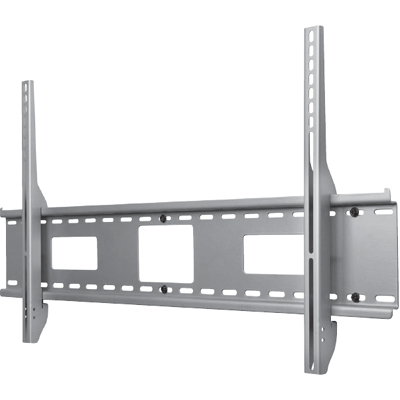

Peerless SF670 Smart Mount Flat Wall Mount SF 670 for 42 to 71 inch LCD Screens SF-670
|
|

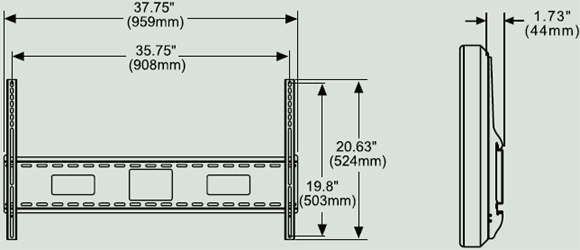

Dimensional Diagram for Peerless SF670 Universal Flat Wall Mounts SF 670
|
|
|
|
|
|
SF670 Flat Panel Wall Mount Description:
|
|
The sturdy SF670 wall plate holds screens weighing up to 250 lb while featuring junction box access ports and horizontal screen adjustment up to 8" for ideal screen positioning. Its easy-glide brackets enable quick screen-to-mount attachment with a simple hook-on design. Delivering an ultra-slim profile, this mount is the essential element for low-profile installations of extra-large screens.
|
|

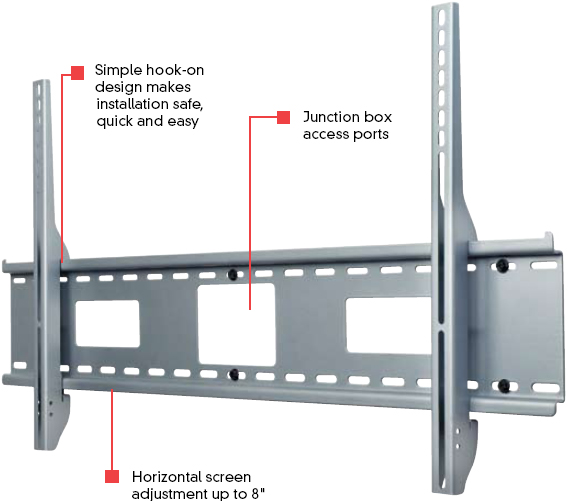

Features:
-
Fits screens with mounting hole patterns up to 35.75" W and 19.8" H
-
Ultra-slim design holds screen only 1.73" from the wall for a clean application
-
Simple hook-on design makes installation safe, quick and easy
-
Junction box access ports
-
Easy-glide bracket design ensures screen is securely attached to wall plate
-
Universal screen adapters easily hook onto wall plate for fast installation
-
Horizontal screen adjustment up to 8"
-
Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
-
Includes Peerless fastener pack with all necessary mounting and screen attachment hardware
-
UL listed
|
|
|
|
Product Information:
|
|
Model Numbers:
|
Universal Models:
Security Fasteners (Includes theft resistant hardware for attaching screen to mount)
SF670 -- (Security Version) Black for 42"-71" Flat Panel Screen
SF670-S -- (Security Version) Silver for 42"-71" Flat Panel Screen
Standard Fasteners (Includes standard hardware (hex or Phillips) for attaching screen to mount)
SF670P -- (Phillips Version) Black for 42"-71" Flat Panel Screen
SF670P-S -- (Phillips Version) Silver for 42"-71" Flat Panel Screen
|
|
Screen Adapter:
|
Universal Models:
Includes universal screen adapter to accommodate mounting holes spaced up to 35.75" horizontally and 19.8" vertically
|
|
Product Specifications
|
|
Dimensions (W x H x D):
|
37.75" x 20.63" x 1.98" (95.9 x 52.4 x 5.03 cm)
|
|
Load Capacity:
|
250 lb (113.4 kg)
|
|
Product Weight:
|
10.07 lb (4.9 kg)
|
|
Finish:
|
Scratch Resistant Fused Epoxy
|
|
Available Colors:
|
Black: SF670, SF670P
Silver: SF670-S, SF670P-S
|
|
Accessories:
|
Metal Stud Accessory Kit (ACC 615)
|
|
Patent:
|
Patent Pending
|
|
Package Specifications
|
|
Package Contents:
|
Wall plate, universal brackets, mounting and screen attachment hardware
|
|
Units in Package:
|
1
|
|
Package Size (W x H x D):
|
46.8" x 8.6" x 3.9" (118.9 x 21.8 x 9.9 cm)
|
|
Package Ship Weight:
|
13.6 lb (6.2 kg)
|
|
Mounting Surfaces:
|
Wood stud, concrete, cinder block and metal stud (Metal stud accessory required)
|
|
Package UPC Code:
|
SF670: 735029242192
SF670P: 735029242208
SF670-S: 735029242215
SF670P-S: 735029242222
|
|
Warranty:
|
Limited 5-year
|
|
|
Additional Images:
|
|
Ultra-slim design holds screen 1.73" from the wall
|
|
|
|
|
|
|
|
|
|
Literature (Please open the following documents for more technical information) |
|
|
|
|
|
|
