Peerless SP740P Pivot Wall Arm for 22 - 40 inch LCD Screen



General Information
























Dimensional Diagram for Peerless Pivot Wall Arm SP740P



Dimensional Diagram for Peerless Pivot Wall Arm SP740P

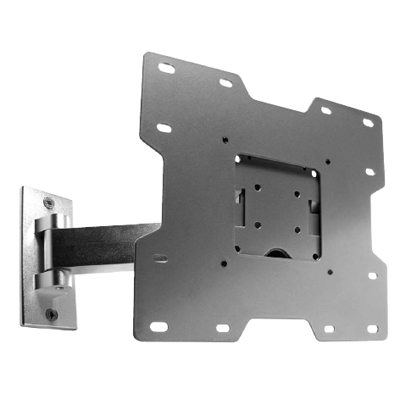

Peerless Smart Mount Pivot Wall Arm Description:

The SmartMount Pivot Wall Arm is ideal for applications that require easy side-to-side swivel and tilt. This single link arm extends out 10" and provides easy one-touch tilt and 7 degrees of roll for limitless viewing positions. Its anodized aluminum finish complements offices, conference rooms or any room in the home. For easy installation, this mount comes completely pre-assembled with all necessary mounting and screen attachment hardware.







Features:

  • Fits 22" to 44" LCD screens

  • Frees up space by folding flat against the wall

  • Adjustable roll for easy leveling of screen





Product Information:

Model Numbers

SP740P, SP740P-S

Product Specifications

Features

  • Compatible with screens that have VESA® 100 / 200x100 / 200x200 mm mounting hole patterns

  • Pre-assembled for fast and easy installation

  • Non-VESA screen adapter plates also available (sold separately)

  • Arm extends from wall up to 10" or folds flat to save space

  • Two tensionable pivot points for extensive adjustment of viewing angle

  • Anodized aluminum finish in black or silver

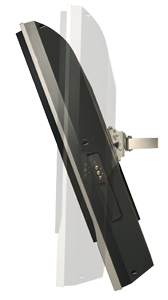

  • 20º of smooth, continuous, one-touch tilt (5º up, 15º down)

  • Adjustable roll of 7º in either direction allows screen to be easily leveled

  • Includes hardware for installation to a single wood stud or concrete

Load Capacity

80 lb (36.29 kg)

Dimensions (D)

Closed: 3.3" (8.4 cm)

Extended: 10.05" (25.5 cm)

Product Weight

5 lb (2.26 kg)

Finish

Anodized Aluminum

Available Colors

Black, SP740P

Silver, SP740P-S

Accessories

Metal Stud Wall Plate (WSP models)

Security Screen Fasteners (ACC919)

Patented

Patent Pending

Package Specifications

Package Contents

Adjustable Arm, VESA Screen Adapter Plate, Mounting Hardware

Units in Package

1

Package Size ( L x W x H )

12.25" x 9.6" x 4" (31 x 24.4 x 27.4 cm)

Package Ship Weight

5.5 lb (2.49 kg)

Package UPC Code

SP740P 735029237341

SP740P-S 735029237358

Warranty

Limited 5-year

Additional Images:







Literature (Please open the following documents for more technical information)

Description

File Type

Product Profile

reader-14.jpg - pdf

Catalog Page

reader-14.jpg - pdf

Technical Data

reader-14.jpg - pdf

Installation Sheet

reader-14.jpg - pdf













Model SP740P or SP740P-S
Manufacturer Peerless Mounts
Part Number SP740P or SP740P-S
UPC 735029237341
