Peerless LCFS-100 LCD Pedestal Stand for 10 to 30 inch Flat Panel Screens weighing up to 40 lbs LCFS 100



General Information









Buy from an Authorized Dealer



Product Information

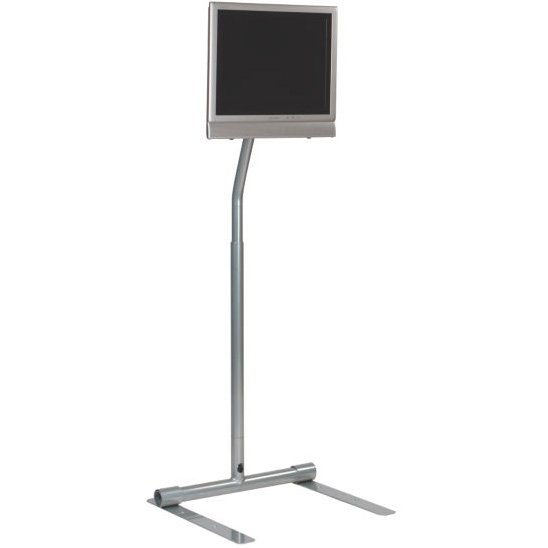

Peerless LCFS-100 LCD Pedestal Stand for 10 to 30 inch Flat Panel Screens weighing up to 40 lbs LCFS100





Peerless LCFS-100 LCD Pedestal Stand for 10 to 30 inch Flat Panel Screens weighing up to 40 lbs LCFS100







Dimensional Diagram for Peerless LCFS-100 LCD Pedestal Stand LCFS 100



Dimensional Diagram for Peerless LCFS-100 LCD Pedestal Stand for 10 to 30 inch Flat Panel Screens







Peerless LCFS-100 LCD Pedestal Stand Description:



The LCD Pedestal Stand offers a great mounting solution for 10" to 30" LCD screens in auditoriums, gymnasiums, broadcast studios, retail settings, or anywhere an LCD screen needs to be mounted on a pedestal. This versatile unit features height adjustment, swivel and internal cord management. The LCD Pedestal Stand can be free-standing or bolted down to the floor.







Features:

  • Supports 10" to 30" screens with VESA 75/100 mounting patterns

  • Comes in silver or black

  • Easy to install

  • Adjustable height from 60 3/4" (154.3 cm.) to 80" (203.2 cm.)

  • Swivel: 180° of swivel at the head (up to 90° on each side)

  • Comes with hardware to bolt to a wood surface or concrete

  • Can be used free standing (with screens up to 25 lbs.) or bolted down to surface (for screens 25 lbs. to 40 lbs.)

  • Feet can move inwards along the tubular structure if the application

  • Requires (stand must be bolted down if feet are not in full outward position)





Details Product Information:



Model Numbers:

Universal Models:

Security Fasteners (Includes standard hardware (hex or Phillips) for attaching screen to mount)

LCFS-100 -- (Phillips Version) Black for 10"-30" Flat Panel Screens

LCFS-100-S - (Phillips Version) Silver for 10"-30" Flat Panel Screen

Screen Adapter:

Universal Models:

Includes universal screen adapter to accommodate VESA 75 and 100 mounting holes

Product Specifications

Dimensions (W x H x D):

23" x 60.75"-80" x 24" (58.4 x 154.3-203.2 x 61 cm)

Load Capacity:

Freestanding: 25 lb (11.3 kg)

Bolted down: 40 lb (18.1 kg)

Swivel:

±90°

Available Colors:

LCFS-100: Black

LCFS-100-S: Silver

Package Specifications

Units in Package:

1

Package Ship Weight:

26 lb (11.8 kg)

Mounting Surfaces:

All floor surfaces

Package UPC Code:

LCFS-100: 735029214298

LCFS-100-S: 735029215257

Warranty:

Limited 5-year







Additional Images:

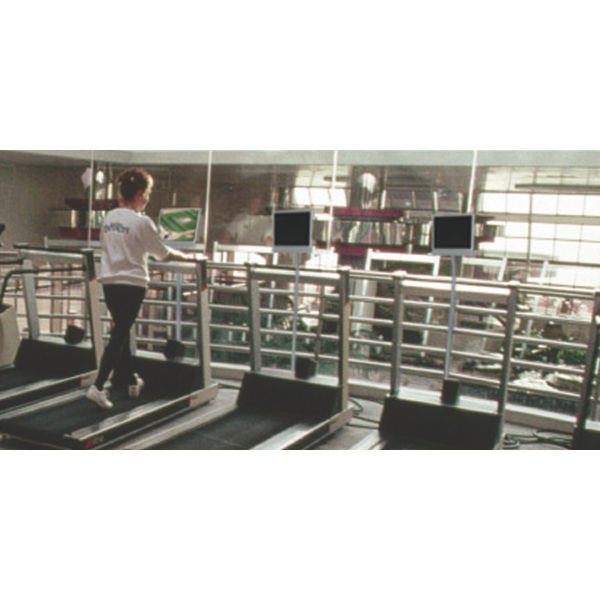

Inused imaged Peerless LCFS-100 LCD Pedestal Stand for 10 to 30 inch Flat Panel Screens weighing up to 40 lbs LCFS100
