Dimensional Diagram for Peerless PJRL-411 Encore Projector Mount

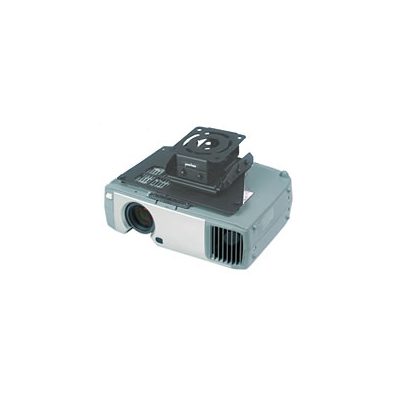

Peerless Encore Projector Mount Description:

The ENCORE Projector Mount delivers function, Armor Lock security, and versatility. The design allows you to easily adjust the mount independently for roll, tilt, and swivel. This mount is ideal for numerous commercial applications, including classrooms and restaurants. The Encore Mount comes standard with Armor Lock security at every connection point, including at the extension column - a feature offered only by Peerless. The Encore Mount can be flush mounted directly to a ceiling, mounted using a 1½" diameter extension column, or mounted using ½" threaded rod.

Features:

• Color: black

• Roll: 10° (+/- 5°), Pitch: 20° (+ 5°, - 15°), Swivel: 360° when used with extension column, 60° when flush mounted directly to the ceiling

• Theft-resistant Armor Lock security for complete, integrated security from projector to ceiling

• Quick release spring latch for easy projector removal and positive engagement. Can also be secured with Armor Lock security screw

• Ceiling plate included for flush mounting or attaching to threaded rod

• Internal cord management integrated into the design

Description

File Type

Peerless PJRL-411 Technical Data

- pdf

Peerless PJRL-411 Installation and Assembly Sheet

- pdf
