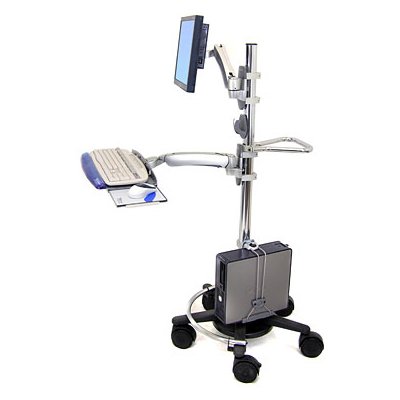

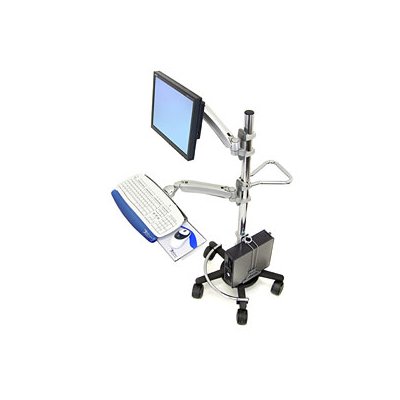

Ergotron Mobile WorkStand with LX Notebook Arm

Footrest is discontinued and is no longer available.

click image to enlarge

This product has the following options available: Option 1 - Poles Option 2 - Wall Mount Arm Option 3 - Pole Clamp Option 4 - Notebook Tray Option 5 - Handle Option 6 - Monitor Arm Option 7 - Monitor Arm Pole Clamp Option 8 - Keyboard Tray Option 9 - Keyboard Tray Pole Clamp Option 10 - Base Style Option 11 - Stabilizer Option 12 - Extended Protection Plan

Our Price:	$904.96
Shipping:	$65.50 * - UPS Ground
* applies to Contiguous United States

Quantity:

+ Have a question? Click here.
+ International orders
+ Warranty and returns information

Description Accessories Specifications

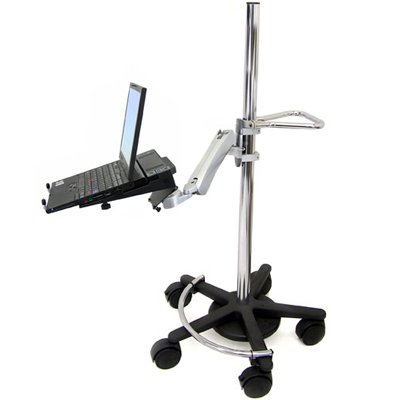

Ergotron LX Mobile Laptop Stand

Footrest shown in the picture is no longer available.

Description

Mount brackets allow easy attachment of many Ergotron mounts, placed at any point along the pole.

Product Information

Part Number:	Contact Ergotron
Description:	Mobile WorkStand is configured to order. Consult an Ergotron representative to insure the correct part numbers are procured.
Accessory Options:	Footrest, storage basket, base tray, cable box, cpu holder, cable management kit.
Recommended Mounts:	For LCDs, Keyboards and Notebooks: LX Wall Mount LCD Arms, LX Wall Mount Keyboard Arms, 200 Series Wall Mount Arms, 200 Series Pivots, 400 Series Arms, LX Notebook Tray.
NOTE:	Remove extensions if mounting LX Arms; if mounting 200 Series Arms, only one extension is recommended. Adding extra extensions may cause a tip hazard.
Footprint:	27" (686 mm) diameter.
Overall Height:	55" (1397 mm)
Shipping Weight:	Varies with configuration
Warranty:	Five (5) years

Brackets to Mount Arms and Peripherals

For both arms/pivots and peripherals, select the appropriate bracket listed below. Attach anywhere along the Pole.

Note: Brackets provide attachment holes on two sides. This allows an additional Arm or peripheral to be mounted on the opposite side.

Brackets to Mount Arms and Peripherals

Part Number:	Description	Application	Shipping Weight
60-131-003 Aluminum	Pole Mount Brackets (2 Brackets)	Mounts LX, 400, 200 Series and 400 Combo	2 lbs (0.9 kg)
60-144-003 Aluminum	Pole Mount Bracket (1 Bracket)	Mounts CPU Holders and Wire Storage Basket	1 lbs (0.45 kg)
60-199-003 Aluminum	Split Pole Bracket (1 Bracket)	Mounts LX, 400 & 200 Series, 400 Combo, CPU Holders and Storage Basket For use with Pole having no open end – facilitates mounting after Mounting Solutions are in place	2 lbs (0.9 kg)
97-094-099 Grey, 97-094-085 Black	Pole Mount Bracket (1 Bracket, 1 plate)	Mounts 100 Series to 2" Pole	2 lbs (0.9 kg)

Benefits

Completely modular and customizable.
For use in sitting, standing or sit-to-stand applications.
Easily adapted for use with CPUs, tablet PCs or notebook computers.
Multiple users can easily position, monitor and keyboard to their own, comfortable viewing position.
Heavy-duty, locking casters easily move over carpets, hard floors and thresholds.
Compact footprint reduces space requirements.
Sturdy, five-legged design with optional weighted base.
Durable, lockable 4"-diameter casters provide smooth movement of the complete unit.
Easy-to-clean, heavy-duty steel.
Install components at any height on pole.
Industry-leading warranty.

Literature (Please open the following documents for more technical information)

Detail Information - Ergotron Mobile Work Stand with LX Laptop Arm	- pdf
Product Sheet - LX Notebook Arm Mobile Cart by Ergotron	- pdf
Installation Manual - Mobile Work Stand for laptop with LX Arm	- pdf

Ergotron Logo

Model	Ergotron Laptop Stand
Manufacturer	Ergotron
Part Number	Ergotron Laptop Stand

Footprint	27" (686 mm) diameter
Overall Height	55" (1397 mm)
Shipping Weight	Varies with configuration
Warranty	Five (5) years
Mounting Options	Carts
