Ergotron 31-016-182 - 10" Wall Track

Be the first to review this product
Product ID: 14716
Highlights
  • Option 1: One wall track mount bracket kit is needed to attach each arm and pivot to wall track. Use this bracket for LX and MX arms, 400, 200 and 100 arms. Also, for attaching Universal CPU holder or Utility Shelf.
  • Option 2: Wall track mounting kit is needed for attaching the track to wall; 97-531 for metal or wood studs, 90-011 to attach track to hollow walls
  • Option 3: Track mount bracket kit for CPU is needed to attach the Vertical CPU to wall track
  • Cable management channel covers - included
Recommended Accessories
List Price: $75.00
Our Price: $43.27
You Save: $31.73
Shipping: $9.75 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Description

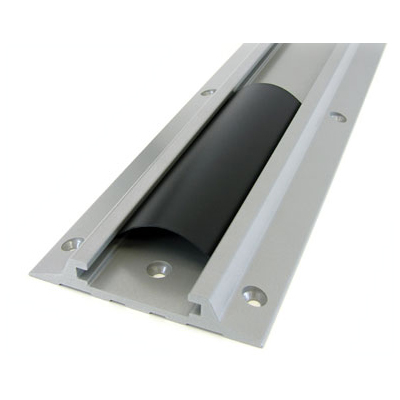

Ergotron 31-016-182 Wall Track is a low-cost, zero-footprint mounting system that attaches to most vertical surfaces. It accommodates an entire computer workstation.

Separately-ordered brackets are required to attach components to Wall Track. The height of components can be adjusted by loosening set-screws on these brackets.



Technical Drawing

Technical Drawing for Ergotron 10" Wall Track



Product Information

Part Number:

31-016-182

Description:

10" Wall Track (aluminum) with cable management channel cover

Dimensions:

10" x 5" x .87" (254 x 127 x 22 mm)

OSHPD:

Pre-approval Number OPA-0620

Fasteners:

For attaching to wall not included. Fasteners may be purchased from Ergotron: part number 97-531 for metal or wood studs; part number 90-011 for hollow walls.

Brackets:

Separately-order brackets required to attach Ergotron components: part number 97-091 for LX & MX Arms, 400, 200 and 100 Series Arms and Pivots, and Universal CPU Holder; part number 60-156 for Medium and Small CPU Holders.

Shipping Weight:

4 lbs (1.8 kg)

Warranty:

Five (5) years



Benefits

  • Acts as a common interface for Wall Mount Arms and CPU Holders; accommodates an entire computer system.
  • Strengthens installation by distributing weight over a larger surface area.
  • Sturdy, extruded aluminum construction.
  • OSHPD pre-approved for California hospital requirements.
  • Includes channel cover that conceals and routes cables.
Model 31-016-182
Manufacturer Ergotron
Part Number 31-016-182
UPC 698833002553
Dimensions 10" x 5" x .87" (254 x 127 x 22 mm)
Shipping Weight 4 lbs (1.8 kg)
Warranty Five (5) years
