We are sorry but item below has been discontinued.

Kinesis FS20A Savant Elite Programmable Dual Action Foot Switch

Be the first to review this product
Product ID: 15176
Our Price: $159.00
Shipping: $7.95 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States

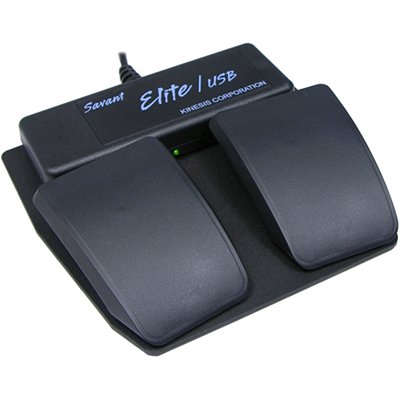

Kinesis FS20A Savant Elite Programmable Dual Action USB Foot Switch



General Information



Image of Warranty and Returns

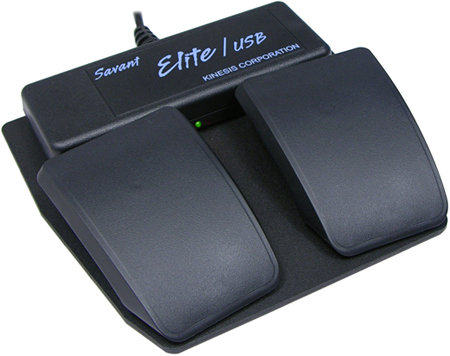

Kinesis FS20A Savant Elite Dual Action Foot Switch



Kinesis FS20A Savant Elite Dual Action Foot Switch









Description of Kinesis FS20A:



Versatile and comfortable - activate mouse clicks and keyboard actions. The Savant Elite family of programmable USB foot switches are available in single, dual, and triple foot switch configurations. Connects to virtually any computer with an available USB port.

Don't need three pedals? Then get the Savant Elite Dual Action Foot Switch. Offering the same features as the Savant Elite Triple Action, the Dual Action is ideal for user's who only want to activate mouse clicks or want to offload one or two keying tasks.

Not sure if you need two or three pedals? No problem... purchase the Dual Unit with the additional input jack allowing you to connect a third pedal or hand trigger at a later date









Kinesis FS20A Savant Elite Dual Action Foot Switch Features:



  • Activate Mouse Clicks
    All Savant Elite foot switches come pre-programmed to activate right and left mouse clicks, plus a middle mouse button action where a third pedal or input is present. For many users the pain associated with mousing is from the action of clicking, not from moving the mouse. The Savant Elite resolves this problem by relocating the clicking action to the user's feet.

  • Program Any Key Action
    Reprogram the foot switch to activate any key action (s). Perfect for offloading work from an overused finger or hand. Some of the more commonly used key actions are Shift, Tab, Enter, Backspace and Delete.
  • Create Macros
    Macros are a great productivity tool for generating commonly used phrases, or combinations of key actions and modifiers. With a memory pool of 1200 characters per device the Savant Elite will support even the most demanding of tasks.









Savant Elite Dual Action Foot Switch Physical Specifications:



Height:

1.2"

Width:

6.25"

Depth (front to back):

6"

Cable Length:

9.6 ft

Shipping Weight:

3 lbs

Specifications:

  • Two pedals factory configured to perform mouse button actions (Left pedal = left button, right pedal = right button)

  • Pedals are front-hinged and rounded for easy triggering, made from black, glass-reinforced nylon

  • Pedals are adjustable

  • Low profile design, combined with heavy steel base prevents unit from accidentally moving on the floor

  • Re-programmable to perform keyboard actions, macros, or to re-assign mouse button actions

  • External status LEDs

  • Recessed programming switch accessible from underside of unit

  • Modular design is upgradeable and supports simple field repairs if necessary









Kinesis Savant Elite Dual Action Foot Switch Compatibility:



  • Windows
    · Available USB port. Uses generic drivers provided by the operating system (Windows 98, 98SE, ME, 2000, XP, Vista & 7).
    · Compatible with Windows 98, 98SE, ME, 2000, XP, Vista & 7.
    · Re-programming driver available on the Support Downloads section of our web site for Windows 98, 98se, ME, 2000, XP, Vista & 7. A CDROM is available upon request for a minimal charge. Driver not compatible with 64 bit versions of XP, Vista and 7.
    · Only Windows 2000, XP, Vista & 7 offer full functionality of mouse clicks.
  • NOTE: For Vista & Windows 7, save the xkeys programming driver to your desktop. Right Click the xkeys icon and select properties. Click the Compatibility tab and check the box that says, "Run this program in compatibility mode for" Windows XP. Click Apply and proceed to install xkeys driver.
  • Macintosh
    · Available USB port. Uses generic drivers provided by the operating system (OS 8.6 - 10.X)
    · Only OS X offers full functionality of left and right mouse clicks. Middle mouse button not supported on Macintosh without using a third party driver such as that found at www.usboverdrive.com.
    · Note: Modifier actions from one USB device cannot modify the input of a second USB device due to limitations designed into the Apple operating system.
  • Example: Shift, Control, Command, or Option keystrokes programmed into the footswitch cannot modify the input of a separate USB keyboard or mouse. However, a key sequence like 'Cmd-W' or 'Cmd-Shift-left arrow' will work on a Macintosh if the entire sequence of keystrokes has been pre-programmed into the footswitch. (Footswitch can only be programmed on a Windows PC).
  • Linux, Sun and other Non Windows Platforms
    · Available USB port. Uses generic drivers provided by the operating system. Due to the heterogeneity in these platforms, we cannot guarantee compatibility with these systems. However, if your system can use any USB mouse and keyboard, it will probably work with a Savant or Savant Elite foot switch.
    · Re-programming drivers are not available for these systems. The user is advised to re-program the foot switch on a Windows-based PC system.
    · Mouse click actions may not be supported on these systems. However, based on our limited experience with these platforms we have yet to encounter any incompatibility issues.









Kinesis Savant Elite Dual Action Foot Switch Applications:



  • For the Office
    Get more work done and feel better than before. A Savant Elite programmable foot switch can do this for you by offloading work from an overused finger or hand. Create macros for repeated tasks, activate mouse clicks, or trigger any key action or modifier such as "Shift" or "Tab".
  • The Savant Elite Foot Switch is ideal for keying intensive tasks such as

    · Programming
    · Technical Writing
    · Data Entry
    · Word Processing
    · Graphic/Design
    · Call Center
    · Transcription
    · Accounting
    · Media & Sound Editing

  • Dental, Medical and Industrial
    All models are ETL recognized for near-patient use. Select one, two, or three pedals, or a jack-equipped model supporting an optional hand trigger
  • Dental
    The Savant Family of foot switches are used extensively with Intraoral Radiography hardware and software including Kodak's (Practice Works) TROPHY RVGui Digital Radiography System and Softdent Software.

  • Medical
    · Current applications include digital radiography systems, endoscopy & ultrasound.
    · Use in the examination room with any equipment accepting a USB input device.
    · Consider the optional input jack version to connect a hand trigger for alternate use

  • Industrial Control
    A programmable USB foot switch can streamline many industrial assembly or test procedures.
    · Multiple Savant Elite devices can be connected to a PC, with either foot pedal or hand trigger inputs.
    · Because these are low-speed USB devices, extension cables can be often used without sacrificing data integrity







Literature (Please open the following documents for more technical information)





Kinesis Savant Elite Foot Switches - Brochure

reader-14.jpg - pdf







Kinesis Logo

Hyperlink of all Kinesis Products

Model FS20A
Manufacturer Kinesis
Part Number FS20A
UPC 607998200100

Be the first to review this product

Kinesis FS20A Savant Elite Programmable Dual Action Foot Switch
