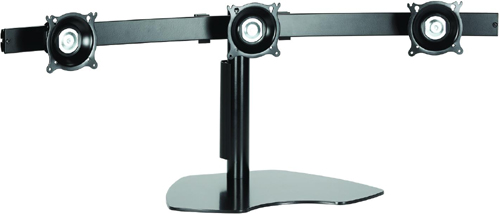

Chief KTP320B or KTP320S Triple Table Stand Flat Panel Horizontal LED Monitor Mounts
Flat Panel Triple Monitor Horizontal Table Stand
click image to enlarge
|
Related Products:
|
|
Part Number
|
Description
|
|
KTP320B
|
Black Table Stand Flat Panel Triple Horizontal Monitor Mounts
|
|
KTP320S
|
Silver Flat Panel Triple Horizontal Monitor Mounts Table Stand
|
|
|
|
|
|
|
|
|
|
General Information
|
|
|
|
|
|
Buy from an Authorized Dealer
|
|
|
|
|
Chief KTP-320 Table Stand Flat Panel Triple Horizontal Monitor Mounts
|
|
|
|
|
|
|
|
Features of Chief KTP-320B or KTP-320S:
|
|
1. Centris Technology (PATENTED FEATURE): Provides smooth fingertip tilt in all directions
using the screen’s center of gravity. Screen angle stays set until you decide to re-adjust.
|
|
2. Advanced Display Mounting: Teardrop hole pattern makes mounting the screen quick and
easy.
|
|
3. Stable Base: Heavy-duty, solid steel base and oversized pole for unmatched stability.
|
|
4. Independent Adjustment: Position each screen separately for ergonomic, horizontal
alignment.
|
|
5. Cable Management: Conceal and protect cables using snap-on covers and cable tips.
|
|
6. Independent adjustment of each screen for proper ergonomic alignment.
|
|
7. VESA 75 x 75 mm and 100 x 100 mm compatible
|
|
|
|
|
|
|
|

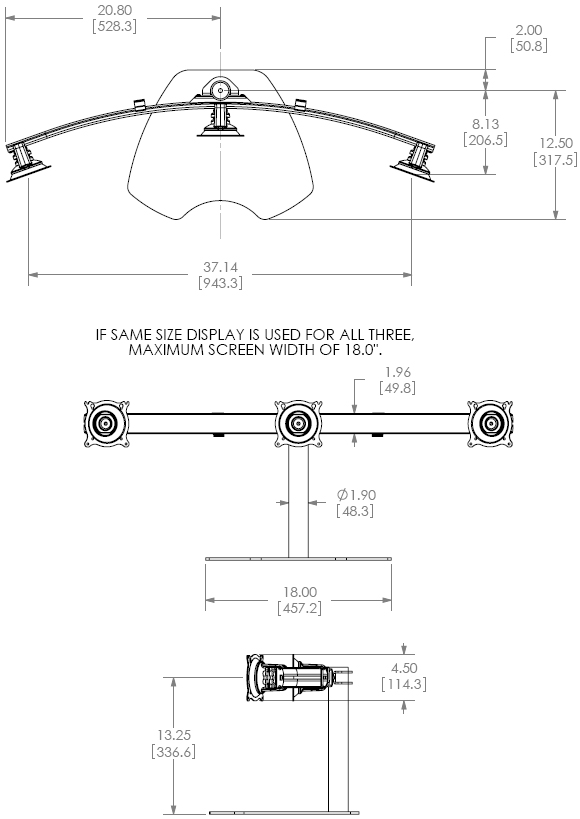

Technical Drawing for Chief KTP 320 Table Stand
Flat Panel Triple Horizontal Monitor Mounts
|
|
|
|
|
|
|
|
Description of Chief KTP 320B or KTP 320S:
Chief's KTP320 is designed to provide a rock solid, free-standing solution for users who commonly work with multiple small flat panel TVs, LCDs or monitors.
|
|
|
|
|
|
Specifications:
|
|
Tilt:
|
+/-15º
|
|
Roll:
|
+/-90º
|
|
Yaw:
|
+/-15º
|
|
Dimensions (H x W x D):
|
14.5" x 41.6" x 14.5" (368 x 105 x 368 mm)
|
|
Maximum Width per Display:
|
18" (457 mm)
|
|
Maximum Height per Display:
|
26" (660 mm)
|
|
Weight Capacity:
|
90 lbs (40.8 kg) or 30 lbs (13.6 kg) per monitor
|
|
Depth in Closed Position:
|
6” (152 mm)
|
|
Color:
|
Silver or Black
|
|
Mounting Arms:
|
Pivot/Tilt
|
|
Connection Type:
|
Table Stand
|
|
VESA Compatibility:
|
75 x 75 mm and 100 x 100 mm (without extra interface bracket)
|
|
|
|
|
|
|
|
