We are sorry but item below has been discontinued.

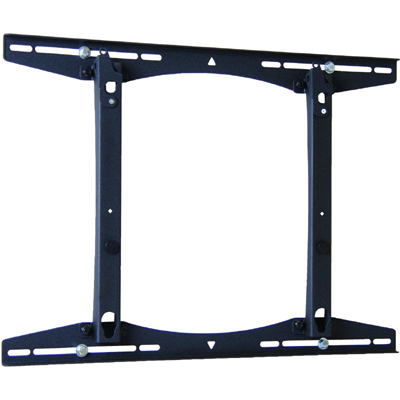

Chief PSTU Fixed Wall Mount for 37 to 65 inch LCD Flat Panel Displays (DISCONTINUED) Replaced by LSAU

Be the first to review this product
Product ID: 15311
Recommended Accessories
Our Price: $143.20
Shipping: $0.00 *  - Free Ground Shipping
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Accessories for Chief PSTU Fixed Wall Mount

Chief KSA1022B or KSA1022S Wall Extrusion (Wall Track)

Chief KSA1022 Wall

Extrusion (Wall Track)



Chief PAC400 - 90° Rotation Adapter Plate Black

Chief PAC400 - 90°

Rotation Adapter Plate







Chief PSTU Fixed Wall Mount for 37 to 65 inch Flat Panel Large Display with screen





General Information



Image of Warranty and Returns





Nationwide Delivery Image









Chief PSTU Fixed Wall Mount for 37 to 65 inch Flat Panel Large Displays (DISCONTINUED) Replaced by LSAU



Chief PSTU Fixed Wall Mount for 37 to 65 inch Flat Panel Large Displays









Features of Chief PSTU Fixed Wall Mount:

    1.  Low Profile: Designed to ensure mount remains concealed behind the screen.



    2.  Q-Latch Mounting System: Flat panel secures to mount with a latching flag. Easy to

         connect/disconnect - no tools needed. Protect display by adding a padlock, provides

         Integrated security.



    3.  Open Wall Plate Design: Expanded wall plate opening provides cable access and reduces

         risk of outlet interference.



    4.  Rapid Leveling: Hands free leveling of mount on wall after installation.



    5.  Integrated Lateral Shift: Reposition mount 4” (102 mm) left or right after installation for

         ultimate positioning flexibility.



    6.  Ultra low-profile design.



    7.  Unique design provides cable access through sides of mount.



    8.  Allows for 16", 20", 24" center stud system mounting.



    9.  Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory

         can be used to rotate without removing the screen).









Technical Drawing for Chief PSTU (DISCONTINUED) Replaced by LSAU Fixed Wall Mount for Large Flat Panel Screens





Technical Drawing for Chief PSTU Fixed Wall Mount for Large Flat Panel Screens









Description of Chief PSTU:

The PST is a low-profile, fast installation wall mount for large flat panel TVs.

  • Custom and universal models.

  • Great for digital display or retail applications





Specifications:

Depth from Wall:

1.21" (31 mm) NOTE: Depth does not include interface bracket

Dimensions (H x W x D):

18.38" x 26" x 1.83" (467 x 660 x 46 mm)

Lateral Shift:

4" (102 mm) Left/Right

Mounts to:

16", 20" and 24" on-center studs

Color:

Black

Weight Capacity:

200 lbs (90.71 kg)





Literature (Please open the following documents for more technical information)

Description

File Type

Chief PSTU Fixed Wall Mount - Catalog Page

- pdf

Chief PSTU Flat Panel Fixed Wall Mount - Installation Assembly

- pdf

Chief PSTU Fixed Wall Mount - Technical Drawing

- pdf

Chief PSTU Flat Panel Fixed Wall Mount - Installation Instruction Interface

- pdf

Chief PSTU Flat Panel Fixed Wall Mount - Technical Drawing Interface

- pdf

Chief PSTU Fixed Wall Mount - Healthcare Solutions

- pdf

Chief PSTU Flat Panel Fixed Wall Mount - Digital Signage

- pdf













Hyperlink of all Chief products



Privacy Notice:
ErgoDirect.com fully respects and protects your privacy. With the exception of arranging for delivery of the products ordered, we do not sell, share or rent any personal information (including your name, address, telephone number or e-mail address) to other parties for any reason; nor do we contact you by telephone or e-mail to solicit additional products or services.
Credit Card Security:
We use SSL security to protect all transactions so your credit card information is completely safe.
Model PSTU
Manufacturer Chief Mounts
Part Number PSTU
UPC 841872074641
