We are sorry but item below has been discontinued.

Chief MTRU Tilting Wall Mount for 30 to 50 inch Medium Flat Panel Displays DISCONTINUED replaced by MTMU

Wall Mount LCD Monitor Arm
Be the first to review this product
Product ID: 15314
Recommended Accessories
Our Price: $119.20
Shipping: $0.00 *  - Free Ground Shipping
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Accessories for Chief MTRU Tilting Wall Mount

Chief KSA1022B or KSA1022S Wall Extrusion (Wall Track)

Chief KSA1022 Wall

Extrusion (Wall Track)



Chief MAC400 - 90° Rotation Adapter Black

Chief MAC400

90° Rotation Adapter Plate







General Information



Image of Warranty and Returns





Nationwide Delivery Image

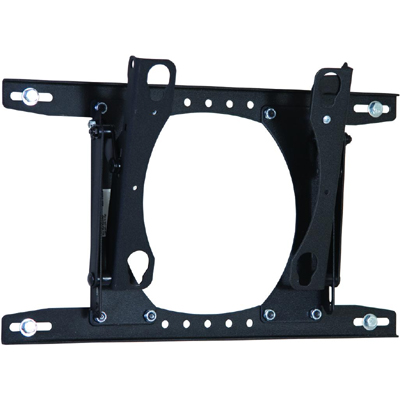

Chief MTRU Tilt Wall Mount for 30 to 50 inch Flat Panel Displays



Chief MTRU Tilting Wall Mount for 30 to 50 inch Flat Panel Displays









Features of Chief MTRU Tilting Wall Mount:

    1.  Multiple Installation Options: Choose from five different positions when using a single stud

         system or use 16” center stud mounting system.



    2.  Integrated Lateral shift: Reposition mount 1.5 - 2” left or right after installation for ultimate

         positioning flexibility.



    3.  Q-Latch Mounting System: Flat panel secures to mount with a latching flag. Easy to

         connect/disconnect - no tools needed! Protect display by adding a padlock.



    4.  Open Wall Plate Design: Expanded wall plate opening provides cable access and reduces

         risk of outlet interference.



    5.  Rapid Leveling: Hands free leveling of mount on wall after installation.



    6.  Ultra low-profile design.



    7.  Friction-adjustable tilt from 0 - 15º.



    8.  Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory

         can be used to rotate without removing the screen)



    9.  Multiple mounting options provided: single stud at five different positions and 16" on-center

         stud mounting.



   10. Provides integrated security - just add a padlock









Technical Drawing for Chief MTRU Flat Panel Tilting Wall Mount



Technical Drawing for Chief MTRU Tilting Wall Mount for Medium sized Flat Panel Displays









Description of Chief MTRU:

The MTR is a low profile, fast installation wall mount for mid-size flat panel displays







Specifications:

Depth from Wall:

1.5" (38 mm)  NOTE: Depth does not include interface bracket, typically 1" (25 mm) or less

Tilt:

0-15º

Dimensions (H x W x D):

10.83" x 18.5" x 1.5" (276 x 450 x 38 mm)

Integrated Lateral Shift:

1.5" (38 mm) left/right, 2" (51 mm) left/right of single stud)

Mounting Options:

16"on-center studs or single stud

Color:

Black

Weight Capacity:

125 lbs (56.7 kg)





Literature (Please open the following documents for more technical information)

Description

File Type

Chief MTRU Tilting Wall Mount - Catalog Page

- pdf

Chief MTRU Flat Panel Tilt Wall Mount - Installation Assembly

- pdf

Chief MTRU Tilt Wall Mount - Technical Drawing

- pdf

Chief MTRU Flat Panel Tilting Wall Mount - Installation Interface

- pdf

Chief MTRU Flat Panel Tilt Wall Mount - Technical Drawing Interface

- pdf

Chief MTRU Tilting Wall Mount - Healthcare Solutions

- pdf

Chief MTRU Flat Panel Tilt Wall Mount - Digital Signage

- pdf
