We are sorry but item below has been discontinued.

Chief PLPU Tilting Wall Mount for 37 to 65 inch Large Flat Panel LCD Displays

The difference between PRO and PLP is that PRO provides rock solid, lock-down tilt adjustment, while the PLP provides fingertip tilt adjustment and expanded cable access
Be the first to review this product
Product ID: 15316
Recommended Accessories
Our Price: $239.20
Shipping: $29.95 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Accessories for Chief PLPU Tilting Wall Mount

Chief KSA1022B or KSA1022S Wall Extrusion (Wall Track)

Chief KSA1022 Wall

Extrusion (Wall Track)



Chief PAC400 - 90° Rotation Adapter Plate Black

Chief PAC400 - 90°

Rotation Adapter Plate







General Information



Image of Warranty and Returns





Nationwide Delivery Image

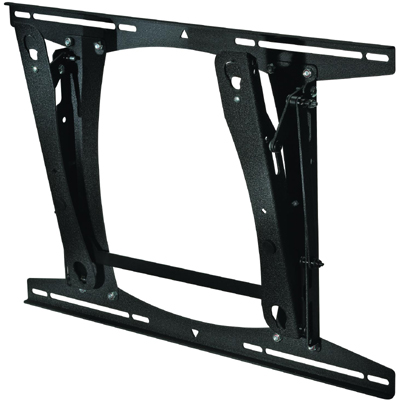

Chief PLPU Tilt Wall Mount for 37 to 65 inch Large Flat Panel Displays



Chief PLPU Tilt Wall Mount for 37 to 65 inch Large Flat Panel Displays









Features of Chief PLPU Tilting Wall Mount:

    1.  Pull-N-Tilt (PATENTED FEATURE (US 6,402,109)): Provides hand tilt adjustment between

      0 - 15º.



    2.  Q-Latch Mounting System: Flat panel secures to mount with a latching flag. Easy to

         connect/disconnect - no tools needed. Protect display by adding a padlock.



    3.  Integrated Lateral Shift: Reposition mount 4” (102 mm) left or right after installation for

         ultimate positioning flexibility.





    4.  Rapid Leveling: Hands free leveling of mount on wall after installation.



    5.  Open Wall Plate Design: Expanded wall plate opening provides cable access and reduces

         risk of outlet interference.



    6.  Pull-N-Tilt mechanism provides fingertip tilt adjustment.



    7.  Bottom of mount pulls out 3” (76 mm) for simplified cable access.



    8.  Screen can be installed in portrait or landscape orientation ( PAC400 accessory can be used

         to rotate without removing the screen).









Technical Drawing for Chief PLPU Large Flat Panel Tilting Wall Mount



Technical Drawing for Chief PLPU Large Flat Panel Tilting Wall Mount









Description of Chief PLPU:

The PLP provides fingertip tilt and bottom pull-out for cable access.

  • Great solution for residential and corporate applications





Specifications:

Depth from Wall:

1.83" (46 mm)

NOTE: Depth does not include interface bracket, typically 1" (25 mm) or less

Tilt:

0-15º

Dimensions (H x W x D):

18.38" x 26" x 1.83" (467 x 660 x 46 mm)

Mounts to:

16", 20" & 24" on-center studs

Color:

Black

Weight Capacity:

200 lbs (90.71 kg)







Literature (Please open the following documents for more technical information)

Description

File Type

Chief PLPU Tilting Wall Mount - Catalog Page

- pdf

Chief PLPU Flat Panel Tilt Wall Mount - Installation Assembly

- pdf

Chief PLPU Tilt Wall Mount - Technical Drawing

- pdf

Chief PLPU Flat Panel Tilting Wall Mount - Installation Interface

- pdf

Chief PLPU Flat Panel Tilt Wall Mount - Technical Interface

- pdf

Chief PLPU Tilting Wall Mount - Healthcare Solutions

- pdf

Chief PLPU Flat Panel Tilt Wall Mount - Digital Signage

- pdf
