We are sorry but item below has been discontinued.

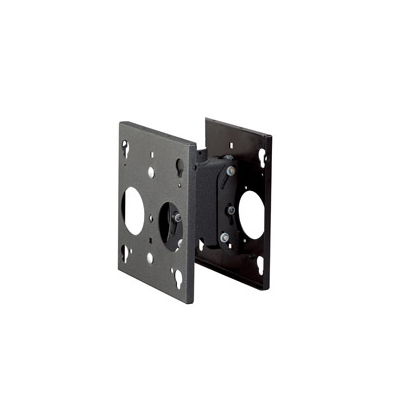

Chief MCDU Medium Flat Panel Dual Display Ceiling Mount (30-55")

Ceiling Mount 30 to 55 inch LCD Monitor Arm. Extension column and ceiling plate are required and must be ordered separately.

Be the first to review this product
Product ID: 15323
Recommended Accessories
List Price: $409.00
Our Price: $288.80
You Save: $120.20
Shipping: $0.00 *  - Free Ground Shipping
Usually ships in 1 to 2 business days
* applies to Contiguous United States



Accessories for Chief MCD Dual Ceiling Mount

Chief CMA101 Designer 5 inch (127 mm) Ceiling Plate CMA-101

Chief CMA101 Designer 5 inch Ceiling Plate

Chief CMA105- 4 inch Ceiling Plate for CMS Extension Columns CMA-105

Chief CMA105- 4 inch Ceiling Plate for Columns

Chief CMA110 - 8 inch Ceiling Plate for CMS Extension Columns CMA-110

Chief CMA110- 8 inch Ceiling Plate for Extension

Chief CMA115- 6 inch Ceiling Plate for CMS Extension Columns CMA-105

Chief CMA115- 6 inch Ceiling Plate for Extension



Chief CMS115 Speed-Connect 6 inch (152 mm) Ceiling Plate CMS-115

Chief CMS115 Speed-Connect 6 inch Ceiling Plate



Chief CMA100 Ceiling Plate with 24.25-46 inch Adjustable Column CMA-100

Chief CMA100 Ceiling Plate with Adjustable Column



Chief CMA700 - 6 inch Ceiling Plate with Adjustable Column CMA-700

Chief CMA700- 6 inch Ceiling Plate



Chief MAC400 - 90° Rotation Adapter Black

Chief MAC400 - 90° Rotation Adapter Black







General Information

Image of Warranty and Returns



Nationwide Delivery Image

Buy from an Authorized Dealer





Chief MCDU Universal Dual Ceiling Mount for 30 to 55 inch Flat Panel Displays



Chief MCDU Universal Dual Ceiling Mount for medium sized Displays









Features of Chief MCDV:

    1.  Centris Technology provides fingertip tilt.



    2. Screen angle can be tightened down for public applications.



    3.  ClickConnect Technology provides simple, tooless latching with an audible click.



    4.  Post-installation leveling with no tools needed.



    5.  Q-Latch mounting system for quick connect/disconnect.



    6.  Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory can be used to rotate without removing the screen)



    7.  Integrated cable management through extension column.



    8.  Custom and universal options available.









Technical Drawing for Chief MCDU Universal Adjustable Dual Ceiling Mount



Technical Drawing for Chief MCDV Universal VESA Dual Ceiling Mount









Description of Chief MCDV:

The MCD provides hassle-free installation for two ceiling-mounted displays.

  • Holds two flat panel displays back-to-back, a great option for digital signage installations

  • Extension column and ceiling plate are required and must be ordered separately to fit your specific installation requirements





Specifications:

Tilt:

+5°/ - 20°

Roll:

5°

Yaw:

360°

Dimensions (H x W x D):

11.02" x 10.15" x 7.97" (280 x 258 x 202 mm)

Color:

Black

Weight Capacity:

125 lbs (56.7 kg)





Literature (Please open the following documents for more technical information)

Description

File Type

Chief MCDU Dual Ceiling Mount - Technical Drawing

- pdf

Chief MCDV Universal VESA Dual Ceiling Mount - Installation Assembly

- pdf

Chief MCDU Adjustable Universal Ceiling Mount - Installation Interface

- pdf

Chief MCDV Dual Ceiling Mount - Technical Drawing Interface

- pdf
