We are sorry but item below has been discontinued.

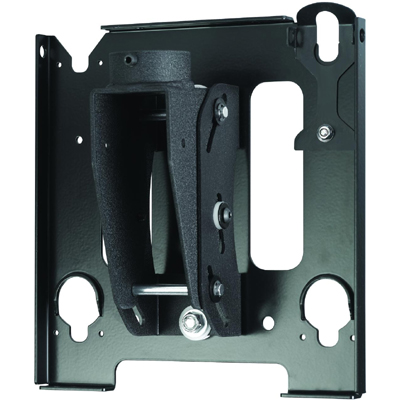

Chief MCSU Medium Flat Panel TV Ceiling Mount (30-55")

Extension column and ceiling plate are required and must be ordered separately.
Be the first to review this product
Product ID: 15324
Recommended Accessories
List Price: $269.00
Our Price: $197.60
You Save: $71.40
Shipping: $0.00 *  - Free Ground Shipping
Usually ships in 1 to 2 business days
* applies to Contiguous United States

Related Products:

Part Number

Description

MCSU

Black Adjustable Universal Single Ceiling Mount for 30 to 55 inch Flat Panel

MCSV

Black VESA Universal Single Ceiling Mount for 30 to 55 inch Flat Panel Display





Chief MCSU Universal Single Ceiling Mount for 30 to 55 inch Flat Panel Displays



Chief MCSV Universal Single Ceiling Mount for Flat Panel Displays







Features of Chief MCSV:

1.  Centris Fingertip Tilt: Effortlessly adjust display using Centris fingertip tilt technology.

      Screen angle stays set until you decide to re-adjust.



    2.  ClickConnect Technology (PATENT-PENDING): An audible click confirms flat panels are

         locked in place for easy connect/disconnect. Supports optional security by adding a padlock.



3.  Post-Installation Leveling: No tools needed. Ultra fast and easy screen positioning with lock

      down capability.



  4.  Portrait/Landscape Capability: Screen can be installed in portrait or landscape orientation

         (MAC400 accessory can be used to rotate without removing the screen)



    5.  Cable Management: Easily route cables through 1-1/2” NPT extension column.



    6.  Screen angle can be tightened down for public applications.



    7.  Q-Latch mounting system for quick connect/disconnect.



    8.  Custom and universal options available.







Technical Drawing for Chief MCSU  Universal Adjustable Single Ceiling Mount



Technical Drawing for Chief MCSV Universal VESA Single Ceiling Mount







Description of Chief MCSV:

The MCS provides hassle-free installation for a ceiling-mounted flat panel display and is a great option for digital signage installations.

  • Extension column and ceiling plate are required and must be ordered separately to fit your specific installation requirements



Specifications:

Tilt:

+5°/ - 20°

Roll:

5°

Yaw:

360°

Dimensions (H x W x D):

11.02" x 10.15" x 7.97" (280 x 258 x 202 mm)

Color:

Black

Weight Capacity:

125 lbs (56.7 kg)





More Images:

Chief MCSU Universal Adjustable Single Ceiling Mount





Literature (Please open the following documents for more technical information)

Description

File Type

Chief MCS Single Ceiling Mount - Catalog Page

- pdf

Chief MCSU Single Ceiling Mount - Technical Drawing

- pdf

Chief MCSV Single Ceiling Mount - Installation Instructions

- pdf

Chief MCS Ceiling Mount - Digital Signage

- pdf

Chief MCSU Flat Panel Ceiling Mount - Ceiling Mount Accessories Guide

- pdf

Chief MCSV Single Ceiling Mount - Quick Reference Guide

- pdf

Model MCSU
Manufacturer Chief Mounts
Part Number MCSU
UPC 841872101675
Color Black
Mounting Pattern 100 x 100mm - 709 x 431mm
Overall Dimensions (H x W x D) 11.0" x 10.2" x 4.3" (280 x 258 x 108mm)
Tilt + 5 degree, -20 degree
Screen Size 30" and smaller in
Weight Capacity 125 lbs (56.7kg)
Mounting Options Ceiling
Screen Size 31-45" in
Screen Size 46-60" in
