We are sorry but item below has been discontinued.

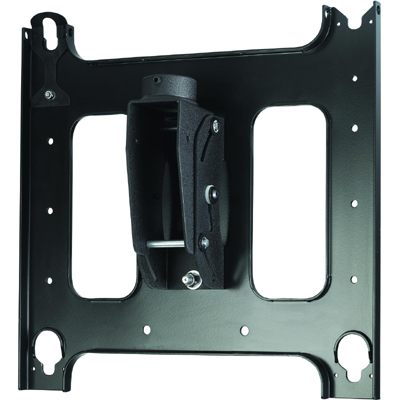

Chief PCSU Large Flat Panel Single Ceiling Mount (TVs 42-71")

Ideal for digital signage installations. Chief PSBU Interface Bracket is included with this PCSU. Extension column and ceiling plate are required and must be ordered separately.

Be the first to review this product
Product ID: 15326
Recommended Accessories
List Price: $369.00
Our Price: $264.00
You Save: $105.00
Shipping: $0.00 *  - Free Ground Shipping
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Accessories for Chief PCS Ceiling Mount

Chief CMA101 Designer 5 inch (127 mm) Ceiling Plate CMA-101

Chief CMA101 Designer 5 inch Ceiling Plate

Chief CMA105- 4 inch Ceiling Plate for CMS Extension Columns CMA-105

Chief CMA105- 4 inch Ceiling Plate for Columns

Chief CMA110 - 8 inch Ceiling Plate for CMS Extension Columns CMA-110

Chief CMA110- 8 inch Ceiling Plate for Extension

Chief CMA115- 6 inch Ceiling Plate for CMS Extension Columns CMA-105

Chief CMA115- 6 inch Ceiling Plate for Extension



Chief CMS115 Speed-Connect 6 inch (152 mm) Ceiling Plate CMS-115

Chief CMS115 Speed-Connect 6 inch Ceiling Plate



Chief CMA100 Ceiling Plate with 24.25-46 inch Adjustable Column CMA-100

Chief CMA100 Ceiling Plate with Adjustable Column



Chief CMA700 - 6 inch Ceiling Plate with Adjustable Column CMA-700

Chief CMA700- 6 inch Ceiling Plate



Chief PAC400 - 90° Rotation Adapter Plate Black

 Chief PAC400 - 90° Rotation Adapter Plate Black

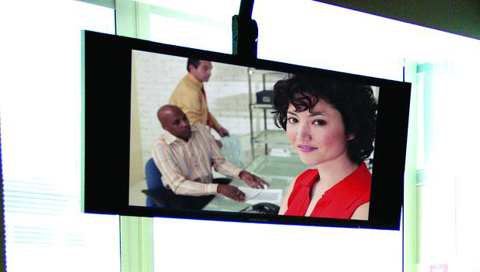

Application of Chief PCSU Single Ceiling Mount for Larrge Flat Panel Displays





General Information

Image of Warranty and Returns





Chief PCSU Single Ceiling Mount for 42 to 71 inch Flat Panel Displays



Chief PCSU Single Ceiling Mount for 42 to 71 inch Flat Panel Displays









Chief PSBU Universal Interface Bracket for Large Flat Panel Display

Chief PSBUB Universal Interface Bracket for Large Flat Panel Displays

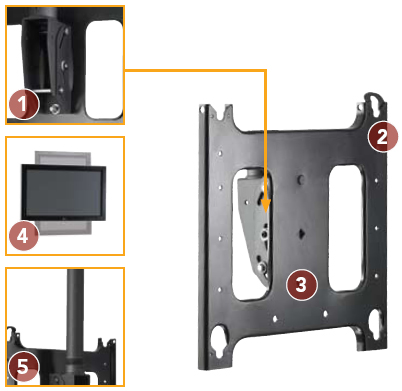

Features of Chief PCS:

    1.  Centris Fingertip Tilt: Effortlessly adjust display using Centris fingertip tilt technology. Screen angle stays set until you decide to re-adjust.



    2.  ClickConnect Technology (PATENT-PENDING): An audible click confirms flat panels are locked in place for easy connect/disconnect. Supports optional security by adding a padlock.



    3. Post-Installation Leveling: No tools needed. Ultra fast and easy screen positioning with lock down capability.



    4.  Portrait/Landscape Capability: Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)



    5.  Cable Management: Easily route cables through 1-1/2” NPT extension column. Columns sold separately.



    6.  Optional security with the addition of a padlock (not included).

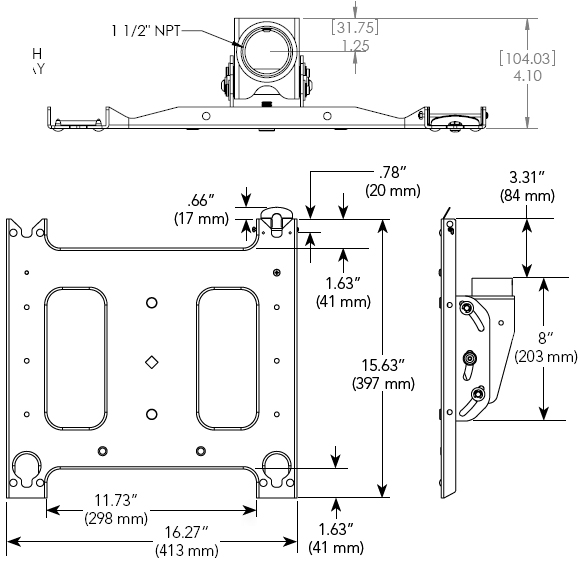

Technical Drawing for Chief PCSU Ceiling Mount for large Flat Panel Display



Technical Drawing for Chief PCSU Ceiling Mount for large Flat Panel Display





Technical Drawing for Chief PSBU Universal Interface Bracket



Technical Drawing for Chief PSBU Universal Interface Bracket









Description of Chief PCSU:

The PCS provides hassle-free installation for a ceiling-mounted flat panel TV.

  • Great for digital signage installations

  • Ceiling plate and extension column are required and must be ordered separately





Specifications:

Tilt:

+5°/ - 25°

Roll:

+/- 2º

Yaw:

360º

Dimensions (H x W x D):

17.1" x 16.2" x 4.2" (433 x 412 x 107 mm)

Color:

Black

Weight Capacity:

200 lbs (90.7 kg)







More Images:

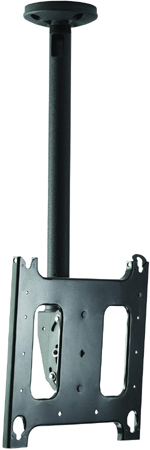

Chief PCSU Single Ceiling Mount with extension column

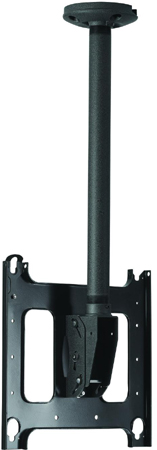

Chief PCS Single Ceiling Mount with extension column





Literature (Please open the following documents for more technical information)

Description

File Type

Chief PCS Single TV Ceiling Mount - Catalog Page

reader-14.jpg - pdf

Chief PCSU Single Ceiling Mount - Technical Drawing

reader-14.jpg - pdf

Chief PCS Single Ceiling Mount - Installation Instructions

reader-14.jpg - pdf

Chief PCSU TV Ceiling Mount - Digital Signage

reader-14.jpg - pdf

Chief PCS Flat Panel Ceiling Mount - Ceiling Mount Accessories Guide

reader-14.jpg - pdf

Chief PCSU Single Ceiling Mount - Quick Reference Guide

reader-14.jpg - pdf
