We are sorry but item below has been discontinued. Above are some similar products we can offer instead.

Ergotron 97-474 VESA (400 x 200 mm) Bracket Adaptor Kit

Arm is not included (purchase separately). VESA hole patterns of 200 x 100, 200 x 200, or 400 x 200 mm.
Be the first to review this product
Product ID: 15652
Our Price: $41.04
Shipping: $12.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Description

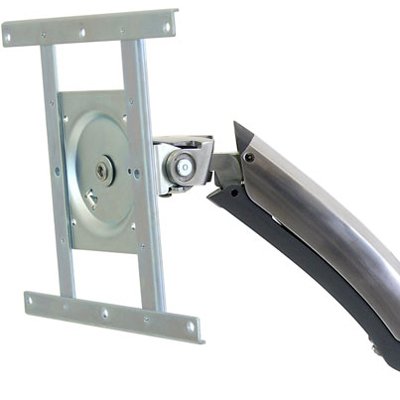

Ergotron 97-474 allows a VESA mount with a 100 x 100 mm interface to be used with displays with VESA hole patterns of 200 x 100, 200 x 200, or 400 x 200 mm.



Technical Drawing

Technical Drawing for Ergotron VESA Adapter Bracket Kit



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

22"-32" Up to 50 lbs

Up to 22.7 kg

- - - - MIS-E/F



Product Information

Part Number:

97-474

Description:

VESA Bracket Adaptor Kit (steel)

Includes:

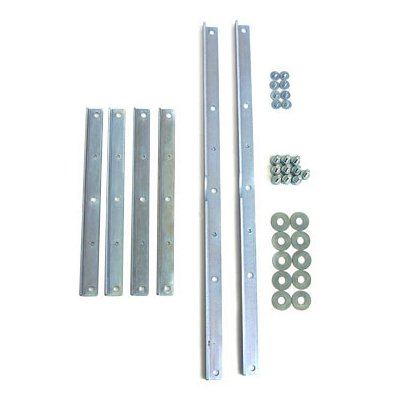

brackets and fasteners

Requires:

A mount with a VESA MIS-D 100 x 100 mm interface.

Mounting Pattern:

Accommodates displays using VESA MIS-E 200 x 100 mm interface, MIS-F 200 x 200 mm interface, and MIS-F 400 x 200 mm interface.

Shipping Dimensions:

24" x 3" x 1.25" (610 x 76 x 32 mm)

Shipping Weight:

1.6 lbs (.7 kg)

Warranty:

Five (5) years



Benefits

  • Simple installation.
  • VESA-compliant design.
  • Strong, steel construction.



Literature (Please open the following documents for more technical information)

Installation Manual - Ergotron 97-474 VESA Bracket Adapter kit

 - pdf

Dimensional Illustrations - Ergotron 97474 VESA Bracket Adaptor Kit

 - pdf





Ergotron Logo

Hyperlink of all Ergotron products

Model 97-474
Manufacturer Ergotron
Part Number 97-474
UPC 698833009736
Color Steel
Monitor Size 22"–32"
Weight Capacity 50 lbs (22.7 kg)
Mounting Pattern Accommodates displays using VESA MIS-E 200 x 100 mm interface, MIS-F 200 x 200 mm interface, and MIS-F 400 x 200 mm interface.
Shipping Dimensions 24" x 3" x 1.25" (610 x 76 x 32 mm)
Shipping Weight 1.6 lbs (.7 kg)
Warranty Five (5) years
