Ergotron 24-182-055 Neo-Flex Mobile 24182055 WorkSpace (open box)

Be the first to review this product
Product ID: 15657
Our Price: $756.95  On Sale for $499.00
Shipping: FREE SHIPPING *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart




24-182-055 has been assembled as test but never been used

and it is open box







Note: Ergotron Mobile Workspace 24-182-055 comes with both options of mounting:

           1. LCD Mount and Keyboard Tray or Mouse tray

           2. Notebook Tray





Animation of Ergotron Neo-Flex Mobile WorkSpace 24-182-055

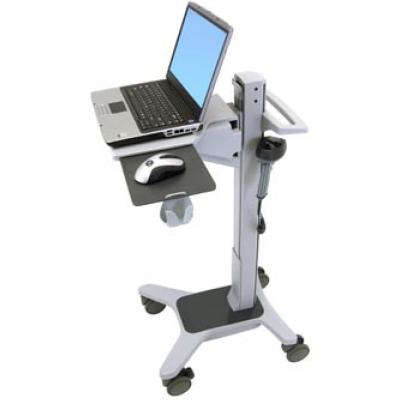

Ergotron 24-182-055 Neo-Flex Mobile WorkSpace



General Information












Ergotron 24-182-055 Neo-Flex Mobile WorkSpace

Ergotron 24-182-055 Neo-Flex Mobile WorkSpace











Ergotron 24-182-055 Neo-Flex Mobile WorkSpace







Low-cost, height-adjustable computer cart supports your mobile computing needs today and tomorrow. A versatile design configures for notebooks or LCDs. Features 20+ inches (51 cm) of height adjustment (work sitting or standing), small footprint, rugged open architecture and a fleet of accessories.



Dimensional Diagram for Ergotron Neo-Flex Mobile WorkSpace

Dimensional Diagram for Ergotron Neo-Flex Mobile WorkSpace



Technical Specifications:








LCD Size

Wt. Capacity

Lift

Tilt

Pan

Rotation

VESA

up to 20"

up to 51 cm

28 lbs

12.7 kg

25"
63 cm

25°

-

90° P/L

MIS-D



Comparison Chart for Ergotron Carts:



LCD size image

Weight capacity image

Lift image

Tilt image

Pan image

Rotation image

VESA image

Product No

LCD Size

Wt. Capacity

Lift

Tilt

Pan

Rotation

VESA

SV21-91075

up to 20"

up to 51 cm

5 - 18 lbs

2.3 - 8.2 kg

25"
63 cm

25°

-

90° P/L

MIS-D

SV21-30075

up to 22.9"

up to 58.3 cm

up to 25 lbs

up to 11.3 kg

20"
50.8 cm

± 12°

-

-

MIS-F

SV21-30007

up to 15.4"

up to 39.1 cm

5–30 lbs

2.3–13.6 kg

20"

50.8 cm

± 15°

-

-

-

SV22-22001

up to 22.9"

up to 58.3 cm

up to 25 lbs

up to 11.3 kg

20"
50.8 cm

± 12°

-

-

MIS-D

SV22-22002

up to 15.4"

up to 39.1 cm

5–30 lbs

2.3–13.6 kg

20"
50.8 cm

± 15°

-

-

-

24-182-055

up to 20"
up to 51 cm

28 lbs
12.7 kg

25"
63 cm

25°

-

90° P/L

MIS-D

SV22-92026

up to 17"
up to 43 cm

5–12 lbs
2.3–5.4 kg

20"
50.8 cm

-

-

-

-

SV22-92023

up to 20"
up to 51 cm

5–18 lbs
2.3–8.2 kg

25"
63 cm

25°

-

90° P/L

MIS-D

SV21-91008

up to 17"
up to 43 cm

5–12 lbs
2.3–5.4 kg

20"
50.8 cm

-

-

-

-

SV21-91007

up to 17"
up to 43 cm

5–12 lbs
2.3–5.4 kg

20"
50.8 cm

-

-

-

-

SV21-31645

up to 231/4"

up to 59 cm

up to 13 lbs

up to 5.9 kg

-

180°

180°

360° P/L

MIS-D

SV22-22009

up to 22.9"

up to 58.3 cm

up to 17 lbs

up to 7.7 kg

20"

 50.8 cm

± 12°

-

-

MIS-D



Product Information:

Part Number

24-182-055

Description

Ergotron Neo-Flex Mobile Work Space

Includes

Integrated work surface/keyboard tray with left/right mouse tray, scanner holder bracket, rear handle, mouse holder, cable storage box, four dual casters (two locking), 5" (13 cm) lift monitor pivot, CPU holder

Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel

Weight Capacity

Total load of height-adjustment assembly = 28 lbs (12.7 kg). Includes contents of Work surface, Cable Storage Box and LCD Pivot or Notebook Tray. LCD Pivot capacity = 5–18 lbs (2.3–8.1 kg)

CPU Holder capacity

30 lbs (13.6 kg)

Lift Range

LCD/notebook/work surface adjusts 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63 cm)

Caster Footprint

17" x 19" (43 x 48 cm)

Work surface Dimensions

16.5"W x 9"D (42 x 23 cm)

Mounting Standard

VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Compatible with tablet PCs

Interface bracket may be required (purchase separately)

Shipping Dimensions

45.5"H x 19.75"W x 24"D (116 x 50 x 61 cm)

Shipping Weight

68 lbs (30.8 kg)

Warranty

Three (3) years



Benefits:

Flexible, open architecture is ready for the computer equipment of today and tomorrow—each cart may be configured for a notebook or LCD and is supported by a fleet of accessories

Constant Force (CF) patented lift-and-pivot motion technology provides fluid, one-touch adjustment

Work sitting or standing through its ergonomic 20-inch (51 cm) height adjustment range; with an LCD, height range is 25 inches (63 cm)

Barcode scanner holder provides easy access to hand-held scanner

Increased comfort and productivity for personalized viewing using five-inch (13 cm), independent LCD height adjustment, 25° tilt and portrait to landscape rotation

Safe and neat routing of cables through the expansive cable management storage area

Very accessible—facilitates ADA (Americans with Disabilities Act) compliant computing initiatives, such as mobile kiosks



Images:

Ergotron Neo-Flex Mobile WorkSpace 24-182-055 inuse picture

Ergotron Neo-Flex Mobile WorkSpace 24-182-055 Clinic picture



Ergotron Neo-Flex Mobile WorkSpace 24-182-055 crash picture



Ergotron Neo-Flex Mobile WorkSpace 24-182-055 Testing picture



Ergotron Neo-Flex Mobile WorkSpace 24-182-055 inuse-Education picture



Ergotron Neo-Flex Mobile WorkSpace 24-182-055 inuse-scan picture



Ergotron 24-182-055 Neo-Flex Mobile WorkSpace




Literature (Please open the following documents for more technical information)

Description

File Type

File Size

Dimensional Illustrations

reader-14.jpg - pdf

275 KB

Product Sheet

reader-14.jpg - pdf

341 KB

Installation Manual

reader-14.jpg - pdf

1071 KB
