Peerless PF660 PRO Flat Wall Mount for 32-60 inch LCD Screens PF-660
click image to enlarge
|
|
|
Accessories for Peerless PF660 PRO Universal Flat Wall Mount PF-660
|
|
|
|
 ACC215 Metal Stud Fastener Kit
|
|
|
|
|
Peerless PF660 PRO Flat Wall Mount for 32"-60" Screen PF 660
|
|
General Information
|
|
|
|
|
|

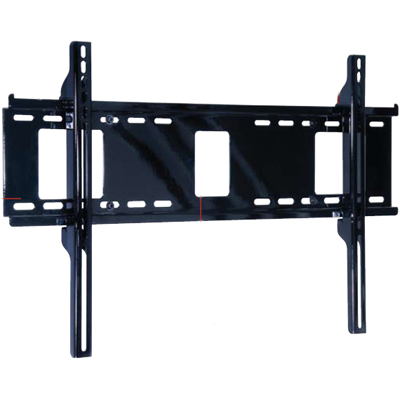

Peerless PF660 PRO Flat Wall Mount for 32 to 60 inch LCD Screen
|
|
Dimensional Diagram for Peerless PF-660 PRO Flat Wall Mount PF660
|
|
|
|
|
|
PRO Flat Panel Mount:
|
|
Easily install large screens with this simple, intuitive mounting solution. Cables and cords are easily managed behind the screen with access ports in the wall plate. For that finishing touch after installation, center the screen by smoothly sliding it along the wall plates horizontal rails
|
|
Features:
-
Universal mount accommodates screens with mounting patterns up to 28.75" W x 17.05" H
-
Low-profile design holds screen only 1.68" from the wall for a clean application
-
Wall access ports for access to electrical outlets and cable management
-
Easy-glide brackets easily hook onto the wall plate for a simple, safe and quick installation
-
Horizontal screen adjustment of up to 8" (depending on screen model) for perfect screen placement
-
Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
-
Comes with Peerless fastener pack with all necessary screen attachment hardware
-
UL Listed
|
|
Product Information:
|
|
Model Numbers
|
Universal Models: PF660-- Standard Fasteners (Includes standard hardware (hex or Phillips) for attaching screen to mount )
|
|
Screen Adapter
|
Universal Models:
Includes universal screen adapter to accommodate mounting holes spaced up to 28.75" horizontally and 17.05" vertically
|
|
Product Specifications
|
|
Dimensions (W x H x D)
|
30.75" x 18" x 1.68" (78.1 x 45.7 x 4.3 cm)
|
|
Load Capacity
|
200 lb (90.8 kg)
|
|
Product Weight
|
7.74 lb (3.5 kg)
|
|
Finish
|
Scratch-resistant fused epoxy
|
|
Available Colors
|
Gloss Black
|
|
Accessories
|
ACC415 - 4-pack Metal Stud Fastener Kit
|
|
Patent
|
Patent Pending
|
|
Package Specifications
|
|
Package Contents
|
Wall plate, Universal Adapters, Mounting and Screen attachment hardware
|
|
Units in Package
|
1
|
|
Package Size (W x H x D)
|
31.8" x 8.6" x 3.9" (80.8 x 21.8 x 9.9 cm)
|
|
Package Ship Weight
|
9.88 lb (4.48 kg)
|
|
Mounting Surfaces
|
Wood stud, concrete, cinder block or metal stud (Metal stud accessory required)
|
|
UPC Code
|
PF660: 735029252351
|
|
Warranty
|
Limited 5 years
|
|
|
Additional Images:
|
|
|
|
|
|
|
|
|
Literature (Please open the following documents for more technical information)
|
|
Description
|
File Type
|
|
Peerless PF660 Product Profile
|
 - pdf
|
|
Peerless PF660 Catalog Page
|
- pdf
|
|
Peerless PF660 Technical Data
|
- pdf
|
|
Peerless PF660 Installation and Assembly Sheet
|
- pdf
|
|
Metal Stud ACC415 Installation Sheet for Peerless PF660
|
- pdf
|
|
|
|
|
|
|
|
|
|
|
