Chief CM7W12U Flat Panel Universal Automated Swing Arm LCD LED Mount 37 to 61 inch Displays

Wall Mount LCD Monitor Arm
Be the first to review this product
Product ID: 15694
Our Price: $639.20
Shipping: $80.00 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States

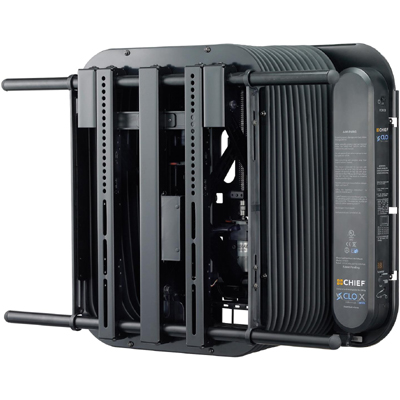

Chief CM7W12U Flat Panel Universal Automated Swing Arm LCD LED Mount

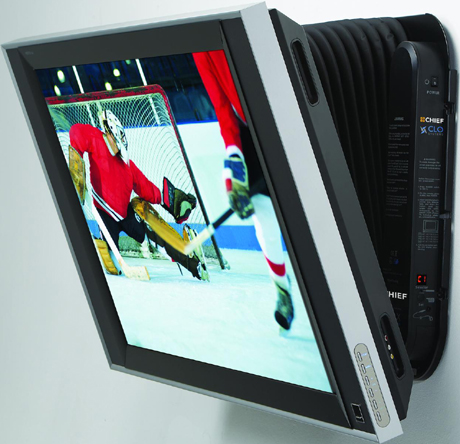

Chief CM7W12U Flat Panel Universal Automated Swing Arm Mount with Screen





Accessories for Chief CM7W12U Automated Swing Arm Mount

Chief KSA1022B or KSA1022S Wall Extrusion (Wall Track)

Chief KSA1022 Wall Extrusion (Wall Track)







General Information

Image of Warranty and Returns



Nationwide Delivery Image

Buy from an Authorized Dealer





Chief CM7W12U Flat Panel Universal

Automated Swing Wall Mount Arm for 37 to 61 inch LCD LED Displays



Chief CM7W12U Flat Panel Universal Automated Swing Arm Mount

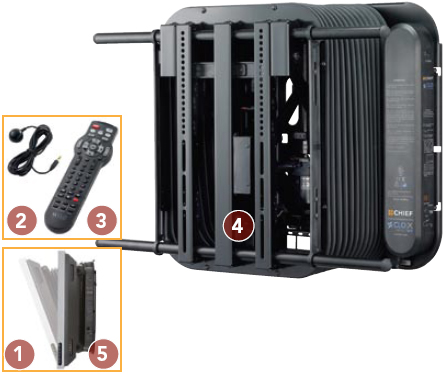

Features of Chief CM7W12U Automated Swing Arm Mount:

    1.  Ultimate Flexibility: Extends up to 12” (305 mm), tilts +7˚/-20˚ and swivels up to 28˚ for

         maximum range of motion.



    2.  Preset positions: Two preset buttons on remote to program favorite viewing positions.



    3.  Multiple Control options: Control options include: RS232 interface, two programmable

         viewing options, and IR remote (included).



    4.  Cable management: Hidden cable management and mechanism protected by decorative

         cover for finished look.



    5.  Low Profile: Collapses to 4.6” (305 mm), concealing mount behind the screen.



    6.  Mounts directly to studs for easy on-wall installation.



    7.  Decorative cover provides a finished look.



    8.  NOTE: CM7AC2 accessory required to fit larger screens up to 63"

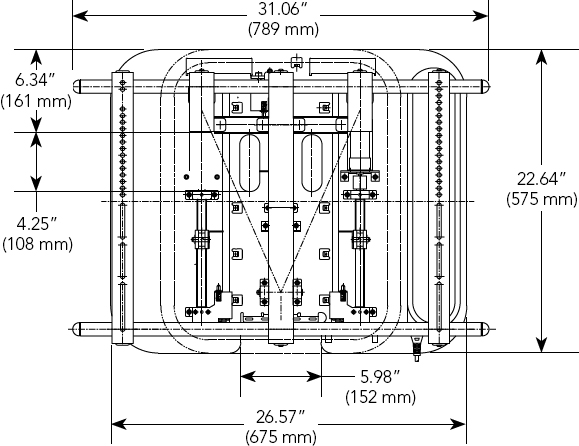

Technical Drawing for Chief CM7W12U Automated Swing Arm Mount

for 37 to 61 inch LCD LED Flat Panel Displays



Technical Drawing for Chief CM7W12U Flat Panel Universal Automated Swing Arm Mount









Description of Chief CM7W12U:

The CM7 provides smooth extension and tilt at the touch of a button.







Specifications:

Extension:

4.6-12" (117-305 mm)

Tilt:

+7°/-20°

Swivel:

Up to 28° left/right

Dimensions (H x W x D):

22.64" x 26.57" x 4.6" (575 x 675 x 305 mm)

Mounting Pattern Range:

546 x 100 mm up to 660 x 470 mm

Mounting Bracket Accessories:

CM7AC1: 100 x 100 mm up to 546 x 470 mm
CM7AC2: 660 x 470 mm up to 876 x 700 mm

Color:

Black

Weight Capacity:

180 lbs (81.6 kg)









More Images:

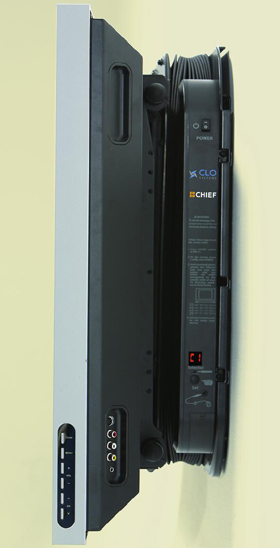

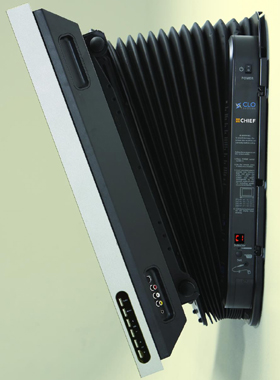

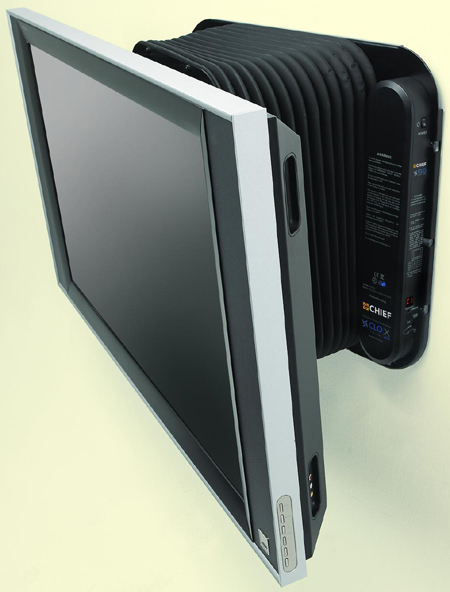

Chief CM7W12U Flat Panel Universal Automated Swing Arm Mount





Chief CM7W12U Flat Panel Universal Automated Swing Arm Mount

Chief CM7W12U Flat Panel Universal Automated Swing Arm Mount







Literature (Please open the following documents for more technical information)

Description

File Type

Chief CM7W12U Automated Swing Arm Mount - Catalog Page

- pdf

Chief CM7W12U Universal Automated Arm - Installation Assembly

- pdf

Chief CM7W12U Universal Automated Swing Arm Mount - Technical Drawing

- pdf

Chief CM7W12U Flat Panel Automated Arm - Quick Reference Guide

- pdf

Chief CM7W12U Swing Arm Mount - Cinematic Quick Reference Guide

- pdf

Chief CM7 Automated Swing Arm Mount Flyer

- pdf
