WorkRite PA1000 Poise Flat Panel Monitor Arm

Extension Arms can only be used with a Clamp or Grommet, not available with the Wall Mount

Be the first to review this product
Product ID: 15718
Highlights
  • Desk Mounting Single Monitor Arm
  • Weight capacity: Carries monitor weighing up to 22 lbs
  • Vertical Adjustment: Offers 12" height adjustability
  • Horizontal Extension: Provides 23 1/4" horizontal reach
  • Increase the extension: By adding an extension arm (sold separately), you can increase the extension from 23 1/4" to 30.14"
  • Flexibility: Provides 180 degrees rotation and 160 degrees tilt to the display
  • Please see, if you want to mount dual monitors  or a heavier monitor
Options
List Price: $426.00
Our Price: $255.60
You Save: $170.40
Shipping: $0.00 *
Usually ships in 3 to 5 business days
* applies to Contiguous United States
Add to Cart



WorkRite PA1000 Poise Monitor Arms - Intuitive work tools for every body - Change the way you see your work

Workrite PA1000 Poise Flat Panel Single Monitor Display Arm PA-1000



A simple touch with your fingertip will easily change the position of the Workrite Poise while the monitor remains perfectly parallel.

  • 160 degree tilt range (+70 degree/- 90 degree), 360 degree pivot at base and arm connections, 180 degree pivot at monitor mounting

  • 360 degree rotation of monitor to quickly change from landscape to portrait orientation

  • 23.25" reach, 17.5" height range

  • 4" stored depth

  • Supports monitors up to 22 lbs.

  • Parallel linkage design keeps monitor perfectly parallel

  • Adjustable pneumatic counter balance

  • Clamp mount version includes two piece C-clamp and separate grommet clamp (shown) for surfaces of 0.75" - 2.125" thickness

  • For customized control, including touch-screen use, tension is adjustable at all pivot points

  • Integral cable management neatly stores cables

  • For security, monitor attached with 4 screws

  • VESA monitor mount for 75mm and 100mm standard

  • 80% recyclable at end of life





Integral Cable Management

The extension behind the monitor has a trough built in where the cables can be tucked into the framing of the extension so the cables can be hidden. As the cables move down the arm towards the base, we provide Velcro so that the cables can then be tied to the next extension which is directly off the base. This keeps the cables close to the arm. Once it gets to the base, if it will be a grommet, the hole drilled must be wide enough to allow for the cables AND the pin from the base clamp which drops through the hole and is secured underneath. That threaded pin is 5/16” round so the grommet hole must both accommodate that plus the cables.





Features of Poise Monitor Arm

Parallelogram Design for Ease of Adjustment

Parallel mechanism keeps screen ergonomically correct

Parallelogram Design - For Ease of Adjustment

The Workrite Poise monitor arm features a parallel linkage design with adjustable pneumatic counter balance that floats the monitor above the work surface

Poise PA1000 has Ergonomic User Flexibility

Spans the deepest desk then folds down to just 4"

Ergonomic User Flexibility

The Workrite Poise monitor arm adds a range of adjustment to meet users need for visual acuity and individual user preference that is unmatched in the industry.

  • 360 degree rotation at the mounting base and first extension allows folded storage as shallow as 4"

  • 180 degree rotation at the monitor connection for positioning and collaboration

  • 12" vertical height range to meet individual users height requirements

  • Monitor rotates from portrait to landscape with rotary stops to prevent cable damage

  • Monitor tilt of 180 degree (70 degree back and 90 degree forward) to support touch screen application and special needs for users with disabilities and reclined usage

360 degree rotation at the mounting base and first extension allows folded storage as shallow as 4 inch



When adjustability, durability and visual comfort are key

With a 360 degree rotation, monitor can be changed quickly from landscape to portrait orientation. Poise will support monitor arms from seven to 22 lbs., including most common monitors from 17" to 24".

Workrite Poise has Dual Screen Support

Increase productivity with dual monitor configurations

Dual Screen Support

Dual arms best fit corner worksurfaces where mounting is located forward of the rear of the worksurface using the grommet mount to allow full articulation. The Poise Dual is not recommended for straight work stations where flat to wall storage is required.

When adjustability, durability and visual comfort are key

Tension guides are easy to read and adjust

Convenience Features

The Workrite Poise has several thoughtful features built in. Graphic indicators are molded into the arm to assist in adjustment long after the assembly instructions have gone away. The cable management system from the base to the monitor neatly organizes cables out of sight. Optional features include multiple mounting options as well as extension and quick release monitor bracket for installation flexibility.





Dimensional Diagram for PA1000 Poise Flat Panel Monitor Display Arm

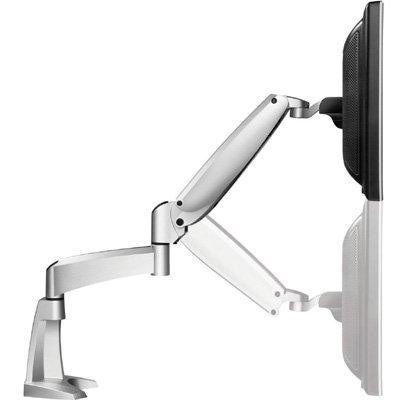

Horizontal and Vertical Reach

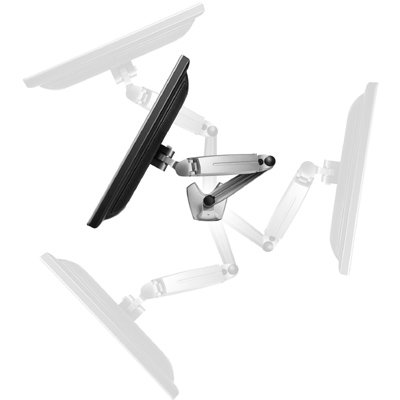

Monitor Tilt and Rotation

Workrite Poise Monitor Arm - Horizontal and Vertical Reach

Workrite Poise Monitor Arm - Monitor Tilt and Rotation



Poise - Dual

Dimensional diagram of Workrite Poise Dual Monitor Arms





Product Information

Mounting Color Model Weight
C-Clamp, Grommet mount Silver PA1000-S 12
C-Clamp, Grommet mount Graphite PA1000-B 12
Wall mount & other tool bar & panel systems Silver PA1000-WM-S 11
Wall mount & other tool bar & panel systems Graphite PA1000-WM-B 11
Slatwall Bracket Mount Silver PA1000-SW-S 11
Slatwall Bracket Mount Graphite PA1000-SW-B 11
Sierra Tool bar & Privacy Panel Silver

PA1000-ST-S

11
Sierra Tool bar & Privacy Panel Graphite PA1000-ST-B 11





Specification Comparison Chart

Specifications Poise PA1000 Poise-Extended Poise-Dual
Reach 23.25" 30.25" 23.25" (two arms)
Tilt Range

160 degree tilt range

(+70 degree/- 90 degree)

160 degree tilt range (+70 degree/- 90 degree) 160 degree tilt range (+70 degree/- 90 degree)
Height Range 12" 12" 12" + 7" on pole
Pivot at Base/Extension/Monitor 360 degree/360 degree/180 degree 360 degree/360 degree/180 degree 360 degree/360 degree/180 degree
Stored Depth 4" 4" 4"
75mm/100mm VESA Mount X X X
Accessories Quick Release Adaptor, Extension Arm Quick Release Adaptor Quick Release Adaptor

Frequently Asked Questions

Question: I want to install a small TV (maybe 16") on top of a granite island. How does the wire management work? One hole on granite top is okay but I don't want to make 2 holes and want the wire to go down in a way that looks good. Answer: The extension behind the monitor has a trough built in where the cables can be tucked into the framing of the extension so the cables can be hidden. As the cables move down the arm towards the base, a Velcro is provided so that the cables can then be tied to the next extension which is directly off the base. This keeps the cables close to the arm. Once it gets to the base, and since it will be a grommet, the hole drilled must be wide enough to allow for the cables AND the pin from the base clamp which drops through the hole and is secured underneath. That threaded pin is 5/16” round so the grommet hole must accommodate both that plus the cables.
Model PA1000
Manufacturer Workrite Ergonomics
Part Number PA1000
UPC 029274407834
Mounting Options Desk
Mounting Options Slatwall
Monitor Arm Types 1 Monitor
Mounting Options Wall
Number of Monitors 1 Monitor
