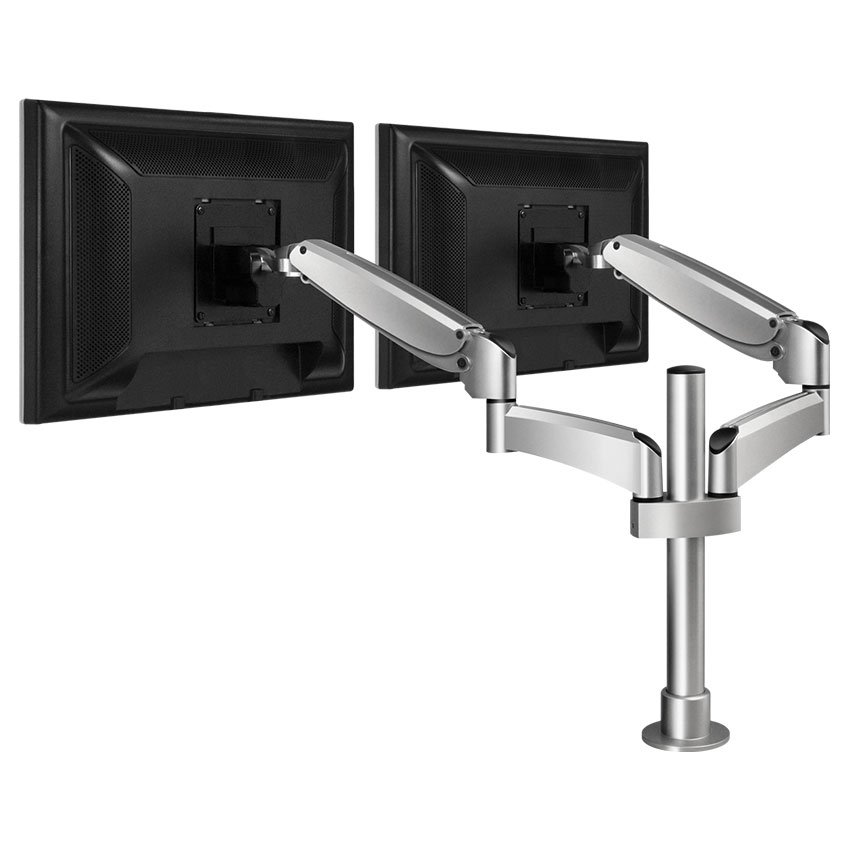

WorkRite PA2000-C or PA2000-G Poise Dual Monitor Arm

Workrite PA2000 has 23.25" Reach each, 160 degree Tilt Range (+70 degree/- 90 degree) and Height Range 12" + 7" on pole.
Be the first to review this product
Product ID: 15719
Highlights
  • Desk Mounting Dual Monitor Arm
  • Weight capacity: Supports 2 monitors weighing 8- 22 lbs each
  • Horizontal Extension: Offers 23 1/4" horizontal reach
  • Height Adjustability: Provides 12" vertical adjustability
  • Please see, if you want to mount a single monitor
Options
List Price: $823.00
Our Price: $493.80
You Save: $329.20
Shipping: $0.00 *
Usually ships in 3 to 5 business days
* applies to Contiguous United States
Add to Cart


Workrite PA2000 Poise Flat Panel PA-2000 Dual Monitor Arms PA 2000



Workrite PA2000 Poise Flat Panel Dual Display Monitor Arms PA-2000





A simple touch with your fingertip will easily change the position of the Workrite Poise while the monitor remains perfectly parallel.



  • Monitor width limit 30"

  • Two articulating arms each with 23.25" reach

  • 7.125" vertical adjustment of arms on pole, 21.25" height range of articulating arms after setting position of arms on pole

  • 160 degree tilt range (+70 degree/- 90 degree), 360 degree pivot at base and arm connections, 180 degree pivot at monitor mounting

  • 360 degree rotation of monitor to quickly change from landscape to portrait orientation

  • 23.25" reach, 17.5" height range, 4" stored depth

  • Supports monitors up to 22 lbs.

  • Parallel linkage design keeps monitor perfectly parallel

  • Adjustable pneumatic counter balance

  • Clamp mount version includes two piece C-clamp and separate grommet clamp (shown) for surfaces of 0.75" - 2.125" thickness

  • For customized control, including touch-screen use, tension is adjustable at all pivot points

  • Integral cable management neatly stores cables

  • For security, monitor attached with 4 screws

  • VESA monitor mount for 75mm and 100mm

  • 80% recyclable at end of life



Features of Poise Monitor Arm:

Parallelogram Design for Ease of Adjustment

Parallel mechanism keeps screen ergonomically correct

Parallelogram Design - For Ease of Adjustment



The Workrite Poise monitor arm features a parallel linkage design with adjustable pneumatic counter balance that floats the monitor above the work surface.









Poise Dual has Ergonomic User Flexibility

Spans the deepest desk then folds down to just 4"



360 degree rotation at the mounting base and first extension allows folded storage as shallow as 4 inch

Ergonomic User Flexibility



The Workrite Poise monitor arm adds a range of adjustment to meet users need for visual acuity and individual user preference that is unmatched in the industry.

  • 360 degree rotation at the mounting base and first extension allows folded storage as shallow as 4"

  • 180 degree rotation at the monitor connection for positioning and collaboration

  • 12" vertical height range to meet individual users height requirements

  • Monitor rotates from portrait to landscape with rotary stops to prevent cable damage

  • Monitor tilt of 180 degree (70 degree back and 90 degree forward) to support touch screen application and special needs for users with disabilities and reclined usage



When adjustability, durability and visual comfort are key



With a 360 degree rotation, monitor can be changed quickly from landscape to portrait orientation. Poise will support monitor arms from seven to 22 lbs., including most common monitors from 17" to 24".









Workrite Poise has Dual Screen Support

Increase productivity with dual monitor configurations

Dual Screen Support



Dual arms best fit corner worksurfaces where mounting is located forward of the rear of the worksurface using the grommet mount to allow full articulation. The Poise Dual is not recommended for straight work stations where flat to wall storage is required.









When adjustability, durability and visual comfort are key

Tension guides are easy to read and adjust

Convenience Features



The Workrite Poise has several thoughtful features built in. Graphic indicators are molded into the arm to assist in adjustment long after the assembly instructions have gone away. The cable management system from the base to the monitor neatly organizes cables out of sight. Optional features include multiple mounting options as well as extension and quick release monitor bracket for installation flexibility.











Dimensional Diagram for PA-2000 Poise Dual Flat Panel Monitor Display Arm



Horizontal and Vertical Reach

Monitor Tilt and Rotation

Workrite Poise Monitor Arm - Horizontal and Vertical Reach

Workrite Poise Monitor Arm - Monitor Tilt and Rotation





Poise - Dual



Dimensional diagram of Workrite Poise Dual Monitor Arms







Product Information:

Mounting

Color

Model

Weight

C-Clamp Mount

Silver

PA2000-C-S

18

C-Clamp Mount

Graphite

PA2000-C-B

18

Grommet Mount

Silver

PA2000-G-S

17

Grommet Mount

Graphite

PA2000-G-B

17







Specification Comparison Chart:

Specifications

Poise PA1000

Poise-Extended PA1500-DB

Poise-Dual PA2000

Reach:

23.25"

30.25"

23.25" (two arms)

Tilt Range:

160 degree tilt range (+70 degree /- 90 degree)

160 degree tilt range (+70 degree /- 90 degree)

160 degree tilt range (+70 degree /- 90 degree)

Height Range:

12"

12"

12" + 7" on pole

Pivot at Base/

Extension/Monitor:

360 degree/360 degree/180 degree

360 degree/360 degree/180 degree

360 degree/360 degree/180 degree

Stored Depth:

4"

4"

4"

75mm / 100mm VESA Mount:

X

X

X

Accessories:

Quick Release Adaptor, Extension Arm

Quick Release Adaptor

Quick Release Adaptor







Similar Products:

WorkRite PA1500-DB Poise Extended Flat Panel Monitor Arms PA1500DB

Workrite PA1500-DB Poise Extended

Flat Panel Monitor Arms



WorkRite PA1000 Poise Flat Panel Monitor Display Arms PA-1000

WorkRite PA1000 Poise Flat Panel

Monitor Display Arm





Literature (Please open the following documents for more technical information)

Description

File Type

Workrite PA2000 Poise Flat Panel Dual Display Monitor Arm - Product Sheet

reader-14.jpg - pdf

Workrite PA-2000 Poise Flat Panel Dual Display Monitor Arm - Assembly Instructions

reader-14.jpg - pdf











Workrite Logo



Hyperlink of all Workrite Products



Model PA2000
Manufacturer Workrite Ergonomics
Part Number PA2000
UPC 029274408053
Mounting Options Desk
Monitor Arm Types 2 Monitors
Number of Monitors 2 Monitors
