Ergotron 45-215-216 StyleView HD Combo LED Wall Mount 45215216

StyleView HD Combo needs Wall Track and Wall Track Mount Bracket Kit. Please order separately.
Be the first to review this product
Product ID: 15802
Recommended Accessories
Our Price: $489.45
Shipping: $27.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States





Accessories for Ergotron 45-215-216 StyleView HD Combo

Ergotron 45-255-216 StyleView HD Extender white

Ergotron 45-255-216 StyleView HD Extender White

Ergotron 31-018-182 : 34 inch Wall Track 31018182

Ergotron 31-018-182 : 34 inch Wall Track

Ergotron 80-105-064 Universal CPU Holder

Ergotron 80-105-064 Universal CPU Holder

Ergotron 97-468-202 Vertical Universal CPU Holder Silver 97468202

Ergotron 97-468-202 Vertical CPU Holder



Ergotron 31-016-182 : 10 inch Wall Track 31016182 (Limited Quantity)

Ergotron 31-016-182 Wall Track 10 Inch

Ergotron 97-091 Track Mount Bracket Kit 97091

Ergotron 97-091 Wall Track Mount Bracket

Ergotron 60-156 Track Mount Bracket Kit for Medium & Small CPU Holders

Ergotron 60-156 Track Mount Bracket Kit

Ergotron 97-563-057 Cable Management Kit grey

Ergotron 97-563-057 Cable Management Kit





Ergotron 60-588-200 Interface Bracket for Motion Computing C5 Tablet PC 60588200

Ergotron 60-588-200 Interface Bracket

Ergotron 97-435-009 Display Security Bracket 97435009

97-435-009 Display Security Bracket

Ergotron 60-589-060 Quick Release LCD Bracket 60589060

60-589-060 Quick Release LCD Bracket

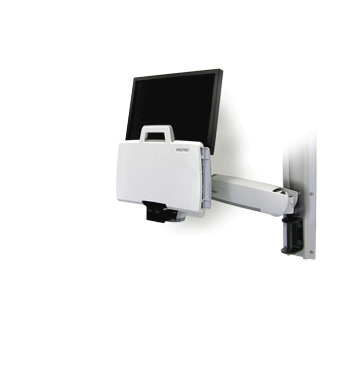

Animation of Ergotron 45-215-216 StyleView HD Combo White





General Information



Image of Warranty and Returns

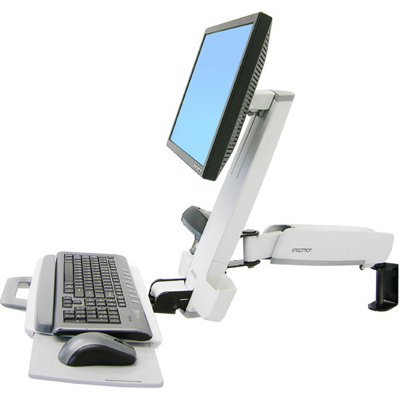

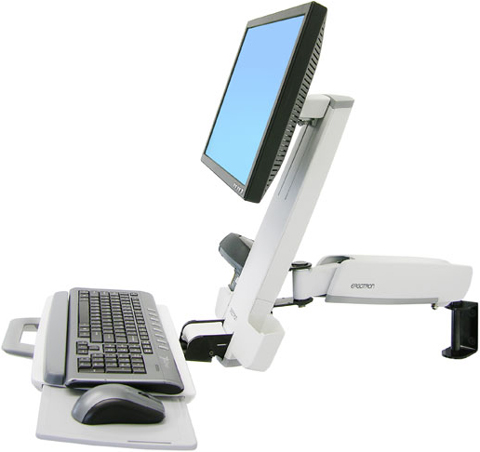

Ergotron 45-215-216 StyleView HD Combo White 45215216



Ergotron 45-215-216 StyleView HD Combo White









Description of Ergotron 45-215-216 Combo Arm:

The SV HD Combo holds a monitor, bar-code scanner, keyboard, wrist rest and mouse on the same arm, providing easy, single-motion height adjustment. Arm extends and retracts, fold back out of the way when not in use. Work sitting or standing with the arm's 20" (51 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.









Technical Drawing for Ergotron 45-215-216 StyleView HD Combo White

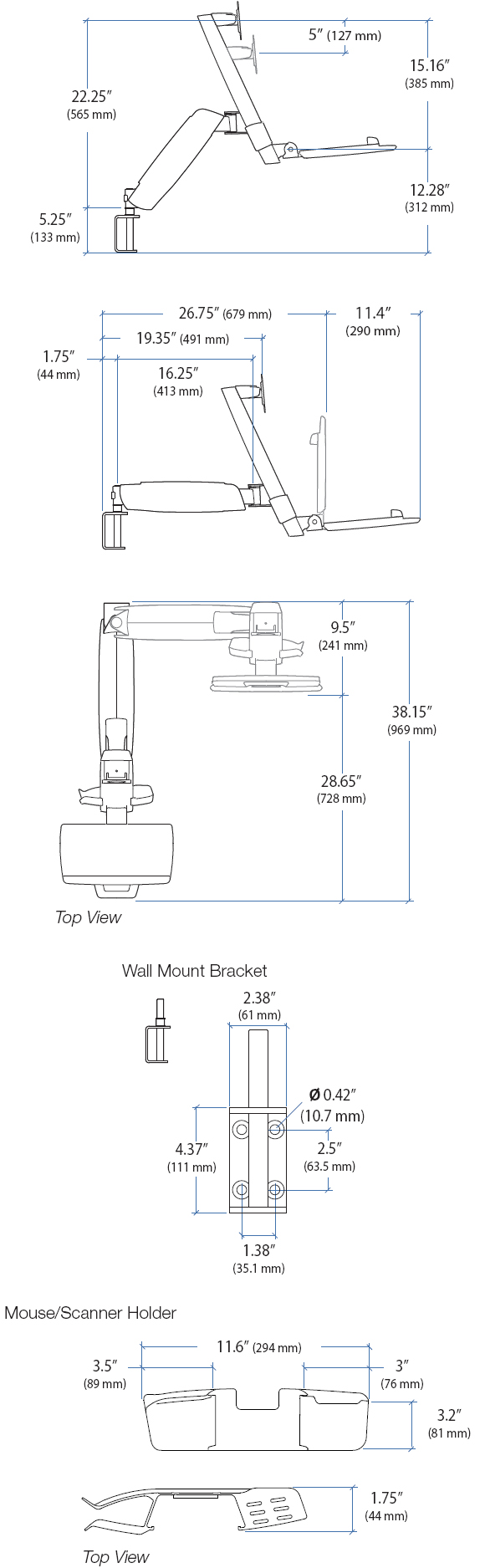

Dimensional Diagram for Ergotron 45-215-216 StyleView HD Combo Arm









Technical Specifications:

     LCD Size

 Wt. Capacity

     Lift

Tilt

Pan

Rotation

VESA

up to 24"

6 - 18 lbs
2.7 - 8.2 kg

20"
51 cm

30 degree 180 degree

90 degree P/L

MIS-D







Product Information:

Part Number:

45-215-216

Description:

StyleView HD Combo (white)

Included:

  • HD Combo Arm

  • Wall mount bracket

  • Height-adjustable LCD mount

  • Wrist rest

  • Scanner and mouse holder

  • Integrated keyboard tray with left/right mouse tray

  • Handle

  • VESA monitor mounting kit

  • Cable ties

Exterior:

Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder coated painted steel

Weight Capacity:

Display = 6-18 lbs (2.7-8.2 kg);

Keyboard, mouse and barcode scanner = 5 lbs (2.3 kg)

Lift Range:

LCD and keyboard adjusts 15" (38 cm) in tandem, LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 20" (51 cm)

Monitor up/down tilt:

+25 degree /-5 degree

Patended CF:

Patented CF lift-and-pivot motion technology provides premium five-inch (12.7 cm) LCD height adjustment, portrait to landscape rotation and 30 degree tilt

Mounting Standards:

VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)

Barcode Scanner Holder:

Integrated Mouse and Barcode scanner holder provides easy access

Fold-down keyboard tray:

Includes mouse tray that slides out to either right of left side; tray features mouse-pad surface

Negative-tilt keyboard tray:

Adjustable (0 to -10 degrees)

Optional:

18" (46 cm) extender arm (45-219-216 or 45-219-200) increases range of motion for even greater reach

Shipping Dimensions:

12"H x 20"W x 24"D (305 x 508 x 610 mm)

Shipping Weight:

25 lbs (11.3 kg)

Warranty:

Five (5) years









Benefits of Ergotron 45-215-216:

    1.  Flexible, open-architecture design is scalable for future computer equipment.



    2.  Comfortable, ergonomic data entry - work sitting or standing with 20" (51 cm) lift adjustment.



    3.  Five-inch (12.7 cm) independent LCD height adjustment ergonomically accommodates average range of users.



    4.  Easy to clean design promotes infection control.



    5.  Barcode scanner holder provides easy access to hand-held scanner.



    6.  Extend LCD and keyboard up to 39" (99 cm) from wall; fold equipment back out of the way when not in use. With keyboard in storage position, system depth is as little as 12" (30.5 cm).



    7.  Ergonomic negative-tilt keyboard tray (with left or right mouse tray) ensures wrists remain in a neutral position during data entry.



    8.  Maintains the relative position of screen and keyboard throughout full range of motion.



    9.  Clean, concealed and neat routing of cables through the expansive cable management system.







More Images:

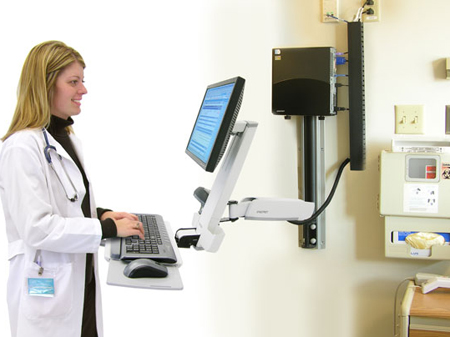

Application of Ergotron 45-215-216 StyleView HD Combo White

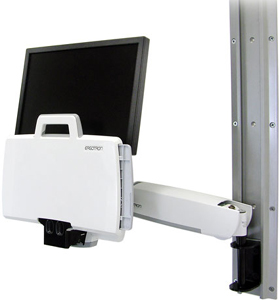

Folded image of Ergotron 45-215-216 StyleView HD Combo White

Ergotron 45-215-216 StyleView HD Combo White - Cables







Literature (Please open the following documents for more technical information)

Description

File Type

Ergotron 45-215-216 HD Combo - Product Sheet

- pdf

Ergotron 45-215-216 StyleView HD Combo - Dimensional Illustrations

- pdf

Ergotron 45-215-216 HD StyleView Combo Arm - Installation Manual

- pdf











Ergotron Logo



Hyperlink of all Ergotron products





Model 45-215-216
Manufacturer Ergotron
Part Number 45-215-216
UPC 698833009514
