We are sorry but item below has been discontinued.

Ergotron 97-483-055 Extended Worksurface on Neo Flex Mobile Cart

Be the first to review this product
Product ID: 15812
Our Price: $104.07
Shipping: $9.75 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States





Ergotron 97-483-055 Neo-Flex Extended Worksurface for Carts 97483055



General Information

Image of Warranty and Returns



Nationwide Delivery Image

Buy from an Authorized Dealer

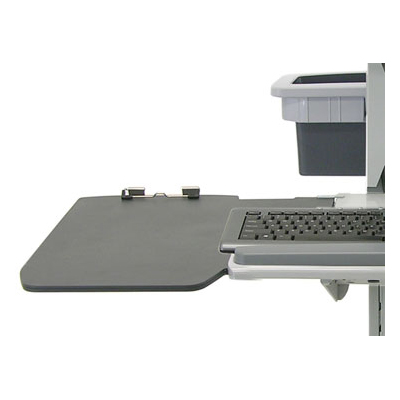

Ergotron 97-483-055 Extended Worksurface for Neo Flex Mobile Carts 97483055

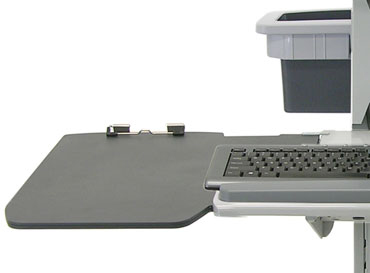

Ergotron 97-483-055 Extended Worksurface for Neo-Flex Mobile Carts









Description of Ergotron 97-483-055:

Expand the work surface on any Neo-Flex Mobile WorkSpace cart. When it’s not needed, tuck it away in the on-board storage hanger. This worksurface extension installs in a snap on either the left or right side of cart.

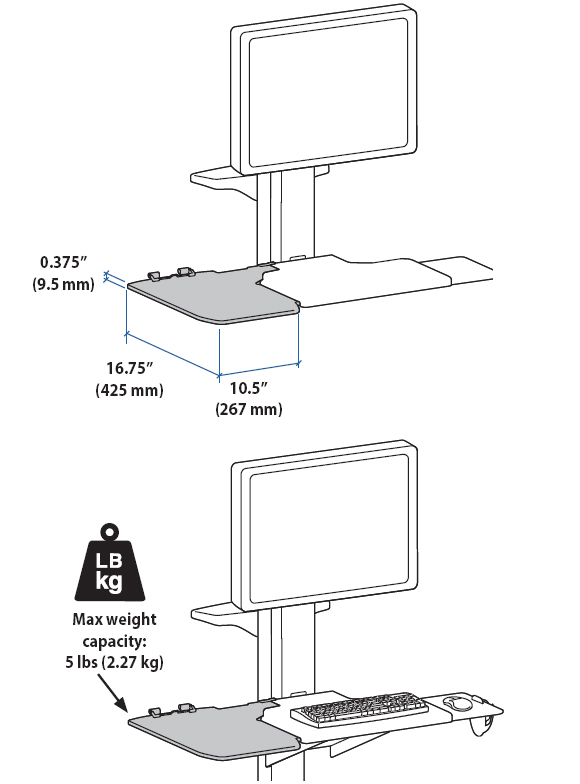

Technical Drawing for Ergotron 97-483-055 NeoFlex Extended Worksurface



Technical Drawing for Ergotron 97-483-055 Neo-Flex Extended Worksurface









Technical Specifications:








     LCD Size

Capacity

     Lift

Tilt

Pan

Rotation

VESA

-

5 lbs
2.3 kg

-

- -

-

-







Product Information:

Part Number:

97-483-055

Description:

Neo-Flex NF Extended Worksurface (two-tone grey)

Included:

  • Worksurface

  • Storage hanger assembly

  • Mounting hardware

Compatible:

Compatible with Neo-Flex WorkSpace carts: 24-182-055, 24-186-055, 24-189-055, 24-194-055

Construction:

Durable structural-composite and metal construction

Storage Hanger:

Storage hanger attaches to underside of main worksurface

Limitation:

Up to two (2) extended worksurfaces can be attached to a cart

Weight Capacity:

5 lbs (2.3 kg)

Internal mouse tray:

Internal mouse tray of NF cart will not retract during use of extended worksurface.

Installing:

When installing storage hanger onto NF WorkSpace carts purchased prior to April 2009, four (4) holes must be drilled into cart. See installation manual for details.

Shipping Dimensions:

17.3" x 1.5" x 18.3" (440 x 38 x 465 mm)

Shipping Weight:

4 lbs (1.8 kg)

Warranty:

Three (3) years









Benefits of Ergotron 97-483-055:

    1.  Extend the worksurface for added productivity.



    2.  Tool-less snap fit: Unsnap worksurface and easily slide it into storage area when not needed.



    3.  Smooth surface and edges make it easy to clean.



    4.  Robust design ensures many years of service.



    5.  Smooth surface and edges make it easy to clean.



    6.  Integrated document holder clip.



    7.  Attach one or two Extended Work surfaces on a cart.



    8.  Versatile design: Add to left or right side of cart to accommodate workflow or user preference.







More Images:

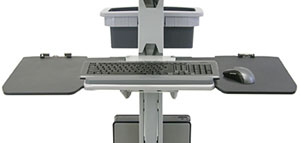

Ergotron 97-483-055 Neo-Flex Extended two Worksurfaces







Literature (Please open the following documents for more technical information)

Description

File Type

Ergotron 97-483-055 NeoFlex Extended Workspace - Dimensional Illustrations

reader-14.jpg - pdf

Ergotron 97-483-055 Neo-Flex Extended Worlsurface - Installation Manual

reader-14.jpg - pdf
