Chief KTC445B or KTC445S Widescreen up to 20 lbs each Quad LCD LED Monitor Mount Desk Clamp
For up to 20 lbs each LCD monitor
click image to enlarge
|

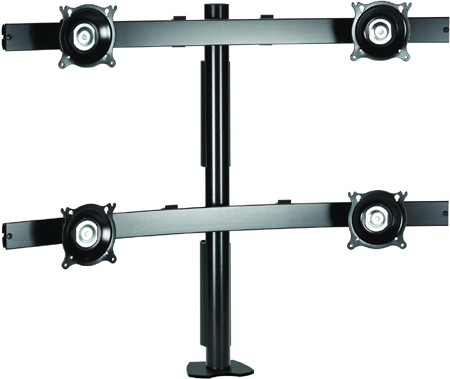

Chief Widescreen KTC445B or KTC445S up to 20 lbs each Quad LCD Monitor Mount
Related Products:
|
|
Part Number
|
Description
|
|
KTC445B
|
Black Clamp Desk Mount Flat Panel Quad Widescreen Monitor LCD Arm
|
|
KTC445S
|
Silver Desk Clamp Mount Flat Panel Quad Widescreen Monitor LCD Arm
|
|
|
|
|
|
|
|
|
|
General Information
|
|
|
|
|
|
Chief KTC-445 Desk Clamp Mount Flat Panel Widescreen Quad Monitor LCD Arm
|
|
|
|
|
|
|
|
Features of Chief KTC-445B or KTC-445S:
|
|
1. Centris Technology (PATENTED FEATURE): Provides smooth fingertip tilt in all directions.
Screen angle stays set in place until you decide to re-adjust.
|
|
2. Advanced Display Mounting: Teardrop hole pattern makes mounting the screen quick and
easy.
|
|
3. Independent Adjustment: Adjust each screen independently for ergonomic alignment.
|
|
4. Cable Management: Sturdy construction with built-in cable management.
|
|
5. Conceal and protect cables using snap-on covers and cable clip.
|
|
6. Heavy-duty, solid steel desk clamp and oversized pole for unmatched stability.
|
|
7. VESA 75 x 75 mm and 100 x 100 mm compatible.
|
|
|
|
|
|
|
|
Technical Drawing Chief KTC 445 Desk Clamp Mount
Widescreen Quad Monitor LCD Arm
|
|
|
|
|
|
|
|
Description of Chief KTC 445S or KTC 445B:
Chief's KTC445 is designed to provide a rock solid, desk clamp solution for graphic designers, broadcasters and other users who commonly work with multiple small flat panel TVs, LCDs or monitors.
-
Provides ergonomic adjustability for hassle-free, fingertip positioning of each monitor
-
Compatible with monitors up to 30" wide
|
|
|
|
|
|
Specifications:
|
|
Tilt:
|
+/-15º
|
|
Roll:
|
+/-90º
|
|
Yaw:
|
+/-15º
|
|
Maximum Width (per monitor):
|
30" (762 mm)
|
|
Maximum Height (per monitor):
|
18" (457 mm)
|
|
Weight Capacity (per monitor):
|
20 lbs (9.1 kg)
|
|
Color:
|
Silver or Black
|
|
Connection Type:
|
Clamp
|
|
Desk Thickness:
|
0 - 3.25" (0 - 83 mm) |
|
VESA Compatibility:
|
75 x 75 mm and 100 x 100 mm (without extra interface bracket)
|
|
|
|
|
|
|
|
|
Frequently Asked Questions:
Q: What if my display is not listed in the cross-reference chart or MountFinder Pro?
A: Chief's mounts fit VESA compliant displays with a 75 x 75 mm or 100 x 100 mm hole pattern. If your hole pattern does not match the VESA standard, call Customer Service to determine if Chief has a mount to fit your display.
|
|
|
|
|
|
|
Literature (Please open the following documents for more technical information)
|
|
|
|
|
|
|
