We are sorry but item below has been discontinued.

Chief MPOV Universal Pull-Out Swivel Table Stand Mount (15-40")

Be the first to review this product
Product ID: 15862
List Price: $239.00
Our Price: $180.80
You Save: $58.20
Shipping: $0.00 *  - Free Ground Shipping
Usually ships in 1 to 2 business days
* applies to Contiguous United States

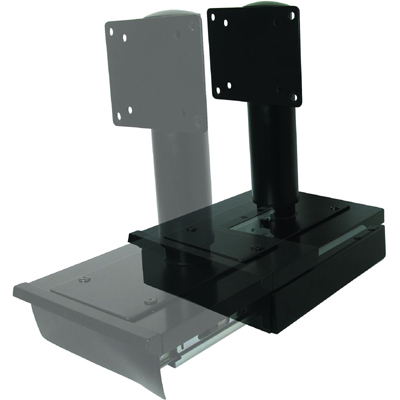

Chief MPOV Universal Pull-Out Swivel Table Stand Mount for 15 to 40 inch Display



General Information

Image of Warranty and Returns



Nationwide Delivery Image

Buy from an Authorized Dealer





Chief MPOV Table Stand Universal Pull-Out Swivel Mount



Chief MPOV Table Stand Universal Pull-Out Swivel Mount









Features of Chief MPOV:

    1.  Telescoping Height Adjustment: Height adjusts up to 4" (101.6 mm) to accommodate

         screens 15-40".



    2.  Smooth Extension: Extends 5.5" (140 mm) on SmoothGlide ball bearings for a better view.



    3.  Bolt-Down Installation: Designed for stability, the MPO bolts down to install.



    4.  Smooth Swivel: Smooth swivel up to 15º in either direction.



    5.  Easy Installation: Can be installed into most existing cabinets or armoires.



    6.  VESA Compatible: VESA compatible mounting plate fits 100 x 100 mm and 200 x 200 mm

         hole patterns.



    7.  Mounting hardware included.

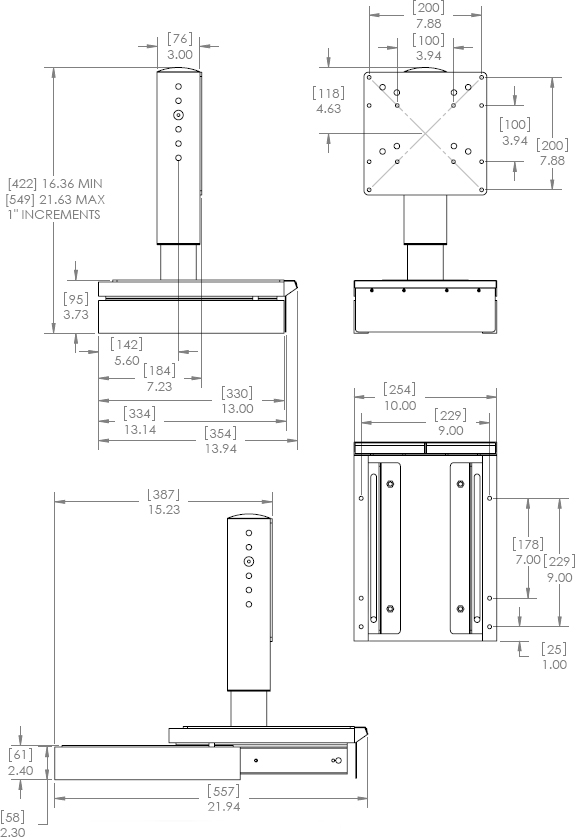

Technical Drawing for Chief MPOV Table Stand Universal Pull-Out Swivel Mount



Technical Drawing for Chief MPOV Table Stand Universal Pull-Out Swivel Mount









Description of Chief MPOV:

The MPOV is perfect for new or retrofit installations, and can be easily installed into most cabinets and armoires, ideal for hotel guestrooms.

  • Smoothly glides TV outwards 5.5" (140 mm).





Specifications:

Dimensions (H x W x D):

17 - 21" x 10" x 14" (432 - 533 x 254 x 356 mm)

Extension:

5.5" (140 mm)

Yaw:

15° left or right

Weight Capacity:

130 lbs (48.52 kg)

Color:

 Black







More Images:

Chief MPOV Extended Table Stand Universal Pull-Out Swivel Mount

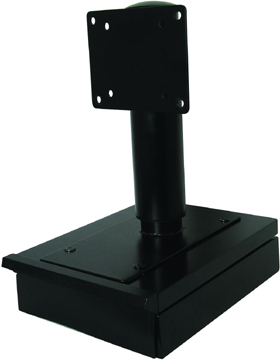

Chief MPOV Table Stand Universal Pull-Out Swivel Mount Black









Frequently Asked Questions:

Q: What screen size is the MPO designed for?

A: The MPO is designed for 26–45" medium flat panels up to 130 lbs (59 kg).



Q: Is the MPO available as a universal solution?

A: Yes. Simply order the MPOV and get a VESA universal solution that accommodates 100 x 100 mm, 200 x 100 mm, 200 x 200mm and 400 x 200 mm patterns.
