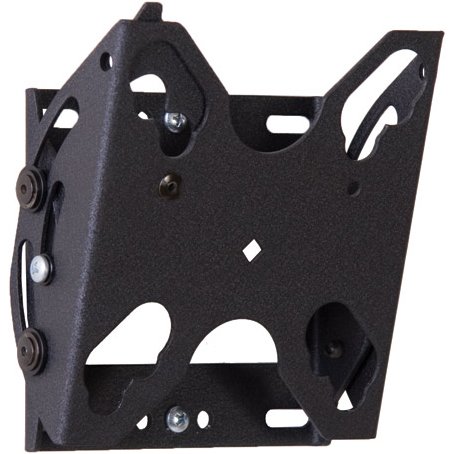

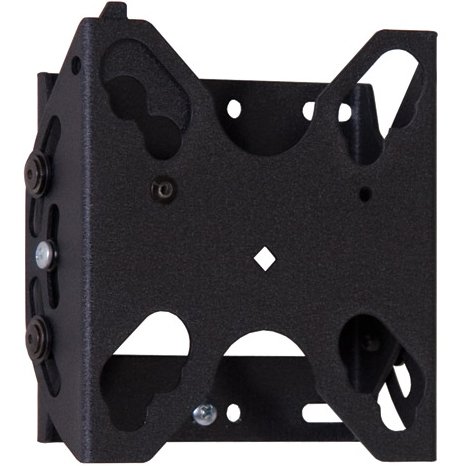

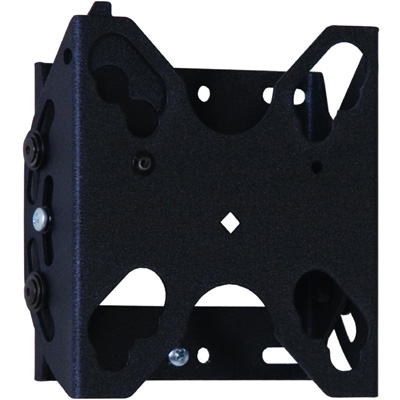

Chief FTR4100 Flat Panel Tilting Wall Mount for 10 to 32 inch Displays
click image to enlarge
|
General Information
|
|
|
|
|
|
Buy from an Authorized Dealer
|
|
|
|
|
Chief FTR-4100 Small Flat Panel Tilting Wall Mount for 10 to 32 inch Displays
|
|
|
|
|
|
|
|
Features of Chief FTR 4100 Tilt Wall Mount:
|
|
1. Q-Latch Mounting System: Flat panel secures to mount with a latching flag. Easy to
connect/disconnect - no tools needed.
|
|
2. Centris Fingertip Tilt: Effortlessly adjust display using Centris fingertip tilt technology. It
provides smooth, fingertip tilt. Screen angle stays set until you decide to re-adjust.
|
|
3. Integrated security by placing padlock in latching flag (lock not included)
|
|
4. Low-profile - under 2" (50mm) deep.
|
|
5. Integrated lateral shift allows you to reposition the mount left/right after installation.
|
|
6. Multiple installation options (single stud or drywall)
|
|
7. VESA 75 x 75 mm or 100 x 100 mm compatible (custom interfaces also available)
|
|
|
|
|
|
|
|
Technical Drawing for Chief FTR4100 Tilt Wall Mount for 10 to 32 inch Displays
|
|
|
|
|
|
|
|
Description of Chief FTR-4100:
The FTR tilt wall mount for small flat panel TVs, LCDs or monitors provides smooth fingertip tilt for viewing from multiple angles.
|
|
|
|
|
|
Specifications:
|
|
Depth from Wall:
|
1.95" (50 mm)
|
|
Overall Dimensions (H x W x D):
|
5.4" x 5.33" x .1.95" (138 x 136 x 50 mm) on most models
|
|
Tilt:
|
+5º, -15º
|
|
Lateral Shift:
|
5" (13 mm) on single wall stud
|
|
Color:
|
Black
|
|
Weight Capacity:
|
45 lbs (20.41 kg) stud, 30 lbs (13.6 kg) drywall
|
|
VESA Compatibility:
|
75 x 75 mm and 100 x 100 mm
|
|
|
|
|
|
|
|
|
Frequently Asked Questions:
|
|
Q: What if my display is not listed in the cross-reference chart or MountFinder Pro?
A: Chief's mounts fit VESA compliant displays with a 75 x 75 mm or 100 x 100 mm hole pattern. If your hole pattern does not match the VESA standard, call Customer Service to determine if Chief has a mount to fit your display.
Q: What if my display weighs 45 lbs (20.5 kg) or more?
A: Chief also provides mounts for Medium and Large Flat Panel Displays. See the Medium or Large Flat Panel area for a variety of mounting solutions.
Q: What size padlock can I use to add security?
A: Use a padlock with a maximum diameter of 0.25" (6.4 mm)
|
|
|
|
|
|
|
Literature (Please open the following documents for more technical information)
|
|
|
|
|
|
|
