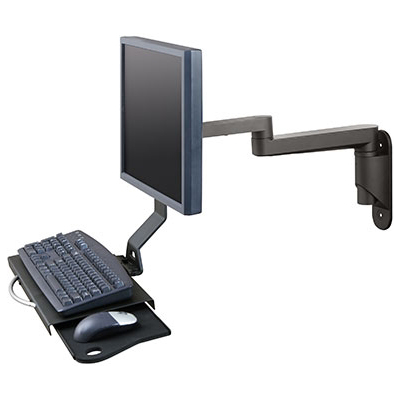

Innovative 9300-HD-DE Articulating Wall Mounted Data Entry Arm with Keyboard Tray

Product comes with a Wall Mount

click image to enlarge

This product has the following options available: Option 1 - Color Option 2 - Material Option 3 - Adapter Option 4 - Extension Arm Option 5 - Dual Monitor Bracket Option 6 - Notebook Tray Option 7 - CPU Holder

Our Price:	$9,999.00 SPECIAL ORDER - call or email for lowest price
Shipping:	$0.00 *
* applies to Contiguous United States

Quantity:

+ Have a question? Click here.
+ International orders
+ Warranty and returns information

Description Specifications

Accessories for Innovative 9300-HD-DE Data Entry Arm

Innovative 8336-QR

Quick Release Tilter

Innovative 7VESA1x2

VESA Adapter

Innovative 7VESA2x2

VESA Adapter

Innovative EVO 5501 Tablet PC/Laptop Holder

Innovative 8378 Dual Monitor Bracket

Innovative 8209 LCD Holder/Keyboard Tray

Innovative 8129 Small Laptop arm Tray

Innovative 8252 Large Laptop arm Tray

Innovative 8335

CPU Holder

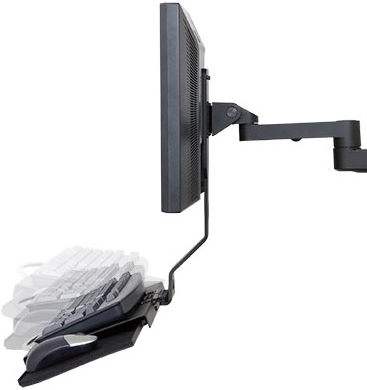

Innovative 9300-HD-DE Articulating Wall Mounted Data Entry Arm with Adjustable Keyboard Angle

Adjustable keyboard angle

General Information

Innovative 9300-HD-DE Articulating Wall Mounted

Data Entry Arm with Flip-up Keyboard Tray

Innovative 9300-HD-DE Articulating Data Entry Wall Mount Arm with Flip Up Keyboard Tray

Features of innovative 9300-HD-DE:

1. Keyboard tray features adjustable angle, flips up to save space when not in use.

2. Keyboard tray adapts for right- and left-handed mouse users.

3. Spring-assist tilter enables smooth tilt and pivot. Supports up to 55 lbs.

4. Internal cable management keeps cords out of view.

5. Includes 75mm/100mm VESA adapter.

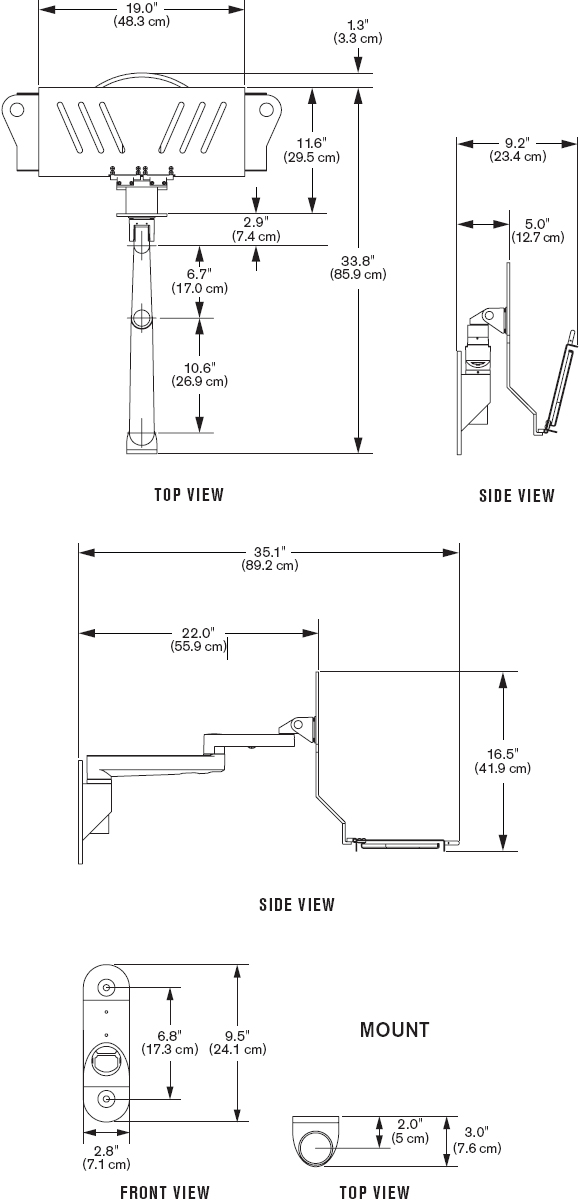

Technical Drawing for Innovative 9300 HD DE Articulating Wall Mounted

Data Entry Arm with Flip-up Keyboard Tray

Technical Drawing for Innovative 9300-HD-DE Articulating Wall Mounted Data Entry Arm

Description of Innovative 9300 Wall-Mounted Arm:

This wall-mountable data entry arm includes a number of valuable features... the keyboard tray angle can be easily adjusted. The tray can even be flipped up to fold flat against the monitor, saving space when not in use. The mouse pad quickly adapts for left- and right-handed users.

The articulating arm can be folded flat against the wall, minimizing space consumption. The arm also features internal cable management which keeps cords out of view and out of harm's way.


Specifications:
Horizontal Range:	22" (55.9 cm) of horizontal range
Rotation:	Three articulating joints
Monitor Compatibility:	VESA 75mm and 100mm
Cable Management:	Cables are concealed in arm
Monitor Weight:	up to 55 lbs (24.9 kg)

More Images:

Innovative 9300-HD-DE Wall Mount Data Entry arm with keyboard tray

Keyboard tray flips up to save maximum space

Innovative 9300-HD-DE Data Entry Wall Mount Arm with cable management

Integrated cable management

Mounting Options:

Innovative 8325 Wall Mount

Model 8325 - Wall Mount

This heavy-duty wall mount will provide rock-solid security for your arm and monitor. Mounts vertically to your wall surface. Not recommended for dry wall, sheet rock or plaster surfaces

Literature (Please open the following documents for more technical information)

Description	File Type
Innovative 9300-HD-DE Articulating Wall Mounted Data Entry Arm - Brochure	- pdf
Innovative 9300 Wall Mount Arm with Keyboard Tray- Installation Instructions	- pdf
Innovative 9300-HD-DE Data Entry Wall Mount Arm - Capabilities	- pdf

Innovative Returns Policy

All returns must be labeled with a valid Return Authorization (R/A) number, which can be obtain by contacting Ergodirect.com, on the outside of packaging. Restocking fee of 20% will be applied on all returns. Products must be in brand new, saleable condition, and never installed. Defective items may be returned within limits of the Warranty. Non-defective Custom-configured Items are not returnable. All return must be made within 30 days of receipt.

Privacy Notice:
ErgoDirect.com fully respects and protects your privacy. With the exception of arranging for delivery of the products ordered, we do not sell, share or rent any personal information (including your name, address, telephone number or e-mail address) to other parties for any reason; nor do we contact you by telephone or e-mail to solicit additional products or services.

Credit Card Security:
We use SSL security to protect all transactions so your credit card information is completely safe.

Model	9300 or 9300-HD or 9300-HD-DE
Manufacturer	Innovative LCD Arms
Part Number	9300 or 9300-HD or 9300-HD-DE

Mounting Options	Wall Mounts
Monitor Arm Types	Monitor/Keyboard Combo Arms
