We are sorry but item below has been discontinued.

Ergotron 97-522-202 External StyleView Vertical Lift Kit for OSHPD

Be the first to review this product
Product ID: 16060
Our Price: $80.76
Shipping: $7.75 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Description

Attach a StyleView Vertical Lift to ergotron 97-522-202 OSHPD-approved External Wall Mounting Kit.

The California Office of Statewide Health Planning and Development (OSHPD) has issued OPA Pre-Approval number 2339-07 for mounting our wall mount products in hospitals and other healthcare-related facilities throughout California



Product Information

Part Number:

97-522-202

Description:

External SV Vertical Lift Kit for OSHPD (silver)

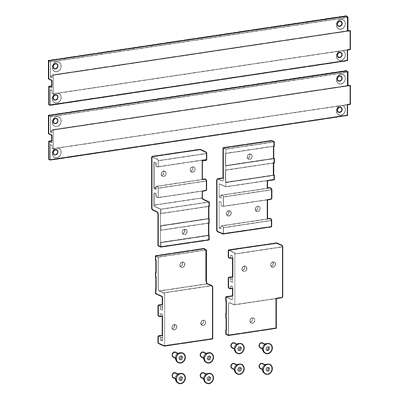

Includes:

  • Brackets for spanning 16" spaced studs
  • Hardware fasteners for mounting spanning brackets to the wall

OPA Pre-Approval Number:

2339-07

Compatible:

Only with StyleView Vertical Lift: 60-593-216, 60-594-216, 60-593-195, 60-594-195

Metal/Wood Studs:

Metal/woods studs must be 16" on center

Shipping Dimensions:

19" x 8.5" x 3.25" (48.3 x 21.6 x 8.3 cm)

Shipping Weight:

4 lbs (1.8 kg)

Warranty:

Five (5) years



Benefits

  • Approved mounting solution helps ensure patient safety during an earthquake, helps facilities to continue to function and care for the injured after earthquakes.
  • Brackets remain external to the wall, no need to open/cut into the wall.

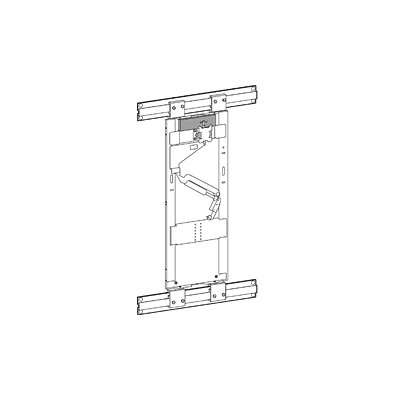

  • Kit attaches to two studs, allowing the StyleView Vertical Lift to be mounted at any point along the brackets' span.



Literature (Please open the following documents for more technical information)

Installation Manual - Ergotron 97522202 External StyleView Vertical Lift Kit for OSHPD

 - pdf



Model 97-522-202
Manufacturer Ergotron
Part Number 97-522-202
UPC 006988330115
Color Silver
Compatible Only with StyleView Vertical Lift: 60-593-216, 60-594-216, 60-593-195, 60-594-195
Shipping Dimensions 19" x 8.5" x 3.25" (48.3 x 21.6 x 8.3 cm)
Shipping Weight 4 lbs (1.8 kg)
Warranty Five (5) years
