We are sorry but item below has been discontinued.

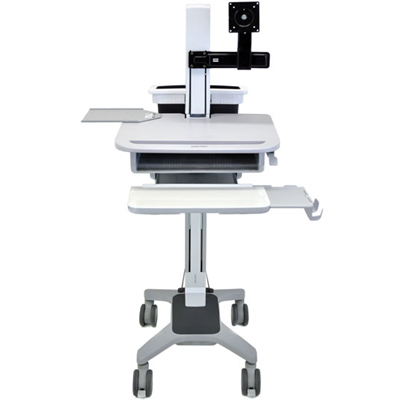

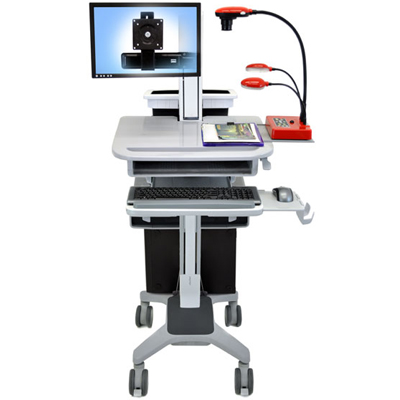

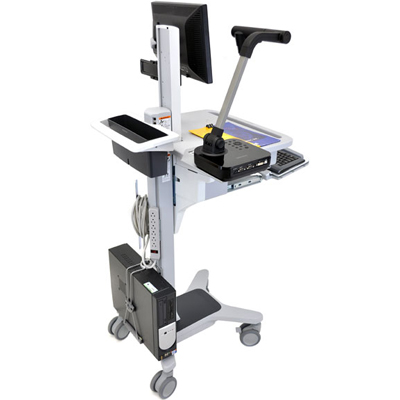

Ergotron 24-203-053 TeachWell LCD Mobile Digital Platform

Be the first to review this product
Product ID: 16170
Recommended Accessories
Our Price: $949.00
Shipping: $0.00 * - See below for Delivery option
Usually ships in 2 to 3 business days
* applies to Contiguous United States

Animation of Ergotron Sit-Stand LCD Cart



Animation of Ergotron Mobile Digital Cart with LCD Display                        Animation of Ergotron 24-203-053 with Drawer



Description

Un-tether from a desk, podium or any single place in the classroom and move wherever needed to deliver collaborative curriculum.

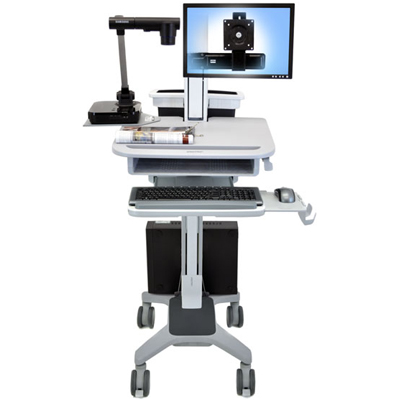

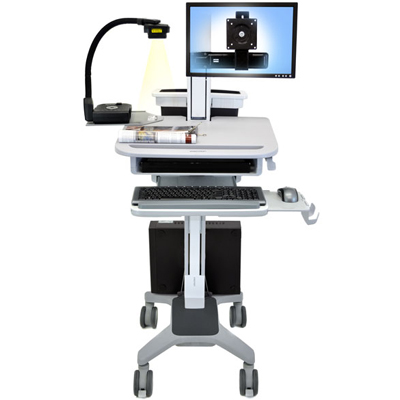

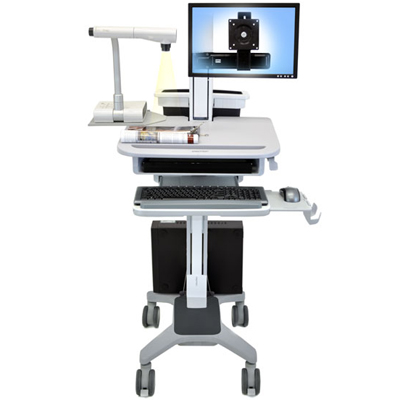

This compact technology hub consolidates LCD, CPU, keyboard and mouse, portable document camera/visualiser, DVD player, wireless extender, projection device, power strip and more on to one, stable platform. TeachWell’s small footprint easily rolls through aisles, doors and cramped media areas while the height-adjustment platform moves the keyboard, display and worksurface in one simple motion. Change from a sitting to a standing position whenever you want as you teach or work.



Technical Drawing

Technical Drawing for Ergotron TeachWell LCD Mobile Digital Workstation



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 22" 40 lbs

16.8 kg

25"

63 cm

30° - 360° MIS-D



Product Information

Part Number:

24-203-053

Description:

TeachWell LCD Mobile Digital Platform (two-tone grey, white)

Includes:

  • Cart
  • LCD pivot
  • CPU Holder
  • Cable Winding Bracket
  • Power Strip mounting brackets
  • Document camera tray and bracket
  • Integrated worksurface
  • Wrist rest
  • Keyboard tray with left/right mouse tray
  • Mouse holder
  • Open-front compartment
  • Rear handle
  • Document bin
  • Four dual casters (two locking)

Recommended Accessories:

TeachWell Locking Drawer 97-516-053, Power Strip 83-066 (available in North America only), Utility Shelf 97-481-216 (recommended for mounting small projector).

Weight Capacity:

Maximum load on height-adjustment assembly = 40 lbs (16.78 kg). Includes weight of LCD/keyboard in addition to contents of worksurface, open-front compartment, document bin and camera tray; LCD Pivot capacity = 6–14 lbs (2.7–6.4 kg); NOTE: When a Locking Drawer 97-516-053 is added, the total weight capacity of TeachWell decreases to 30 lbs.

Weight Requirements:

6 to 30 lbs (2.7 to 13.6 kg) CPU required to be mounted in CPU holder on rear of cart.

CPU Holder:

Accommodates CPUs from 12"H x 3"D to 18"H x 8.5"D (30 x 8 cm to 46 x 22 cm)

Lift Range:

Keyboard/notebook/worksurface adjusts 20" (51 cm) in tandem. LCD screen adjusts 5" (13 cm) independently; maximum screen height adjustment = 25" (63 cm)

Camera Tray:

Swiveling document camera tray is compatible with today’s most popular portable document cameras. Tray can attach to one of four locations on the worksurface to accommodate specific camera models. Mountings holes for mechanically securing camera are provided (this feature only applies to certain makes/models). Contact Ergotron for detailed list of compatible models.

Open Front Compartment:

Interior dimensions = 17"W x 3.25"H x 13"D (43 x 8 x 33 cm)

Keyboard Tray:

Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry. Includes concealed mouse tray that slides out on left or right.

Exterior:

Durable, easy-to-clean exterior composed of aluminium, high-grade plastic and powder coated painted steel.

Worksurface Dimensions:

23"W x 20"D (58 x 51 cm)

Wheel to wheel base Dimensions:

17"W x 20.5"D (43 x 52 cm)

Shipping Dimensions:

54.75"H x 26"W x 32.1"D (139 x 66 x 81 cm)

Shipping Weight:

105 lbs (48 kg)

Warranty:

Five (5) years



Benefits

Flexible solutions that facilitate collaboration

  • Take the headache out of integrating new media and technology into the curriculum by consolidating all the technology tools needed on one small platform.
  • No fumbling with cords, cables and connections - just plug TeachWell into a power source and start teaching.
  • Accommodates LCDs, standard CPUs, tablet PCs, portable document cameras/visualisers, DVD players and wireless extenders of choice.

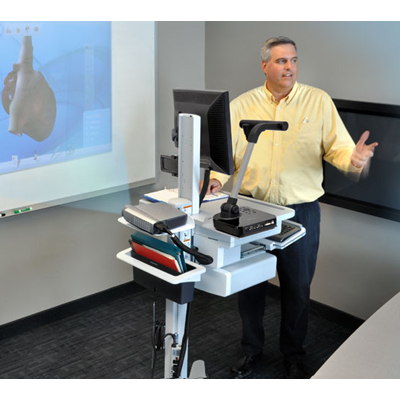

  • Works with on-board projectors or remote displays, projection devices and interactive whiteboards.
  • Allows for one-hand adjustments of the most popular portable document cameras/visualisers.
  • Open architecture platform allows you to truly manage the intersection of IT and AV; cart is scalable for future computer equipment advancements and upgrades.

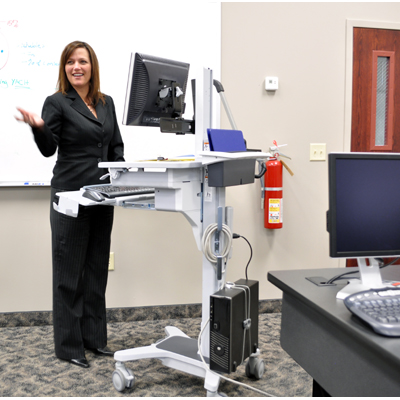

  • Organized technology hub keeps all your teaching materials accessible throughout the class; dual purpose design facilitates the convergence of desk and podium to un-clutter your classroom.
  • Optimizes footprint utilization in the classroom and reduces total infrastructure investment.
  • Eliminate podium, secondary instructor desk and AV cart by organizing and combining them into one efficient and cost-effective hub.

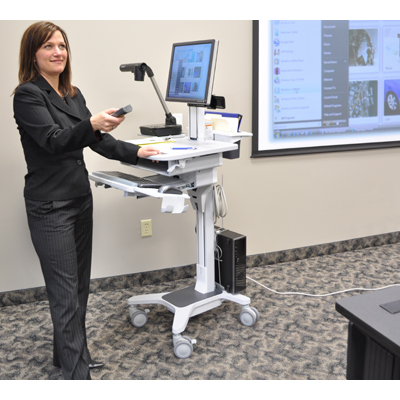

  • More collaboration and more engagement in the classroom: Brings your computer up close for one-on-one discussions, or acts as an adjustable podium for student presentations.
  • Easily moves through aisles, around desks, over thresholds or through small doorways; ideal for collaborative learning and for shared resources across multiple rooms.

Dependable technology

  • Optional locking drawer - a secure stash spot for teaching tools and personal effects.
  • Patented Constant Force technology provides fluid adjustments of keyboard and monitor positions for personalized computing or viewing; work standing or sitting.
  • Safe and neat routing of cables.
  • Durable, easy-to-clean exterior composed of phenolic, high-grade plastic and powder coated painted steel.
  • Four gliding dual casters move smoothly across carpet or flooring; lockable front casters hold unit in place as teaching style requires.

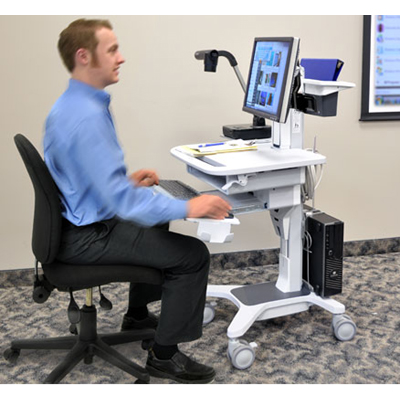

  • Offers sit-stand computing capability with proper computing ergonomics for comfortable instruction throughout the day.
  • Ships fully assembled for quick integration into classroom settings.
  • Designed to meet UL standards.



Literature (Please open the following documents for more technical information)

Dimensional Illustrations - Ergotron 24-203-053 TeachWell LCD Mobile Digital Platform

 - pdf

Installation Manual - Ergotron 24203053 TeachWell Sit-Stand LED Cart

 - pdf

Product Sheet - Teachwell LCD Monitor Mobile Digital Workstation Cart

 - pdf

Camera Compatibility - Teachwell LED Display Mobile Digital Sit Stand Workstation

 - pdf





Ergotron Logo

Hyperlink of all Ergotron products

Model 24-203-053
Manufacturer Ergotron
Part Number 24-203-053
UPC 698833014228
Color Two-tone grey, white
Monitor Size Up to 22"
Weight Capacity 40 lb (16.78 kg). Includes wt of LCD/keyboard in addition to contents of worksurface, open-front compartment, document bin and camera tray; LCD Pivot capacity = 6–14 lb. NOTE: When a Locking Drawer 97-516-053 is added, total wt capacity decreases to 30 lb
Lift (63 cm) 25 in
Tilt 30 degree
Rotation 360 degree
VESA MIS-D
Weight Requirement 6 to 30 lbs (2.7 to 13.6 kg) CPU required to be mounted in CPU holder on rear of cart
CPU Dimension CPU Holder accommodates CPUs from 12"H x 3"D to 18"H x 8.5"D (30 x 8 cm to 46 x 22 cm)
Open Front Compartment Interior dimensions = 17"W x 3.25"H x 13"D (43 x 8 x 33 cm)
Worksurface Dimensions 23"W x 20"D (58 x 51 cm)
Compact Wheel to Wheel Base Dimensions 17"W x 20.5"D (43 x 52 cm)
Shipping Dimensions 54.75"H x 26"W x 32.1"D (139 x 66 x 81 cm)
Shipping Weight 105 lbs (48 kg)
Warranty Five (5) years
